Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

27 part groups · 9 illustrations

Illustrations

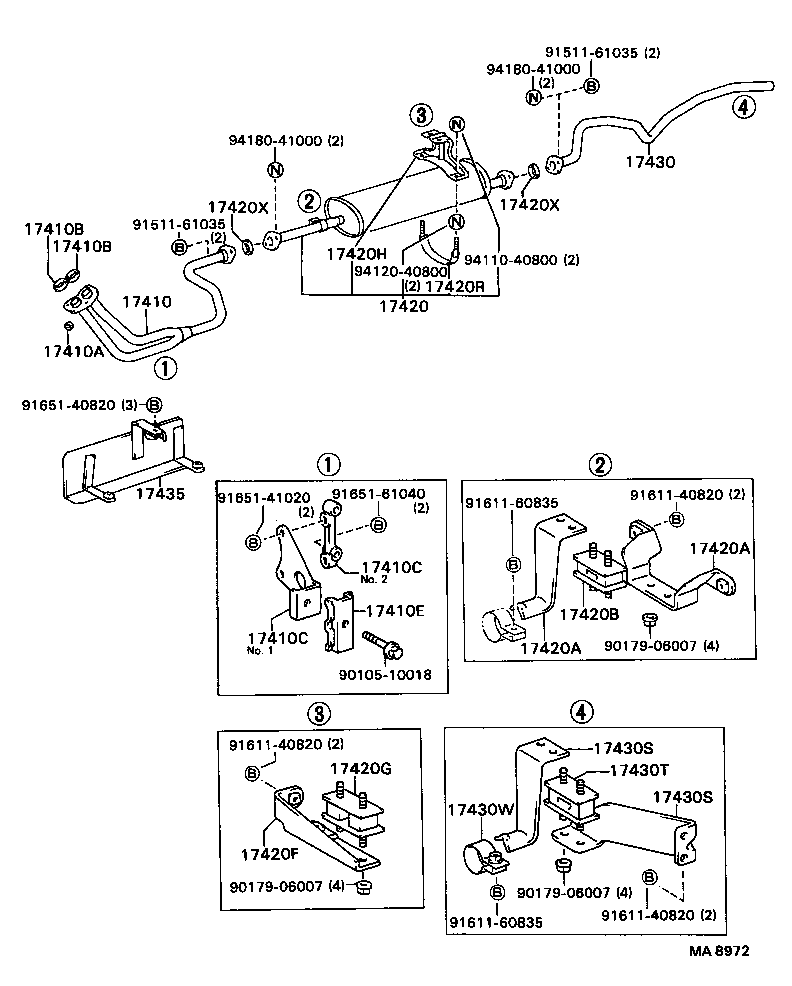

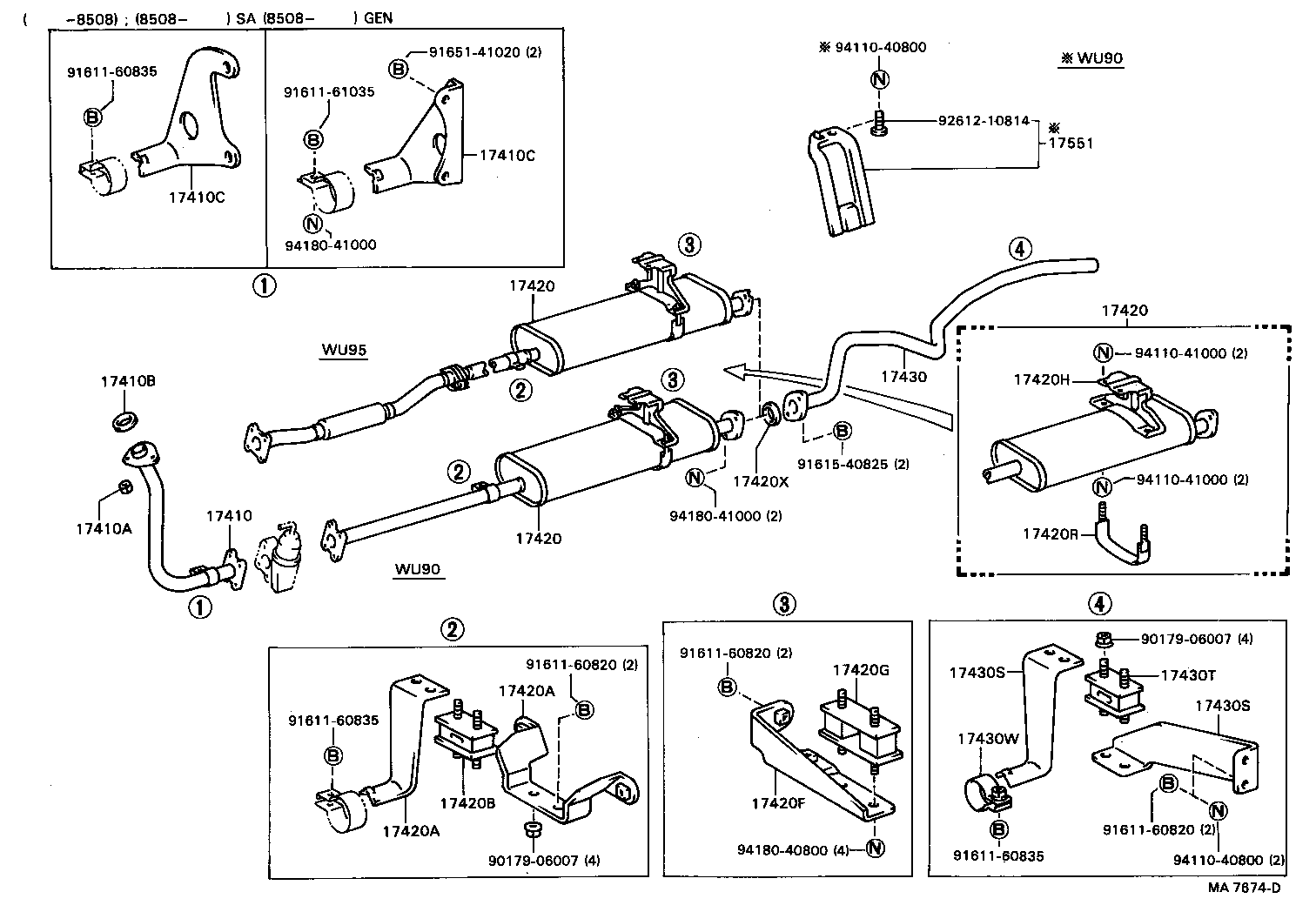

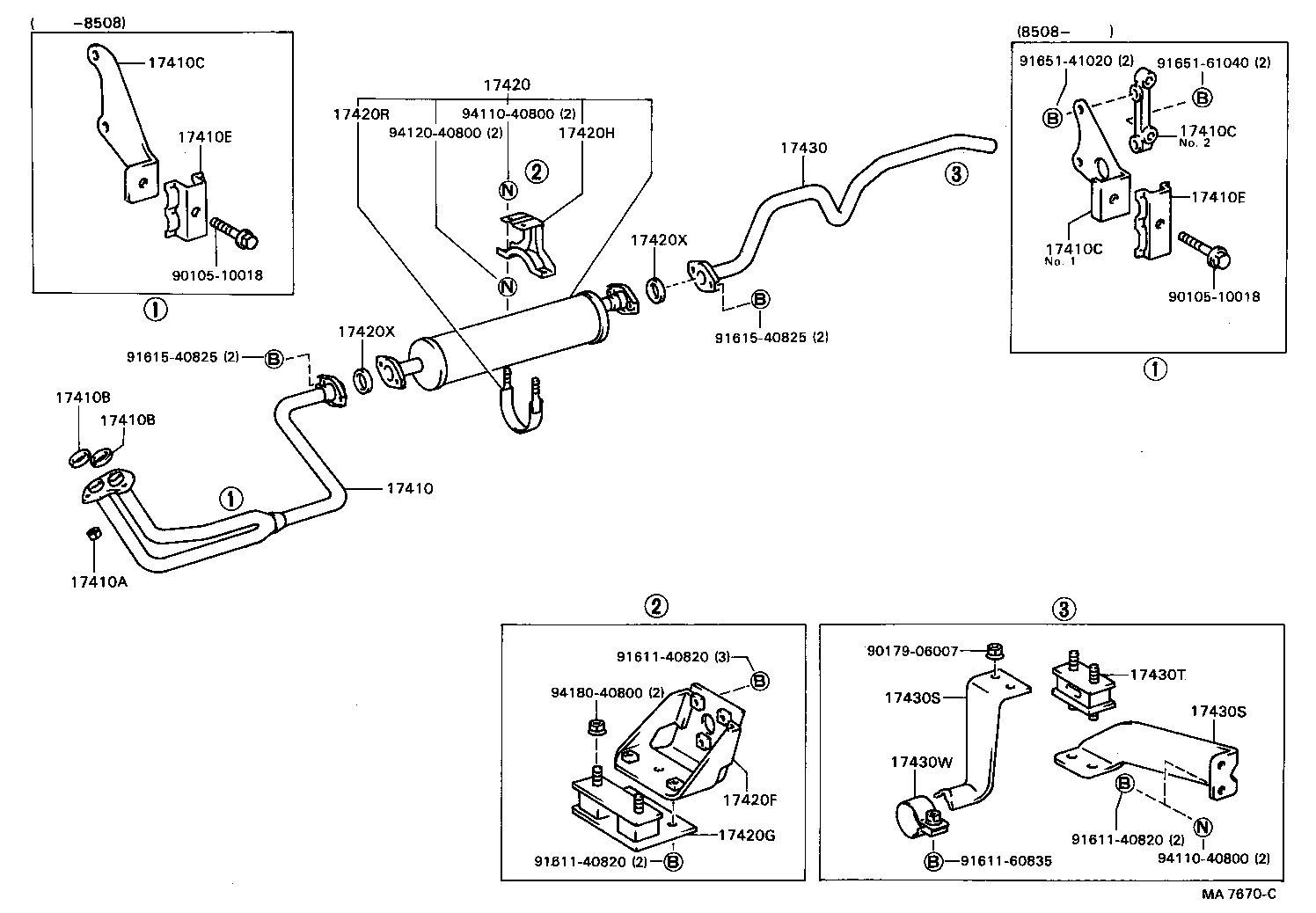

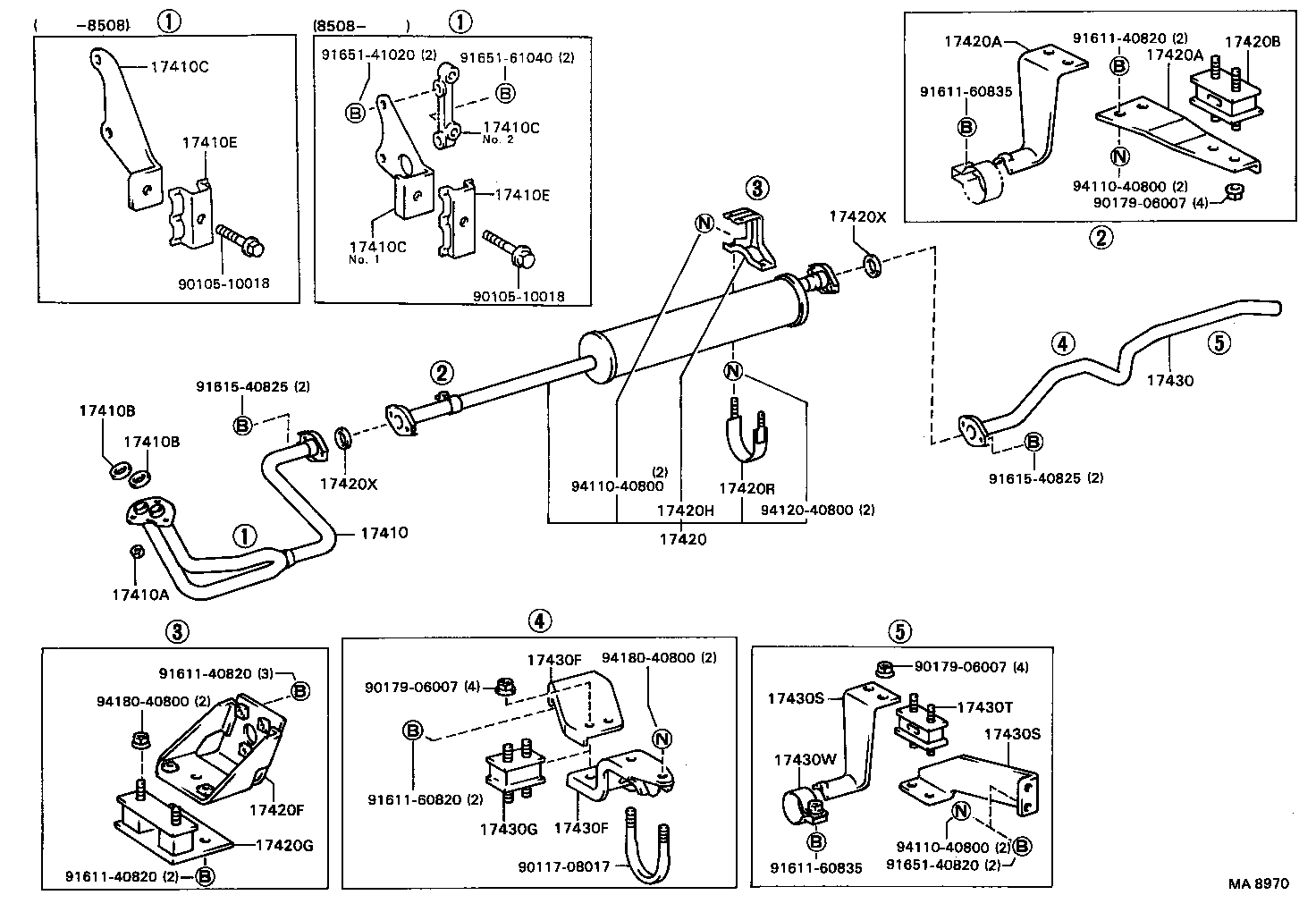

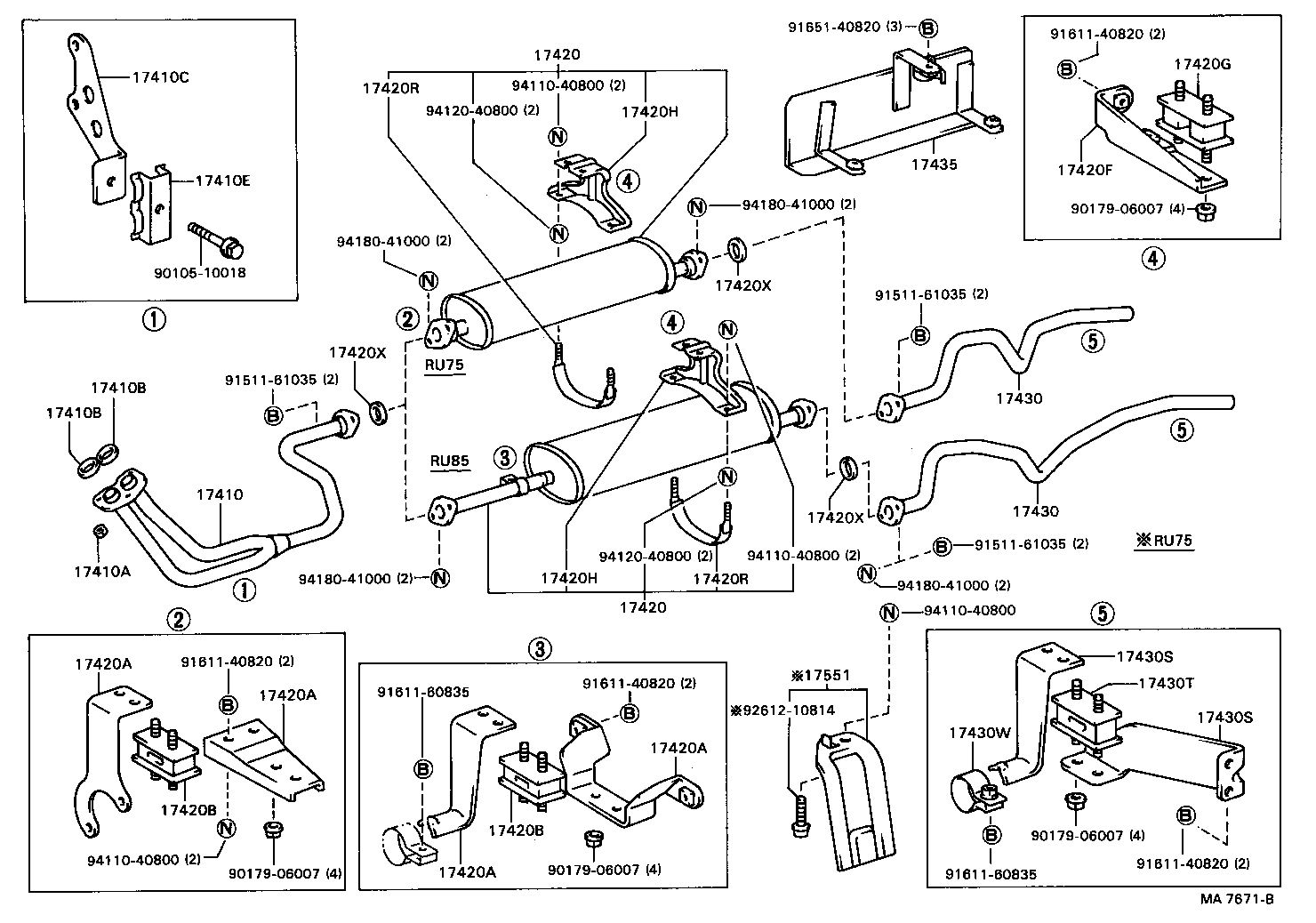

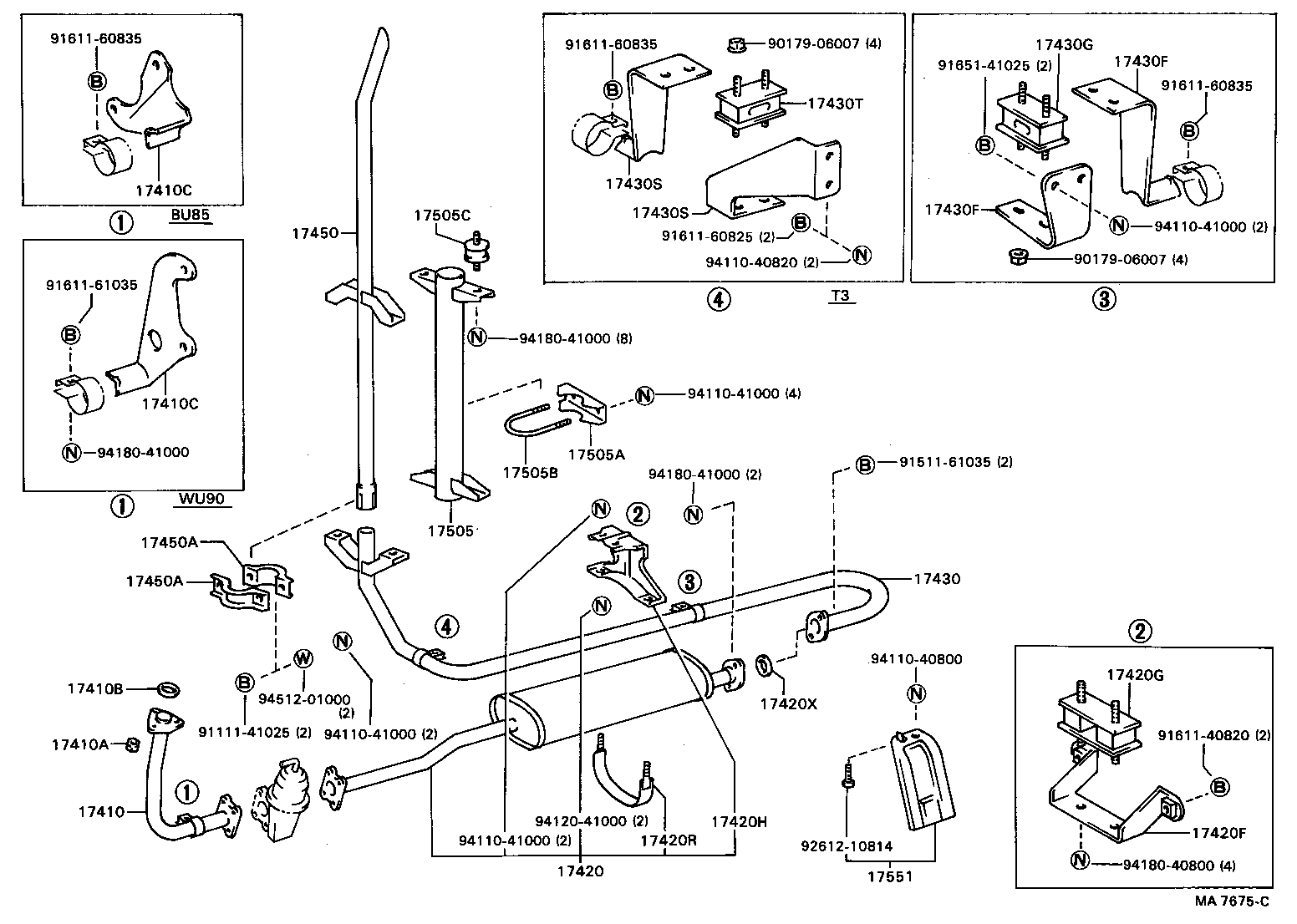

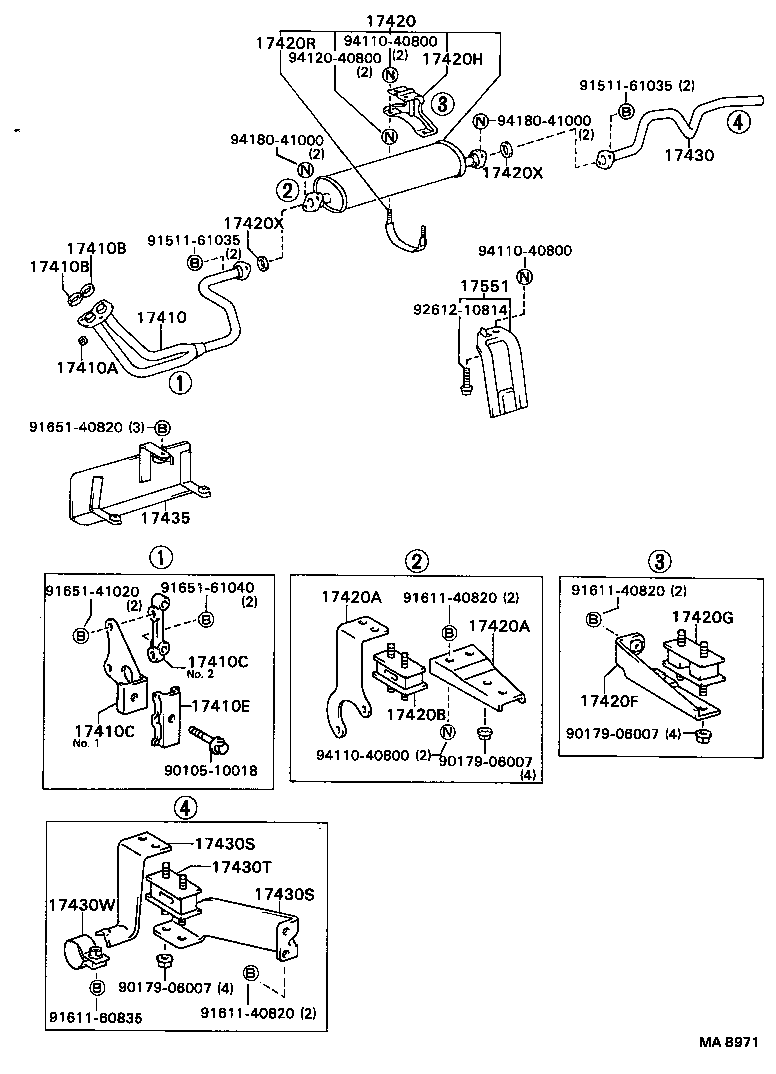

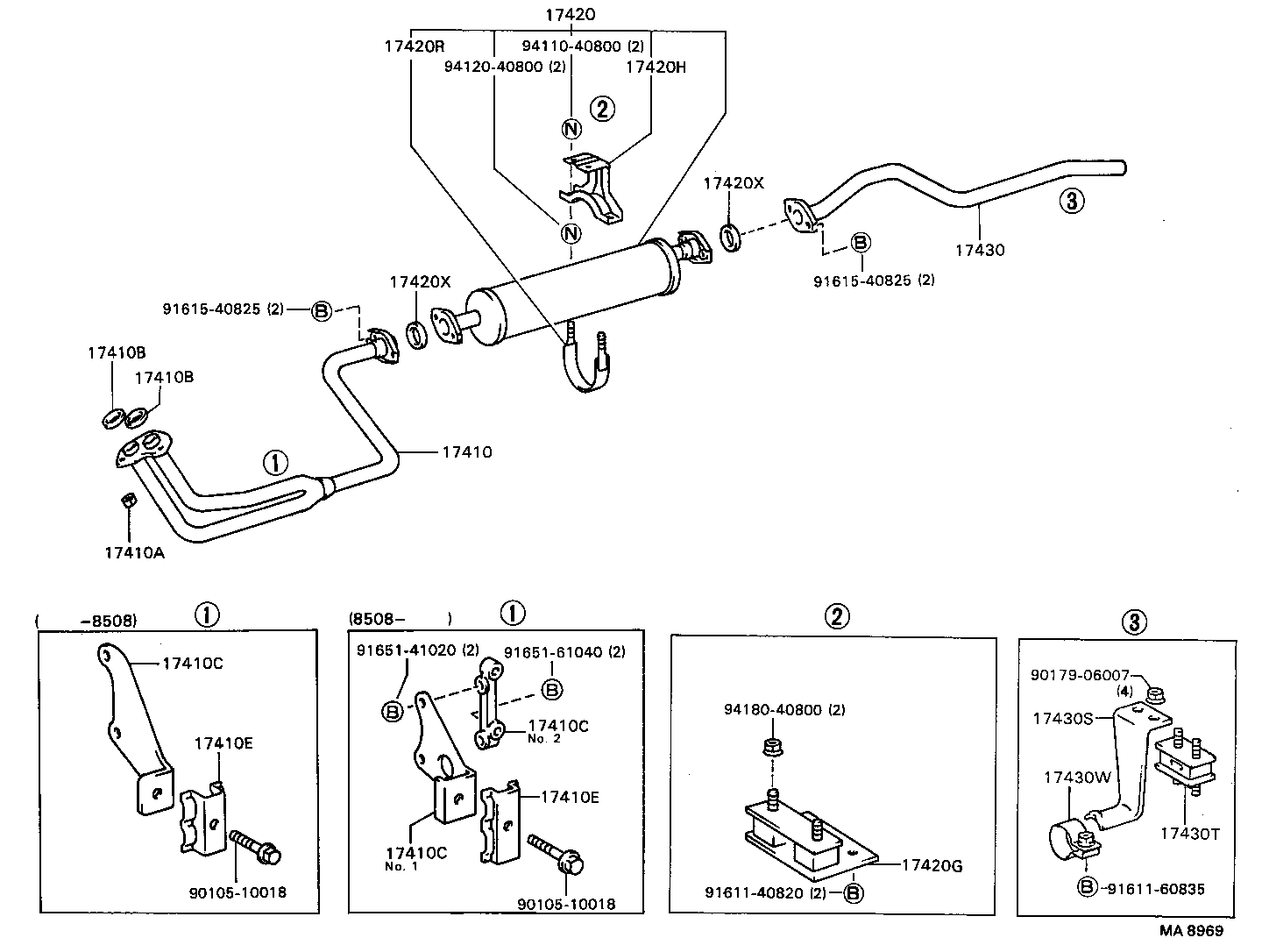

Figure MA7669D MA7669D 1984-09 → — Figure MA7670C MA7670C 1984-09 → — Figure MA8969 MA8969 1984-09 → — Figure MA8970 MA8970 1984-09 → — Figure MA7671B MA7671B 1984-09 → 1985-08 Figure MA8971 MA8971 1985-08 → — Figure MA8972 MA8972 1985-08 → — Figure MA7674D MA7674D 1984-09 → — Figure MA7675C MA7675C 1984-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420B Cushion, Exhaust Pipe Center, Front
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17435 Insulator, Exhaust Pipe Heat
17450 Pipe Assy, Exhaust, NO.5
17450A Clamp, Exhaust Pipe, NO.5
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505A Clamp, Exhaust Pipe(FOR HEAT INSULATOR)
17505B Bolt, U(FOR HEAT INSULATOR CLAMP)
17505C Cushion, Exhaust Pipe(FOR HEAT INSULATOR)
17551 Insulator, Exhaust Pipe Heat, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
