Toyota Dyna

1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · General

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

26 part groups · 4 illustrations

Illustrations

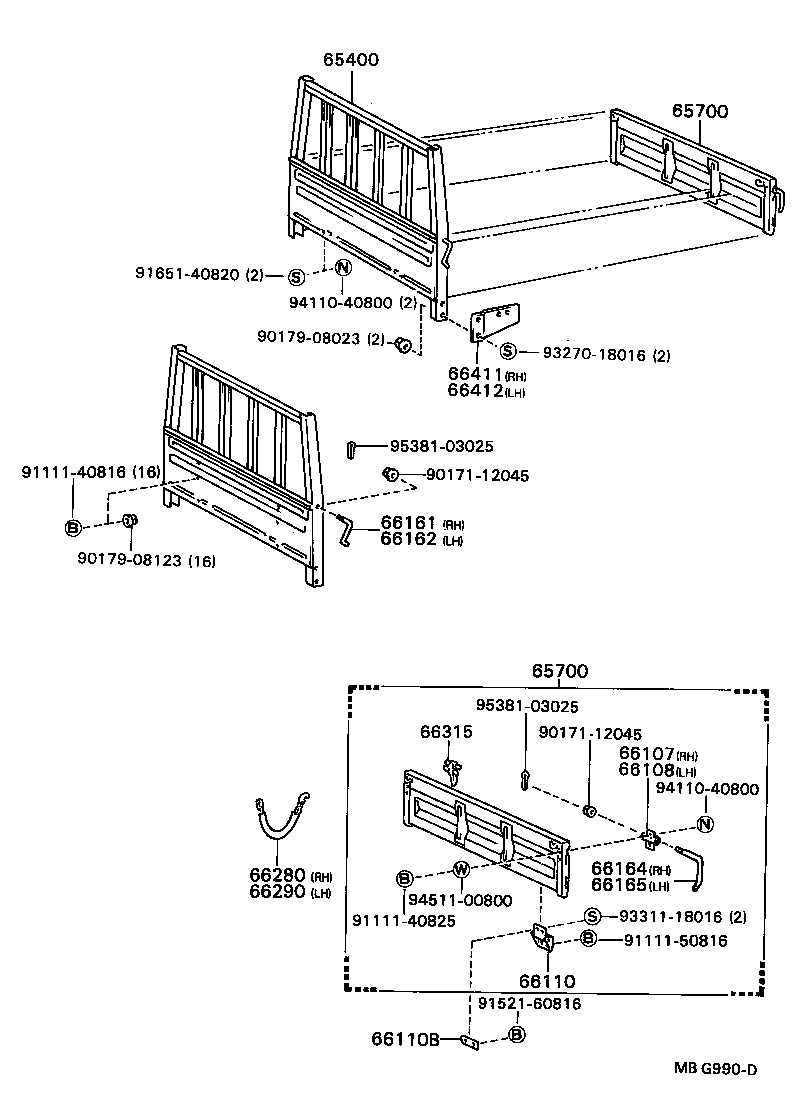

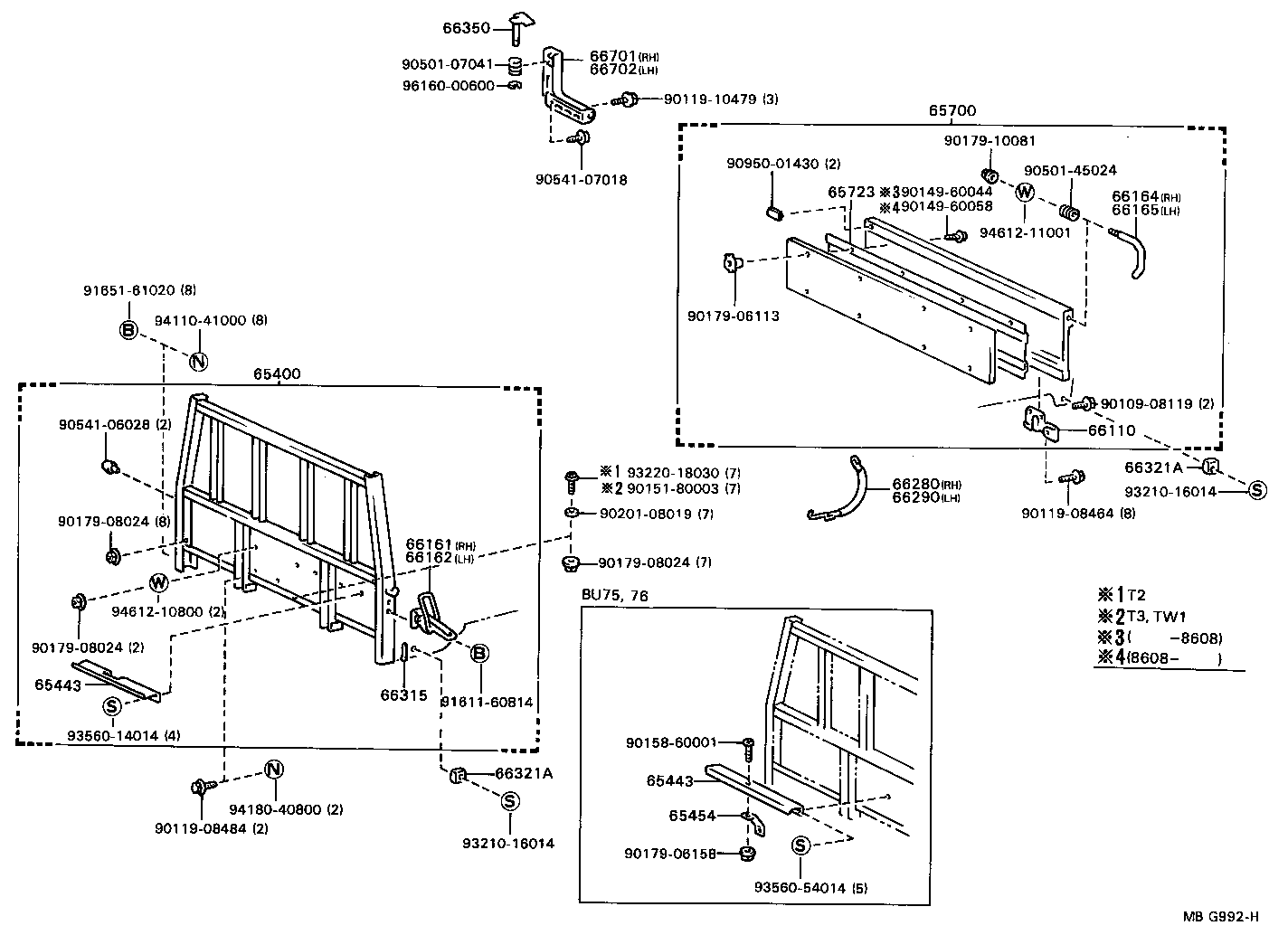

Figure MBK097 MBK097 1984-09 → — Figure MBG990D MBG990D 1984-09 → — Figure MBG992H MBG992H 1984-09 → — Figure MBG993 MBG993 1984-09 → —

Part groups

PNCDescription
65400 Frame Assy, Rear Body Guard
65443 Plate, Baffle Dust Rear Body
65454 Stay, Baffle Dust
65700 Gate Assy, Rear Body Tail
65723 Panel, Tail Gate
66107 Bracket Sub-assy, Tail Gate, RH
66108 Bracket Sub-assy, Tail Gate, LH
66110 Hinge Assy, Tail Gate
66110B Retainer, Tail Gate Hinge, Lower
66121A Bolt, Tail Gate Male
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66218 Bracket, Tail Gate Latch Pin
66280 Chain Assy, Tail Gate, RH
66290 Chain Assy, Tail Gate, LH
66315 Hook, Rope
66321A Bumper, Gate Rubber
66350 Handle Assy, Support Corner
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
66701 Support Sub-assy, Side Gate, RH
66702 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
