Toyota Dyna
1984-09 → 1987-08 · chassis RU75,85,YU6#,7#,8#,WU9# · catalogue 752230 · General
Discontinued model
Data version 1988-01

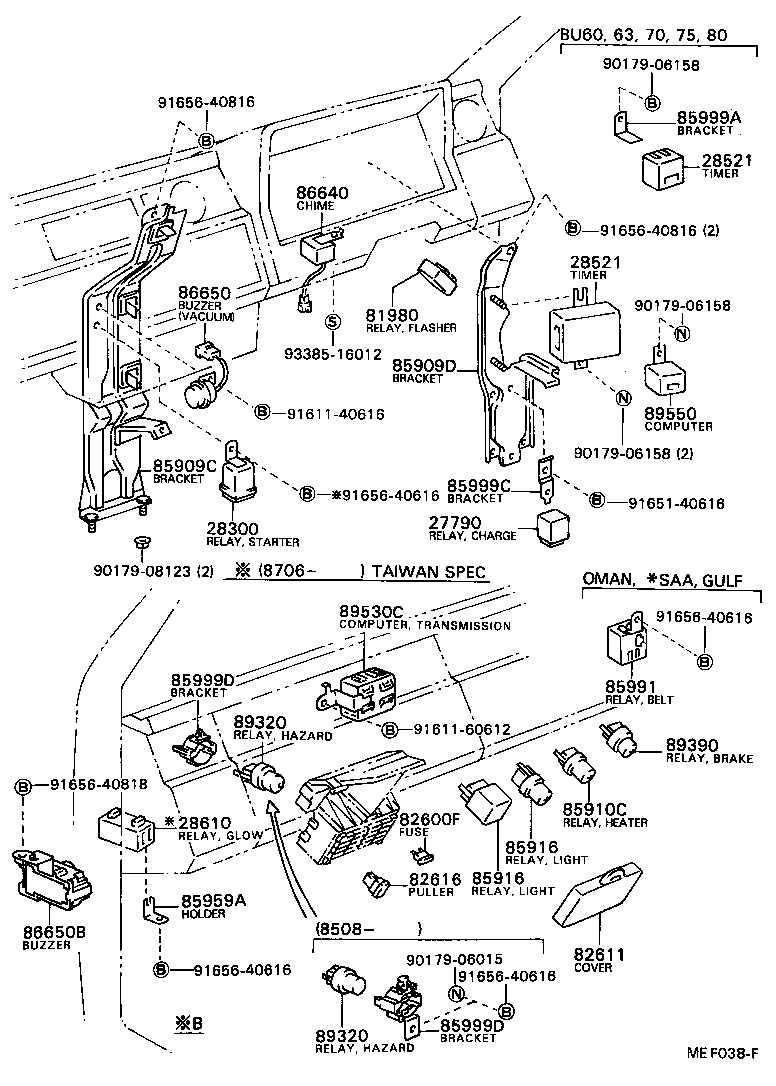

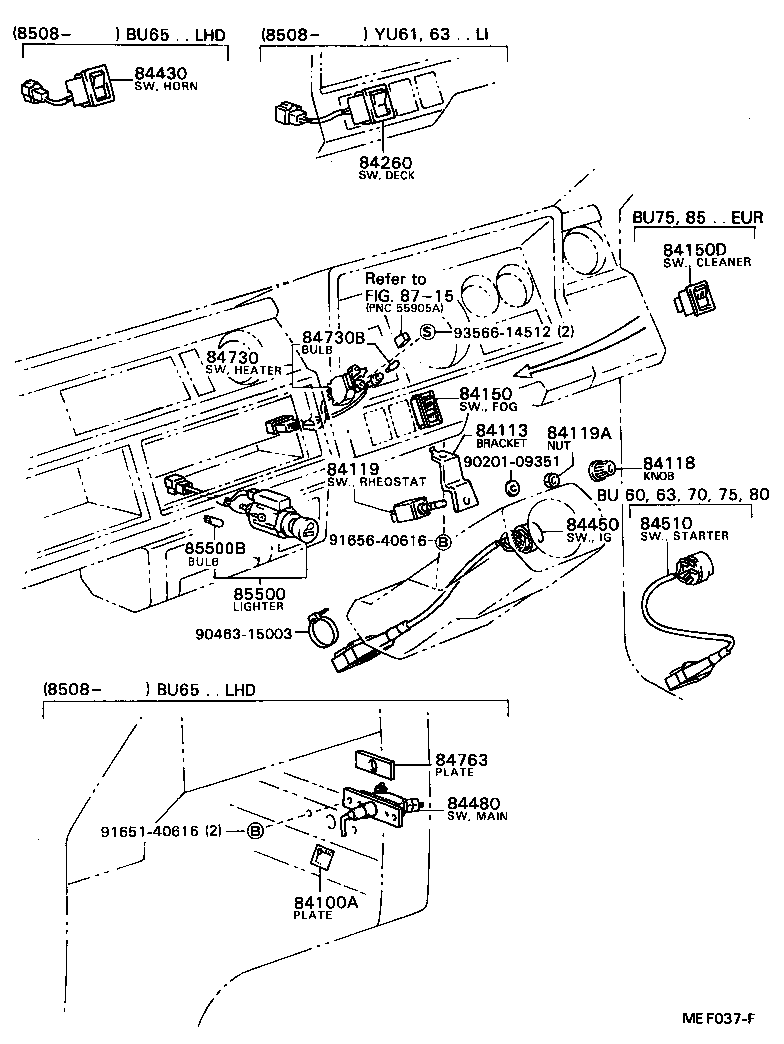

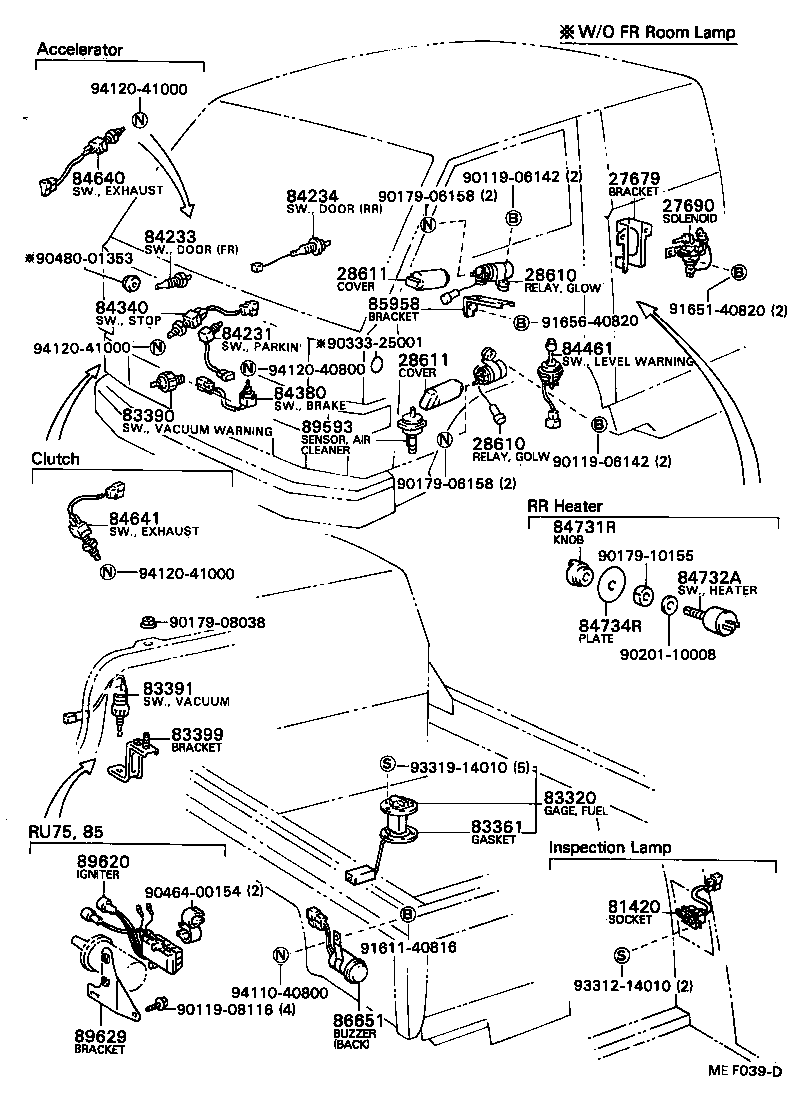

Switch & Relay & Computer
68 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 27690 | Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE) |
| 27790 | Relay Assy, Charge Lamp |
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 81420 | Socket Sub-assy, Inspection Lamp, NO.2 |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84100A | Plate, Switch Caution |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84113 | Bracket, Light Control Rheostat |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150 | Switch Assy, Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |

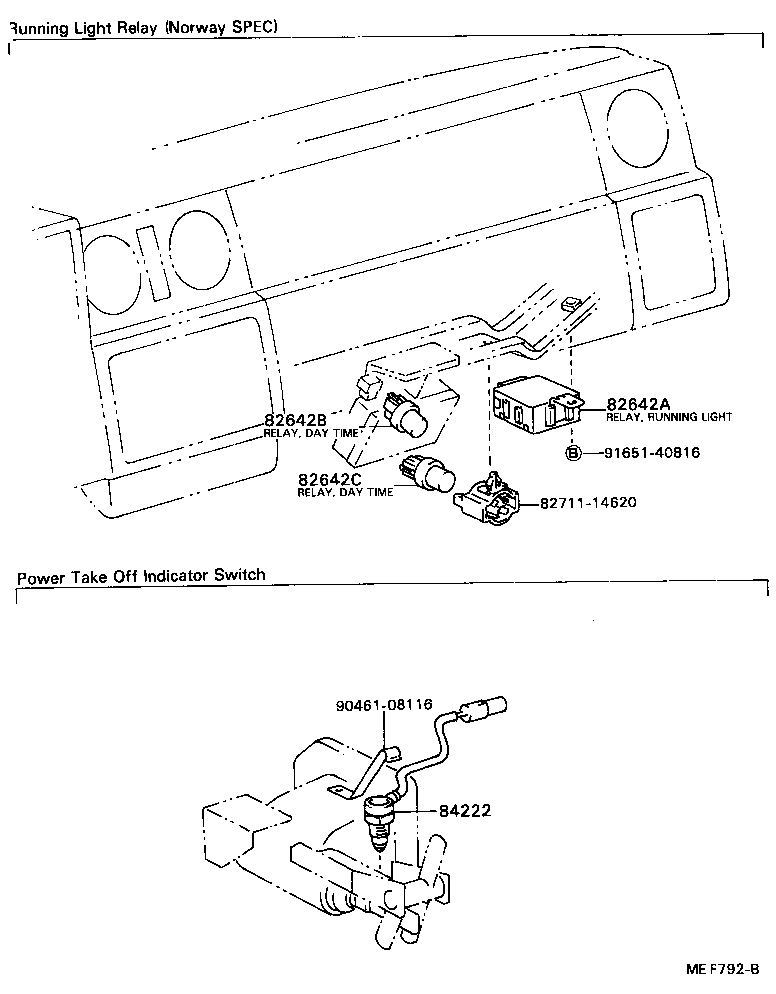

| 84222 | Switch, Transfer Indicator, NO.1 |
| 84231 | Switch Assy, Courtesy Lamp (FOR PARKING BRAKE) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84260 | Switch Assy, Deck Lamp |

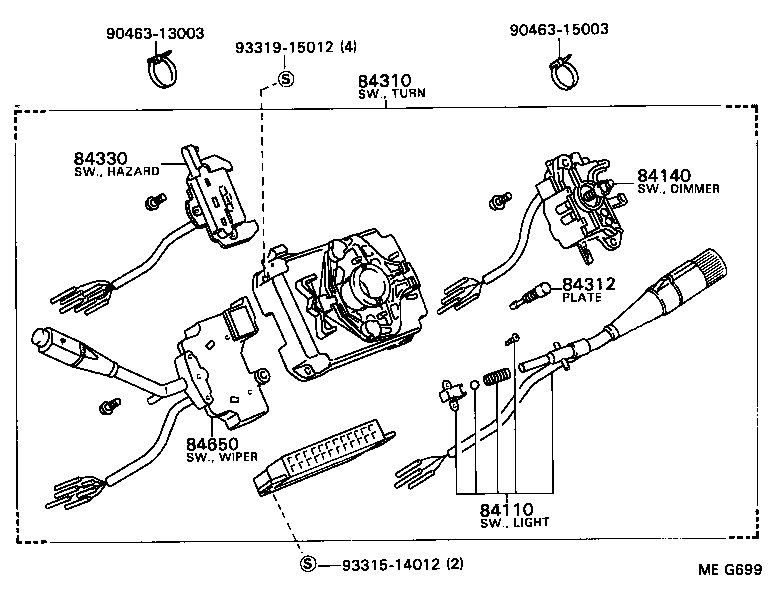

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540C | Switch Assy, Neutral (FOR EXHAUST BRAKE) |
| 84640 | Switch Assy, Exhaust Brake |
| 84641 | Switch, Exhaust Brake, NO.1 |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84731R | Knob, Rear Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84734R | Plate, Rear Heater Blower Switch Caution |
| 84763 | Plate, Switch |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85909C | Bracket Sub-assy, Relay, NO.1 |
| 85909D | Bracket Sub-assy, Relay, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85991 | Relay, Seat Belt Warning |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 86640 | Chime Assy |
| 86650 | Buzzer Assy, Vacuum Indicator |
| 86650B | Buzzer Assy, Reverse Warning |
| 86651 | Buzzer Assy, Back |
| 89320 | Relay Assy, Hazard Warning |
| 89390 | Relay, Brake Warning |
| 89550 | Computer Assy, Emission Control |
| 89593 | Sensor, Air Cleaner Warning |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
