Toyota Dyna 200
1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General
Discontinued model
Data version 1988-08

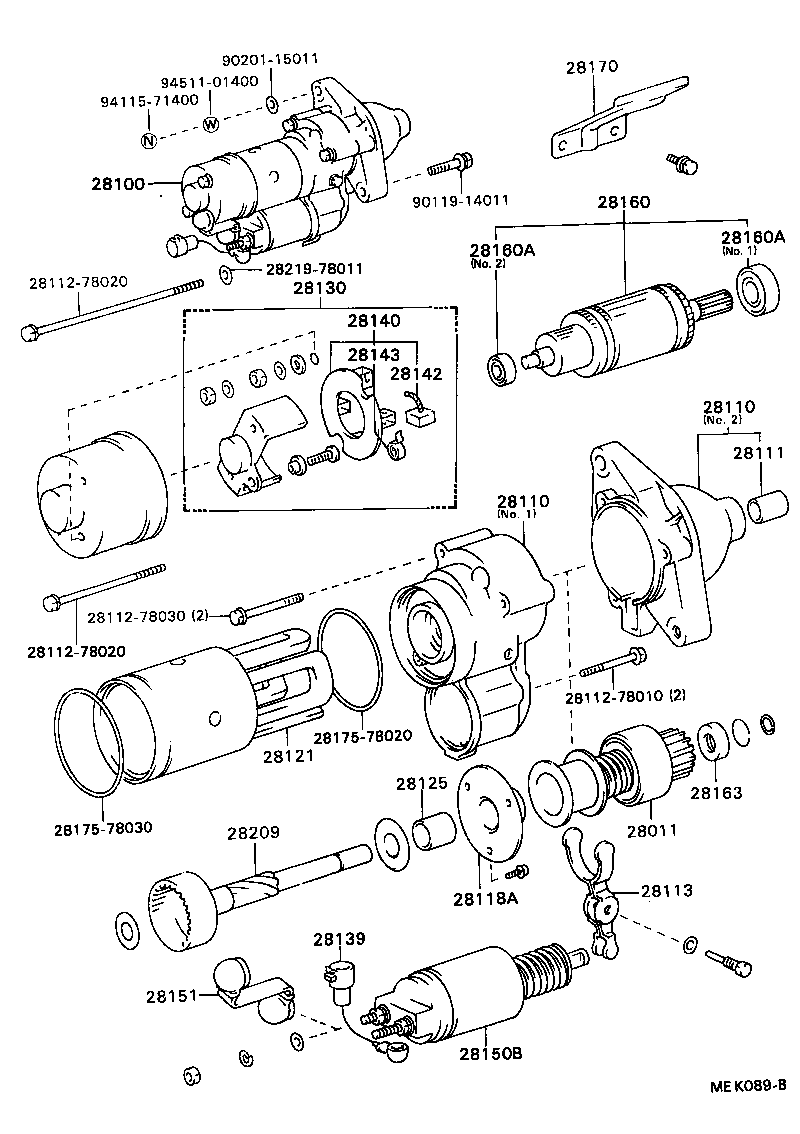

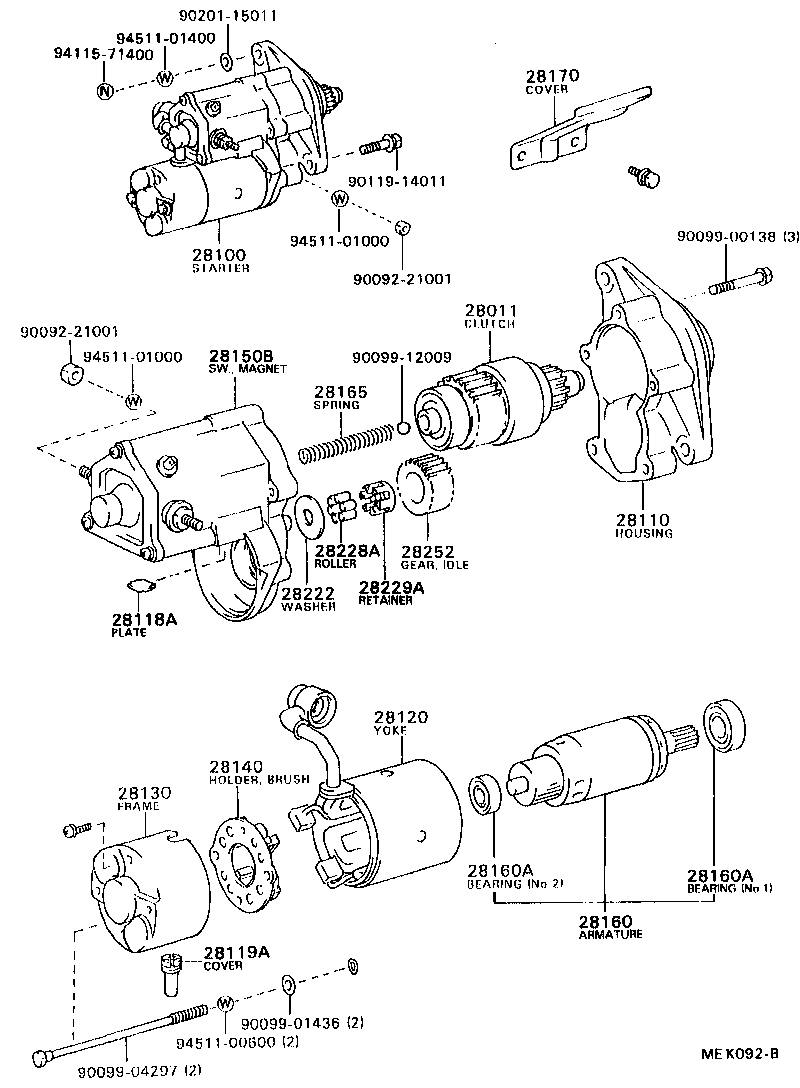

Starter
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28111 | Bush(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28118A | Plate(FOR STARTER YOKE) |
| 28119A | Cover, Starter End Frame |
| 28120 | Yoke Assy, Starter |
| 28121 | Coil, Starter Field |
| 28125 | Bush, Starter Center Bearing |
| 28130 | Frame Assy, Starter Commutator End |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28150B | Switch Assy, Magnetic |
| 28151 | Plate, Lead, Switch Connecting |
| 28159 | Cover, Starter Protector |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28165 | Spring, Starter Magnet Switch Return |
| 28170 | Cover Assy, Starter |
| 28209 | Shaft Sub-assy, Starter |
| 28222 | Washer, Starter Idle Gear Clutch |
| 28228A | Roller, Starter Clutch |
| 28229A | Retainer, Starter Idle Gear |
| 28252 | Gear, Starter Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
