Toyota Dyna 200

1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

25 part groups · 7 illustrations

Illustrations

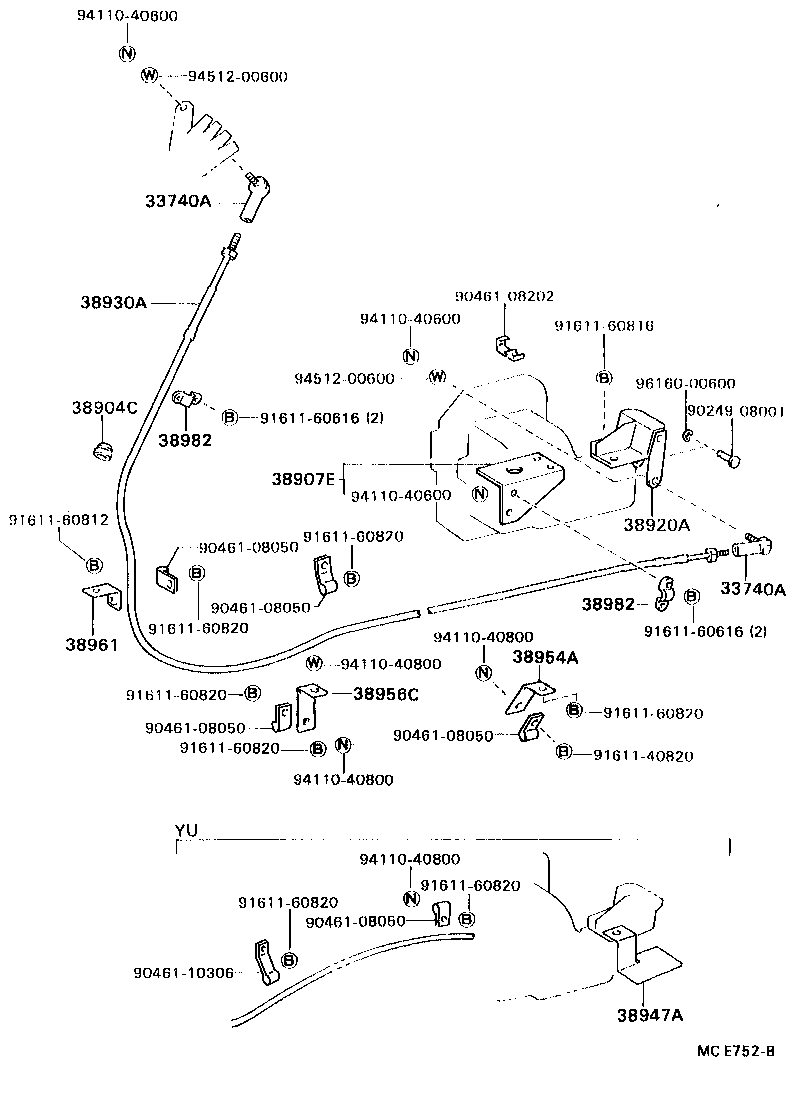

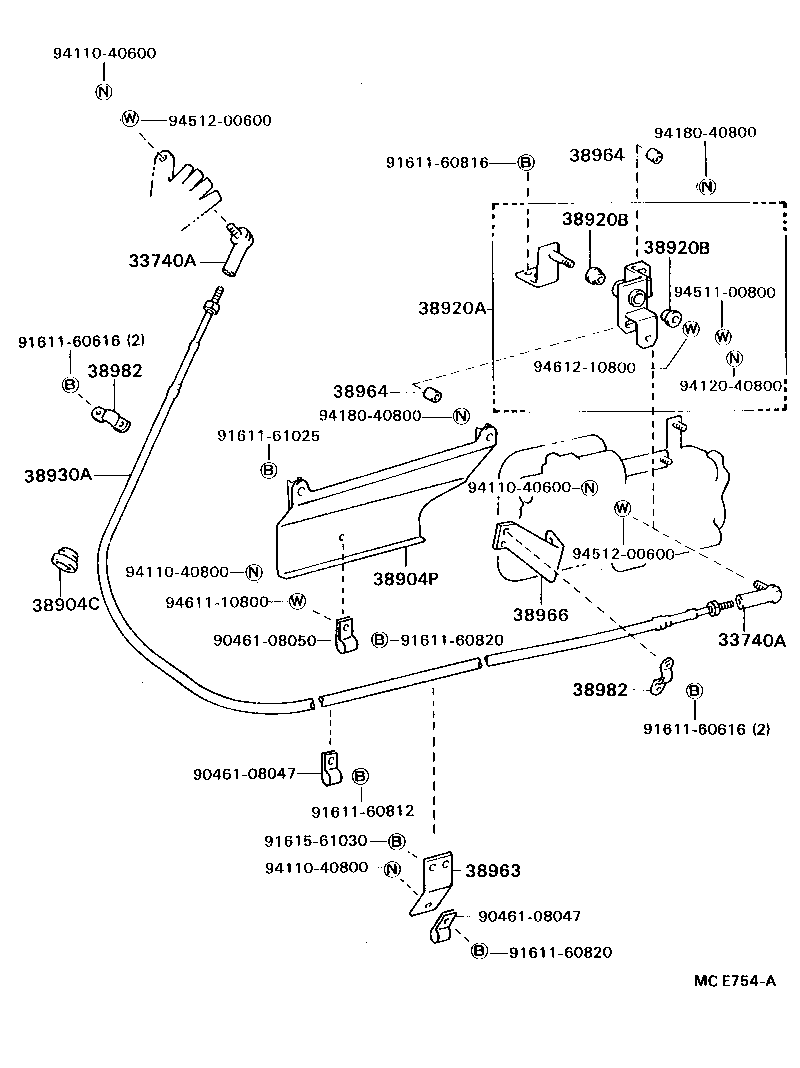

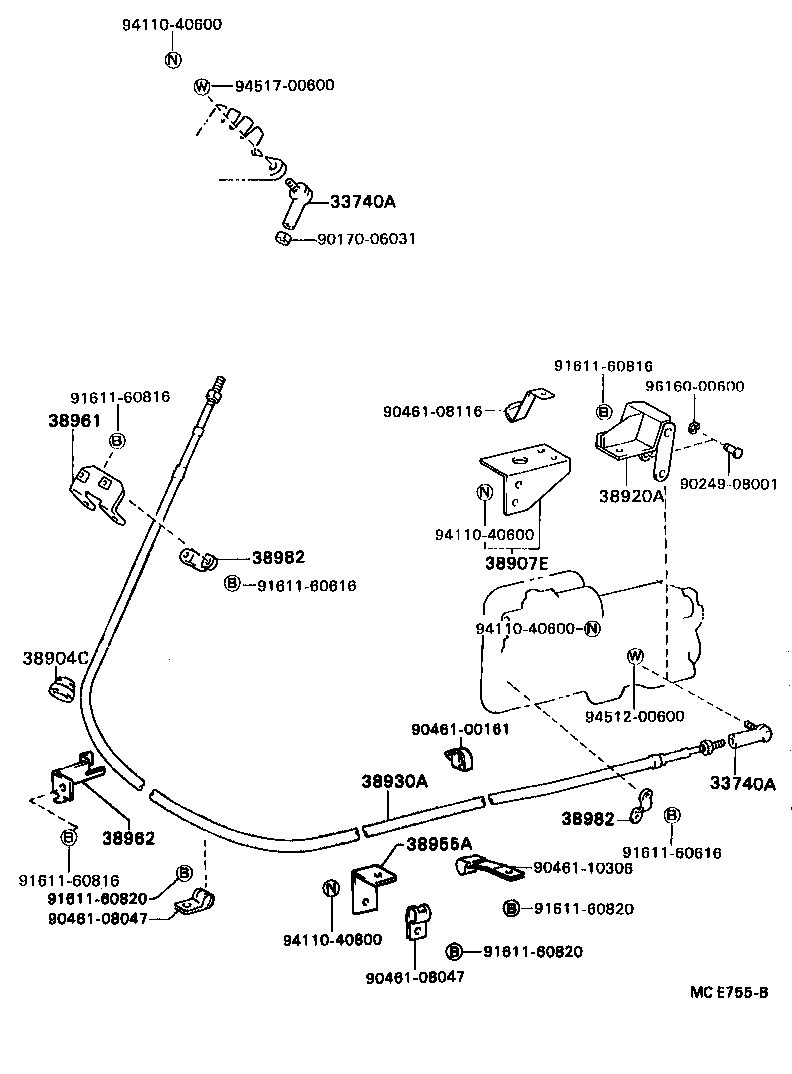

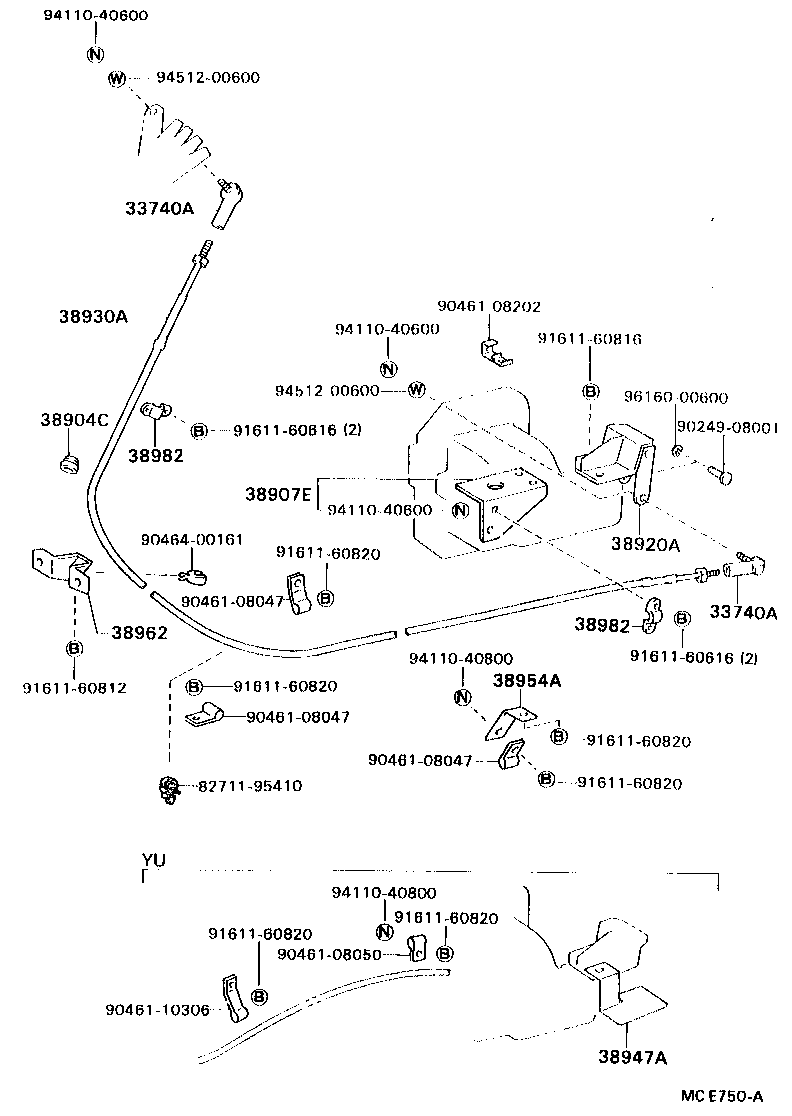

Figure MCE658A MCE658A 1987-08 → — Figure MCE750A MCE750A 1987-08 → — Figure MCE752B MCE752B 1987-08 → — Figure MCE754A MCE754A 1987-08 → — Figure MCE755B MCE755B 1987-08 → — Figure MCE756 MCE756 1987-08 → — Figure MCE757C MCE757C 1987-08 → —

Part groups

PNCDescription
33740A End Assy, Push-pull Control Cable
38901D Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38903A Bracket Sub-assy, Valve Control Lever Lock
38904C Grommet, Push Pull Cable
38904P Insulator Sub-assy, Control Cable
38907E Stay Sub-assy, Power Teke-off Control
38908A Knob Sub-assy, Control Lever
38920A Lever Assy, Power Take-off Control, NO.1
38920B Bush (FOR POWER TAKE-OFF CONTROL LEVER)
38923A Protector, Power Take-off Control
38930A Cable Assy, Push Pull
38946A Knob, Valve Lock Lever
38947A Insulator, Control Cable
38954A Bracket, Control Cable, NO.4
38955A Bracket, Control Cable, NO.5
38956C Bracket, Control Cable, NO.6
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38963 Bracket, Cable Clamp, NO.3
38964 Collar, Control Lever
38966 Bracket, Cable Clamp, NO.6
38974 Shaft, Power Take-off Control Arm
38982 Clamp, Push Pull Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
