Toyota Dyna 200
1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General
Discontinued model
Data version 1988-08

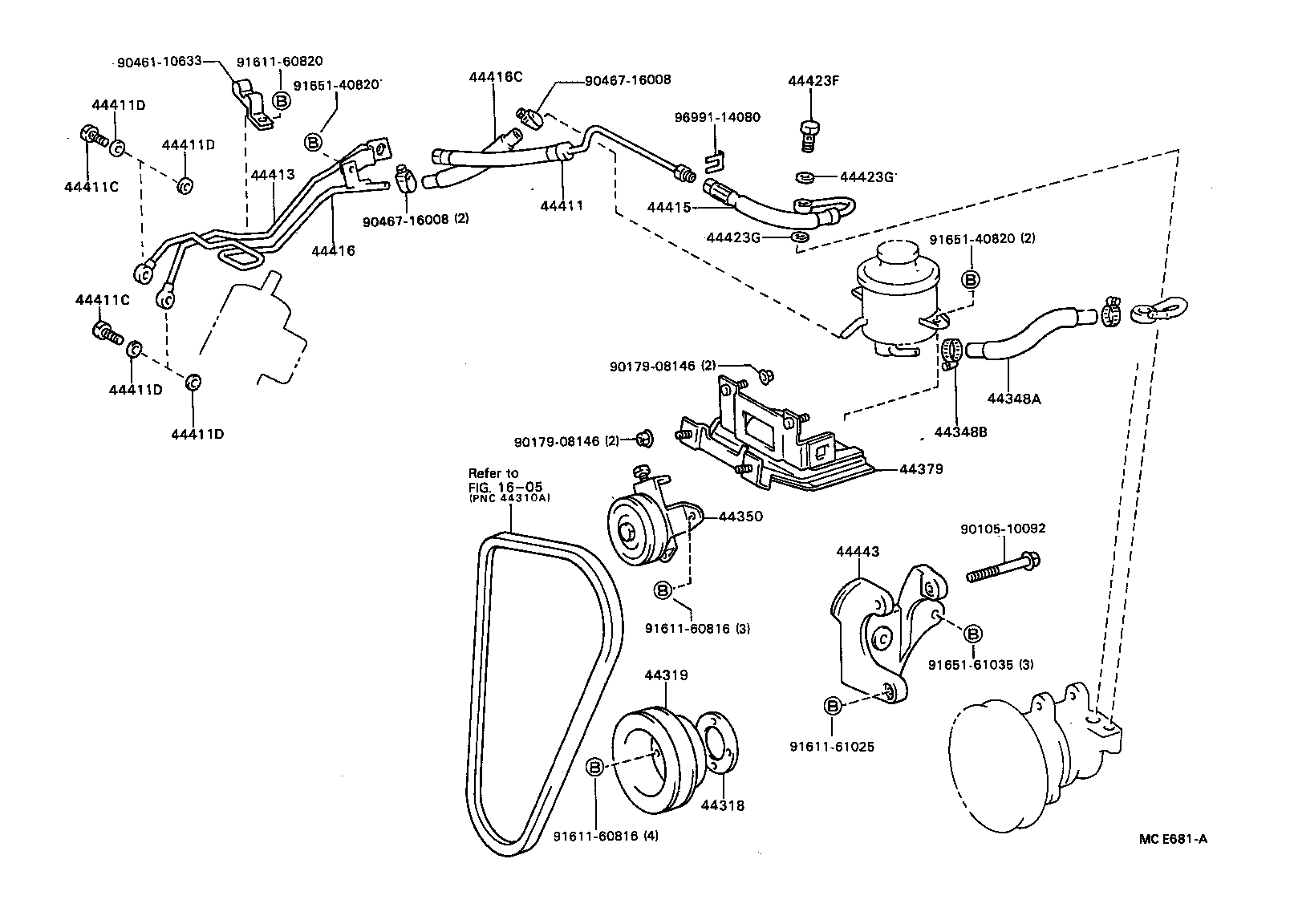

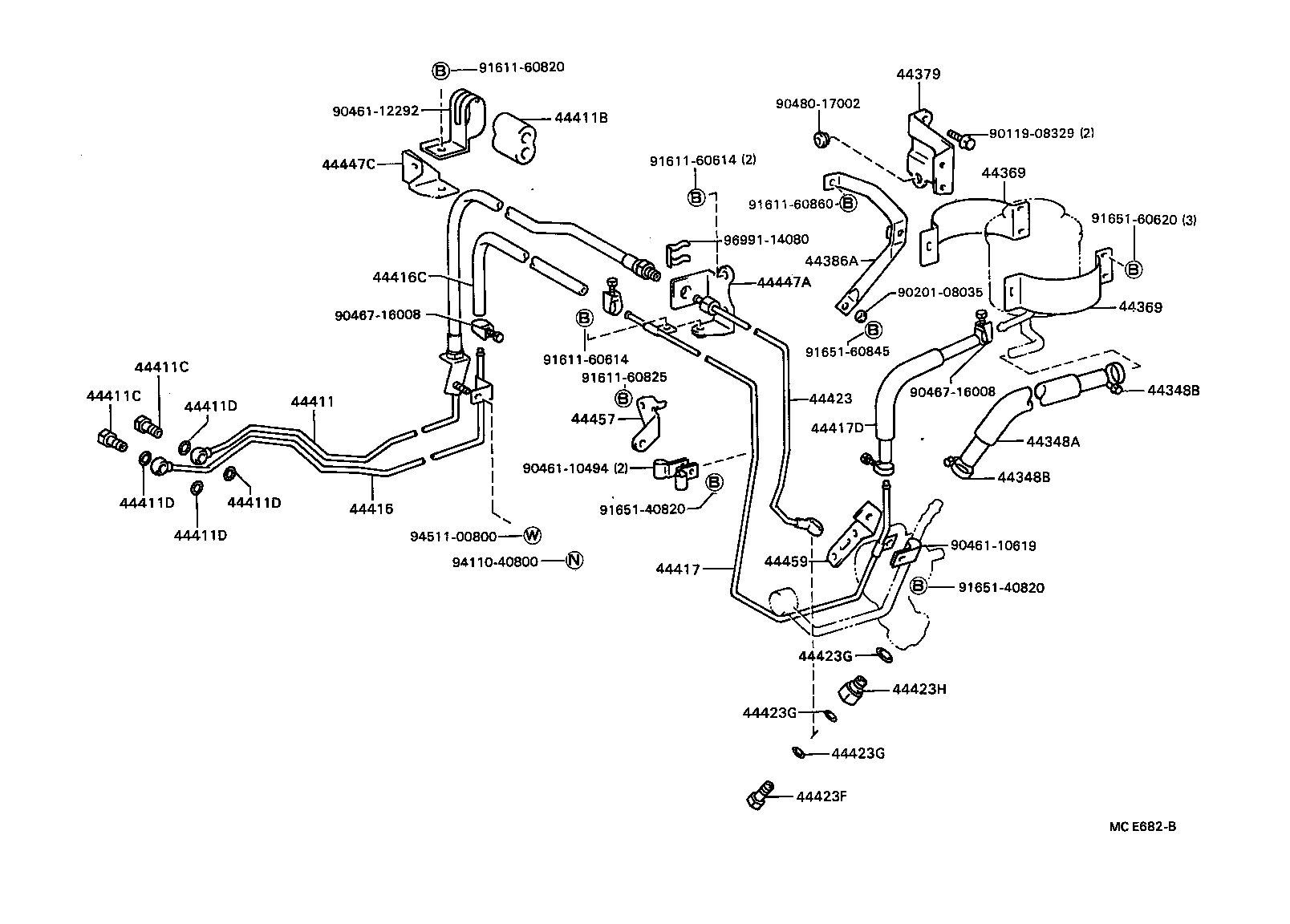

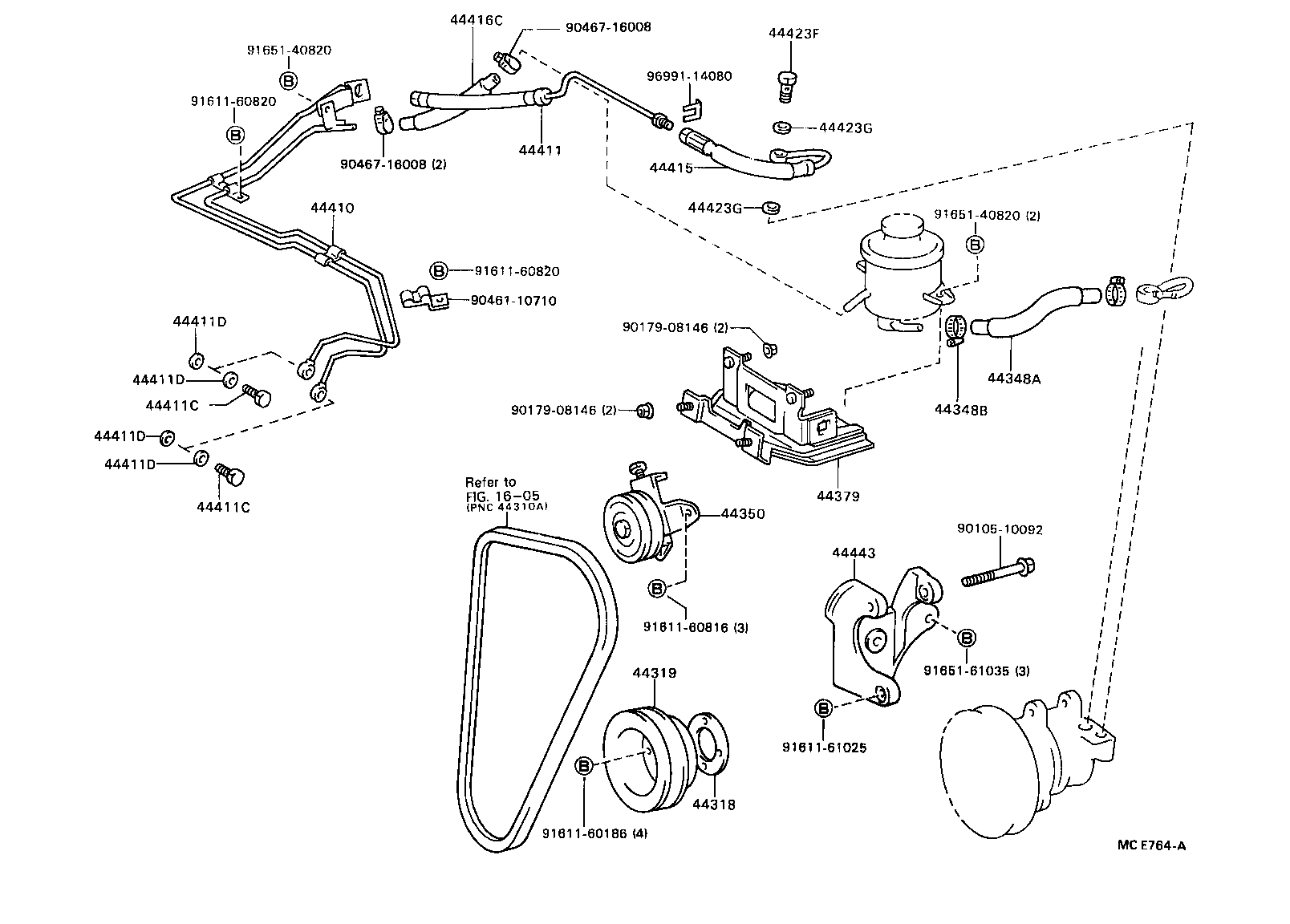

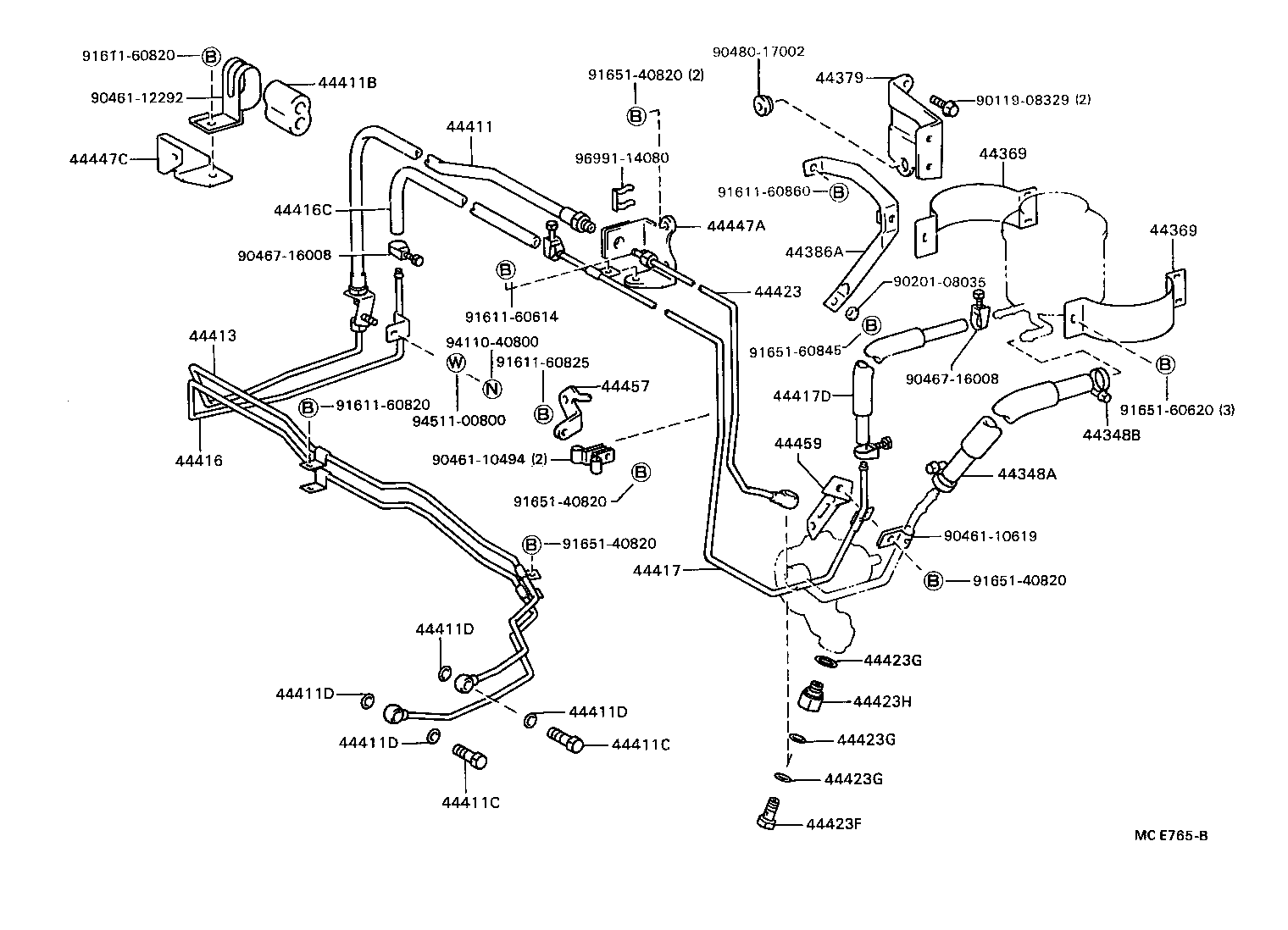

Power Steering Tube
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44350 | Pulley Assy, Power Steering Idle |
| 44369 | Bracket, Oil Reservoir, NO.1 |
| 44379 | Bracket, Oil Reservoir, NO.2 |
| 44386A | Support, Oil Reservoir |
| 44387 | Support, Oil Reservoir, NO.2 |
| 44410 | Tube Assy, Pressure Feed |
| 44411 | Hose, Pressure Feed |
| 44411B | Cushion(FOR PRESSURE FEED HOSE) |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44411D | Gasket(FOR PRESSURE FEED HOSE) |
| 44413 | Tube, Pressure Feed, NO.1 |
| 44415 | Hose, Pressure Feed, NO.2 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44416C | Hose(FOR RETURN TUBE TO RESERVIOR) |
| 44417 | Tube, Return, NO.2 |
| 44417D | Hose(FOR RETURN TUBE TO RESERVOIR) |
| 44423 | Tube, Oil Pump TO Gear Box |
| 44423F | Bolt, Union |
| 44423G | Gasket, Union Bolt |
| 44423H | Nut, Union |
| 44441 | Bracket, Pump, Front |
| 44442 | Bracket, Pump, Rear |
| 44443 | Bracket, Pump |
| 44447A | Bracket, Hose Support, NO.1 |
| 44447C | Bracket, Hose Support NO.2 |
| 44448B | Bracket, Hose Support, NO.2 |
| 44459 | Bracket, Tube Support, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
