Toyota Dyna 200

1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

26 part groups · 3 illustrations

Illustrations

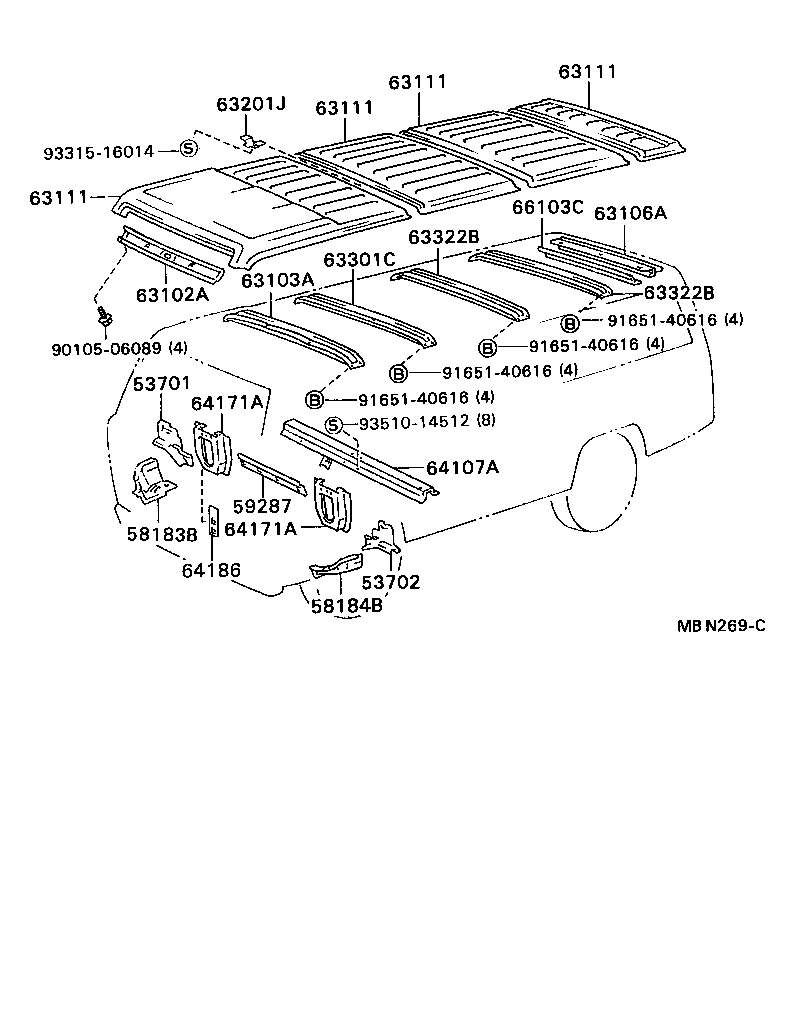

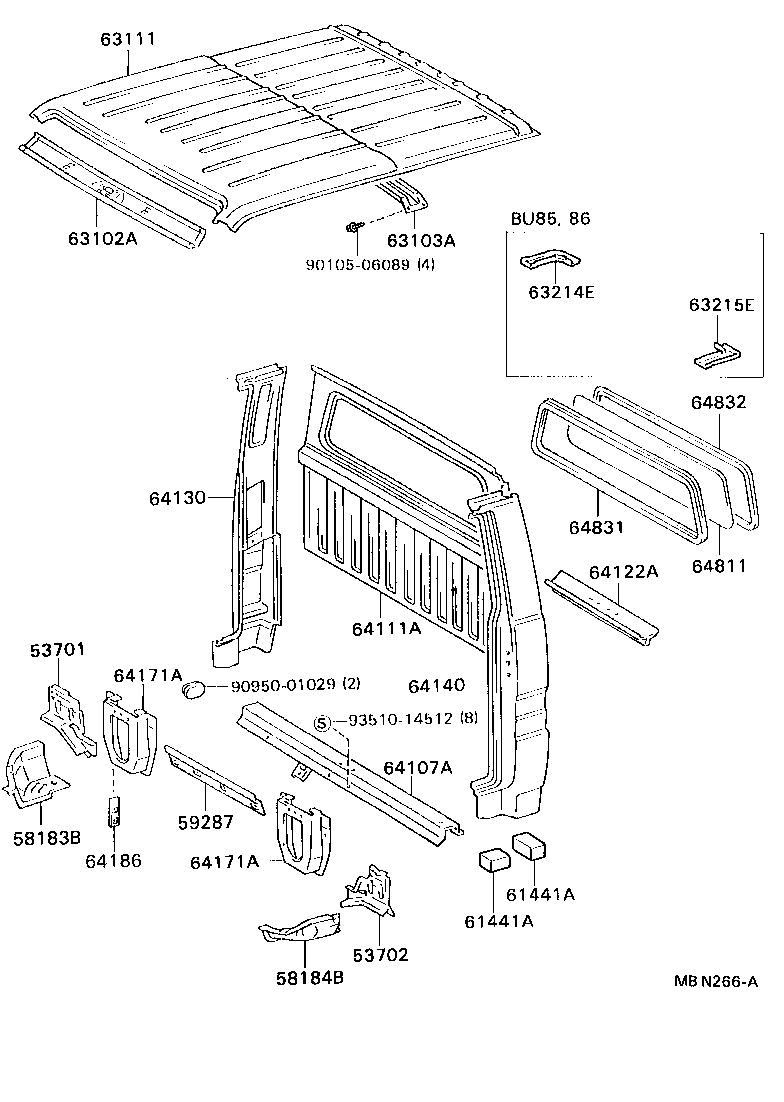

Figure MBN263B MBN263B 1987-08 → — Figure MBN266A MBN266A 1987-08 → — Figure MBN269C MBN269C 1987-08 → —

Part groups

PNCDescription
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
58183B Reinforcement, Rear Mounting, RH
58184B Reinforcement, Rear Mounting, LH
58297F Reinforcement, Seat Belt Anchor, NO.2
59287 Base, Transmission Cover, Center
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63106A Rail Sub-assy, Roof Back Outer
63111 Panel, Roof
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63201J Bracket Sub-assy, Roof Panel
63301C Strength Sub-assy, Roof
63322B Strength, Roof, NO.2
64107A Frame Sub-assy, Back
64111A Panel, Back
64122A Baffle, Dust Rear Body
64171A Bracket Sub-assy, Rear Mounting
64186 Retainer, Rear Mounting Bracket
64189 Clamp, Back Panel Silencer
64190 Silencer Assy, Back Panel
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
66103C Rail Sub-assy, Roof Back, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
