Toyota Dyna 200

1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

28 part groups · 5 illustrations

Illustrations

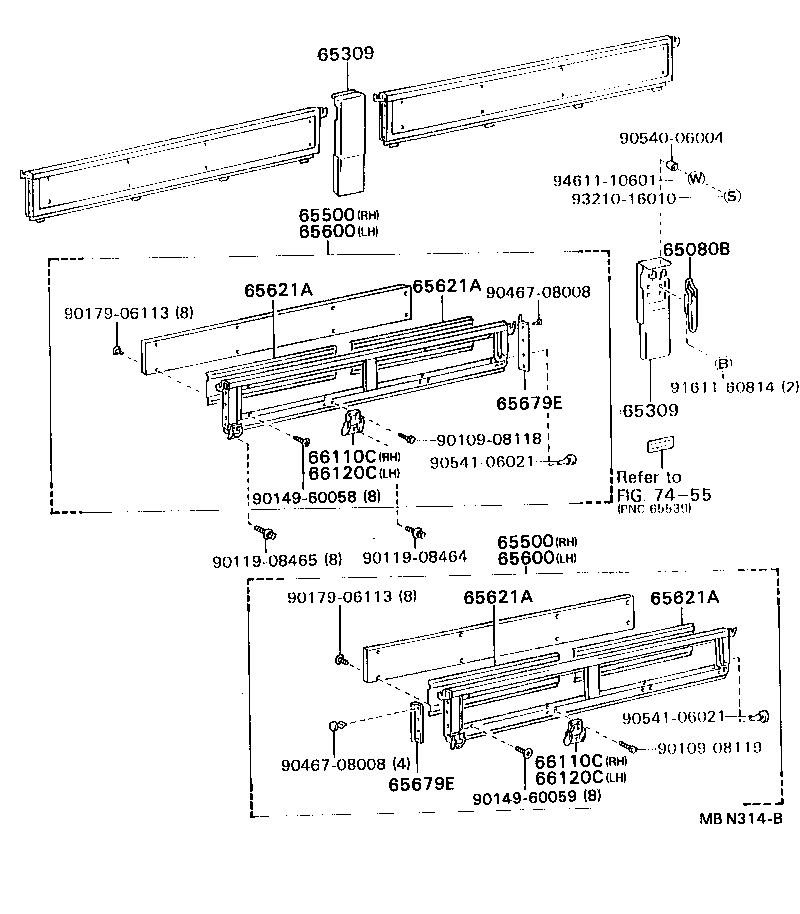

Figure MBN306A MBN306A 1987-08 → — Figure MBN308B MBN308B 1987-08 → — Figure MBN312A MBN312A 1987-08 → — Figure MBN314B MBN314B 1987-08 → — Figure MBS334A MBS334A 1987-08 → —

Part groups

PNCDescription
65040 Hinge Assy, Side Gate 1
65050A Hinge Assy, Side Gate 2
65080B Handle Assy, Side Gate Latch
65202 Post Sub-assy, Side Gate, Rear RH
65203A Post Sub-assy, Side Gate, Rear LH
65309 Post Sub-assy, Center
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65567 Support, Side Gate
65577 Retainer, Tail Gate Latch Female
65600 Panel Assy, Rear Body Side, LH
65621A Panel, Side Gate
65651 Panel, Wheel House
65679E Seal, Side Gate
66110C Hinge Assy, Side Gate, NO.1 RH
66115C Retainer, Gate Hinge
66120C Hinge Assy, Side Gate, NO.1 LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66201B Latch Sub-assy, Tail Gate, RH
66202A Latch Sub-assy, Tail Gate, LH
66311 Hook, Rope
66311E Hook, Rope
66321B Bumper, Gate Rubber
66332 Cushion, Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
