Toyota Dyna 200

1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

13 part groups · 3 illustrations

Illustrations

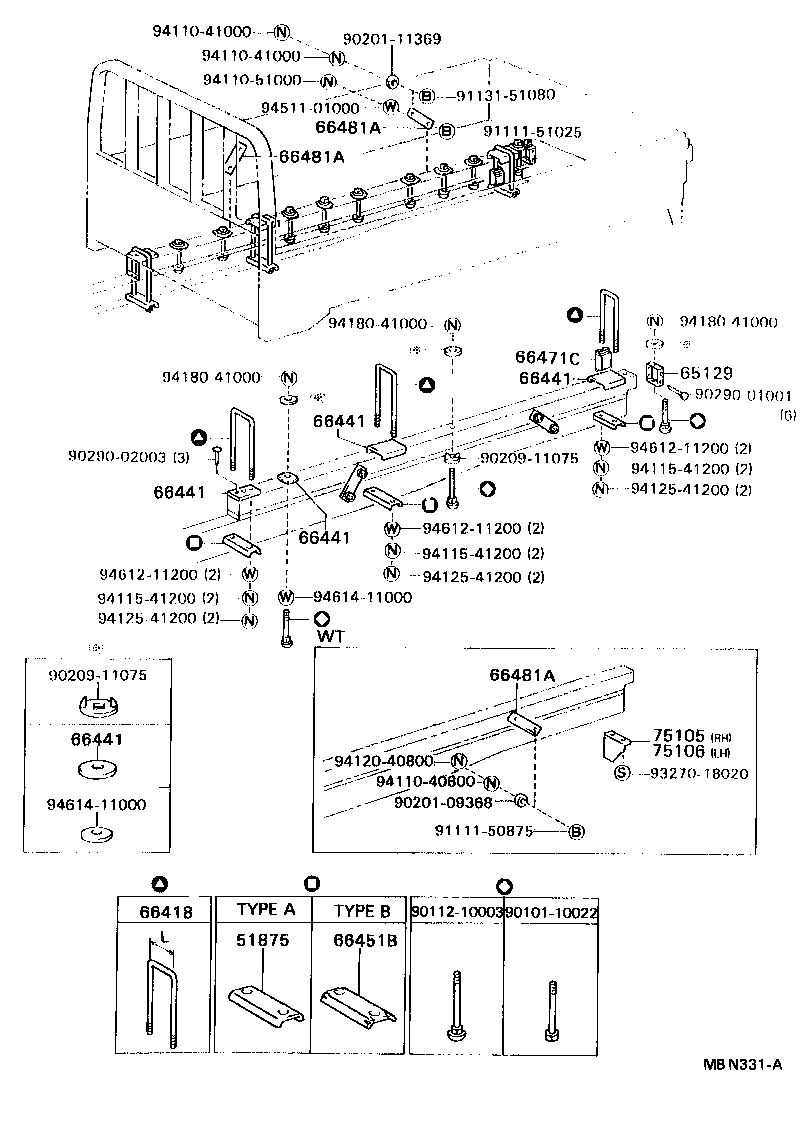

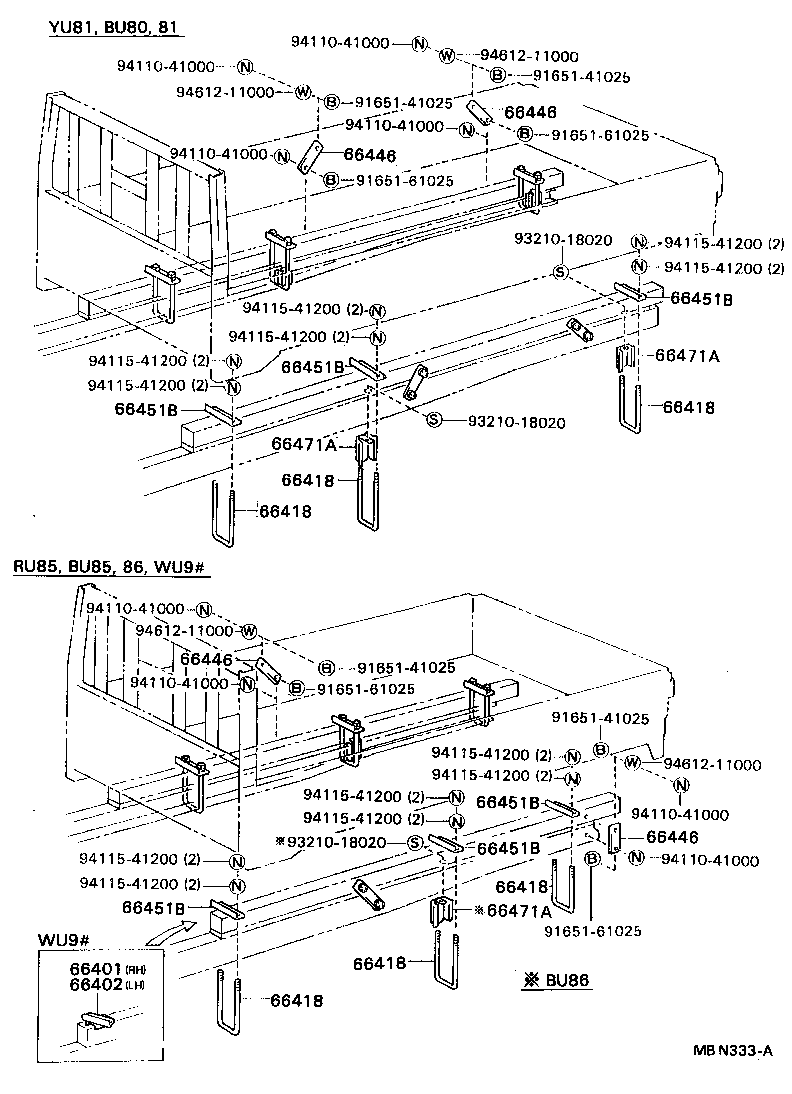

Figure MBN329A MBN329A 1987-08 → — Figure MBN331A MBN331A 1987-08 → — Figure MBN333A MBN333A 1987-08 → —

Part groups

PNCDescription
51875 Plate, U-bolt
65129 Cover, Main Sill Rear End
66401 Protector Sub-assy, U Bolt, RH
66402 Protector Sub-assy, U Bolt, LH
66418 Bolt, Mounting
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
66471C Block, U Bolt
66481A Brace, Sill TO Frame
75105 Support Sub-assy, Main Sill, RH
75106 Support Sub-assy, Main Sill, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
