Toyota Dyna 200
1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General
Discontinued model
Data version 1988-08

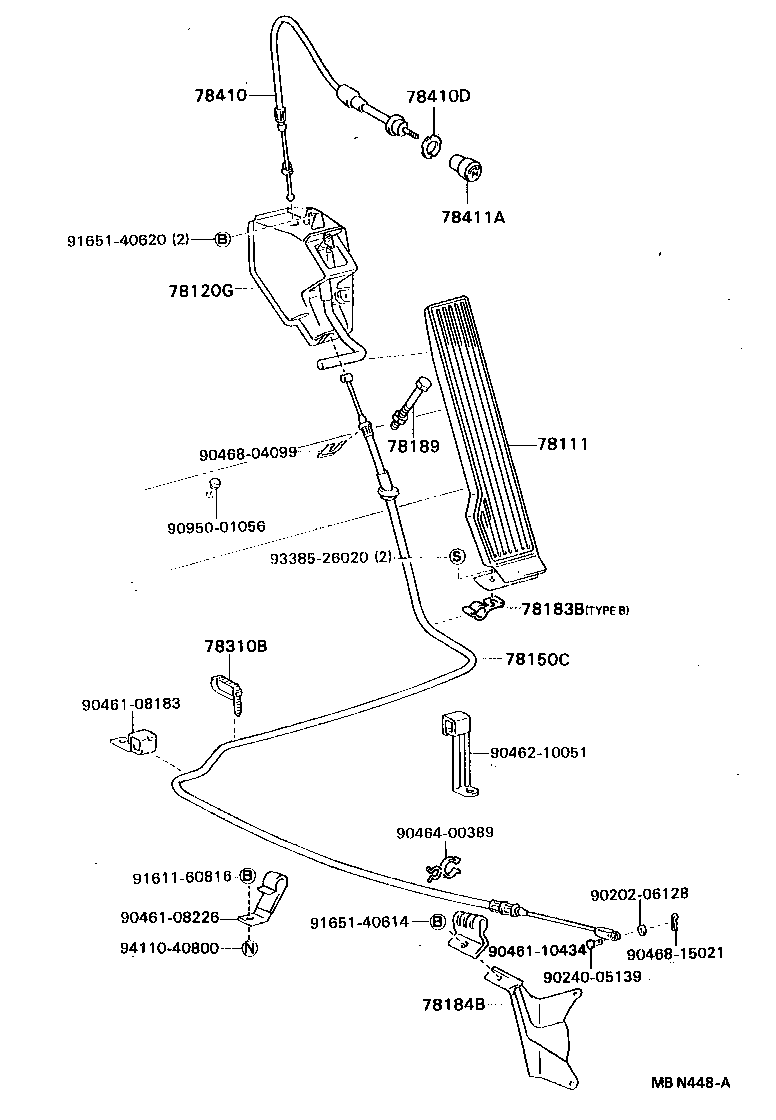

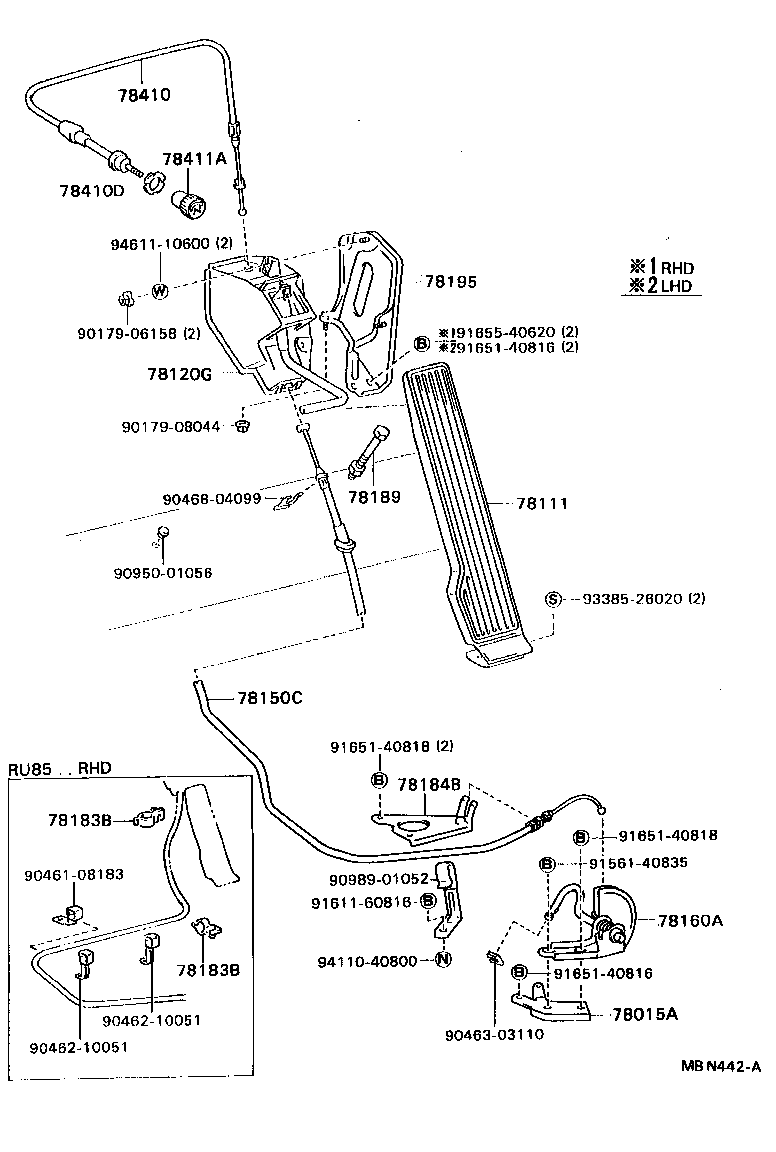

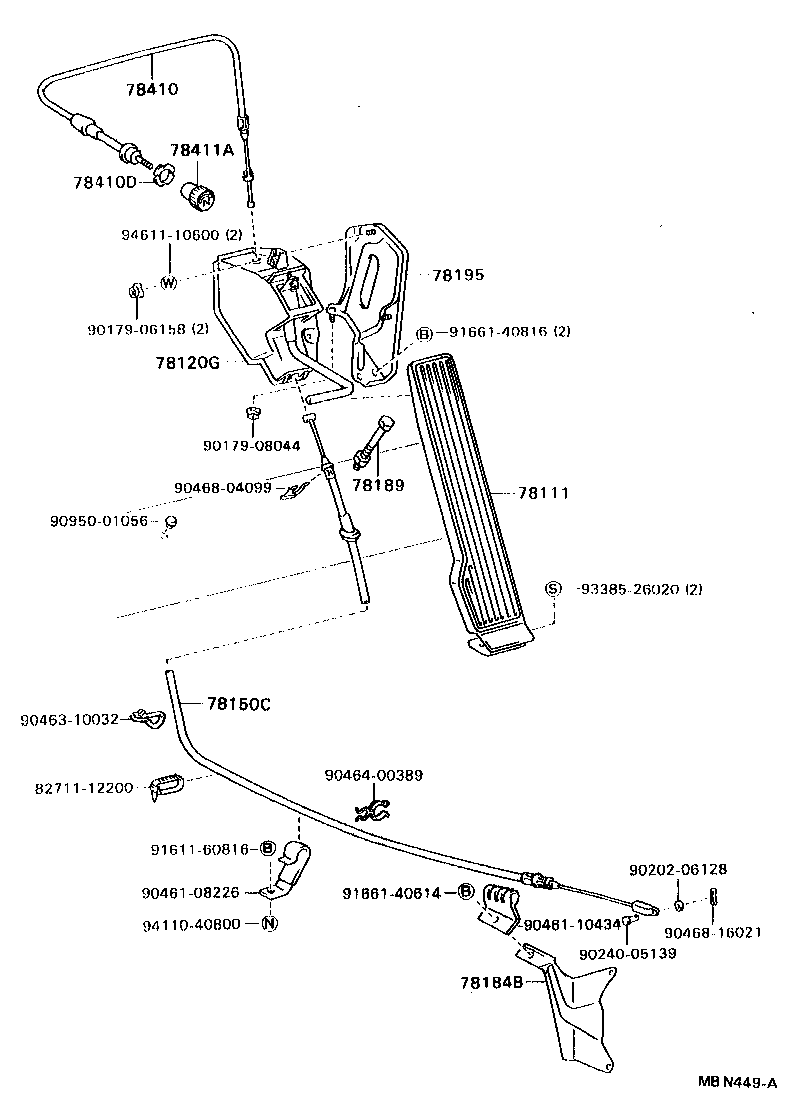

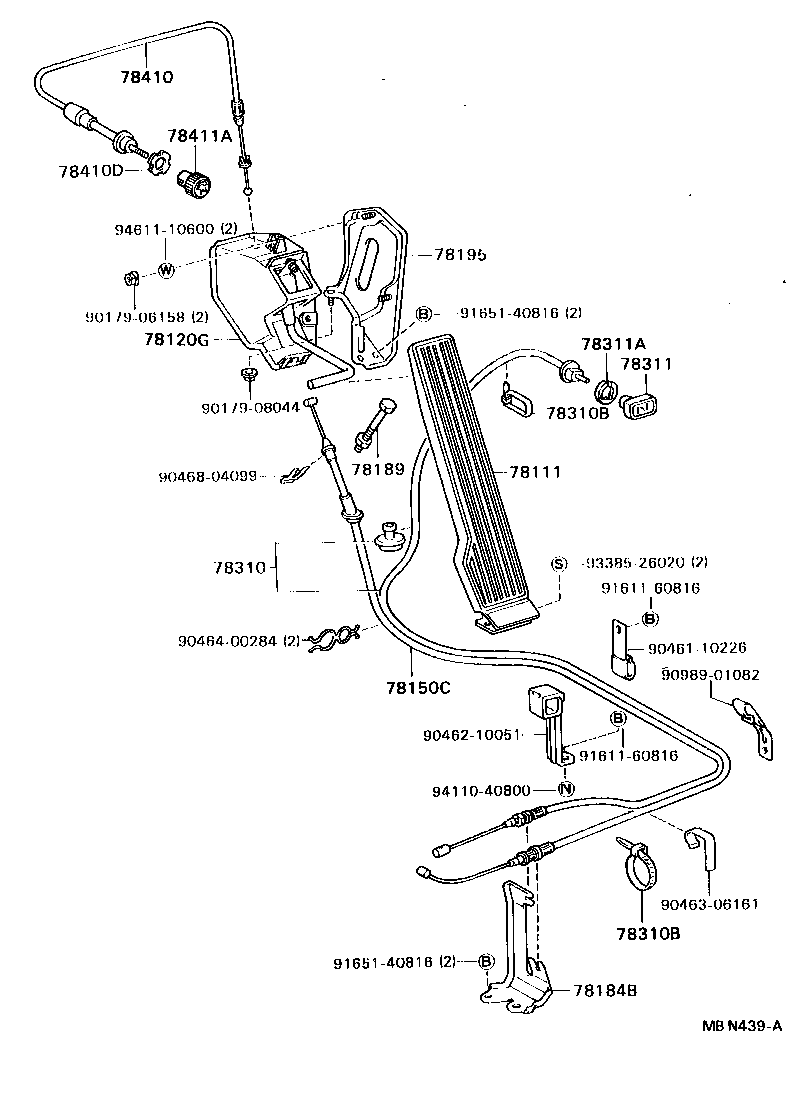

Accelerator Link
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 78015A | Arm Sub-assy, Accelerator Link |
| 78111 | Pedal, Accelerator |
| 78120G | Rod Assy, Accelerator Pedal |
| 78150C | Wire Assy, Accelerator Flexible |
| 78160A | Bellcrank Assy, Accel Control W/Bracket |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78195 | Bracket, Accelerator Link |
| 78310 | Cable Assy, Choke |
| 78310B | Clamp, Choke Cable |
| 78311 | Knob, Choke Control Cable |
| 78311A | Nut, Choke Shaft Set |
| 78410 | Cable Assy, Throttle Control |
| 78410D | Nut, Throttle |
| 78411A | Knob, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
