Toyota Dyna 200
1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General
Discontinued model
Data version 1988-08
Meter
18 part groups · 4 illustrations
Part groups

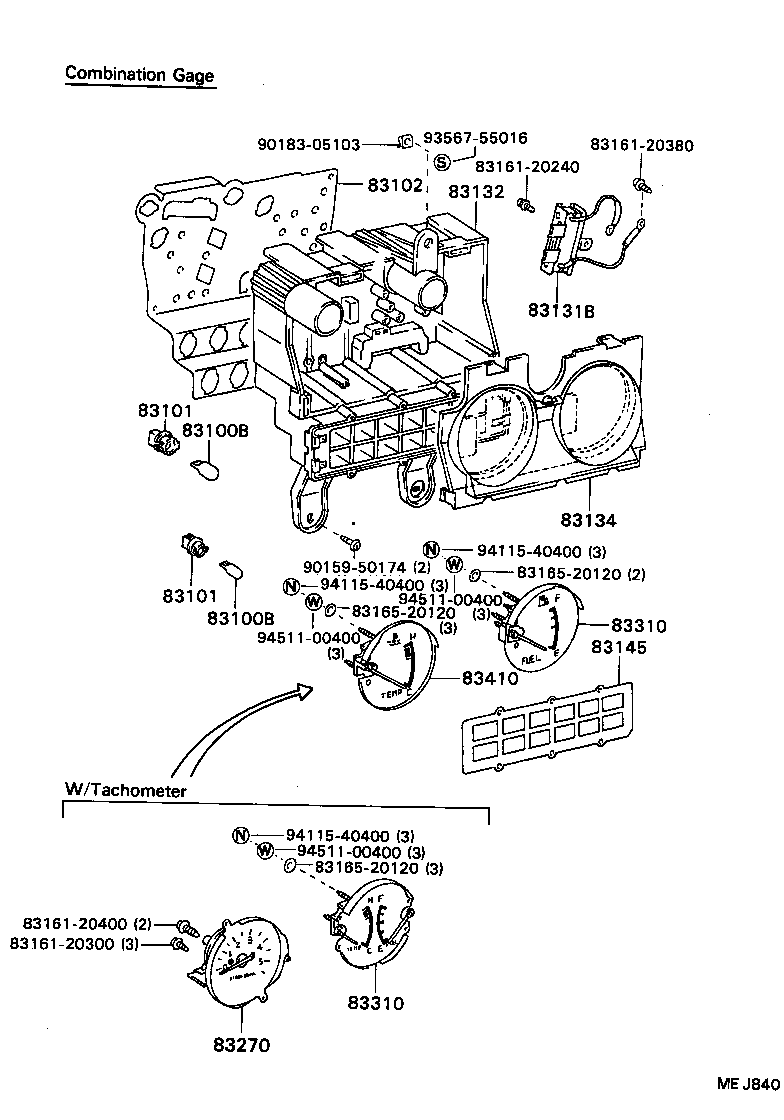

| PNC | Description |
|---|---|
| 55912A | Housing, Heater Control |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128A | Knob, Meter |
| 83131B | Droper, Meter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83145 | Lens, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83210 | Tachograph Assy |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
