Toyota Dyna 200

1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

9 part groups · 2 illustrations

Illustrations

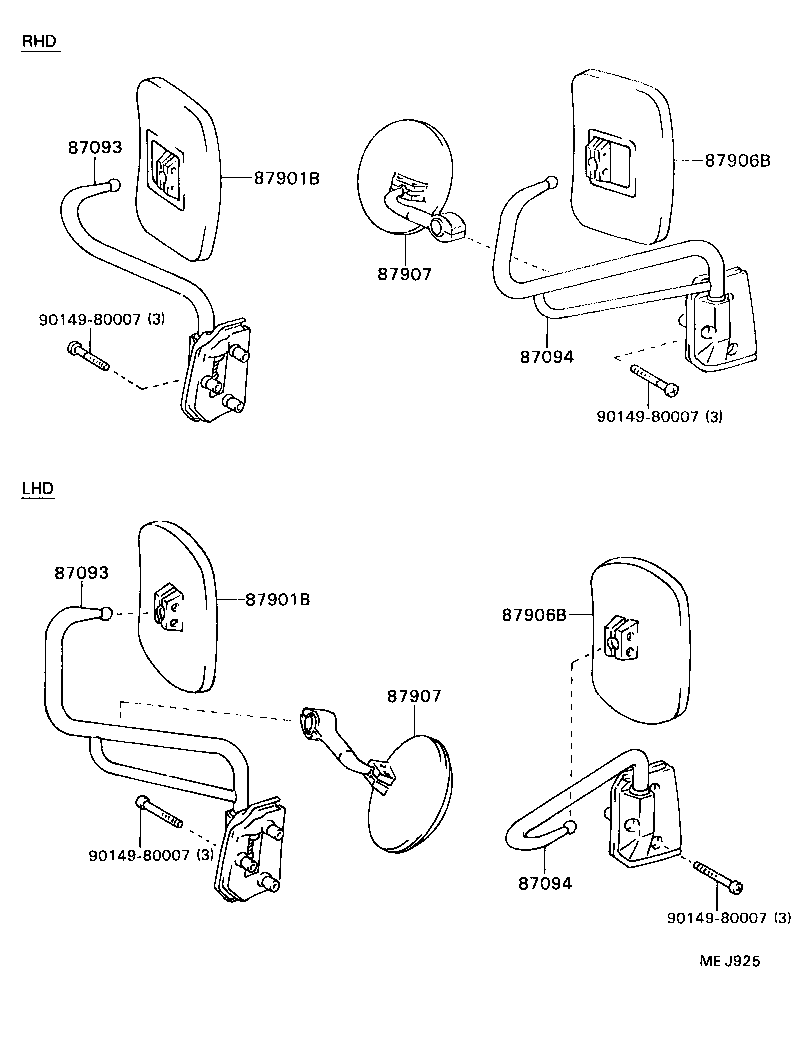

Figure MEJ924A MEJ924A 1987-08 → — Figure MEJ925 MEJ925 1987-08 → —

Part groups

PNCDescription
87093 Stay Sub-assy, Outer Rear View Mirror, Upper RH
87094 Stay Sub-assy, Outer Rear View Mirror, Upper LH
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
