Toyota Dyna 200

1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 7 illustrations

Illustrations

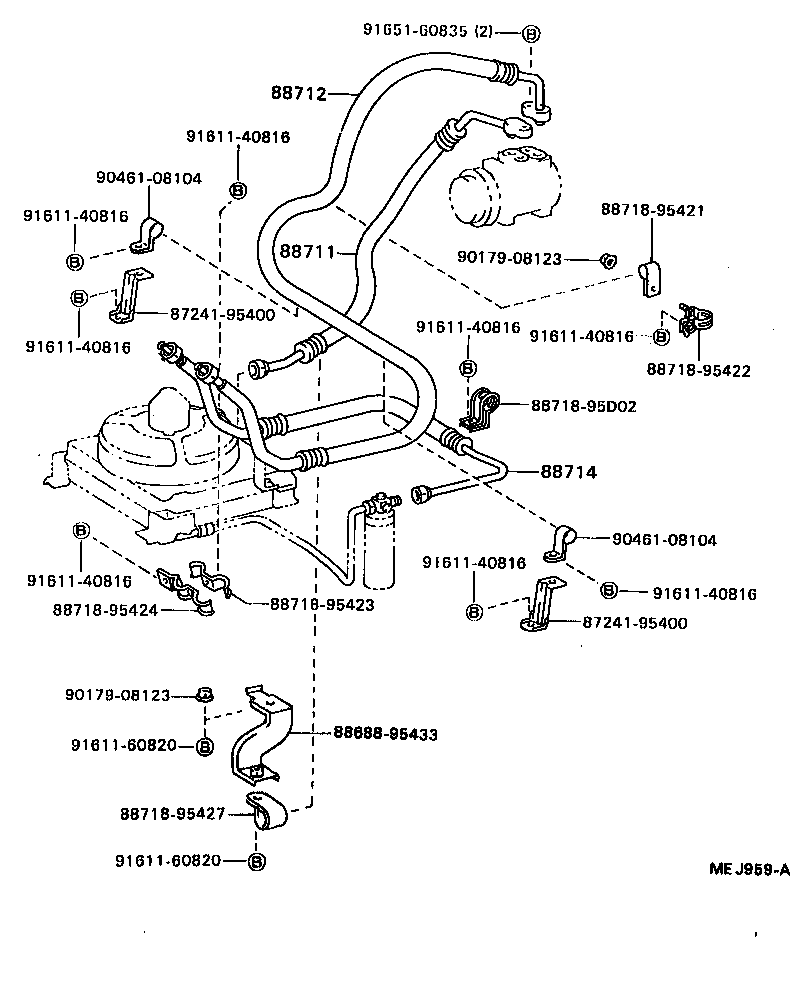

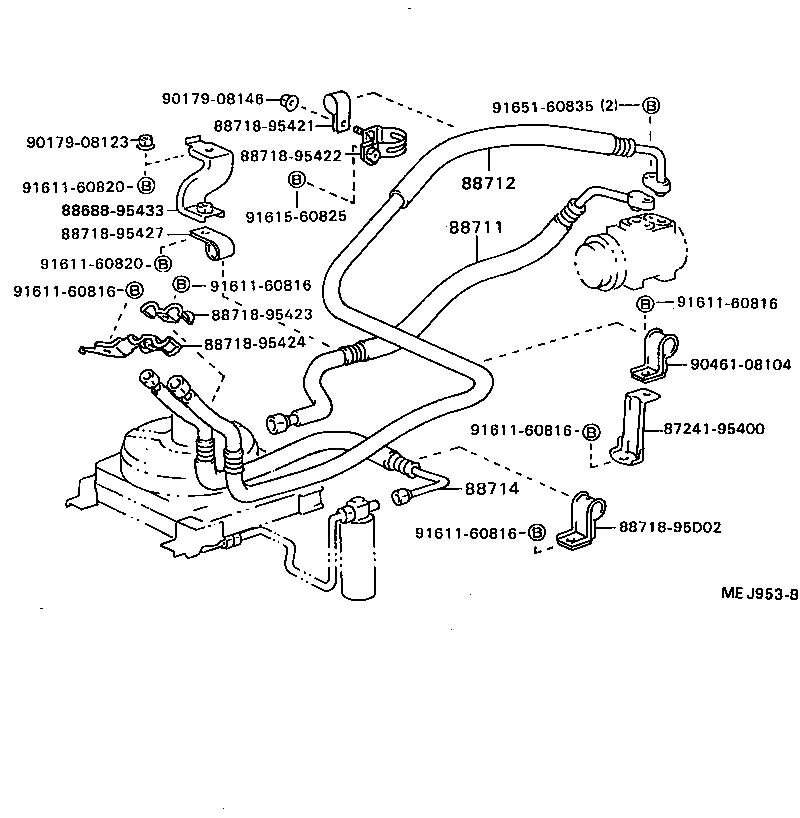

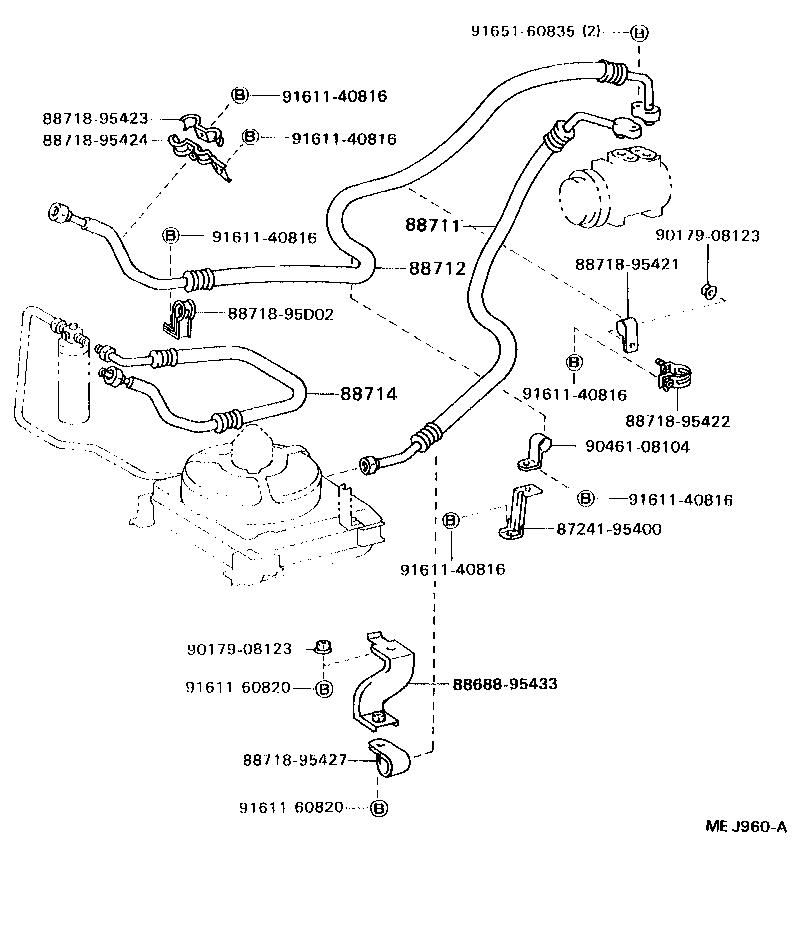

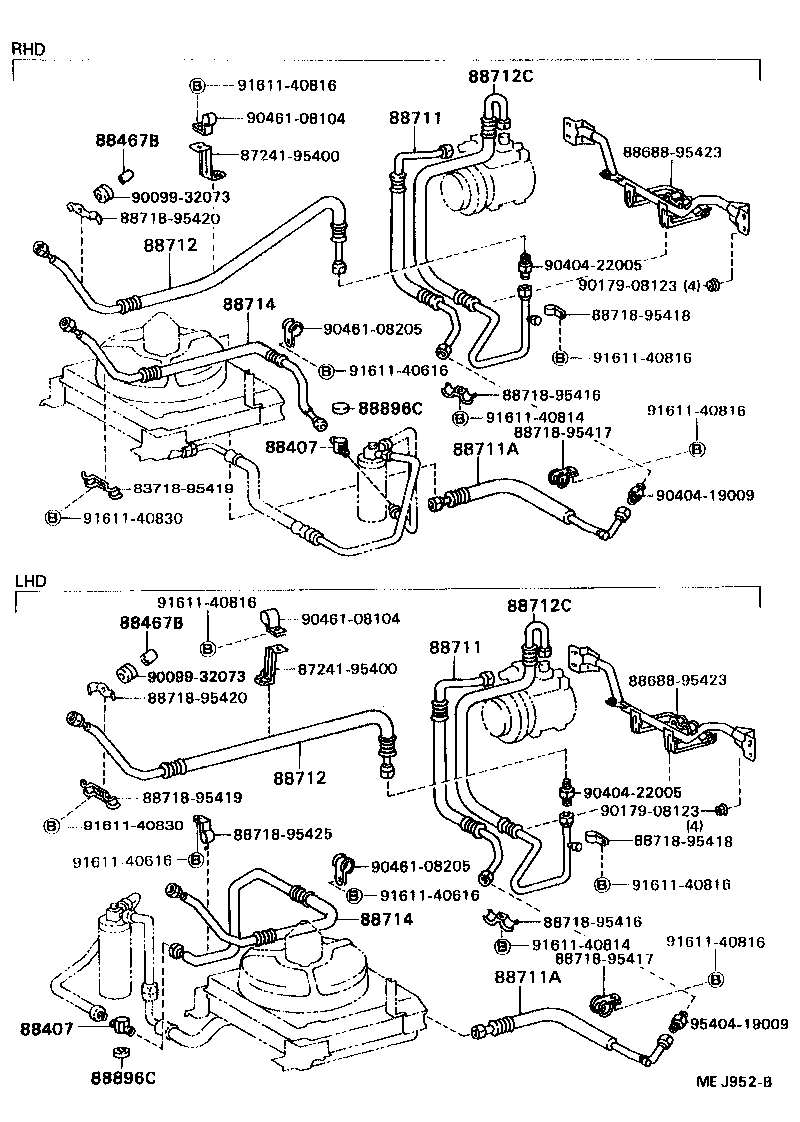

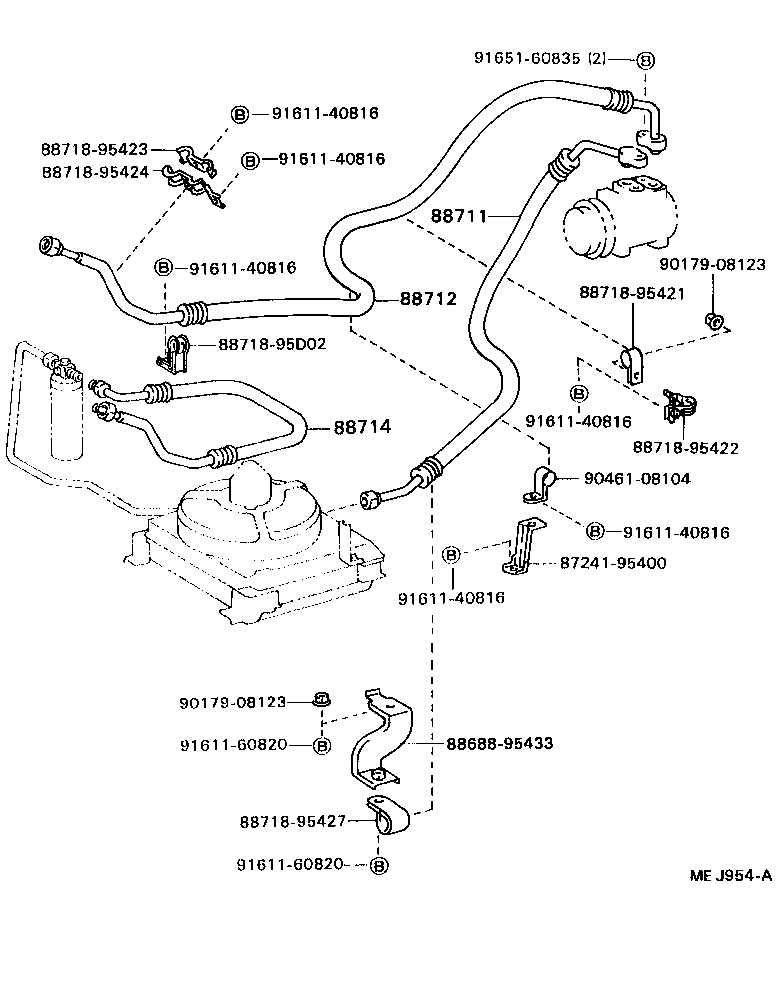

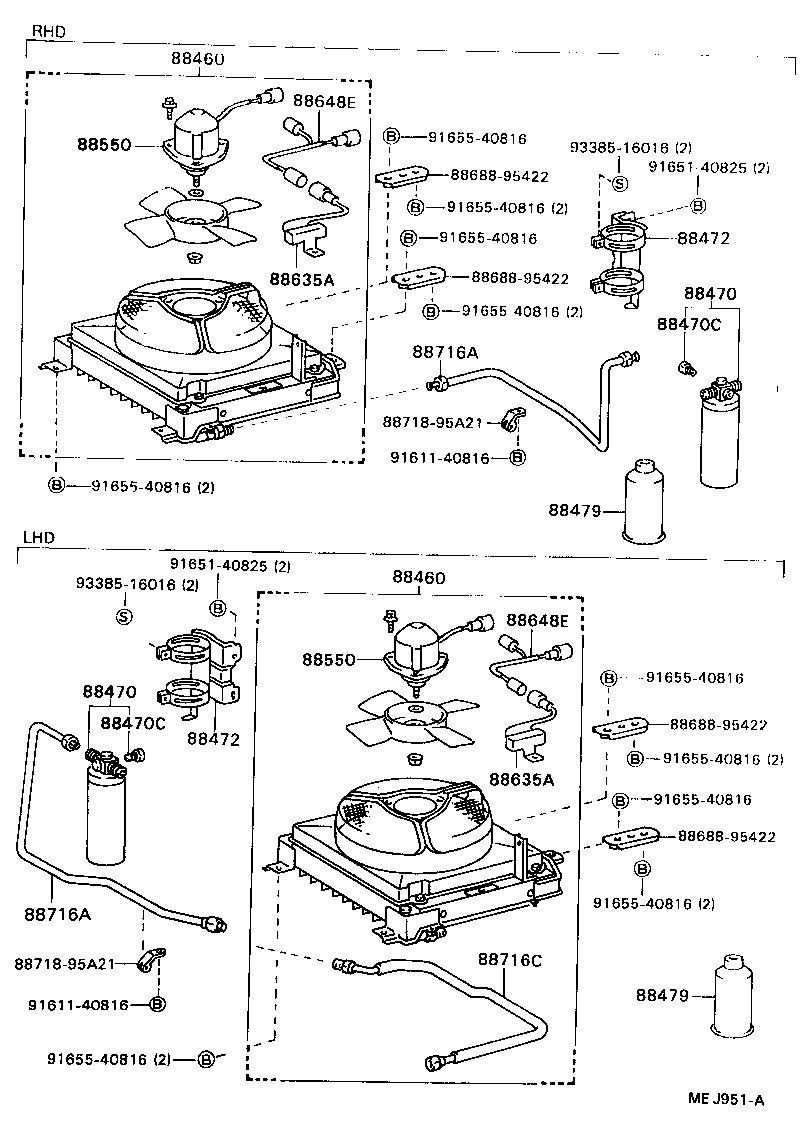

Figure MEJ950B MEJ950B 1987-08 → — Figure MEJ951A MEJ951A 1987-08 → — Figure MEJ952B MEJ952B 1987-08 → — Figure MEJ953B MEJ953B 1987-08 → — Figure MEJ954A MEJ954A 1987-08 → — Figure MEJ959A MEJ959A 1987-08 → — Figure MEJ960A MEJ960A 1987-08 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88407 Glass Sub-assy, Sight
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88648E Wiring, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88896C Cover, Cooler Refrigerant Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
