Toyota Dyna 200
1987-08 → 1988-08 · chassis RU75,85,YU6#,7#,81,WU9# · catalogue 752340 · General
Discontinued model
Data version 1988-08

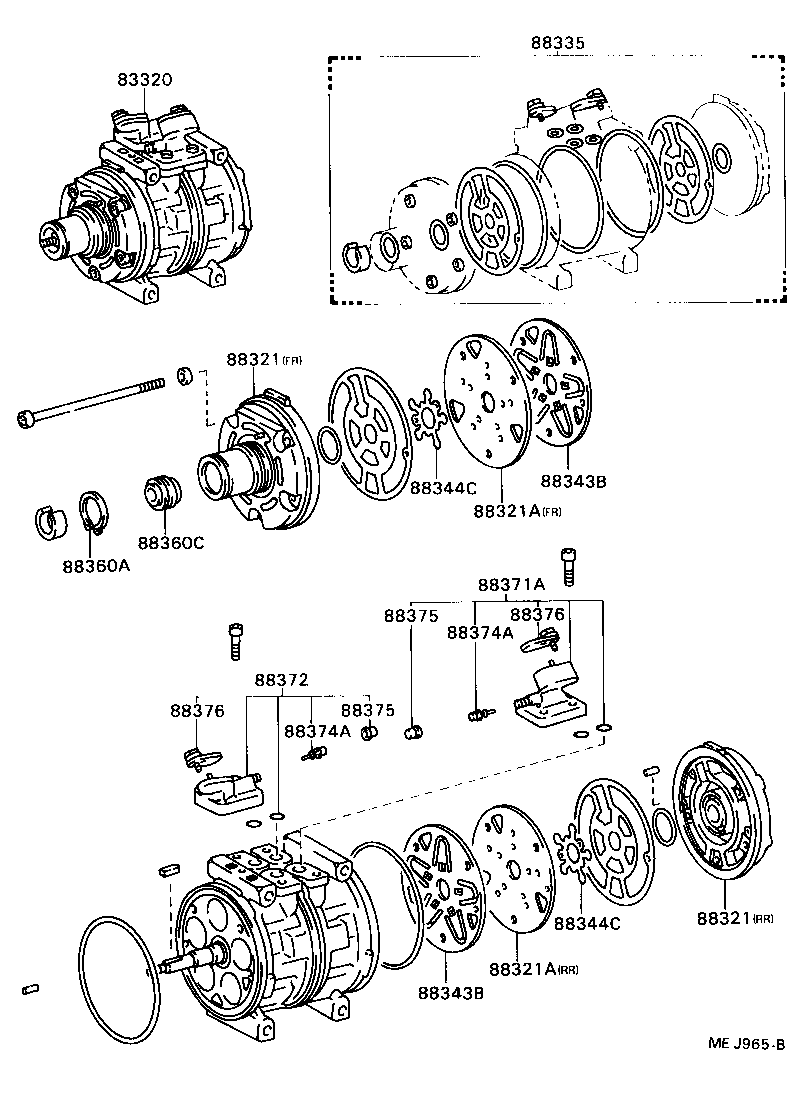

Heating & Air Conditioning - Compressor
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88301A | Bearing (FOR MAGNET CLUTCH) |
| 88301B | Ring, Snap (FOR MAGNET CLUTCH) |
| 88301C | Piston Sub-assy |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88304 | Cylinder Sub-assy, Cooler Compressor |
| 88311 | Piston |
| 88313 | Shoe,Piston |
| 88316 | Crankshaft, Cooler Compressor |
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88330 | Clutch Assy, Magnet |
| 88335 | Gasket Kit, Overhaul |
| 88341 | Plate, Front Valve |
| 88343A | Valve |
| 88343B | Reed, Suction Valve |
| 88344B | Read |
| 88344C | Reed, Discharge Valve |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88366A | Bearing,Compressor |
| 88371A | Valve, Suction |
| 88372 | Valve, Discharge |
| 88374A | Valve, Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446 | Bolt, Idle Pulley |
| 88595D | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
