Toyota Dyna 200
1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General
Discontinued model
Data version 1997-10

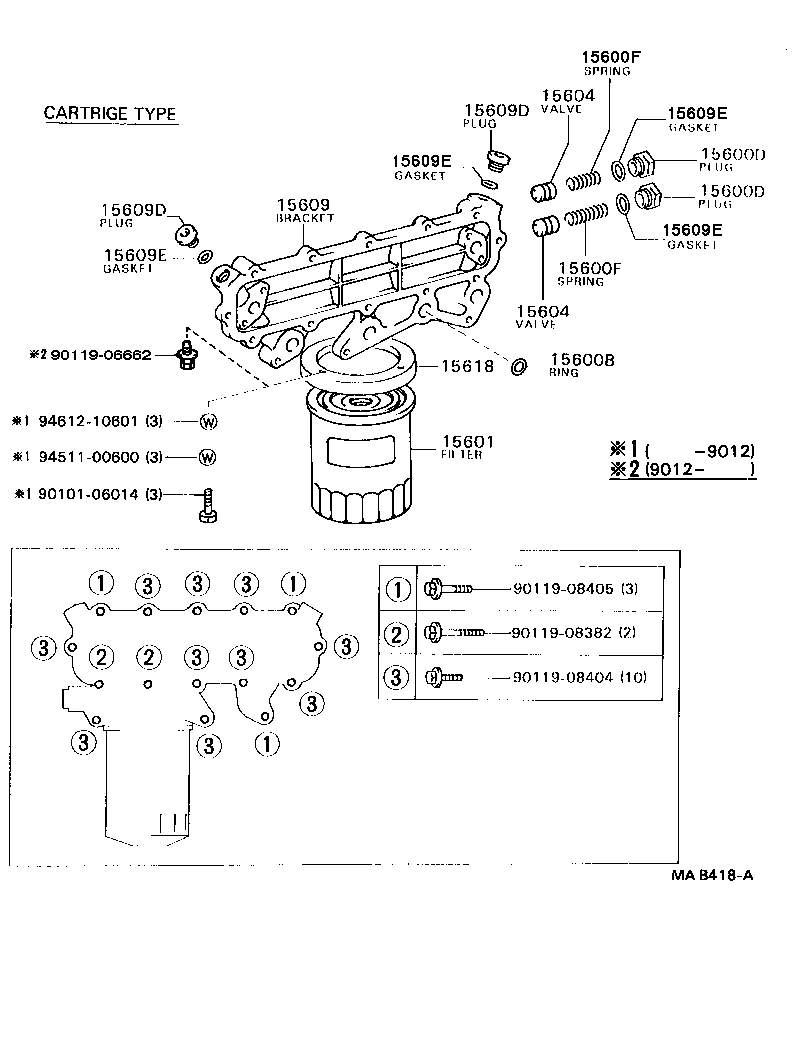

Oil Filter
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600A | Union(FOR OIL FILTER) |
| 15600B | Ring, O, NO.1(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15618 | Plate, Oil Filter |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
