Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

42 part groups · 13 illustrations

Illustrations

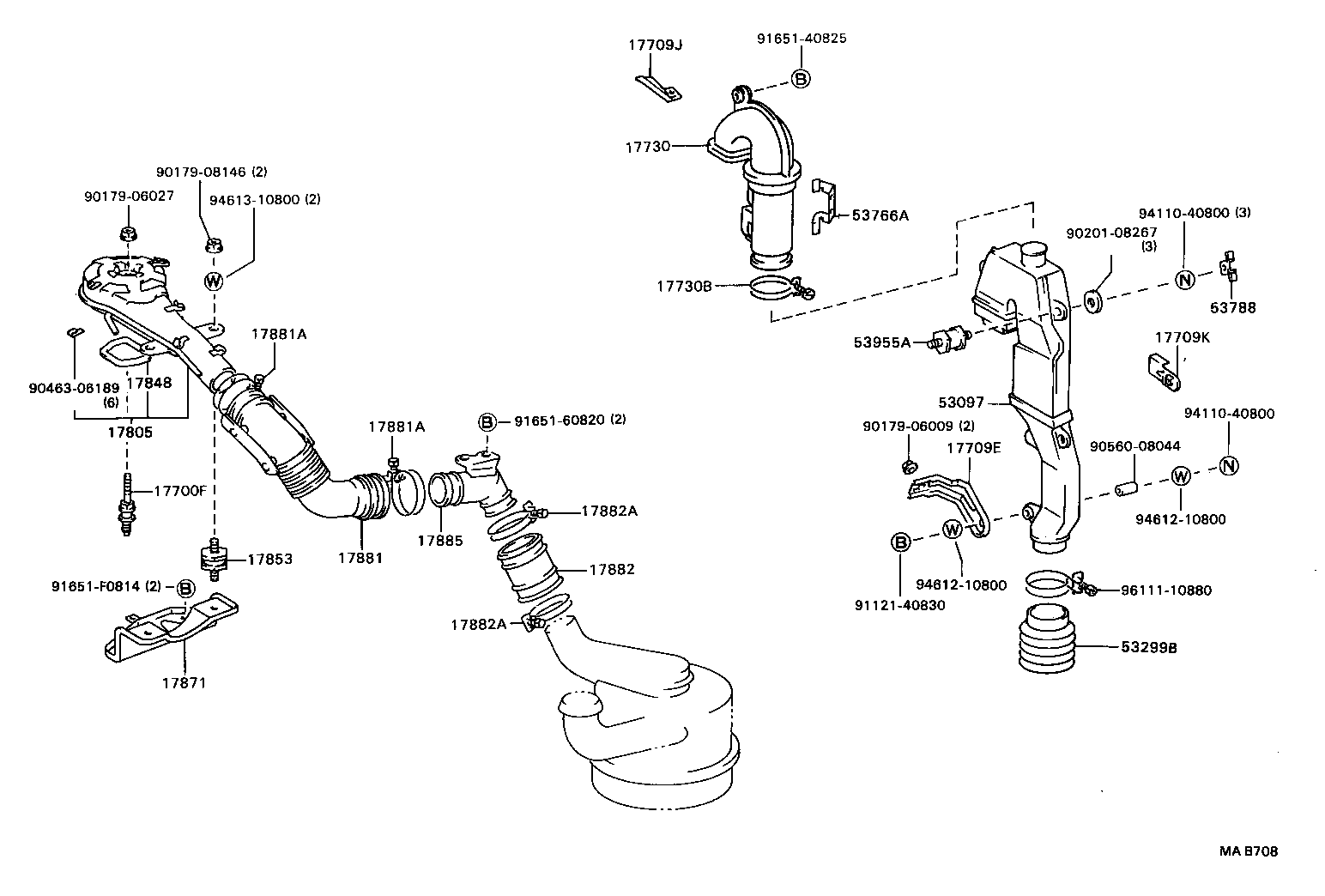

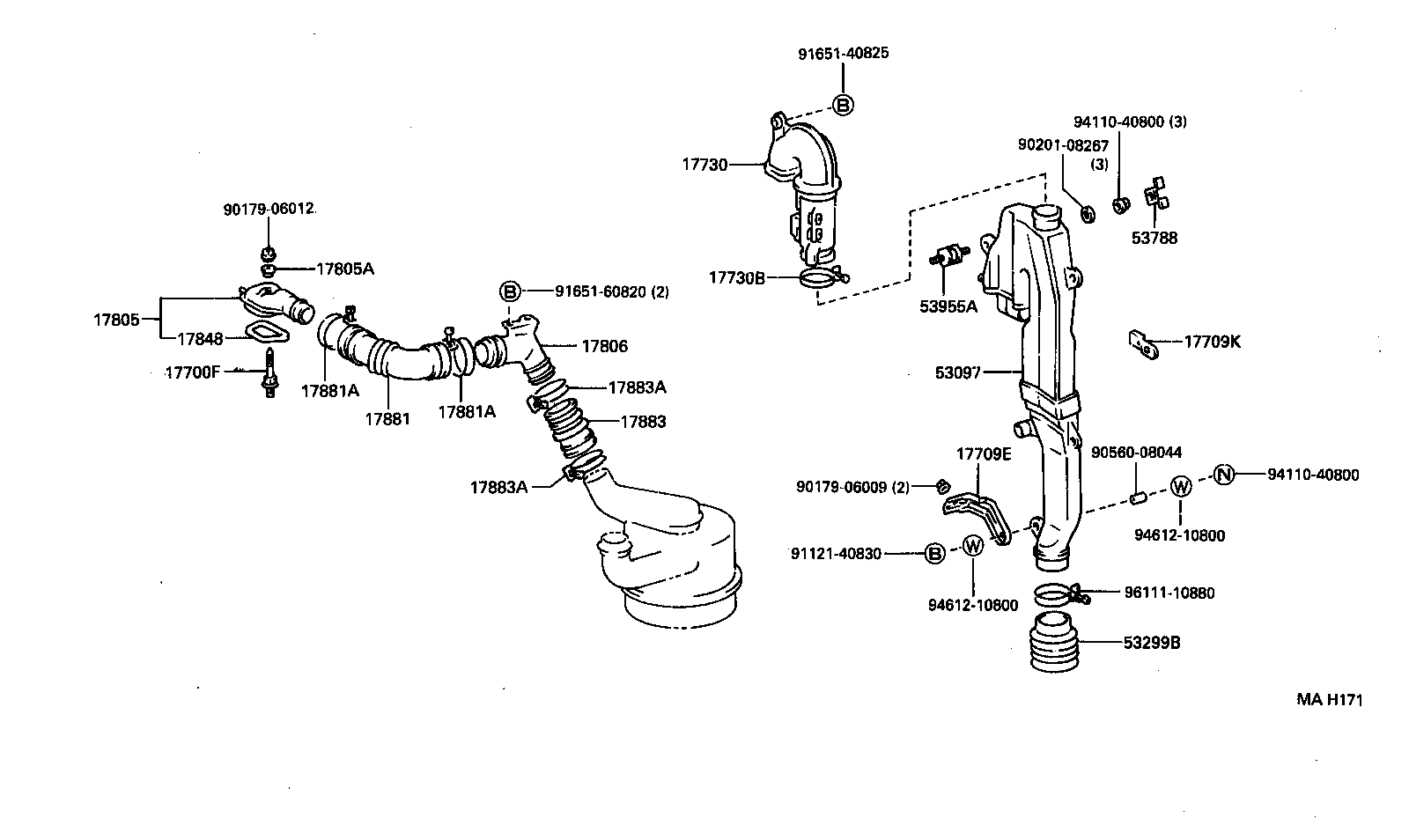

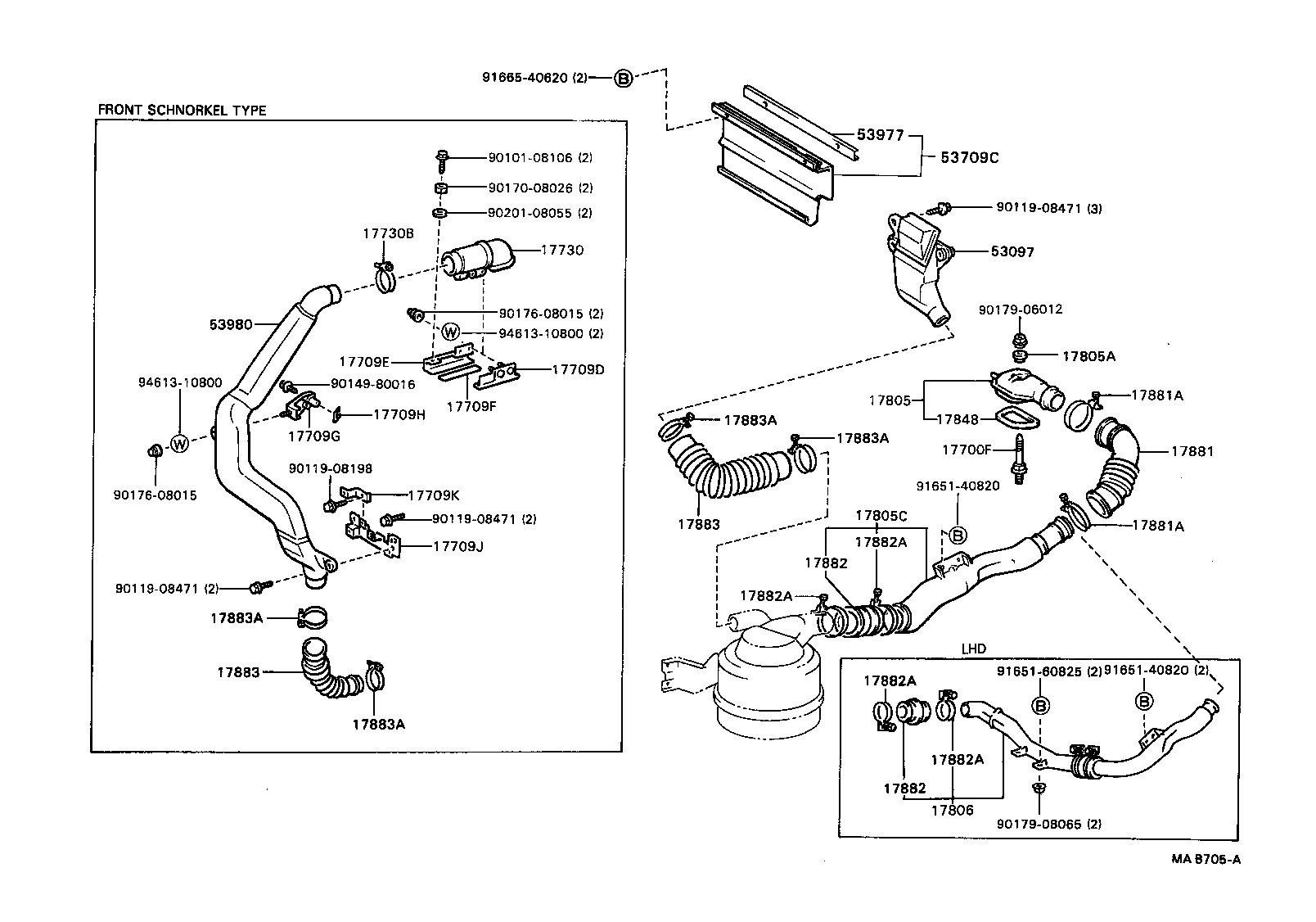

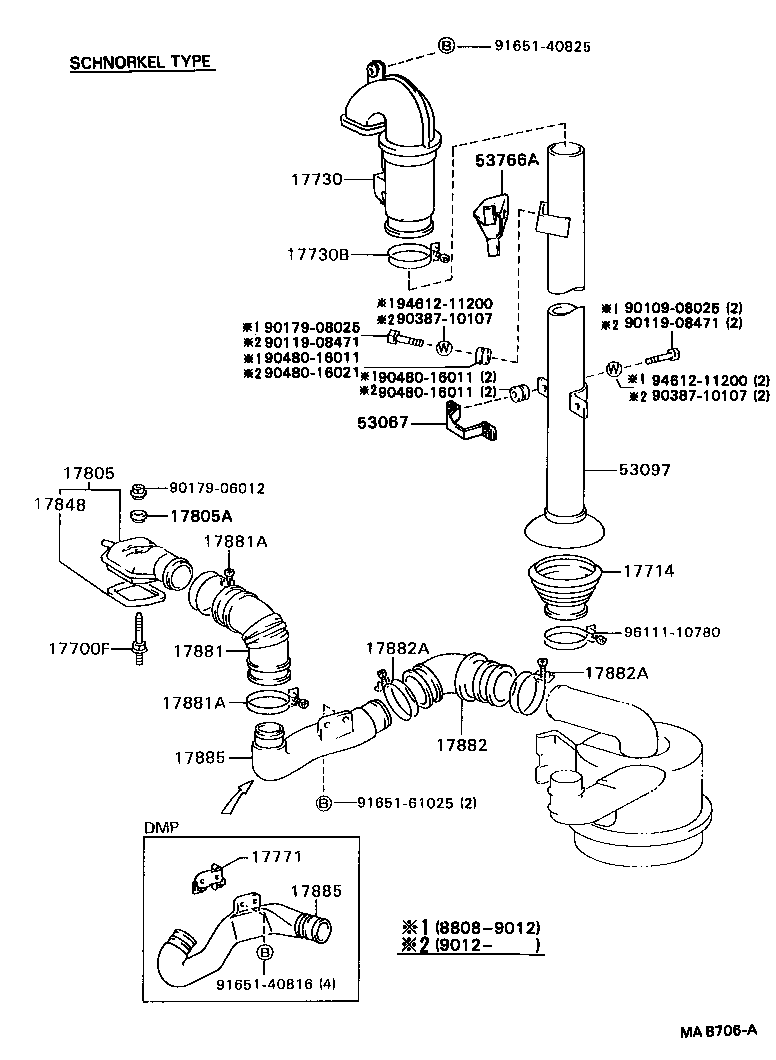

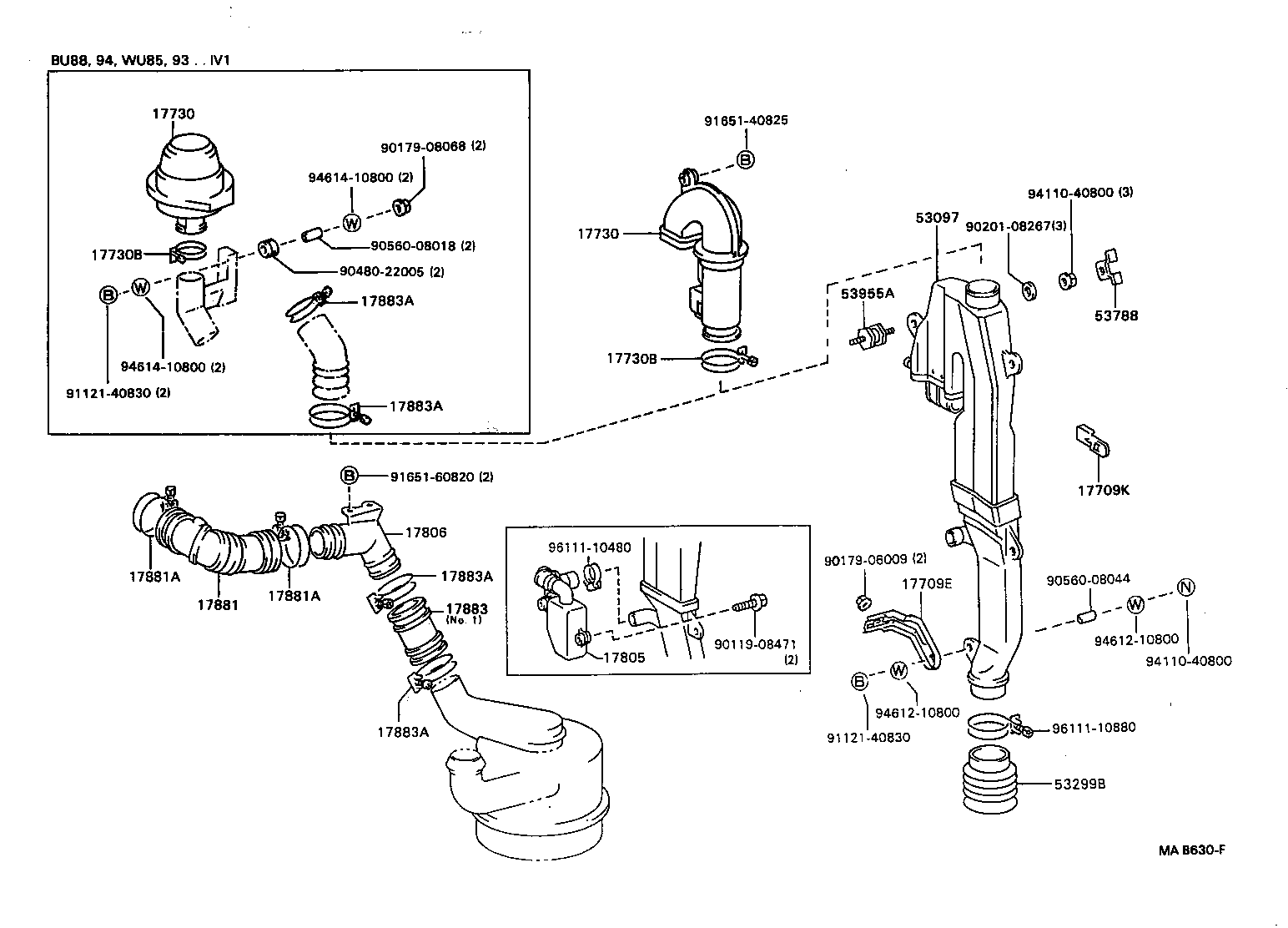

Figure MAB707 MAB707 1988-08 → — Figure MAB708 MAB708 1988-08 → — Figure MAB704 MAB704 1988-08 → — Figure MAB630F MAB630F 1988-08 → 1993-05 Figure MAB422B MAB422B 1988-08 → 1993-05 Figure MAB704 MAB704 1988-08 → — Figure MAB707 MAB707 1994-03 → — Figure MAB702 MAB702 1988-08 → — Figure MAB703 MAB703 1988-08 → — Figure MAB704 MAB704 1988-08 → — Figure MAB705A MAB705A 1988-08 → — Figure MAB706A MAB706A 1988-08 → — Figure MAH171 MAH171 1994-03 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17709F Pad, Air Cleaner Inlet, NO.2
17709G Bracket Sub-assy, Air Cleaner Inlet Pipe
17709H Pad, Air Cleaner Inlet, NO.1
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17714 Rubber Seal, Air Intake
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17871 Stay, Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
53067 Bracket Sub-assy, Air Cleaner Inlet
53097 Inlet Sub-assy
53299B Duct, Cool Air Intake
53709C Cover Sub-assy, Air Cleaner Inlet
53766A Bracket, Air Cleaner Inlet Pipe
53788 Bracket, Air Cleaner Inlet, NO.6
53955A Cushion, Air Cleaner Inlet NO.1
53977 Plate, Air Cleaner Inlet Cover
53980 Inlet Assy, Air Cleaner Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
