Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 6 illustrations

Illustrations

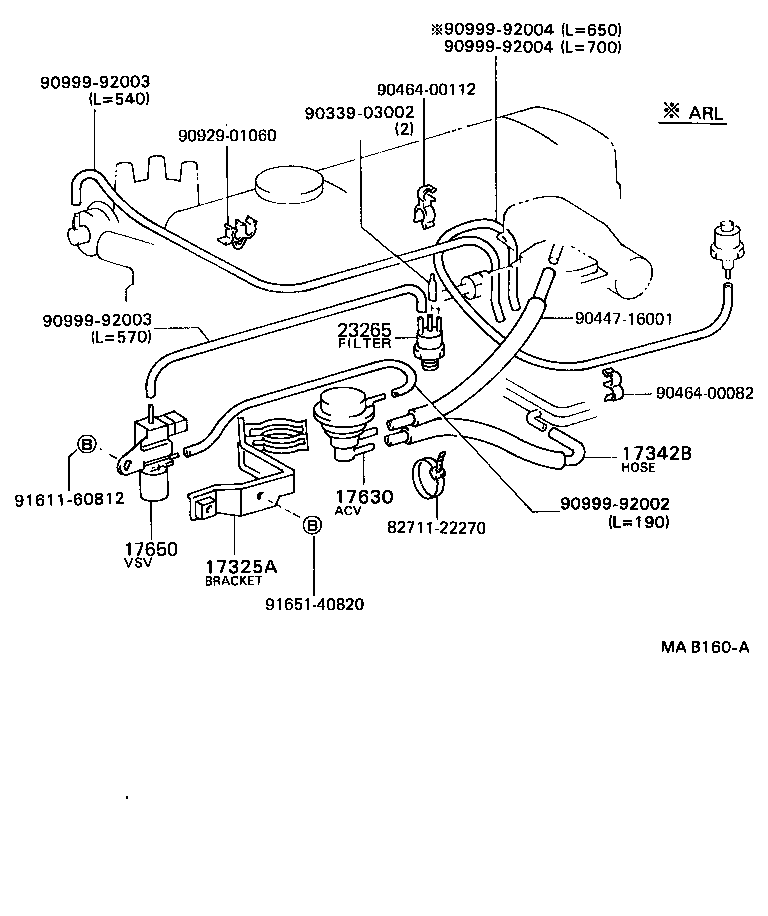

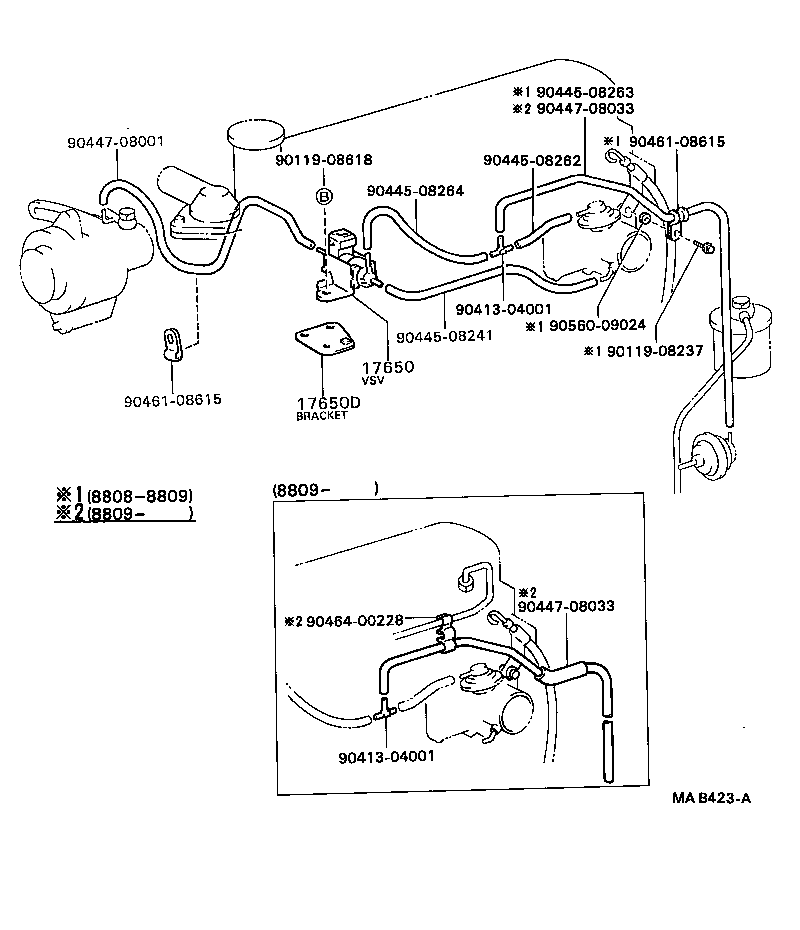

Figure MA9504B MA9504B 1988-08 → — Figure MA7797E MA7797E 1988-08 → — Figure MA9504B MA9504B 1988-08 → — Figure MAB423A MAB423A 1988-08 → 1993-05 Figure MA9504B MA9504B 1988-08 → — Figure MAB160A MAB160A 1988-08 → —

Part groups

PNCDescription
17325A Bracket, Air Valve
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
