Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

30 part groups · 3 illustrations

Illustrations

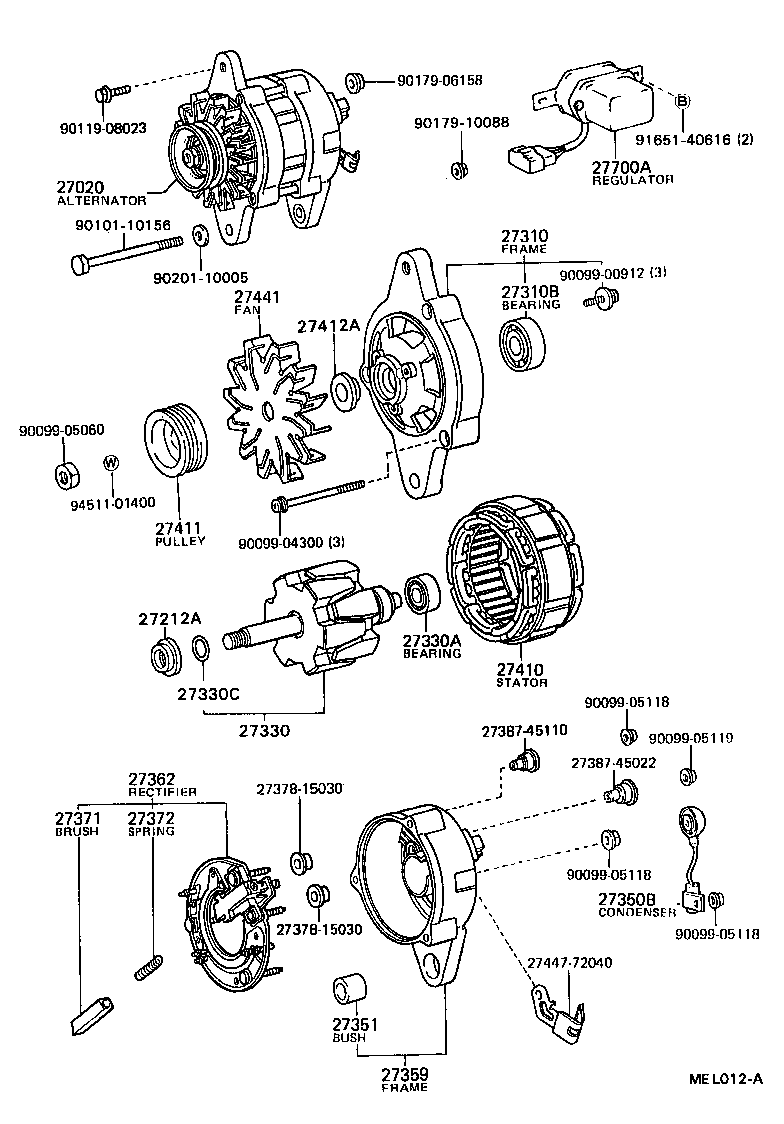

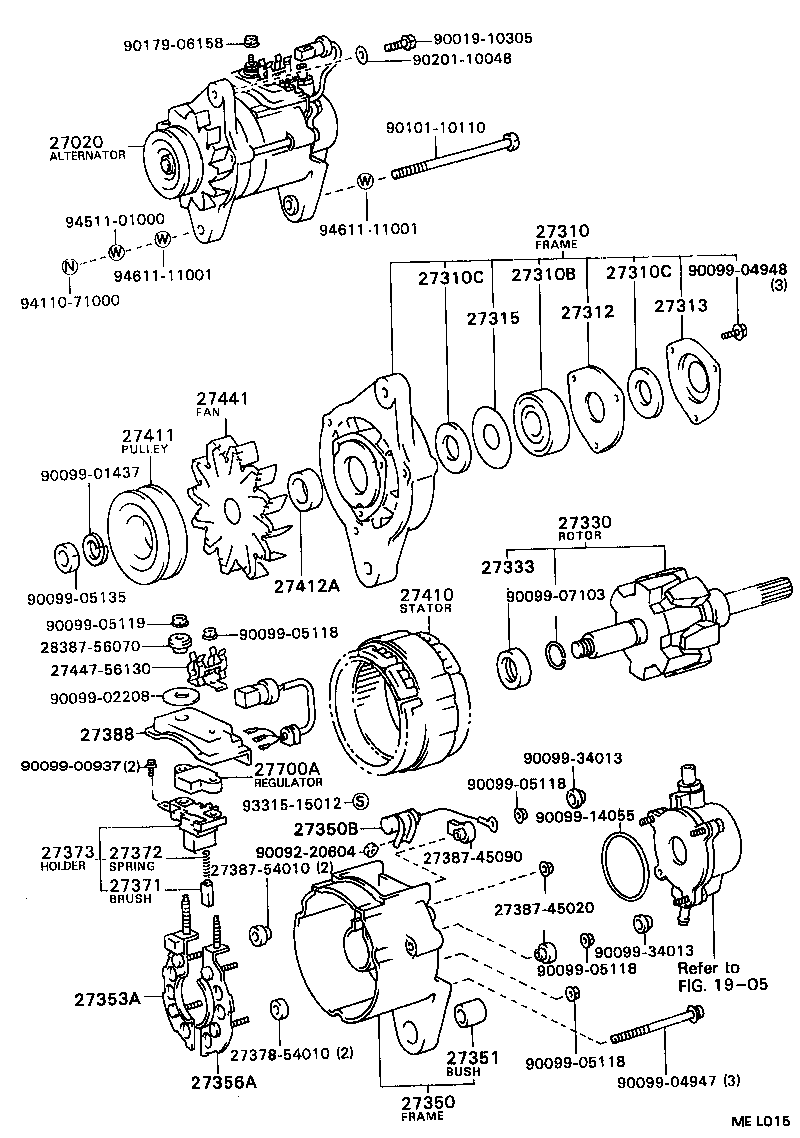

Figure MEL011 MEL011 1988-08 → — Figure MEL015 MEL015 1988-08 → 1991-06 Figure MEL012A MEL012A 1988-08 → —

Part groups

PNCDescription
27020 Alternator Assy
27039 Cover, Alternator Rear End
27212A Ring, Space
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27310C Felt(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27313 Cover, Alternator Felt, Inner NO.2
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27330C Ring, Snap
27333 Collar, Space(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27350B Condenser, Alternator
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27353A Holder, W/Rectifier
27356A Holder Sub-assy, Rectifier
27359 Frame, Alternator Rectifier End
27362 Rectifier Assy, W/Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27373 Holder, Alternator Brush, A
27388 Cover, Alternator Brush
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412 Collar, Spacer(FOR ALTERNATOR PULLEY)
27412A Collar, Space(FOR ALTERNATOR DRIVE END FRAME)
27441 Fan, Alternator
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
