Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

11 part groups · 3 illustrations

Illustrations

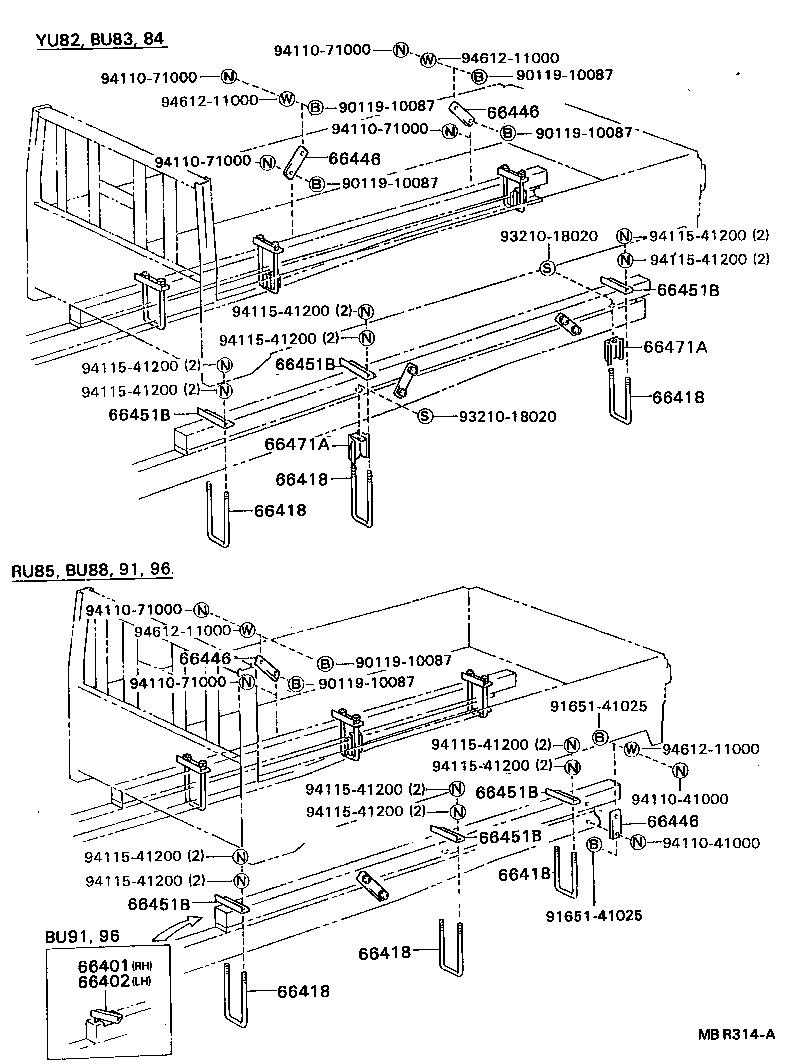

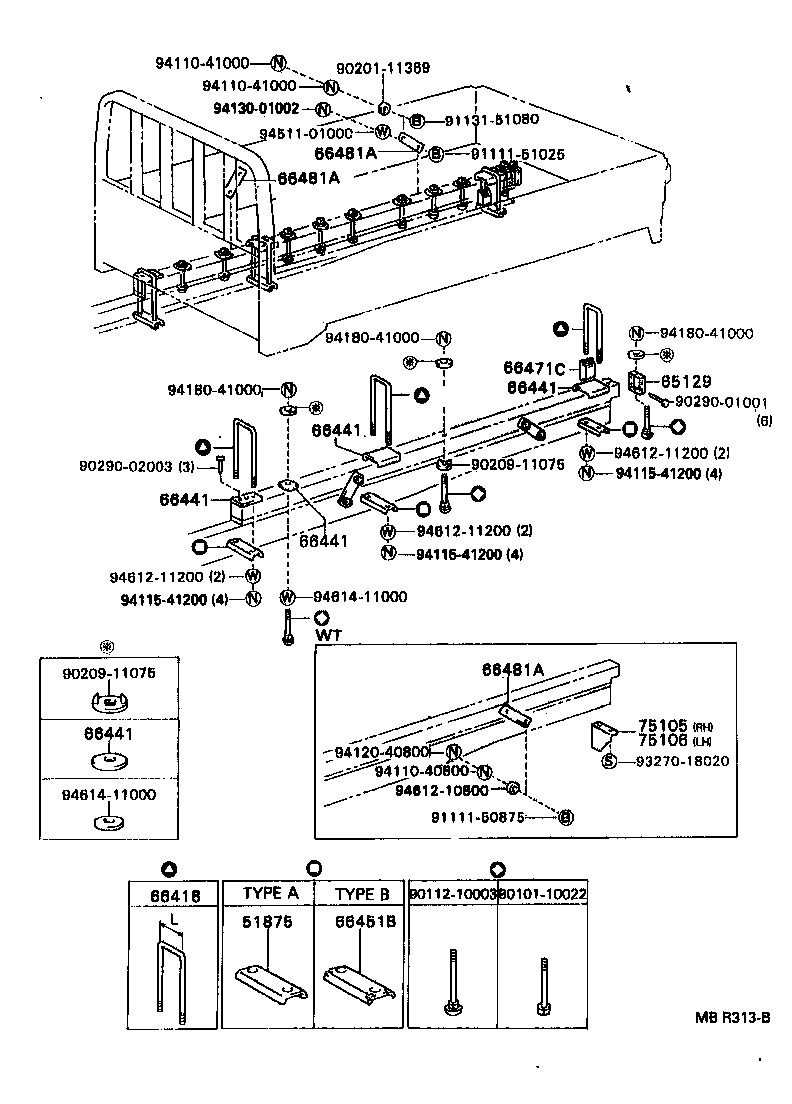

Figure MBR312A MBR312A 1988-08 → — Figure MBR313B MBR313B 1988-08 → — Figure MBR314A MBR314A 1988-08 → —

Part groups

PNCDescription
51875 Plate, U-bolt
65129 Cover, Main Sill Rear End
66418 Bolt, Mounting
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
66471C Block, U Bolt
66481A Brace, Sill TO Frame
75105 Support Sub-assy, Main Sill, RH
75106 Support Sub-assy, Main Sill, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
