Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

17 part groups · 4 illustrations

Illustrations

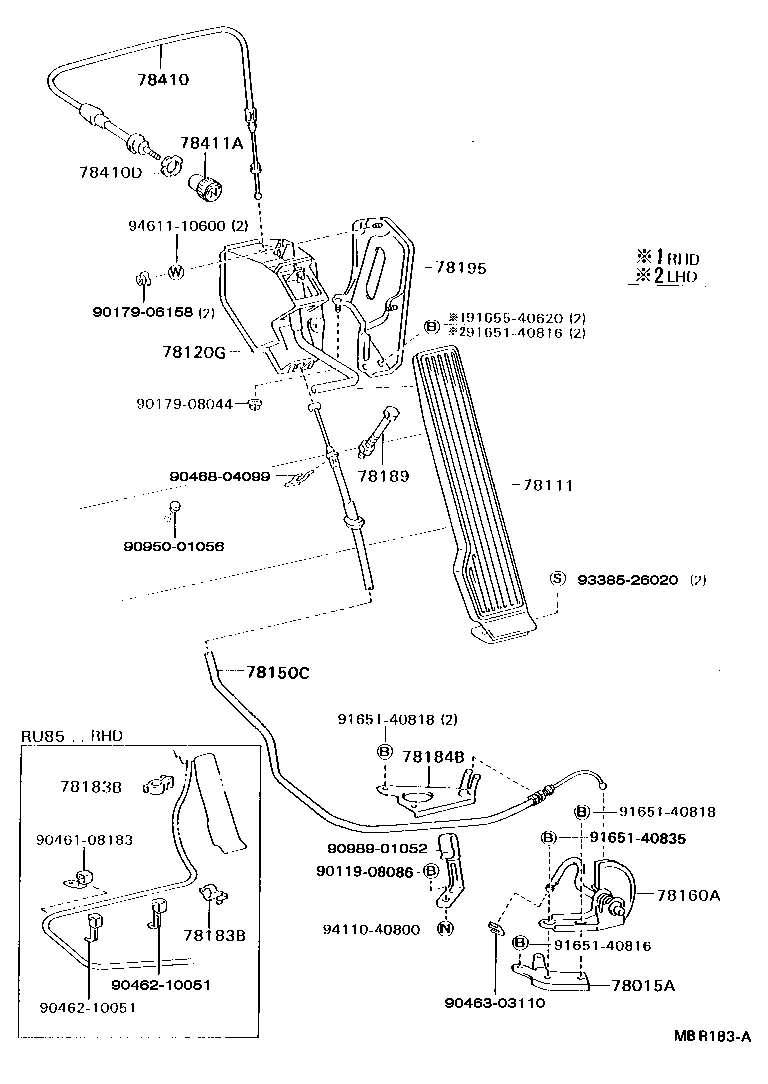

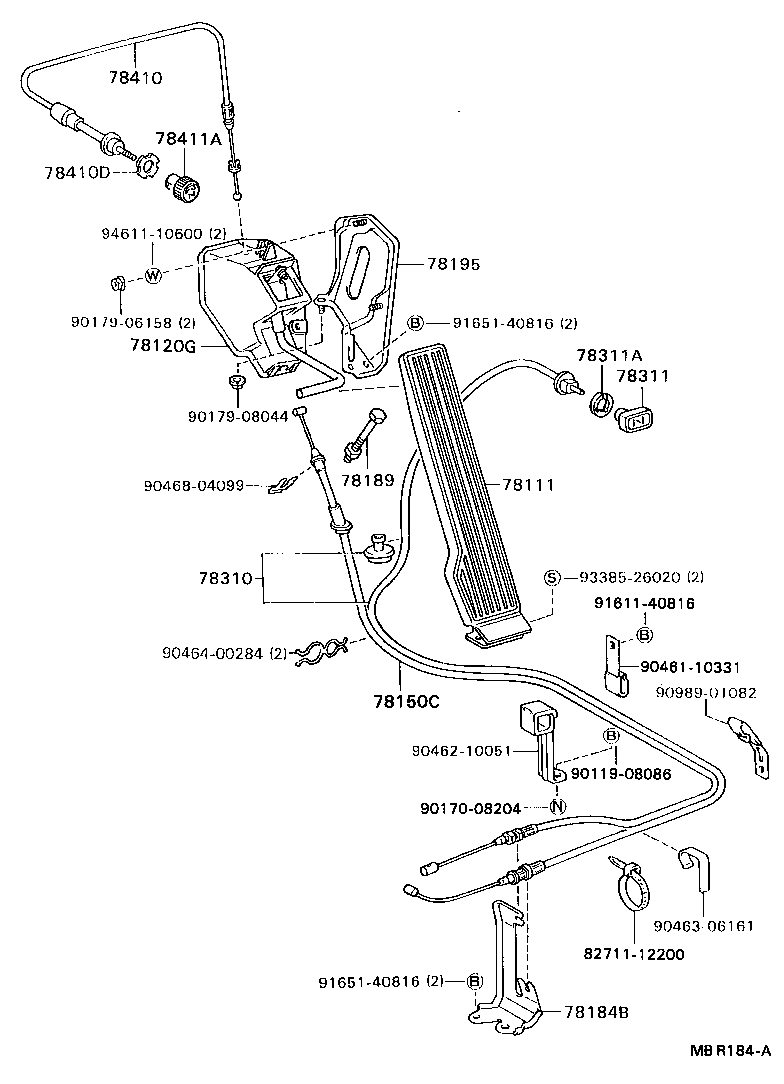

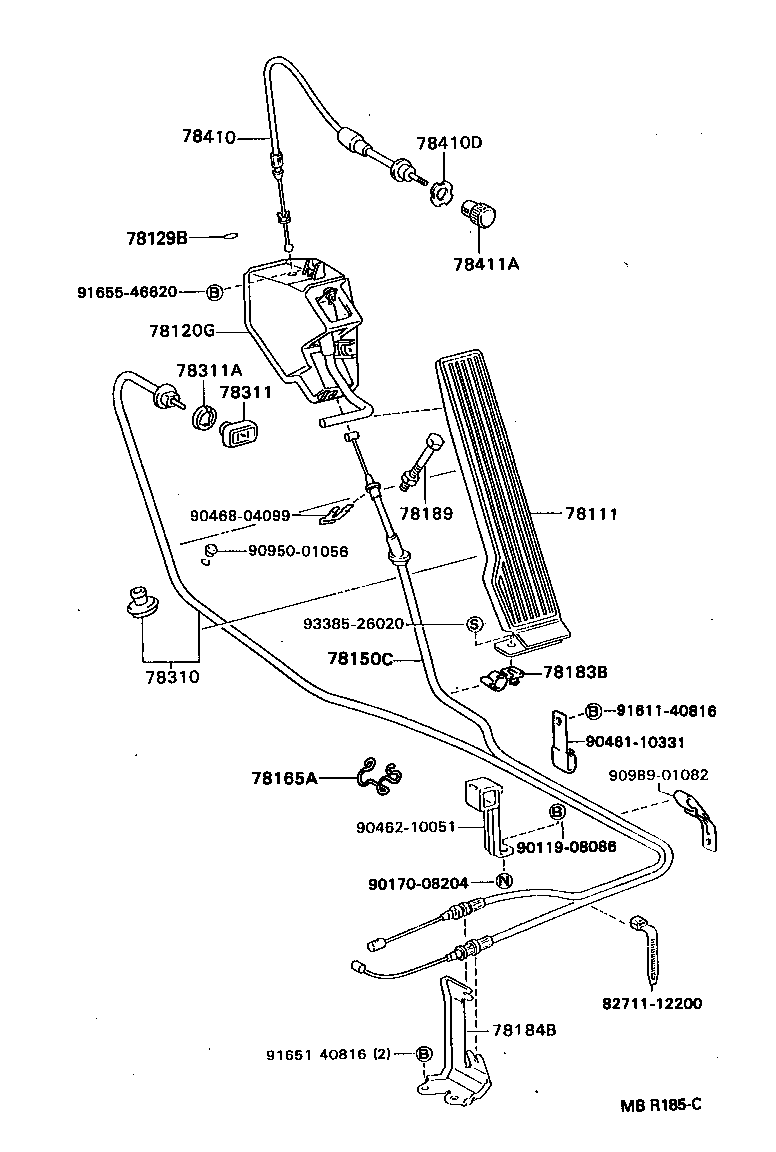

Figure MBR178B MBR178B 1988-08 → — Figure MBR183A MBR183A 1988-08 → — Figure MBR184A MBR184A 1988-08 → — Figure MBR185C MBR185C 1988-08 → —

Part groups

PNCDescription
78015A Arm Sub-assy, Accelerator Link
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78160A Bellcrank Assy, Accel Control W/Bracket
78165A Spring, Clamp
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78195 Bracket, Accelerator Link
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
