Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

12 part groups · 8 illustrations

Illustrations

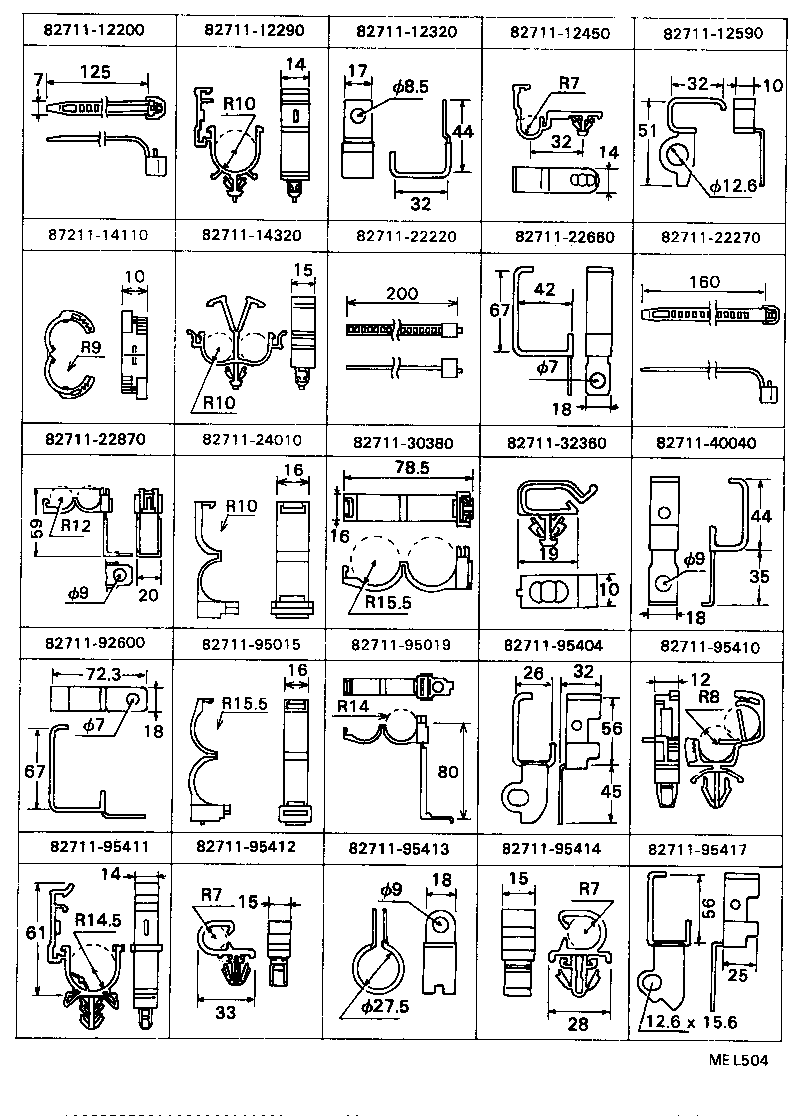

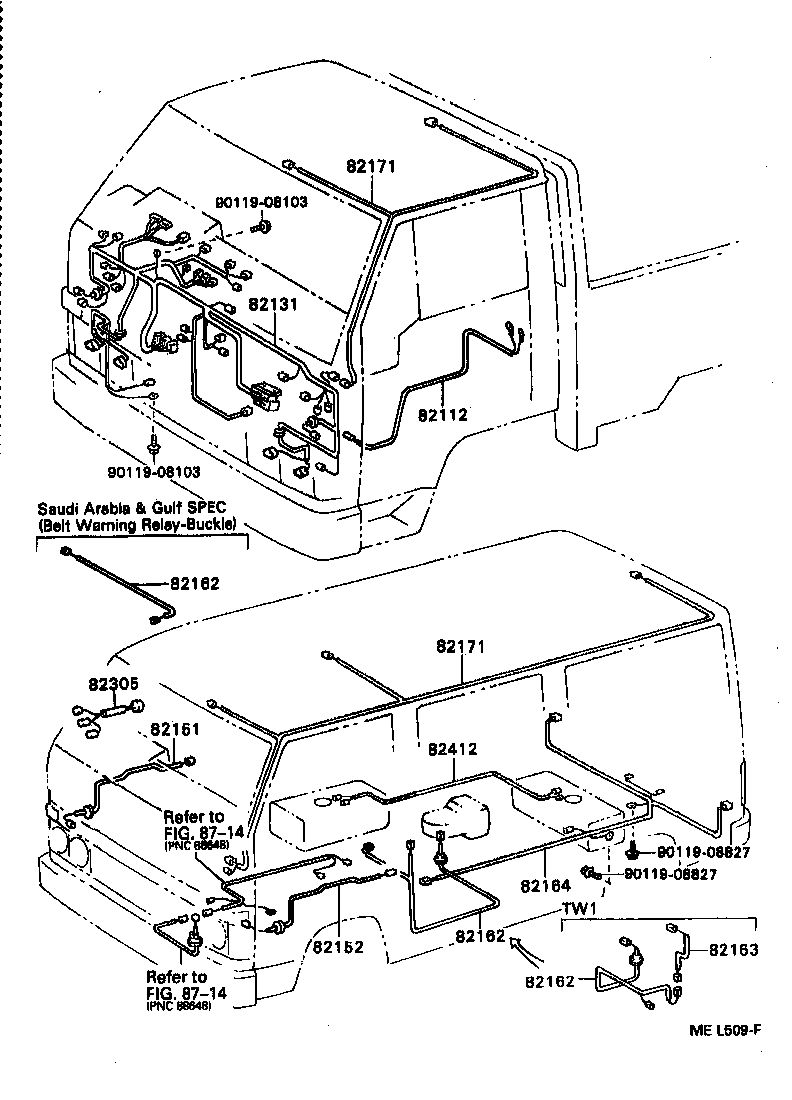

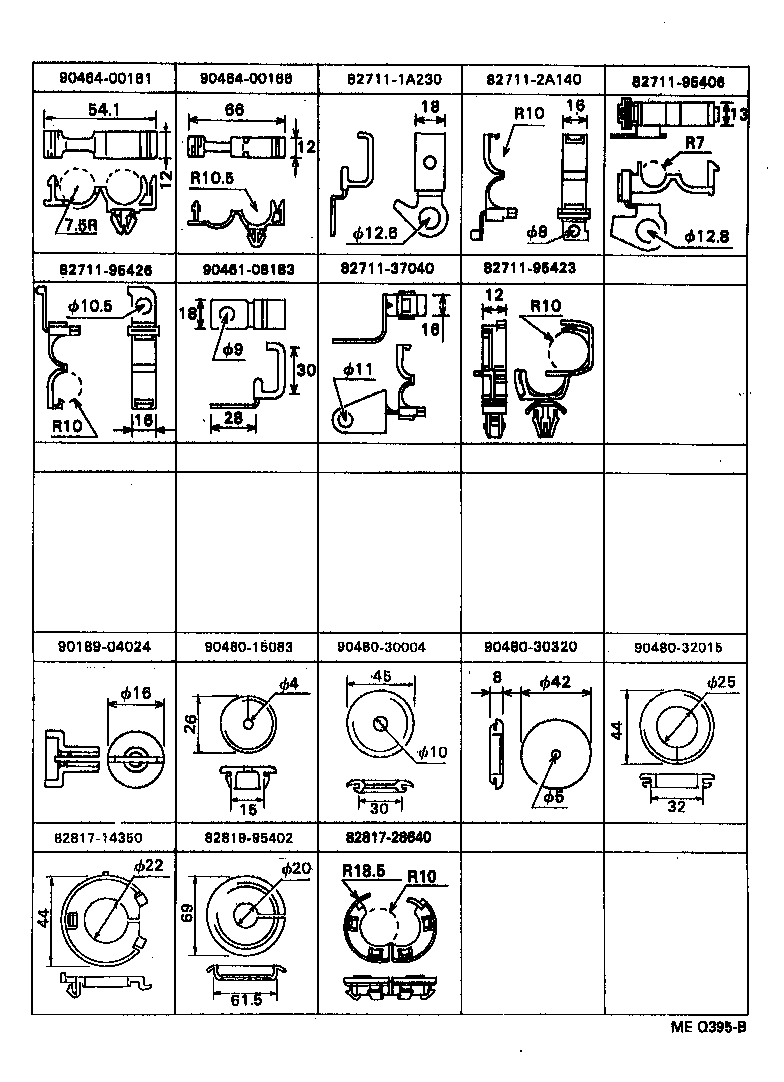

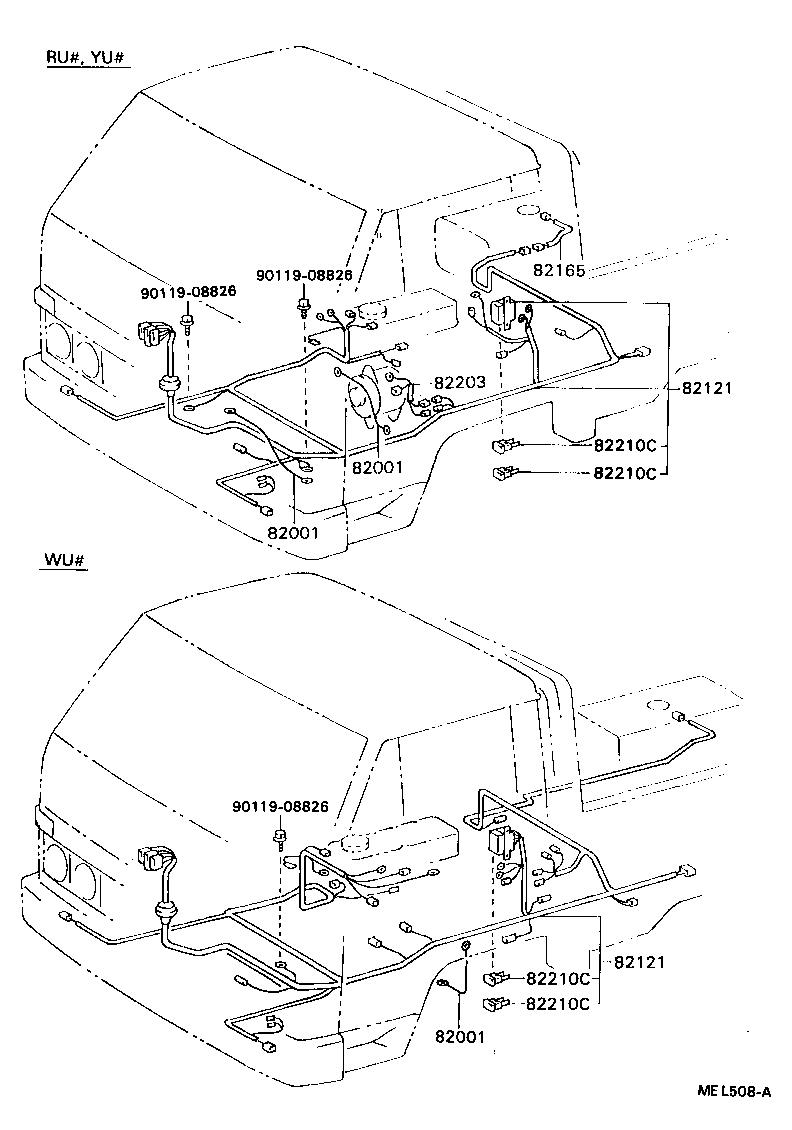

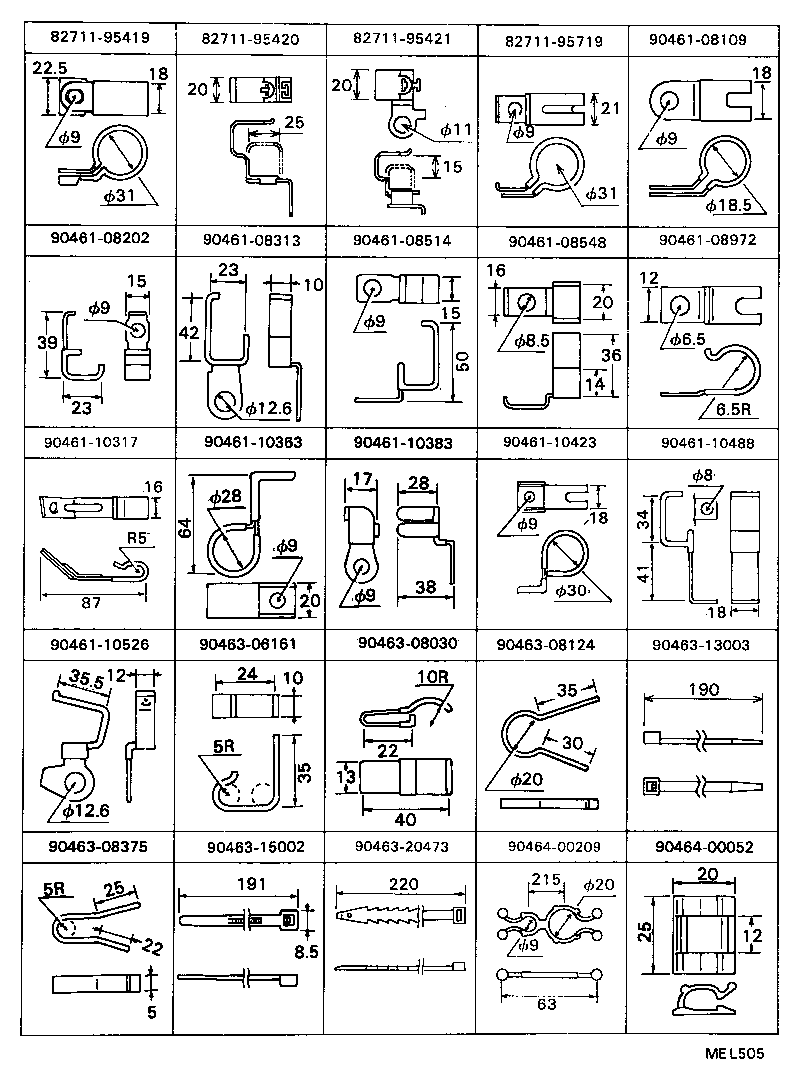

Figure MEL507B MEL507B 1988-08 → — Figure MEL508A MEL508A 1988-08 → — Figure MEL509F MEL509F 1988-08 → — Figure MEM406B MEM406B 1988-08 → — Figure MEJ899A MEJ899A 1988-08 → — Figure MEL504 MEL504 1988-08 → — Figure MEL505 MEL505 1988-08 → — Figure MEQ395B MEQ395B 1988-08 → —

Part groups

PNCDescription

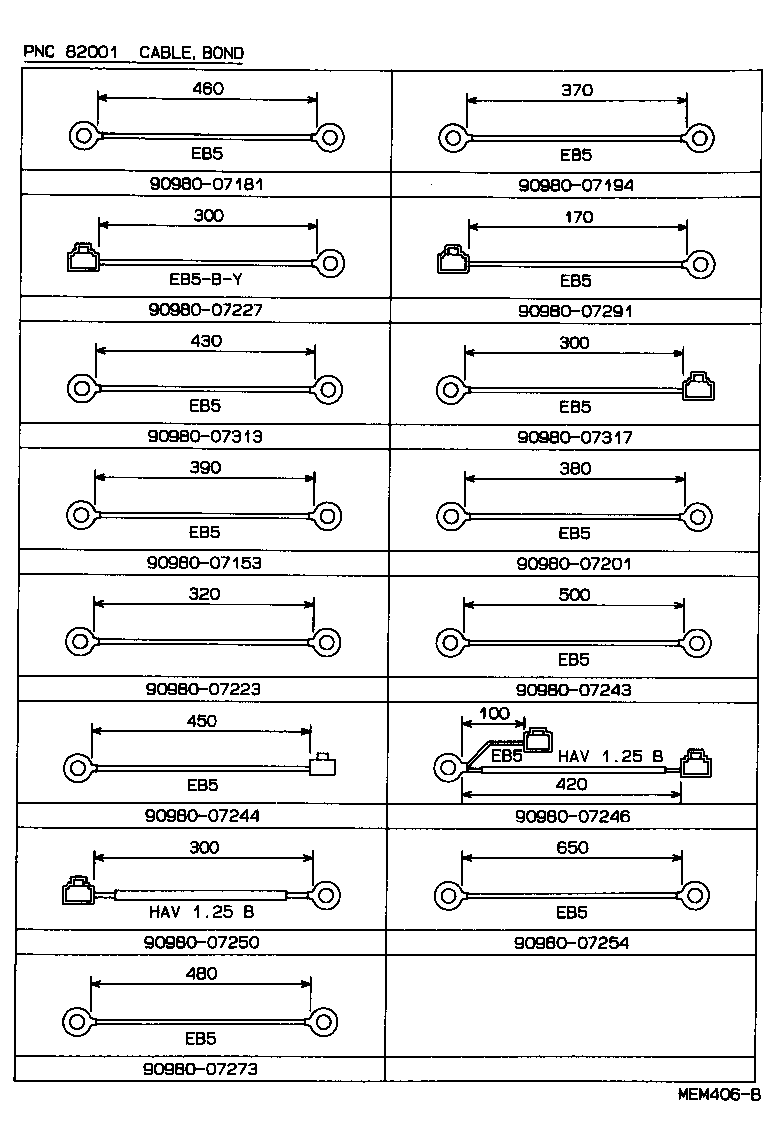

82001 Cable, Bond, NO.1
82121 Wire, Engine
82131 Wire, Cowl
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82345 Diode
82412 Wire, Fuel Gage
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
