Toyota Dyna 200

1988-08 → 1997-03 · chassis YU6#,YU71,YU8#,WU9#,RU85 · catalogue 752350 · General

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

11 part groups · 3 illustrations

Illustrations

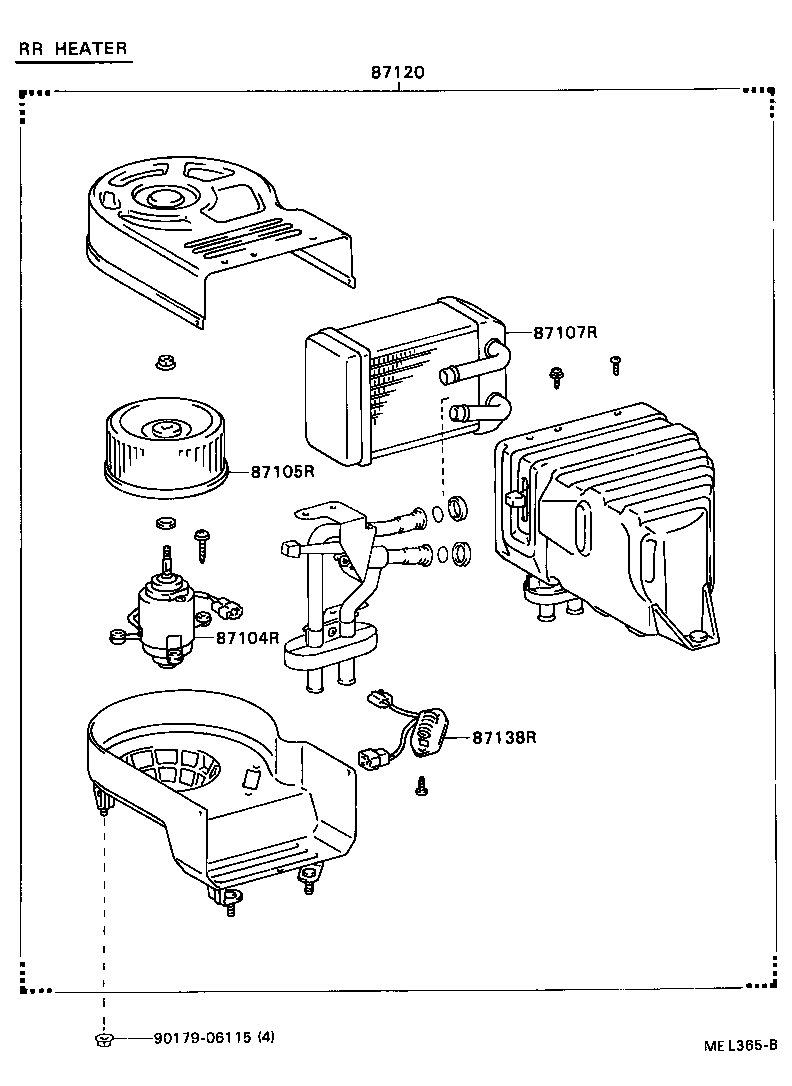

Figure MEK120 MEK120 1988-08 → — Figure MEJ929A MEJ929A 1988-08 → — Figure MEL365B MEL365B 1988-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
