Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · General

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

26 part groups · 5 illustrations

Illustrations

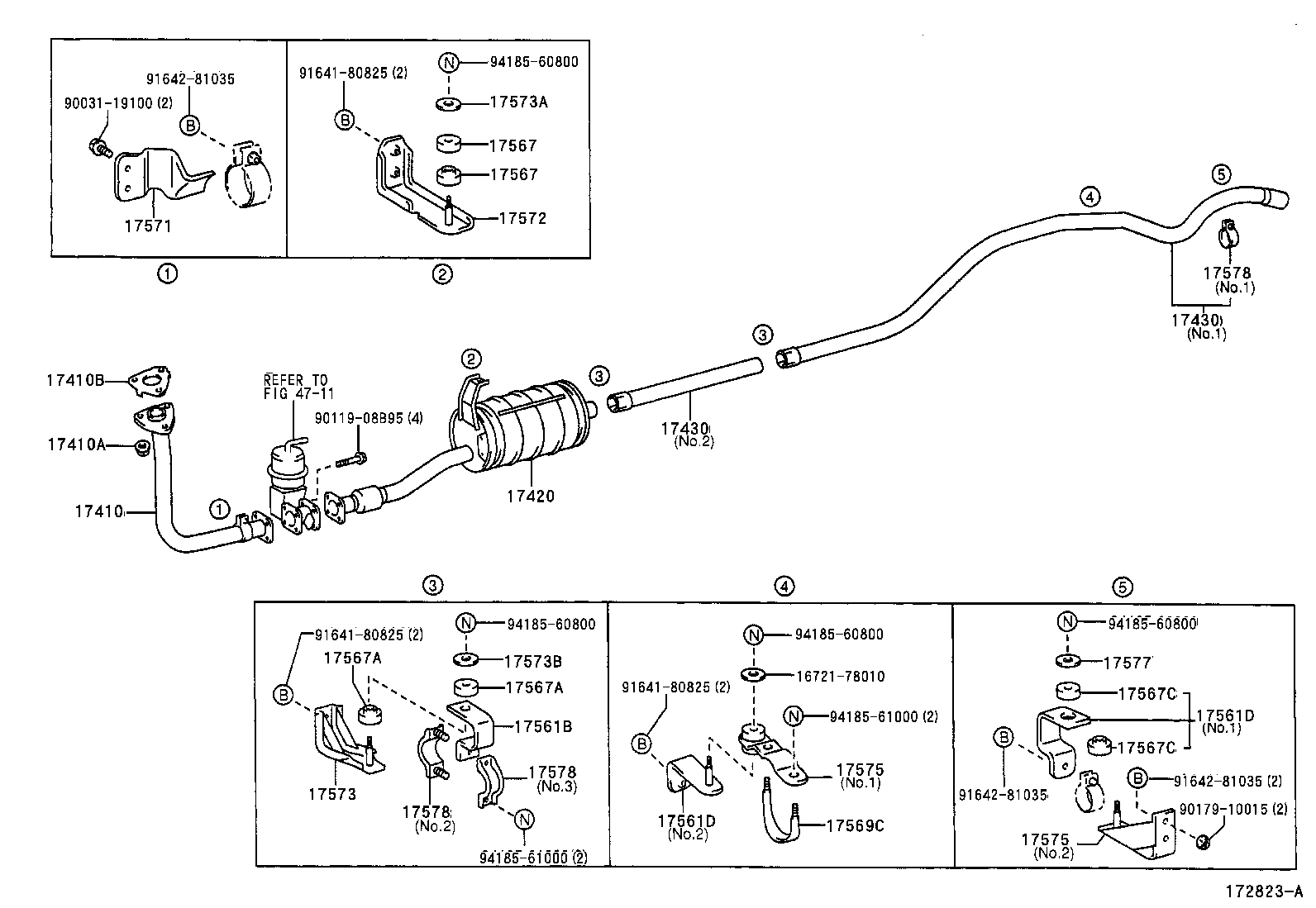

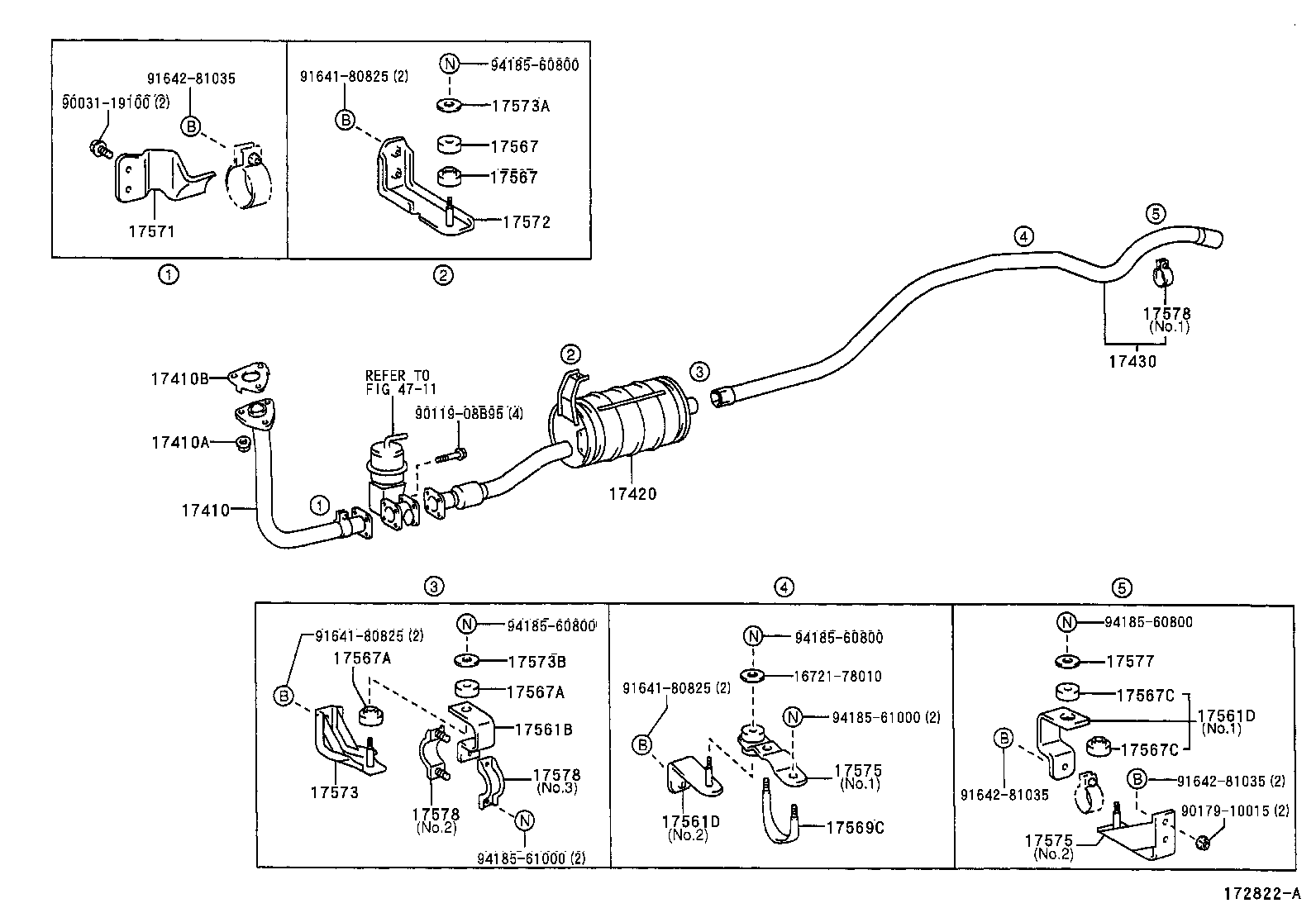

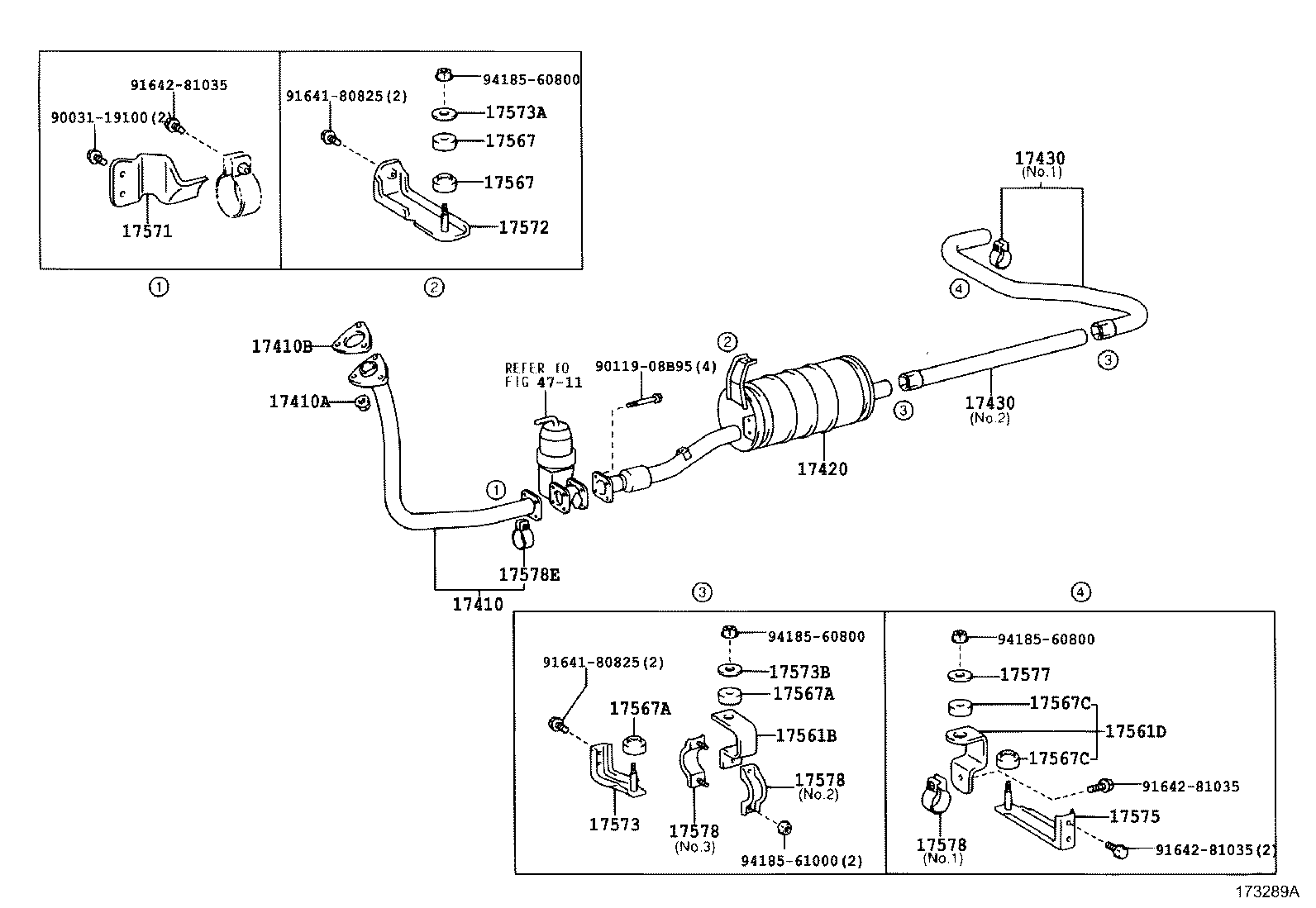

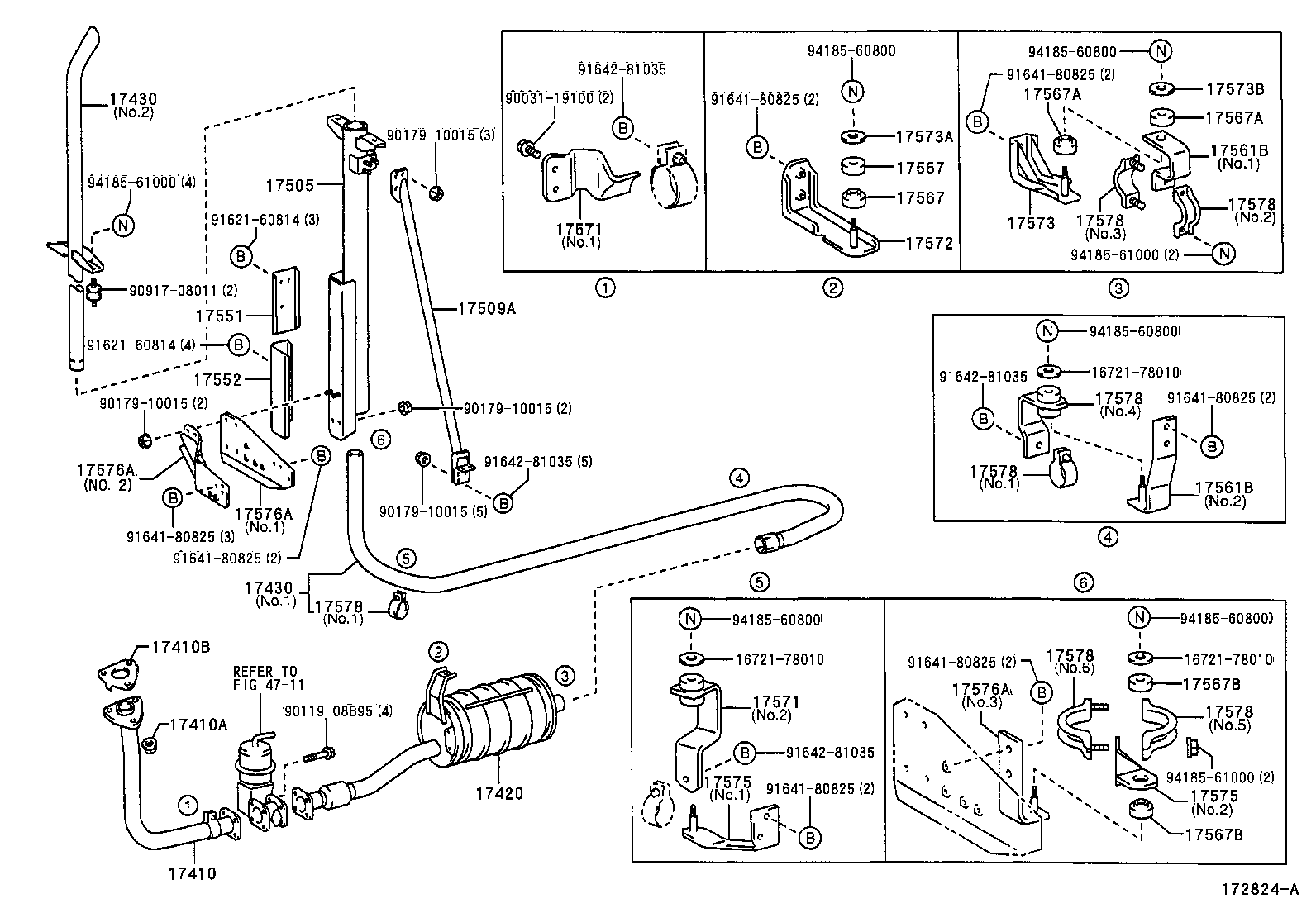

Figure 173288B 173288B 2000-10 → — Figure 173289A 173289A 2000-10 → — Figure 172822A 172822A 2000-10 → — Figure 172823A 172823A 2000-10 → — Figure 172824A 172824A 2000-10 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17561B Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17569C Bolt, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
