Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · General

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

32 part groups · 3 illustrations

Illustrations

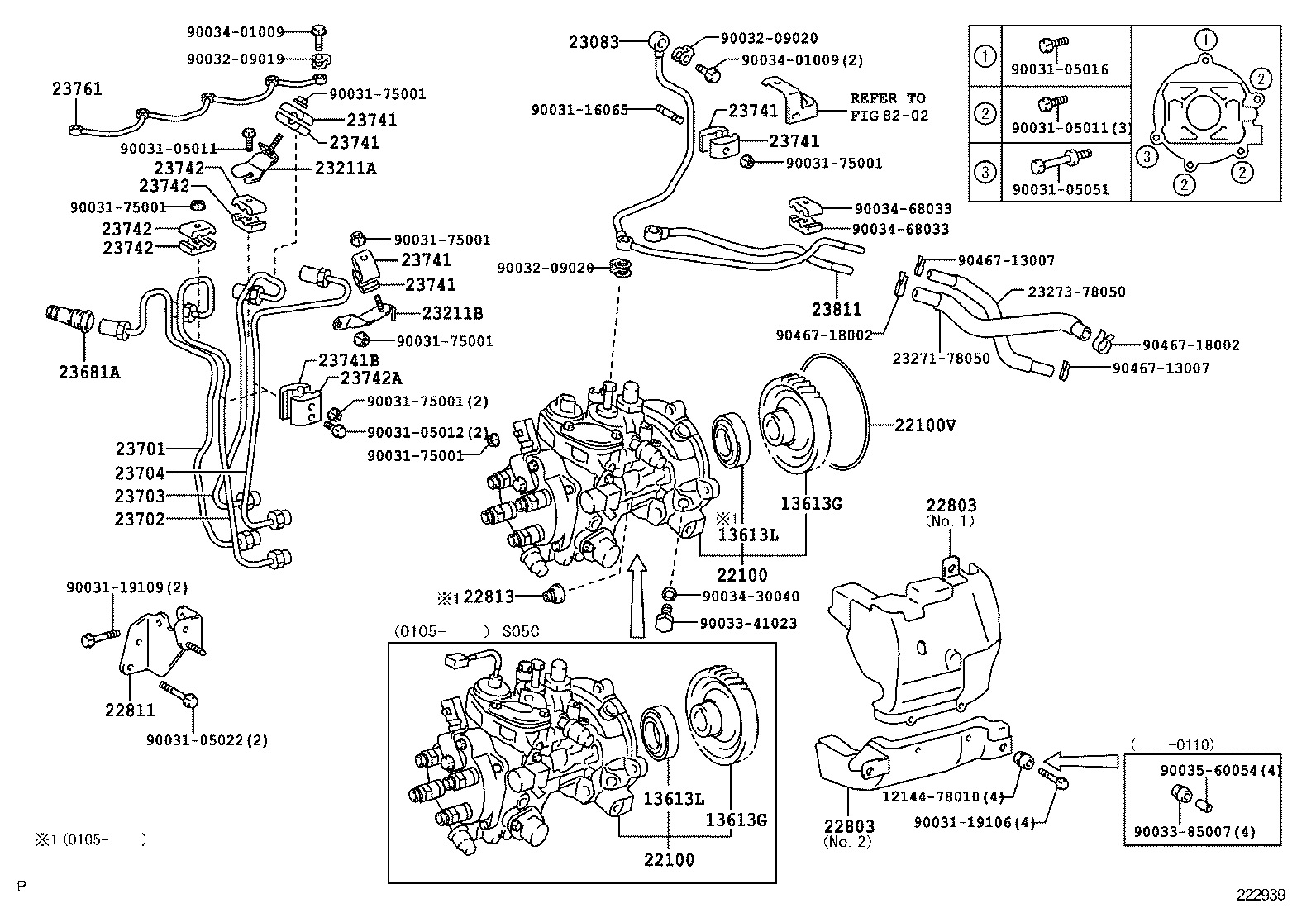

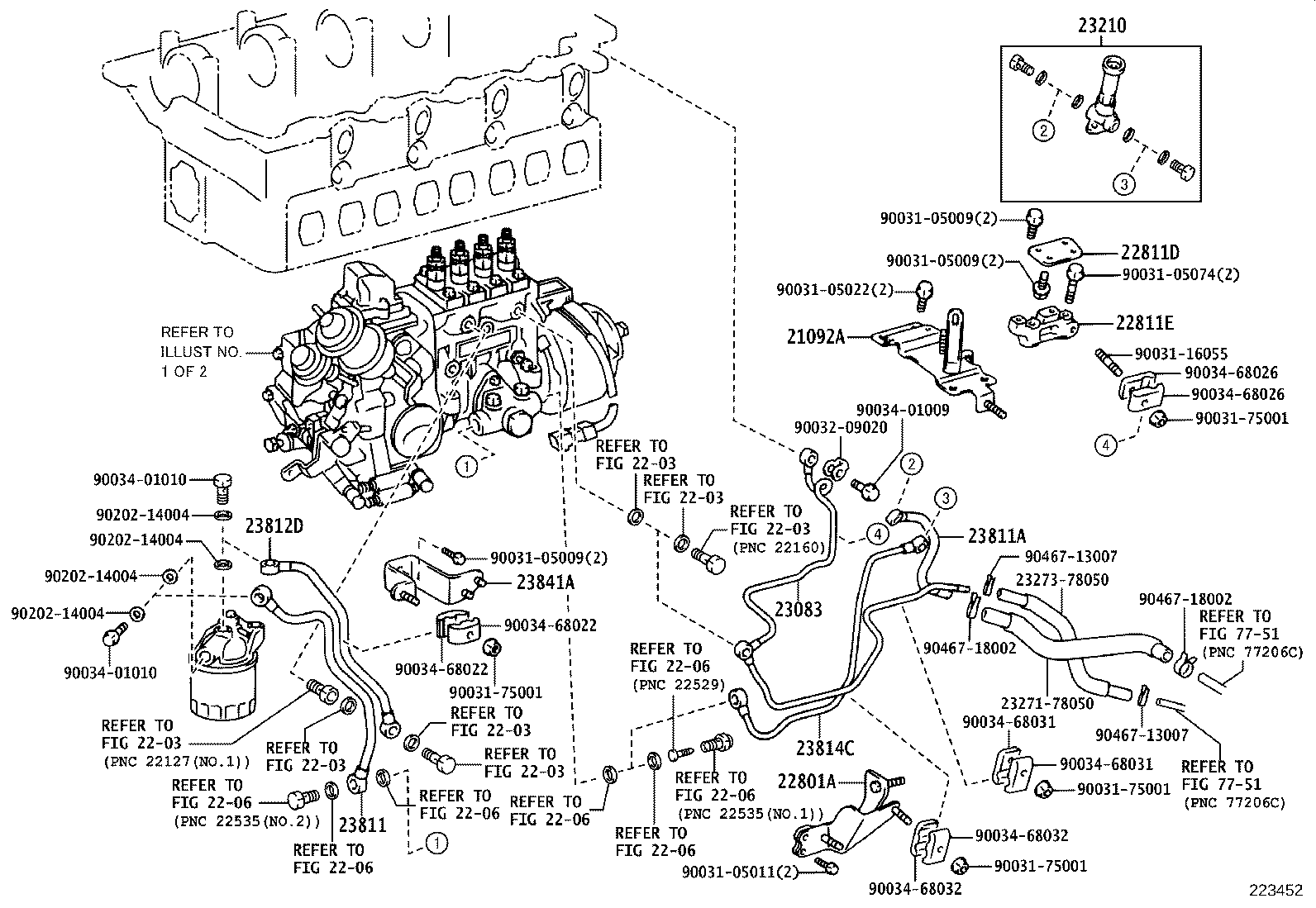

Figure 223451 223451 2000-10 → — Figure 223452 223452 2000-10 → — Figure 222939 222939 2000-10 → —

Part groups

PNCDescription
13613G Gear, Injection Pump Drive
13613L Bearing, Ball(FOR INJECTION PUMP DRIVE GEAR)
21092A Bracket Sub-assy, Solenoid Valve
22100 Pump Assy, Injection OR Supply
22100V Ring, O(FOR INJECTION PUMP)
22801A Bracket Sub-assy, Injection Pump
22803 Cover Sub-assy, Fuel Injection Pump
22811 Stay, Injection Pump, NO.1
22811D Stay, Injection Pump, NO.2
22811E Stay, Injection Pump, NO.3
22813 Protector, Injection Pump, NO.1
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23210 Pump Assy, Fuel(FOR DIESEL)
23211A Bracket(FOR INJECTION PIPE NO.3)
23211B Bracket(FOR INJECTION PIPE NO.4)
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23761 Pipe, Nozzle Leakage, NO.1
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811A Pipe, Fuel, NO.2(FOR FUEL FILTER TO INJECTION PUMP)
23812D Pipe, Fuel, NO.2
23814C Pipe, Fuel Delivery
23841A Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
26608 Bracket Sub-assy, Accelerator Wire
26662 Bracket, Accelerator Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
