Toyota Dyna

2000-10 → 2002-06 · chassis XZU402,41#,420,430 · catalogue 771230 · General

Discontinued model Data version 2003-07

Rear Spring & Shock Absorber

41 part groups · 5 illustrations

PNC	Description
48042	Shackle Sub-assy, Rear Spring, NO.2
48046	Seat Sub-assy, Spring U Bolt, RH
48046A	Bolt, U(FOR REAR SPRING)
48047	Seat Sub-assy, Spring U Bolt, LH
48191A	Wedge, Caster(FOR REAR LEAF SPRING)

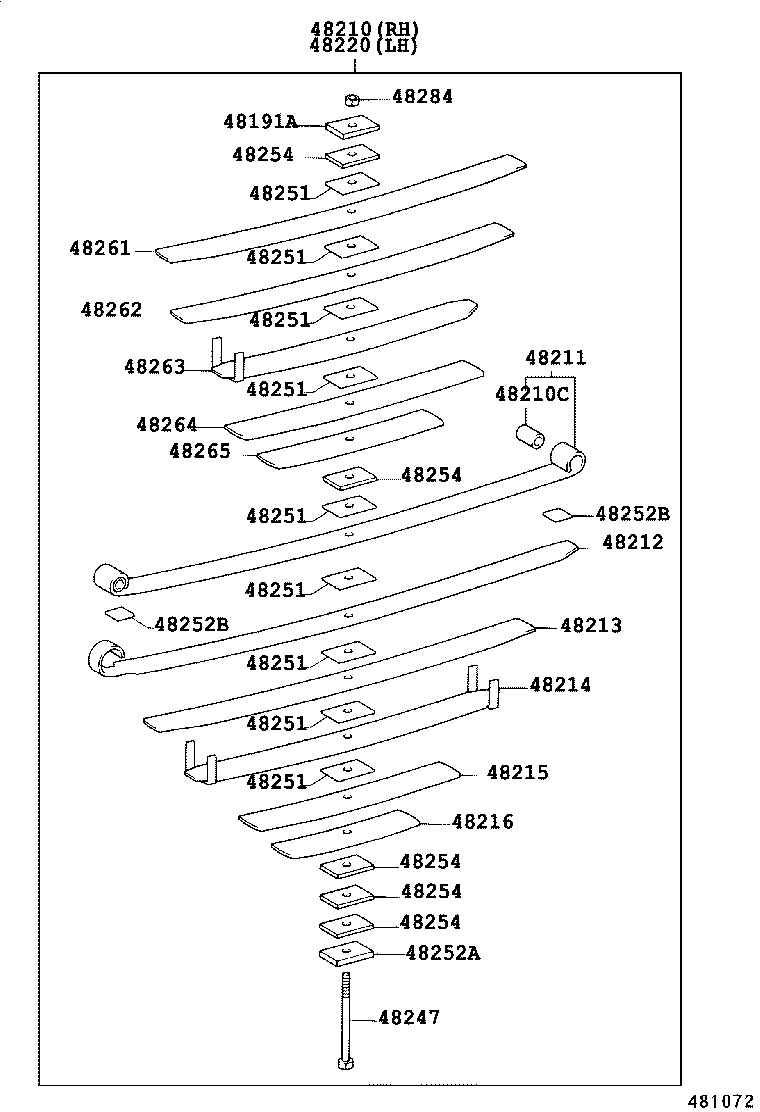

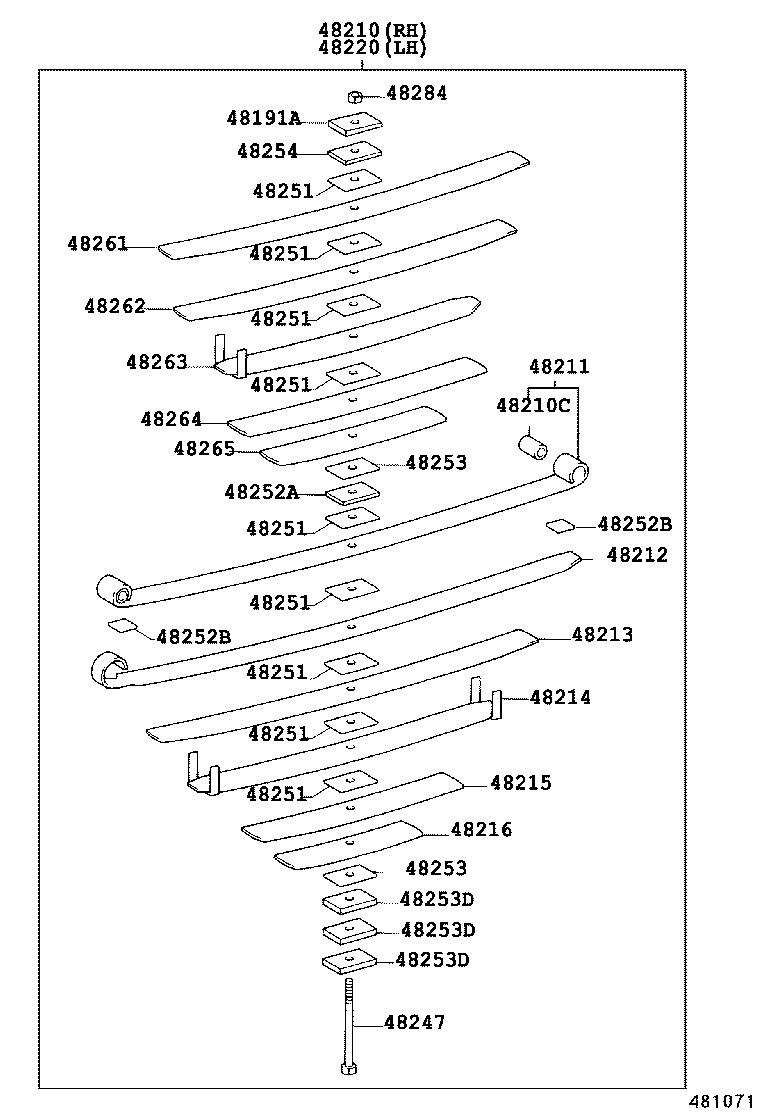

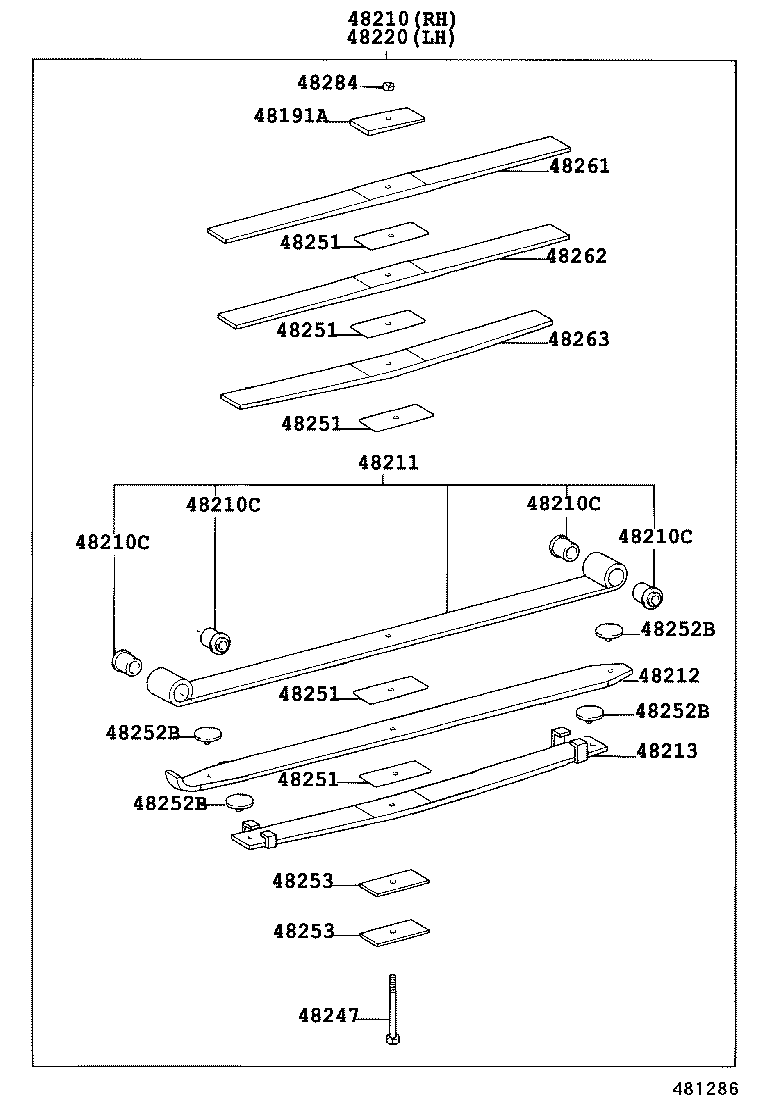

48210	Spring Assy, Rear RH
48210C	Bush(FOR REAR SPRING LEAF)
48210Q	Bush(FOR REAR SPRING SHACKLE)
48211	Leaf, Rear Spring, NO.1
48212	Leaf, Rear Spring, NO.2
48213	Leaf, Rear Spring, NO.3
48214	Leaf, Rear Spring, NO.4
48215	Leaf, Rear Spring, NO.5
48216	Leaf, Rear Spring, NO.6
48220	Spring Assy, Rear LH
48247	Bolt, Rear Spring, Center
48251	Spacer, Rear Spring Leaf
48252A	Spacer, Rear Spring, NO.2
48252B	Silencer, Rear Spring, NO.1
48253	Spacer, Rear Spring, NO.1
48253D	Spacer, Rear Spring, NO.3
48254	Spacer, Rear Spring Leaf
48261	Leaf, Rear Helper Spring, NO.1
48262	Leaf, Rear Helper Spring, NO.2
48263	Leaf, Rear Helper Spring, NO.3
48264	Leaf, Rear Helper Spring, NO.4
48265	Leaf, Rear Helper Spring, NO.5
48284	Nut, Rear Spring Center Bolt
48323D	Pin, Rear Spring Bracket
48323E	Nipple, Grease(FOR REAR SPRING BRACKET PIN)
48344	Stopper, Bumper, Rear
48422A	Support, Rear Spring Pin
48435	Attachment, Helper Spring Bracket, NO.1
48475R	Plate, Distance(FOR REAR)
48481	Seat, Rear Spring, Upper
48516	Bracket, Rear Shock Absorber, Upper RH
48517	Bracket, Rear Shock Absorber, Upper LH
48530	Absorber Assy, Shock, Rear RH
48530A	Bush(FOR REAR SHOCK ABSORBER)
48530B	Washer, Rear Shock Absorber Cushion, NO.1
48540	Absorber Assy, Shock, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
