Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · General

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

17 part groups · 8 illustrations

Illustrations

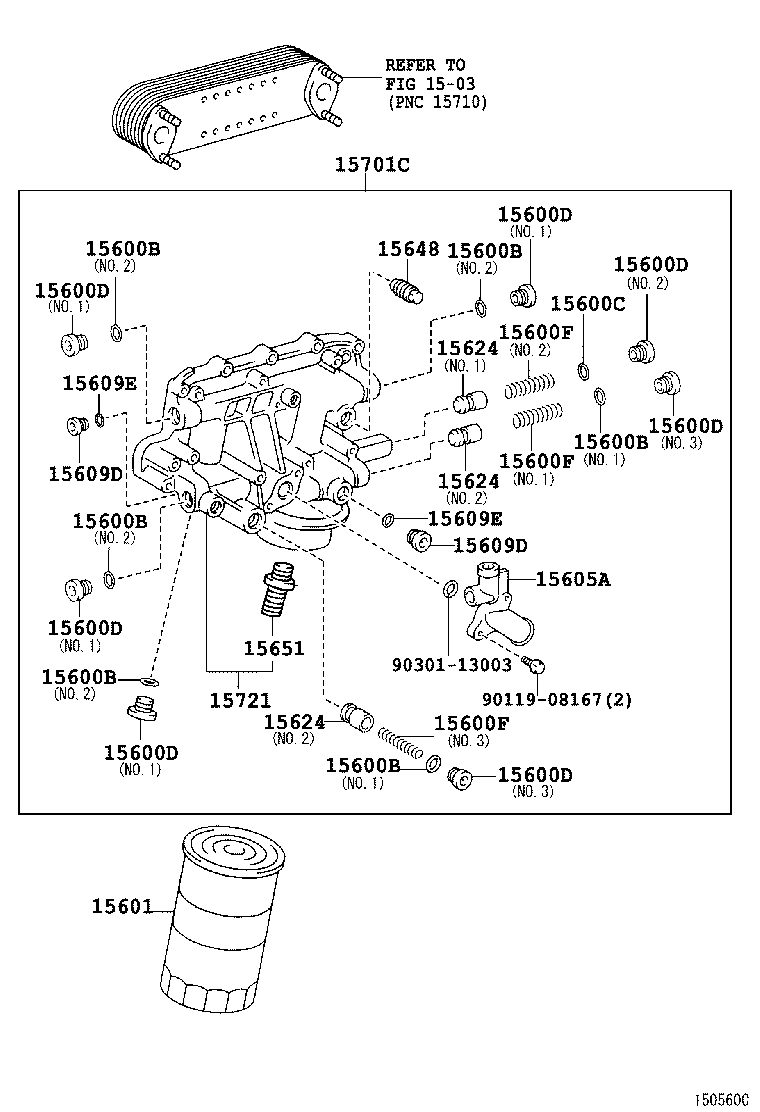

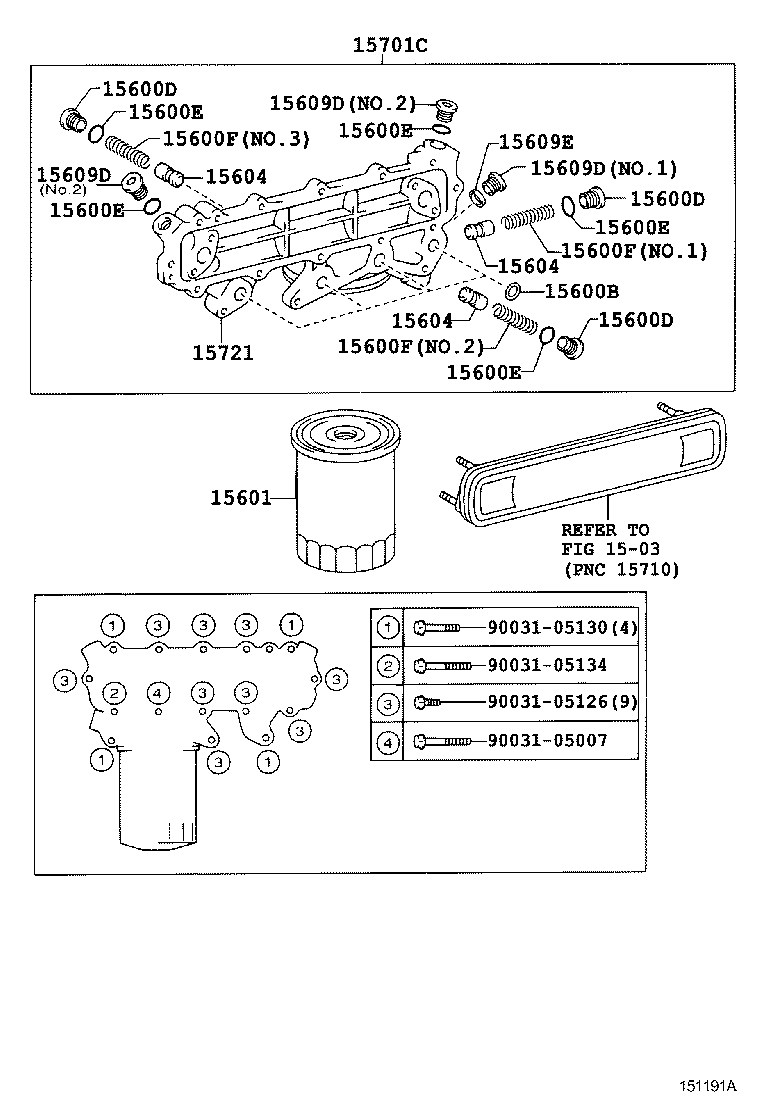

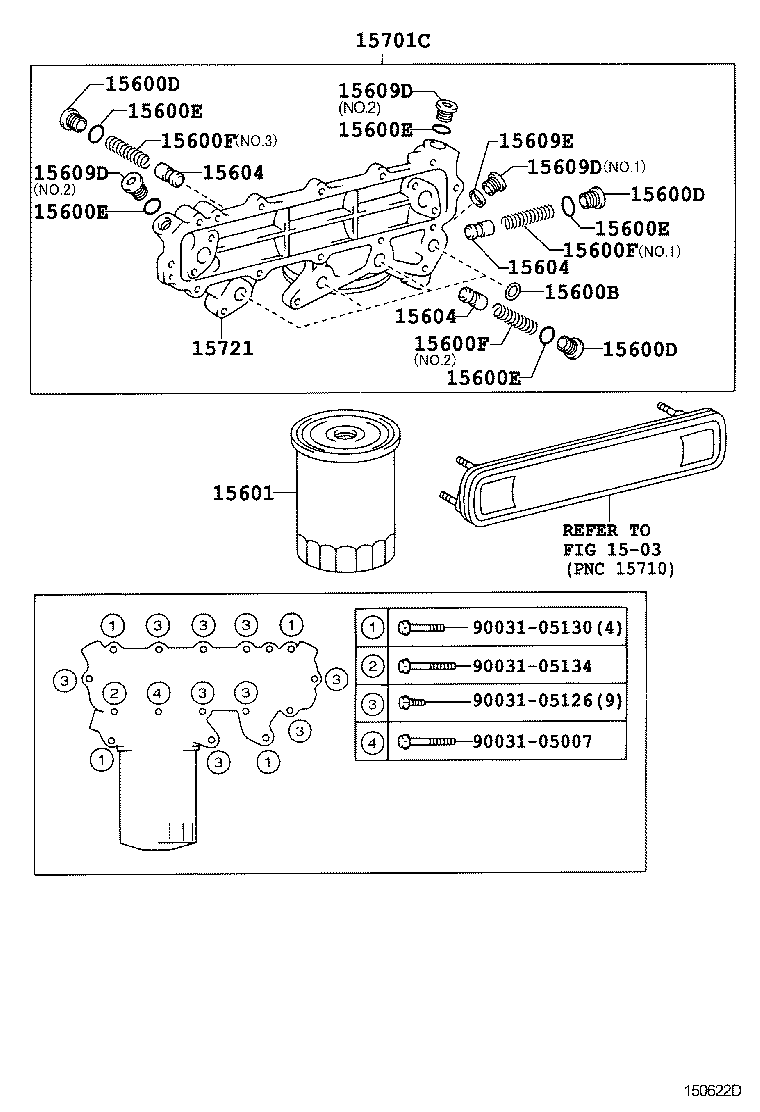

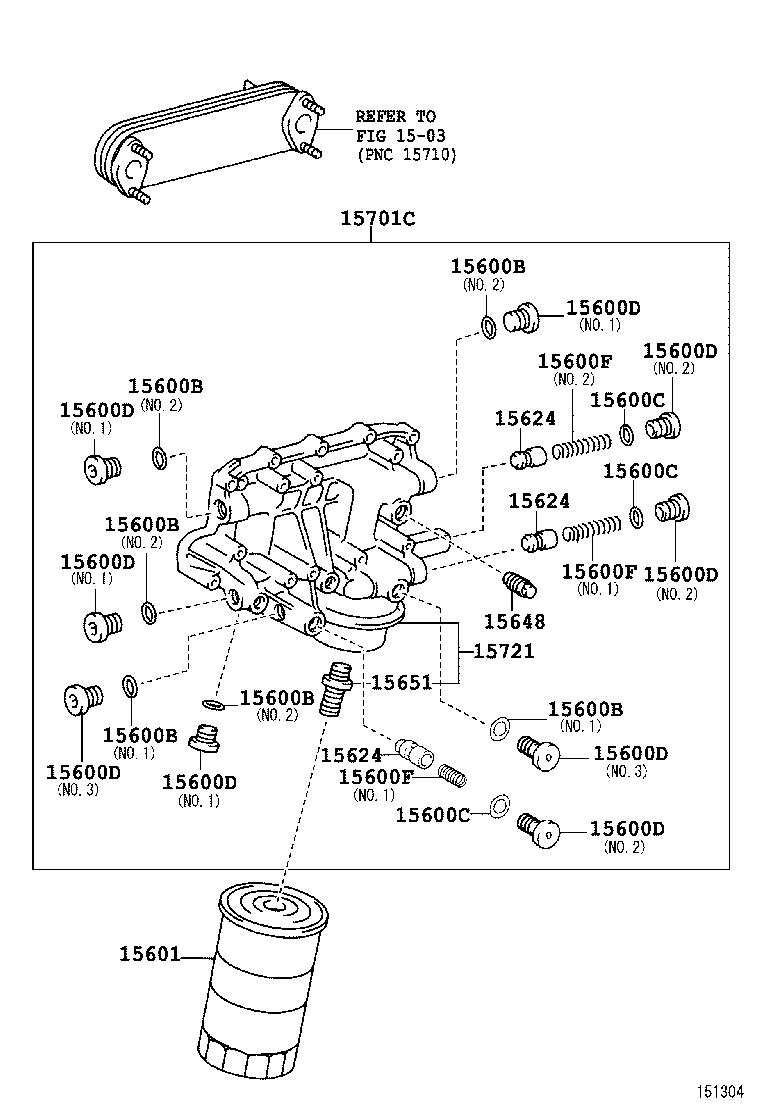

Figure 150738 150738 2004-11 → — Figure 150622D 150622D 2002-12 → 2006-10 Figure 150622D 150622D 2003-04 → 2008-02 Figure 151191A 151191A 2006-10 → — Figure 151191A 151191A 2008-02 → 2008-12 Figure 150560C 150560C 2001-10 → — Figure 151304 151304 2002-12 → — Figure 151152A 151152A 2006-08 → —

Part groups

PNCDescription
15600B Ring, O, NO.1(FOR OIL FILTER)
15600C Ring, O, NO.2(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15605A Valve Sub-assy, Oil Check
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15624 Valve, Filter, NO.1
15648 Plug, Oil Filter Drain
15651 Bolt(FOR OIL FILTER GUIDE)
15691 Gasket, Oil Filter
15701C Cover Sub-assy, Oil Cooler
15721 Cover, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
