Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · General

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

38 part groups · 20 illustrations

Illustrations

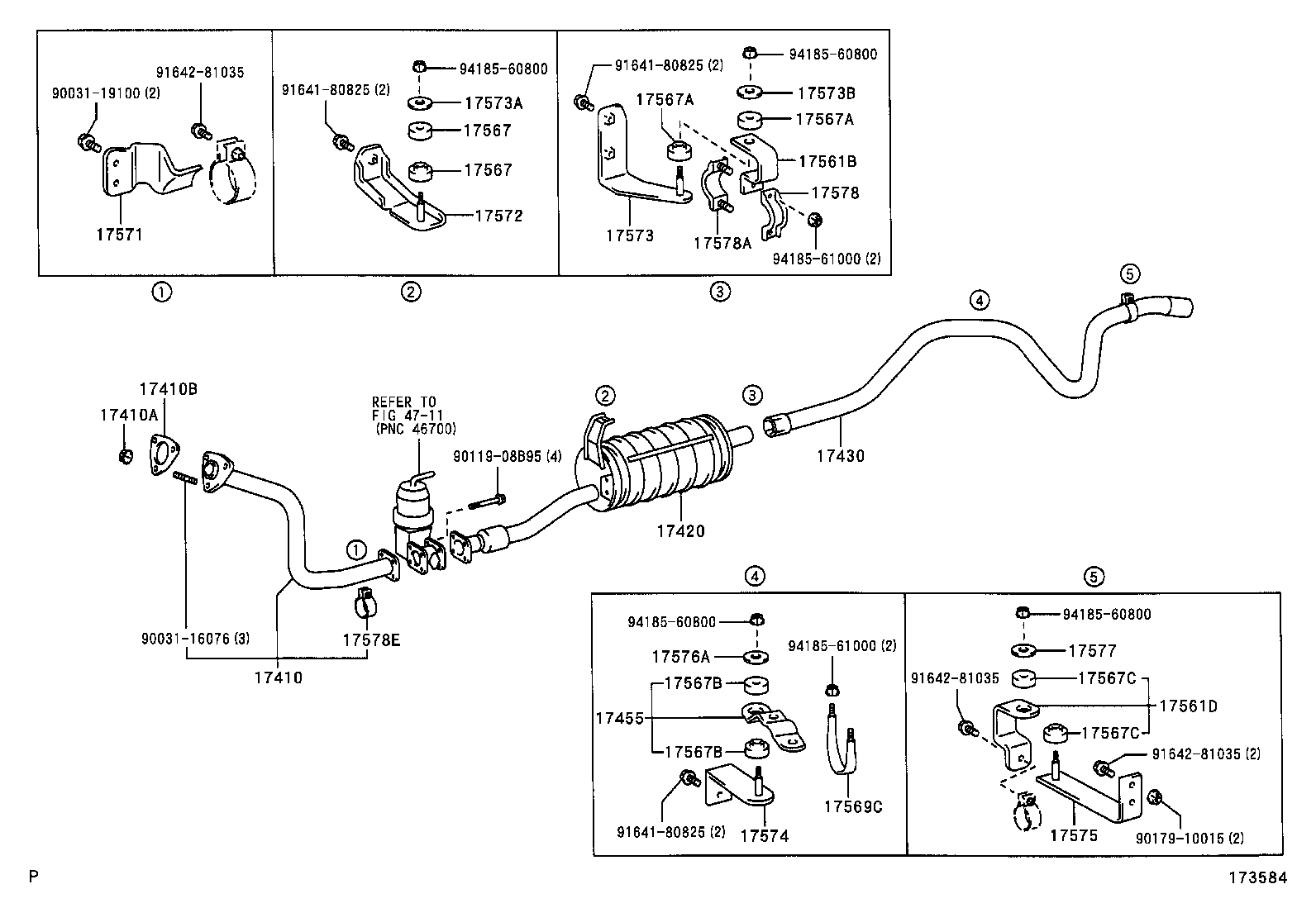

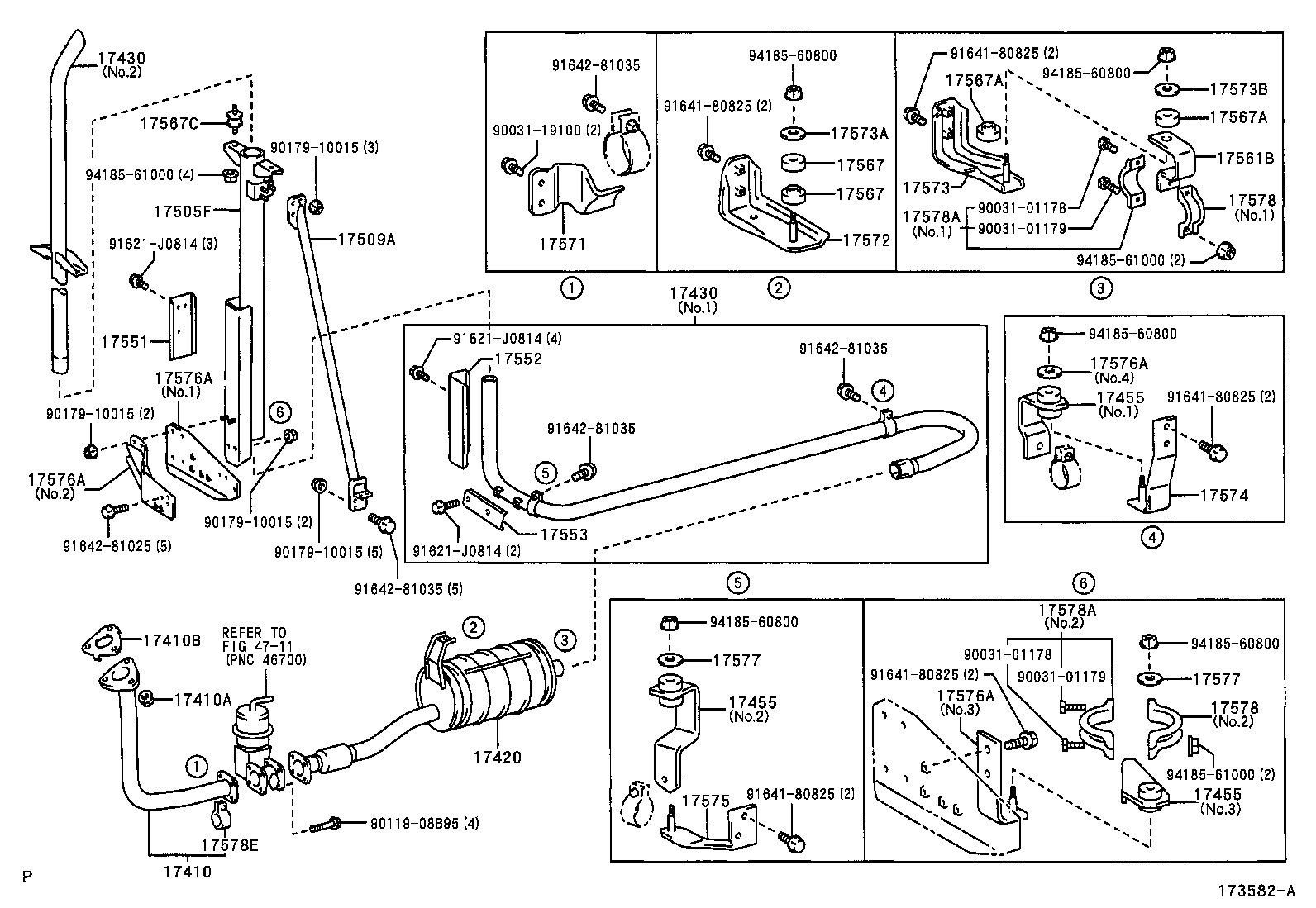

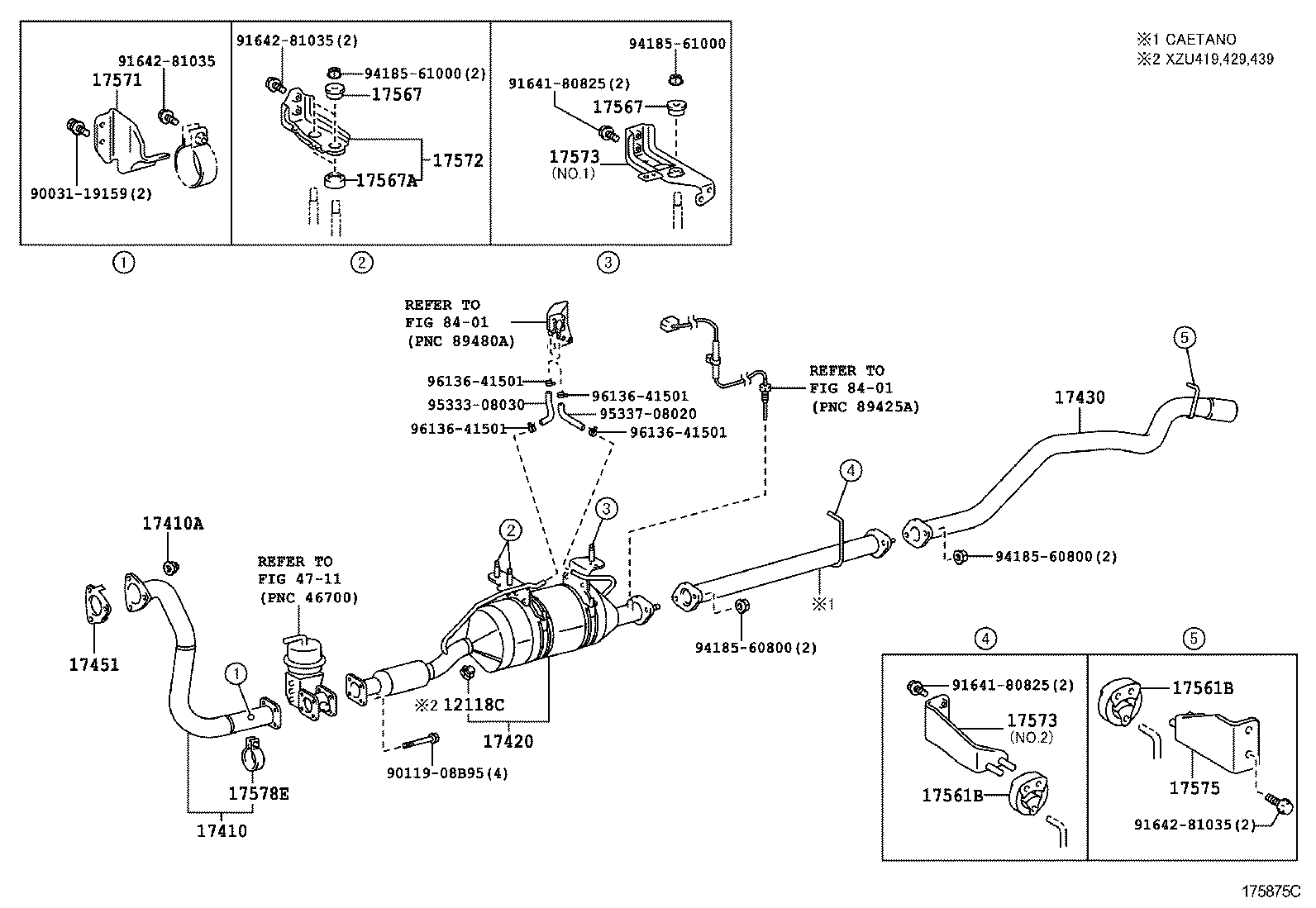

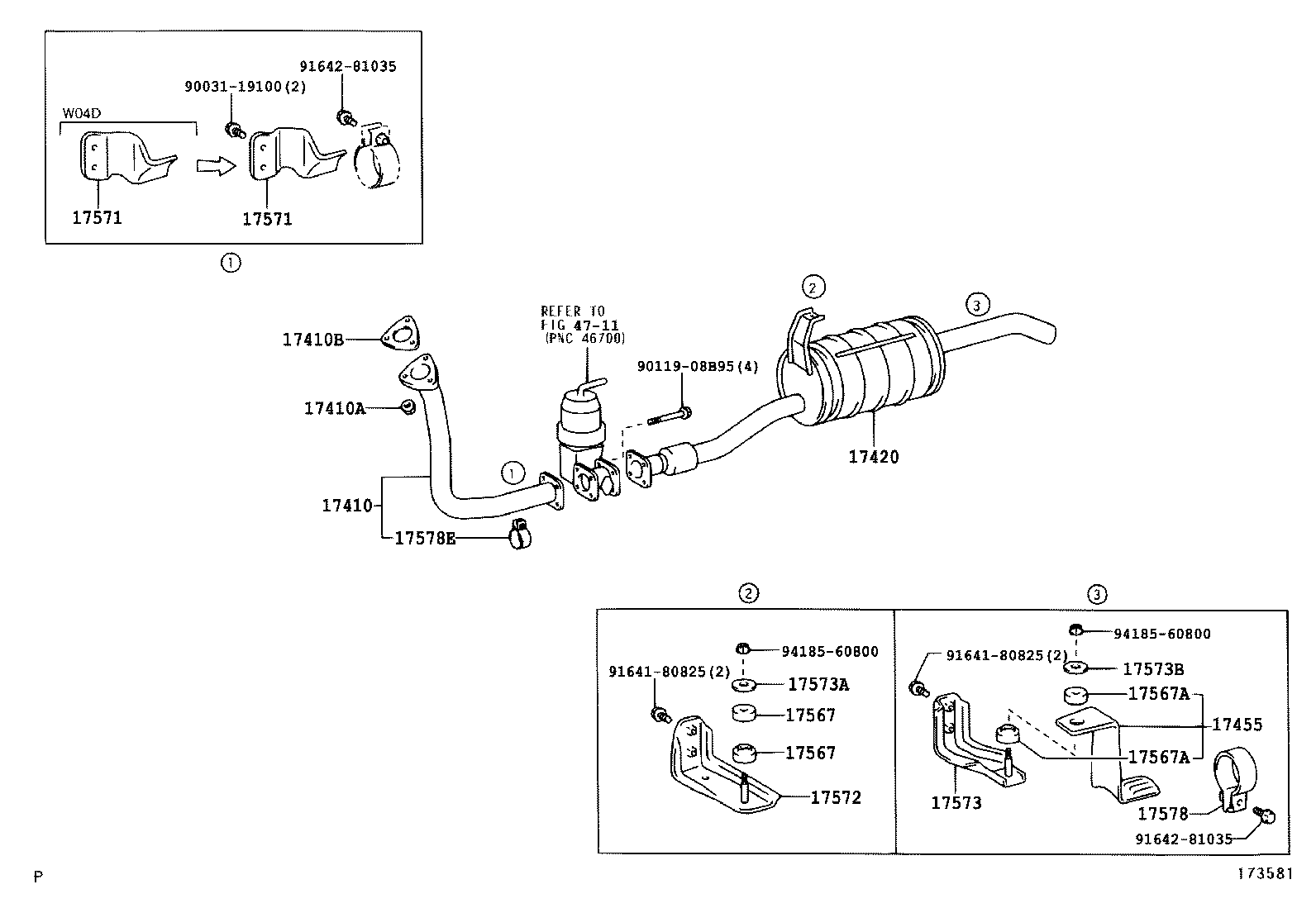

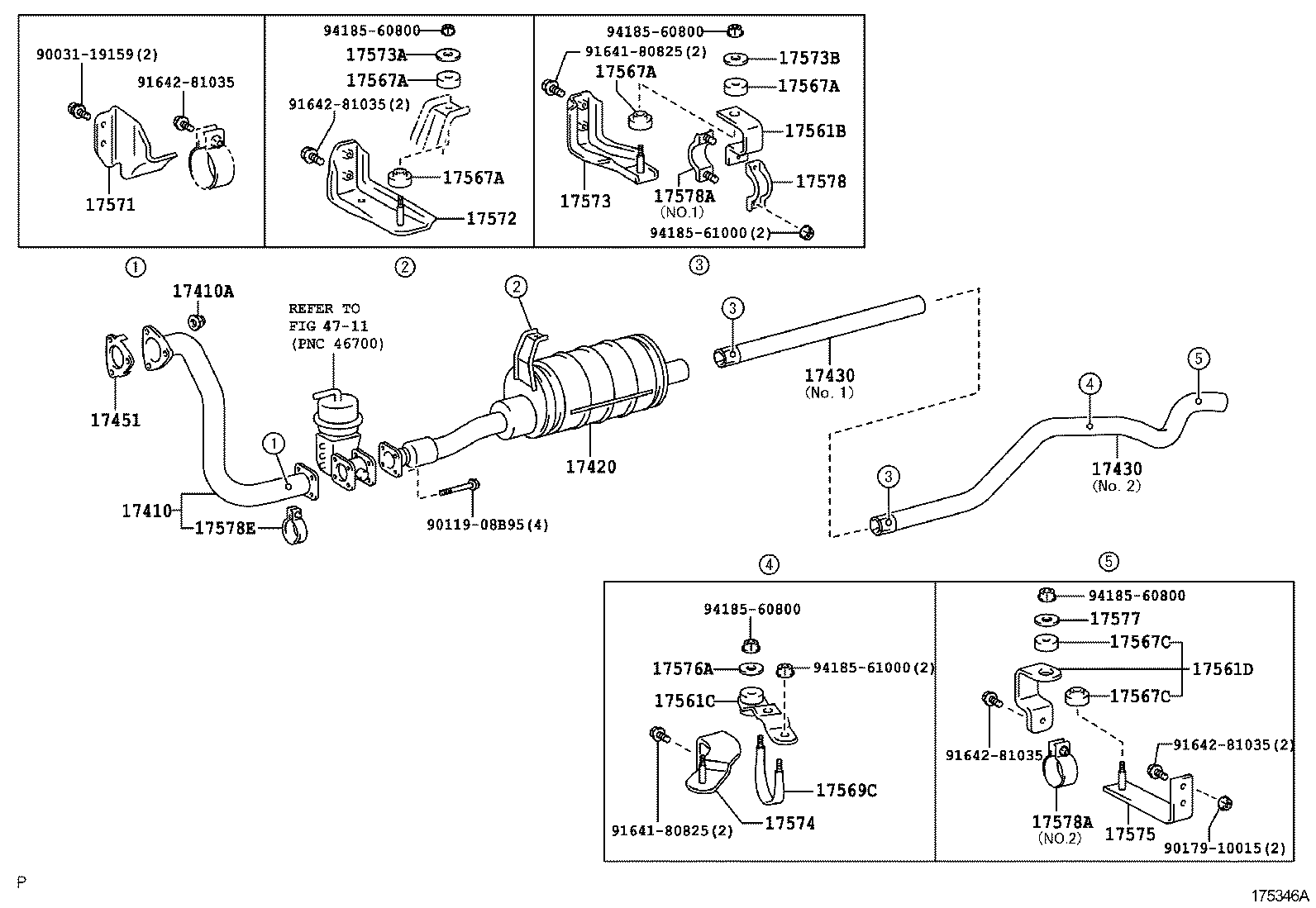

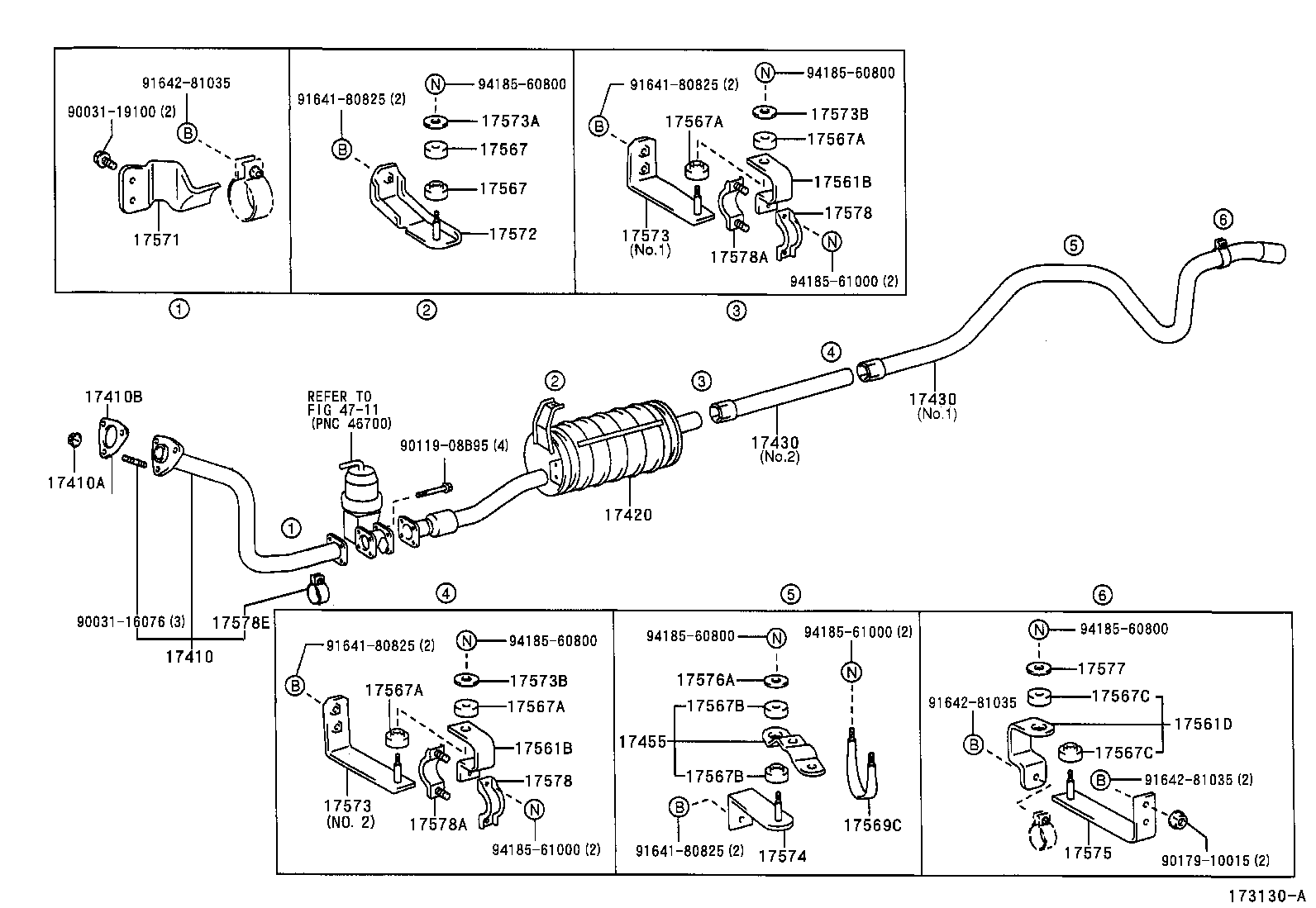

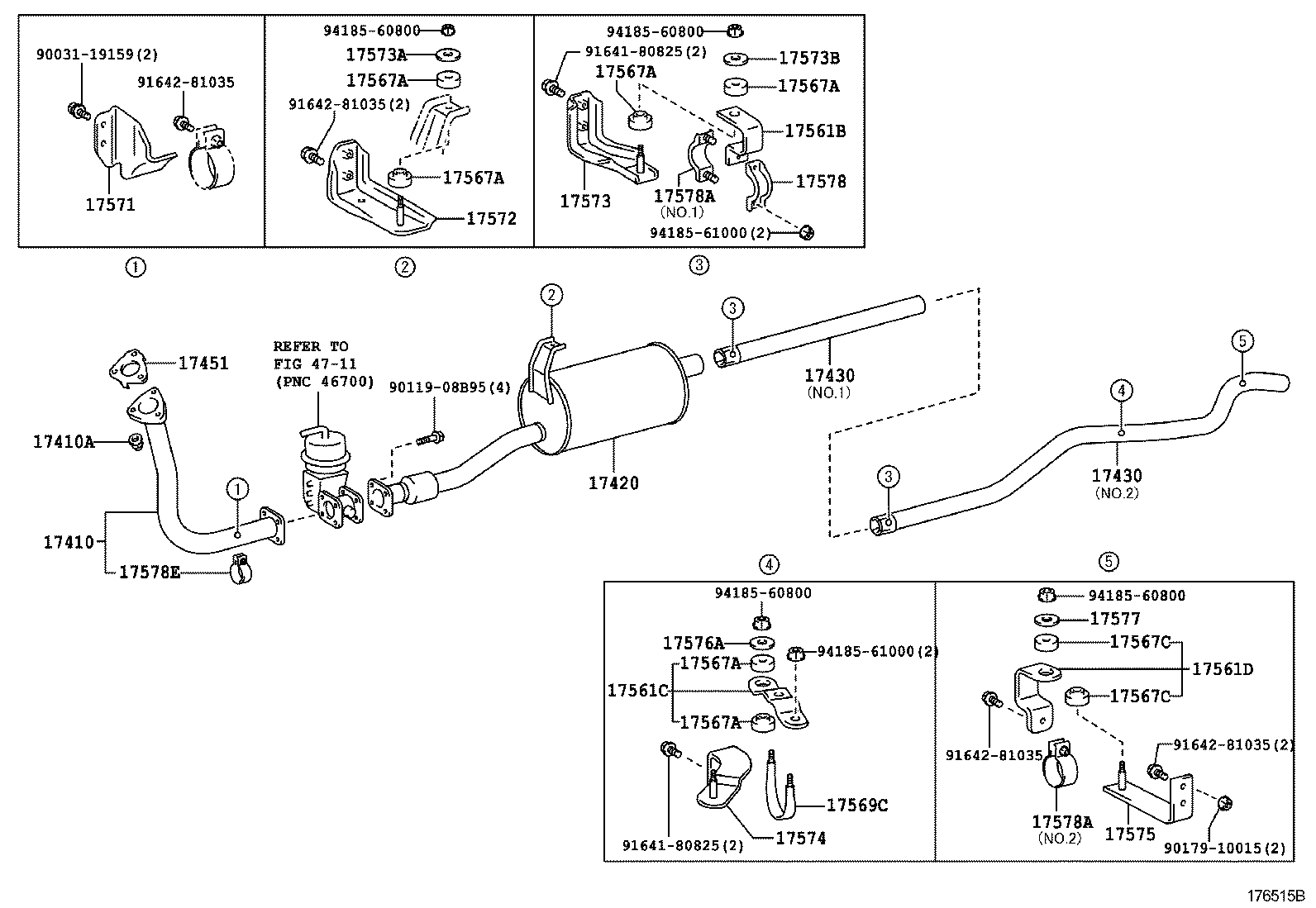

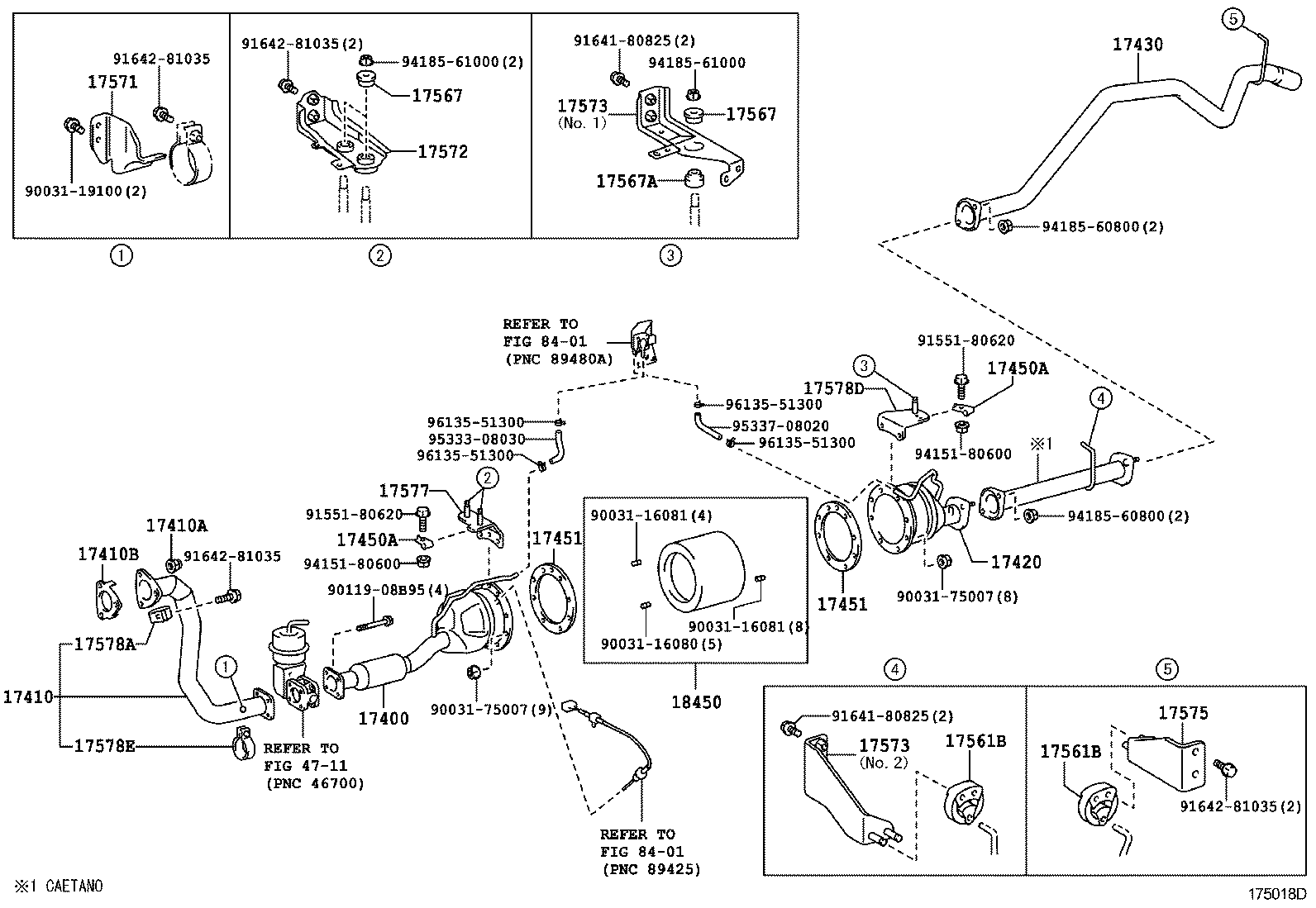

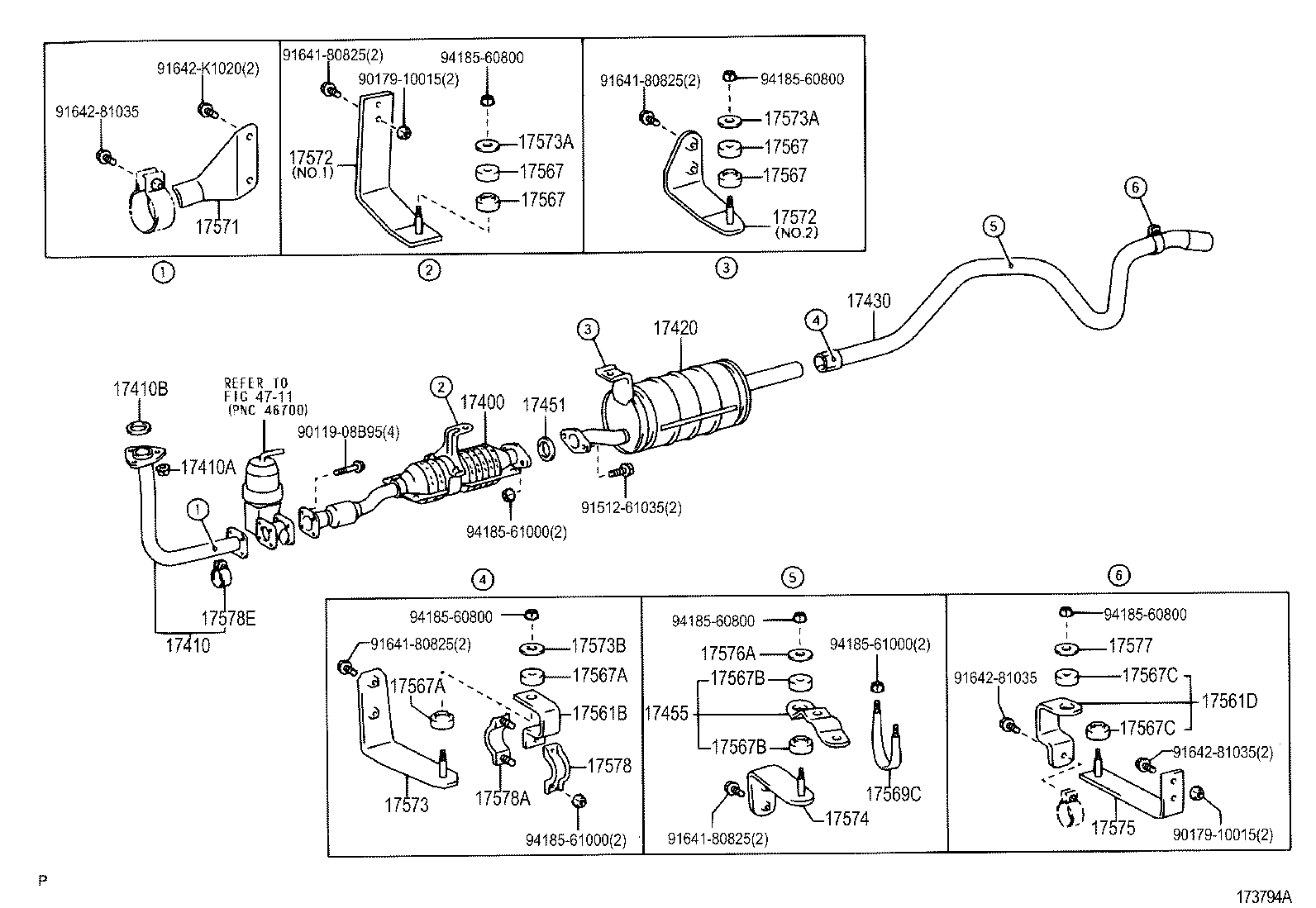

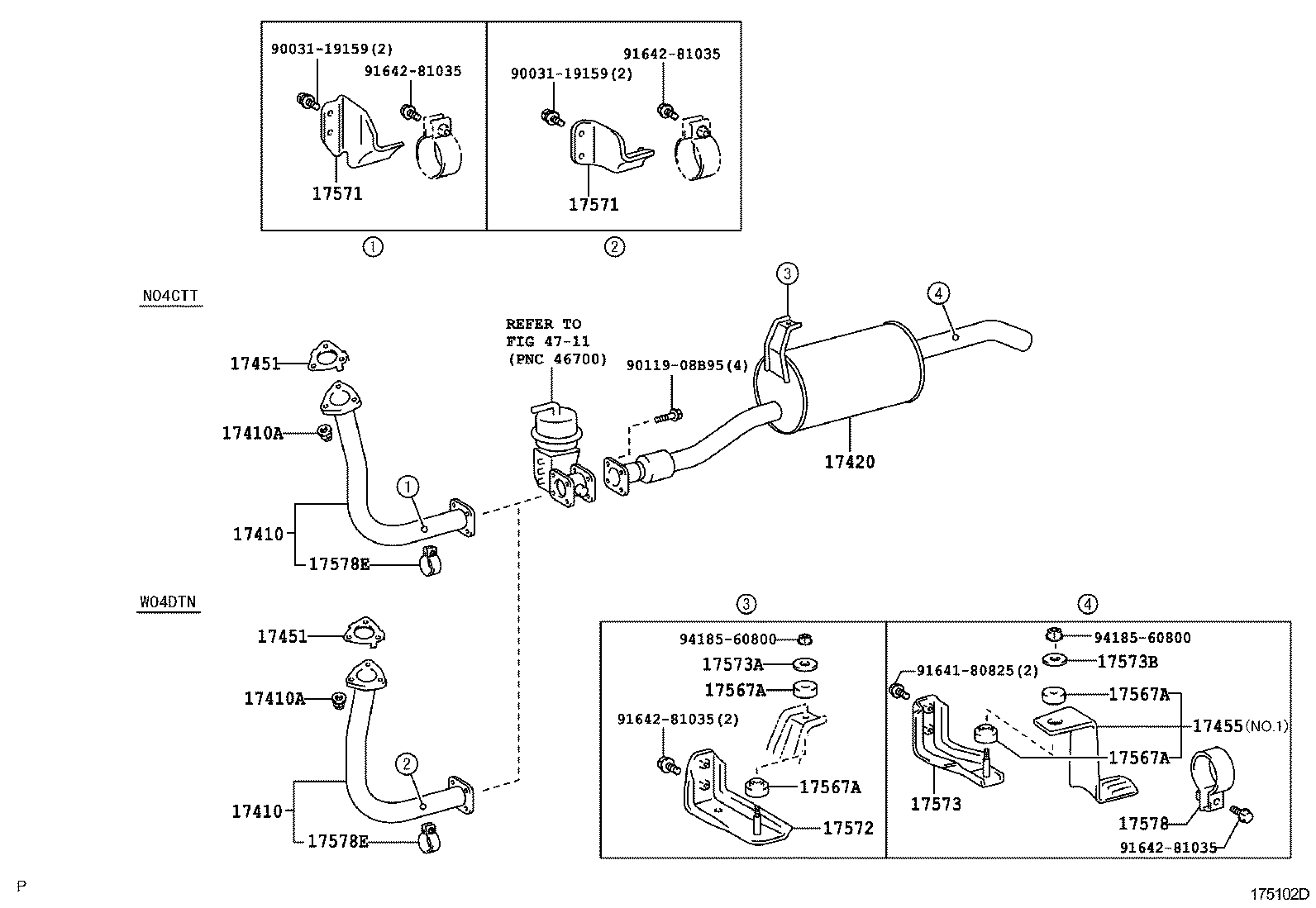

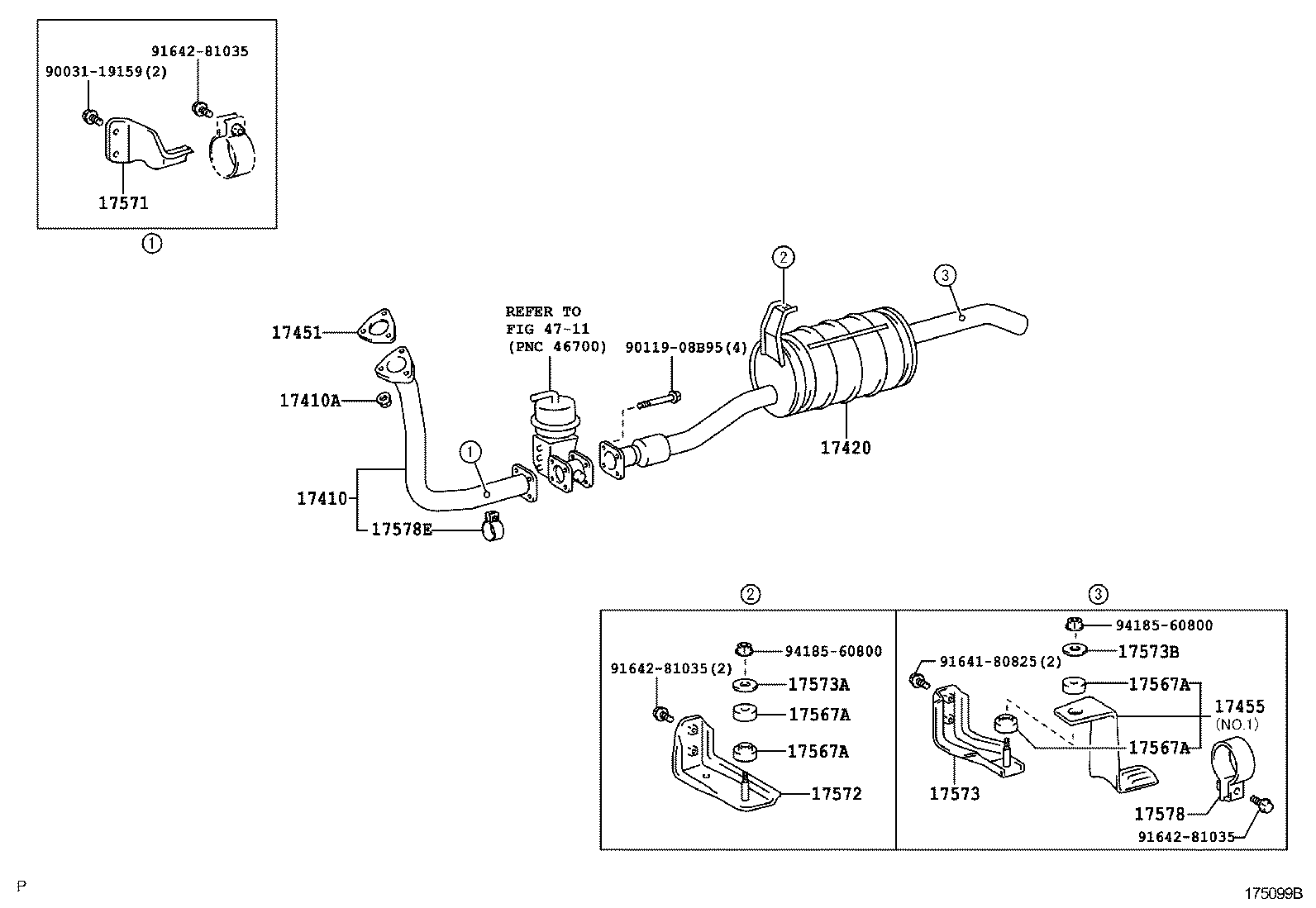

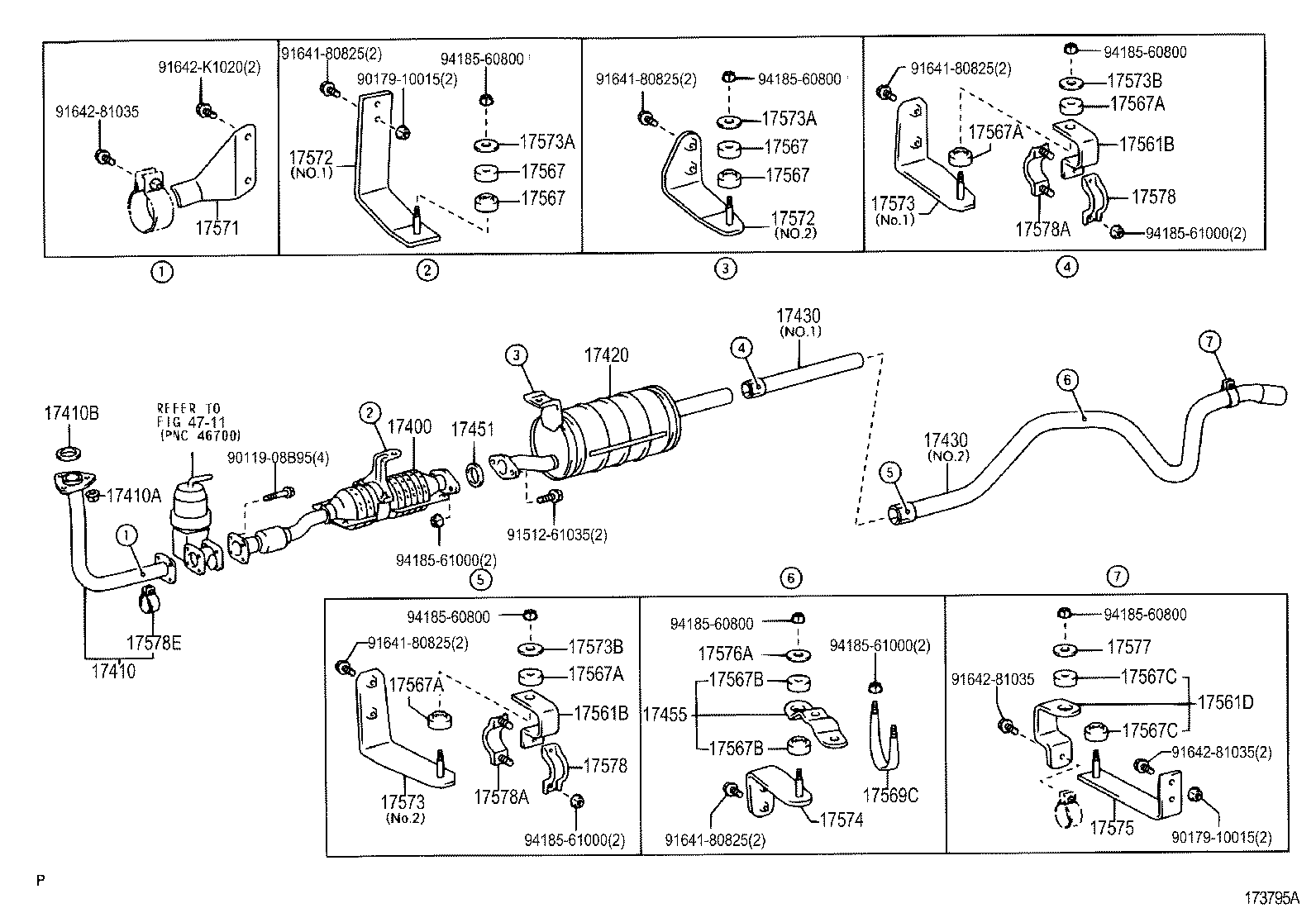

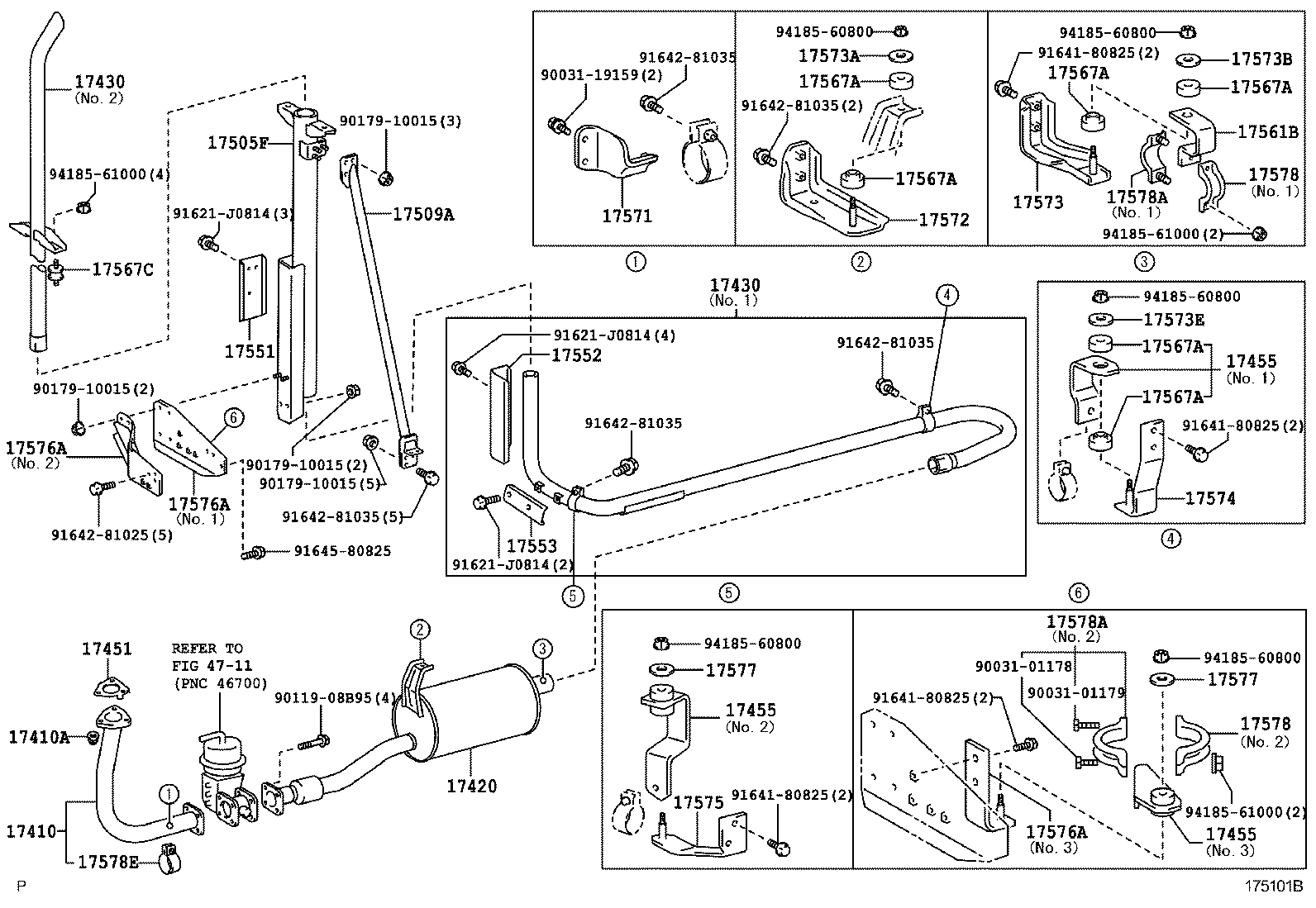

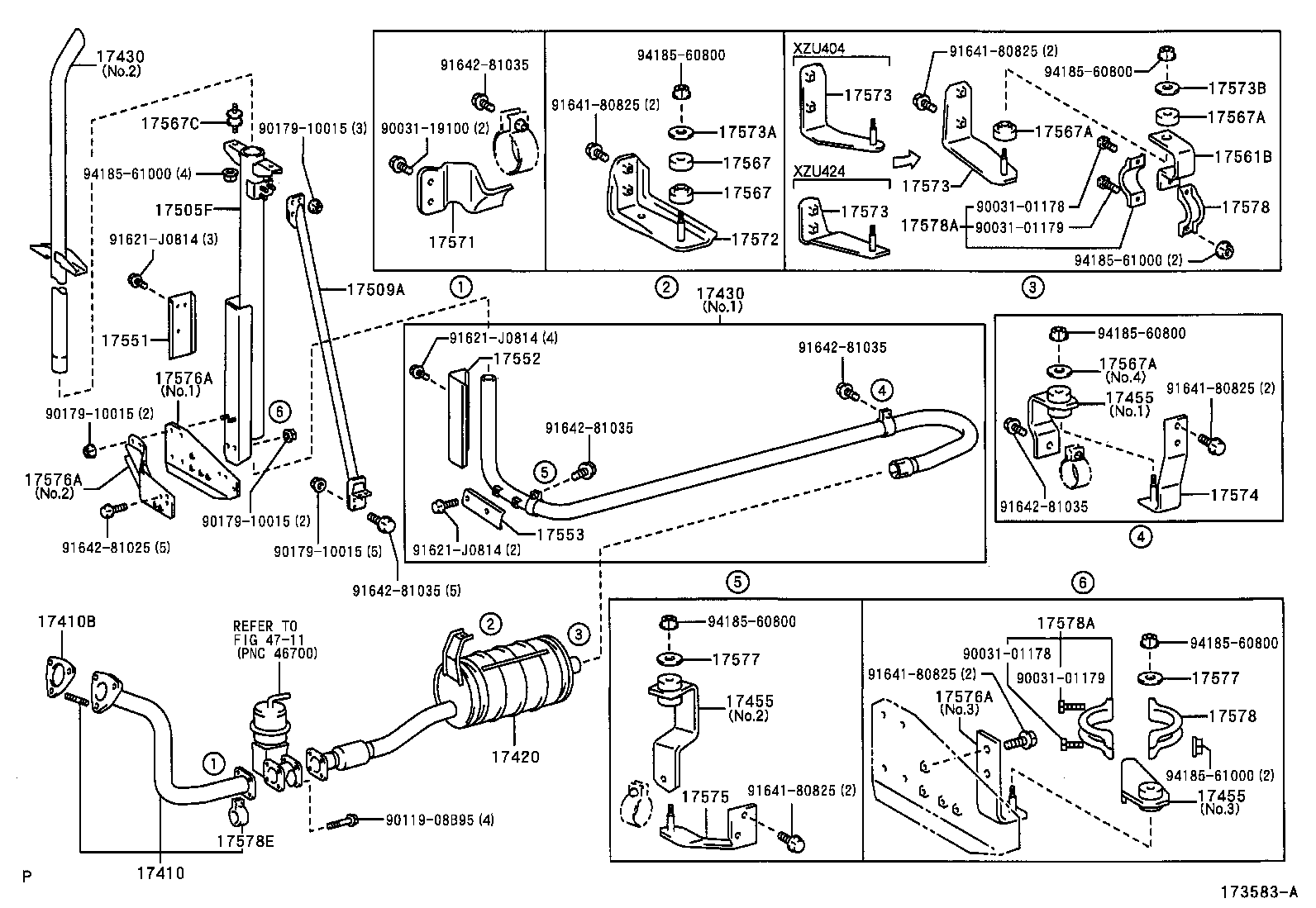

Figure 173131A 173131A 2001-10 → — Figure 173581 173581 2002-12 → 2006-10 Figure 173581 173581 2002-12 → — Figure 173581 173581 2003-04 → 2008-02 Figure 173130A 173130A 2001-10 → — Figure 173130A 173130A 2001-10 → — Figure 173584 173584 2002-12 → — Figure 173582A 173582A 2002-12 → — Figure 173583A 173583A 2002-12 → — Figure 173794A 173794A 2003-08 → — Figure 173795A 173795A 2003-08 → — Figure 175018D 175018D 2006-08 → — Figure 175099B 175099B 2006-10 → — Figure 175099B 175099B 2008-02 → — Figure 175101B 175101B 2006-10 → — Figure 175102D 175102D 2006-10 → — Figure 176515B 176515B 2006-10 → — Figure 176515B 176515B 2008-01 → — Figure 175346A 175346A 2007-01 → — Figure 175875D 175875D 2007-08 → —

Part groups

PNCDescription
12118C Plug, Drain
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17450A Clamp, Exhaust Pipe, NO.5
17451 Gasket, Exhaust Pipe
17455 Bracket, Exhaust Pipe
17505F Support Sub-assy, Exhaust Pipe
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17553 Insulator, Exhaust Pipe Heat, NO.3
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17569C Bolt, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578A Clamp, Muffler
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
18450 Converter Assy, Monolithic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
