Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · General

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

22 part groups · 2 illustrations

Illustrations

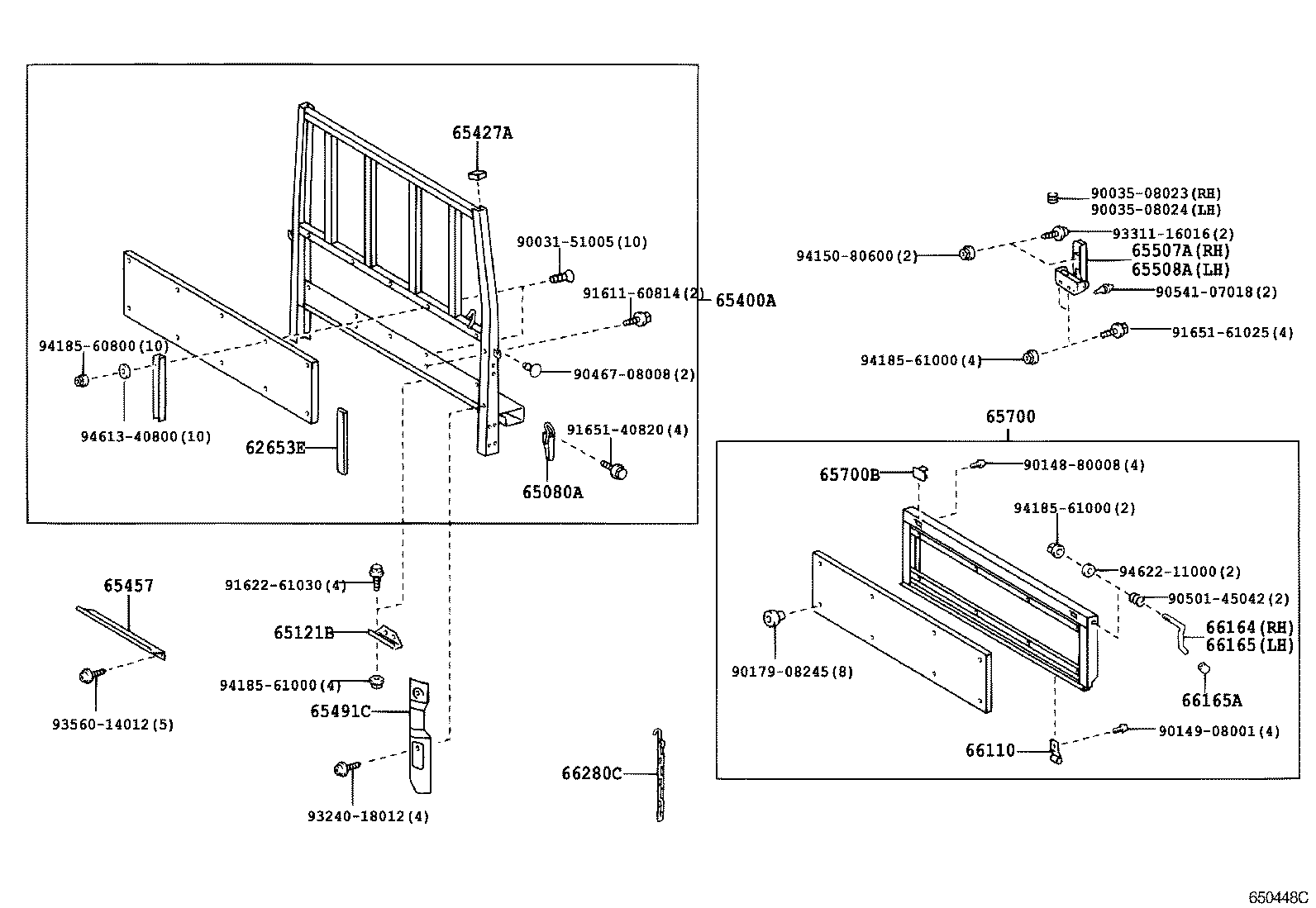

Figure 650447D 650447D 2002-12 → — Figure 650448C 650448C 2002-12 → —

Part groups

PNCDescription
62653E Packing
65080A Handle Assy, Side Gate Latch
65121B Bracket, Main Sill Mounting, NO.1
65325 Plate, Floor Board, Front
65400A Guard Assy, Rear Body
65427A Plate, Rear Body Guard, LH
65457 Plate, Baffle Dust Rear Body
65491C Protector, Guard Flame, Lower
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
65700B Plug, Hole(FOR TAIL GATE)
65700C Bolt, W/Washer(FOR TAIL GATE)
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66165A Cap, Gate Latch Handle
66264 Handle, Tail Gate Latch, RH
66265 Handle, Tail Gate Latch, LH
66280C Chain Assy, Tail Gate
66311D Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
