Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

27 part groups · 3 illustrations

Illustrations

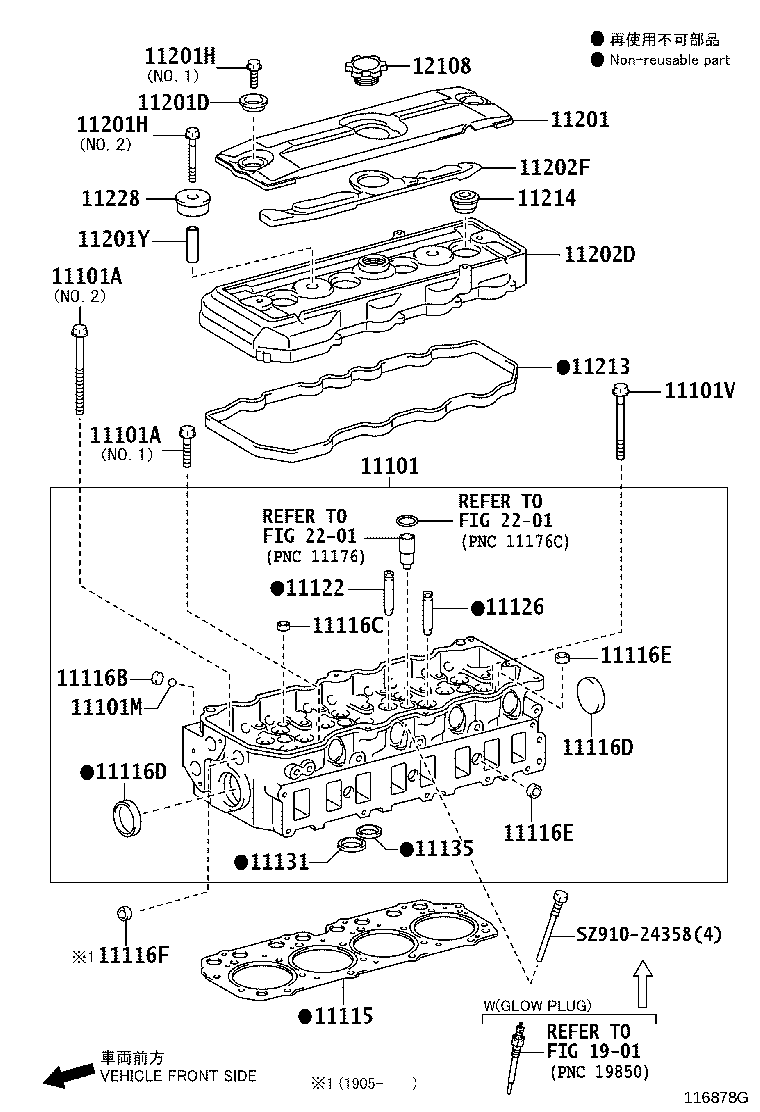

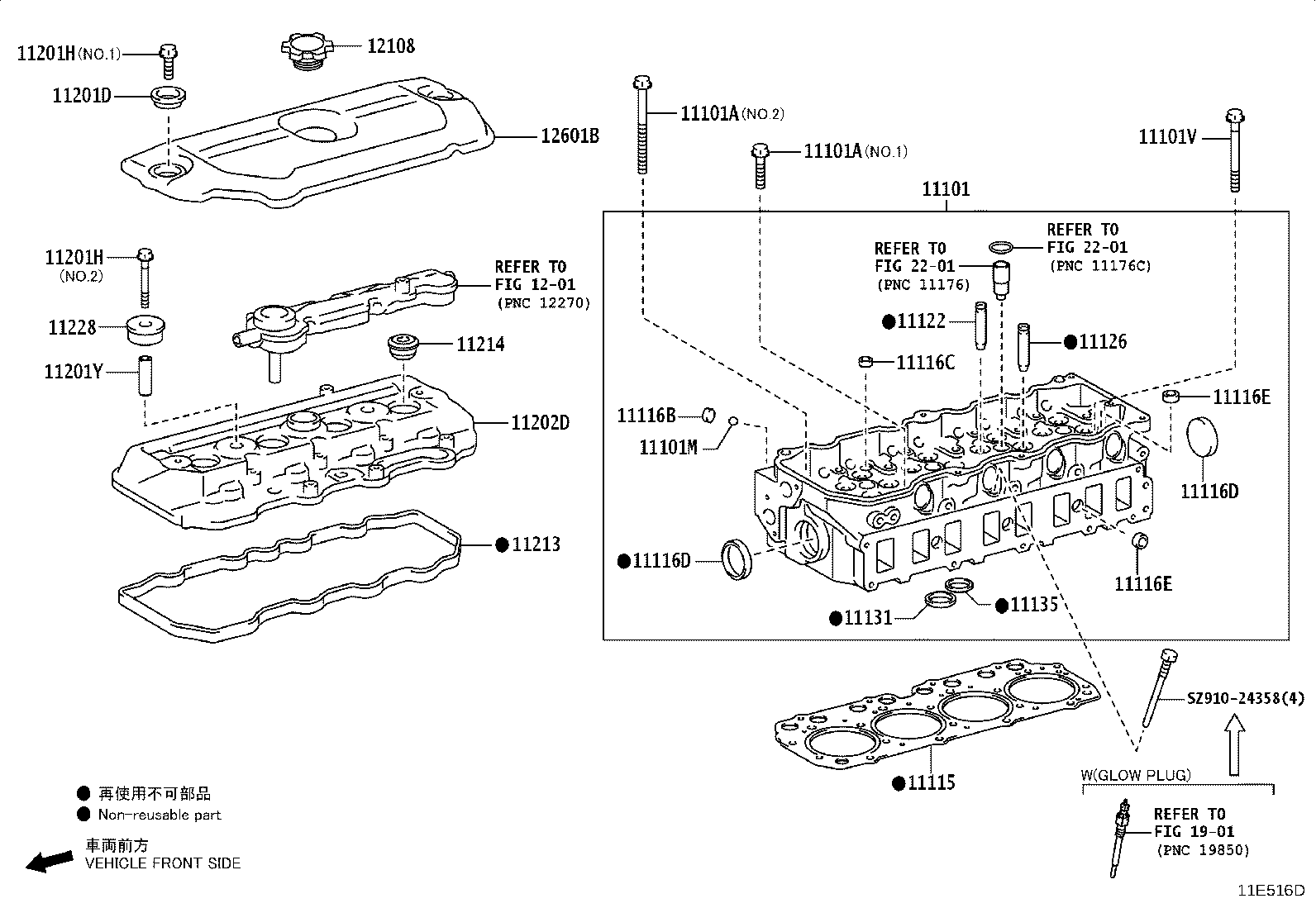

Figure 117086G 117086G 2011-07 → — Figure 116878G 116878G 2011-07 → — Figure 11E516D 11E516D 2019-11 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101M Ball NO.1(FOR CYLINDER HEAD)
11101R Bolt, Stud(FOR FUEL PIPE)
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11116F Plug, Tight, NO.6
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11201 Cover Sub-assy, Cylinder Head
11201D Washer, Lock(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11201Y Spacer(FOR CYLINDER HEAD COVER)
11202D Cover Sub-assy, Cylinder Head, NO.2
11202F Rubber, Cushion(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11228 Cushion, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12601B Cover Sub-assy, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
