Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

5 part groups · 4 illustrations

Illustrations

Figure 164554A

164554A 2011-06 → —

Figure 164557A

164557A 2011-07 → —

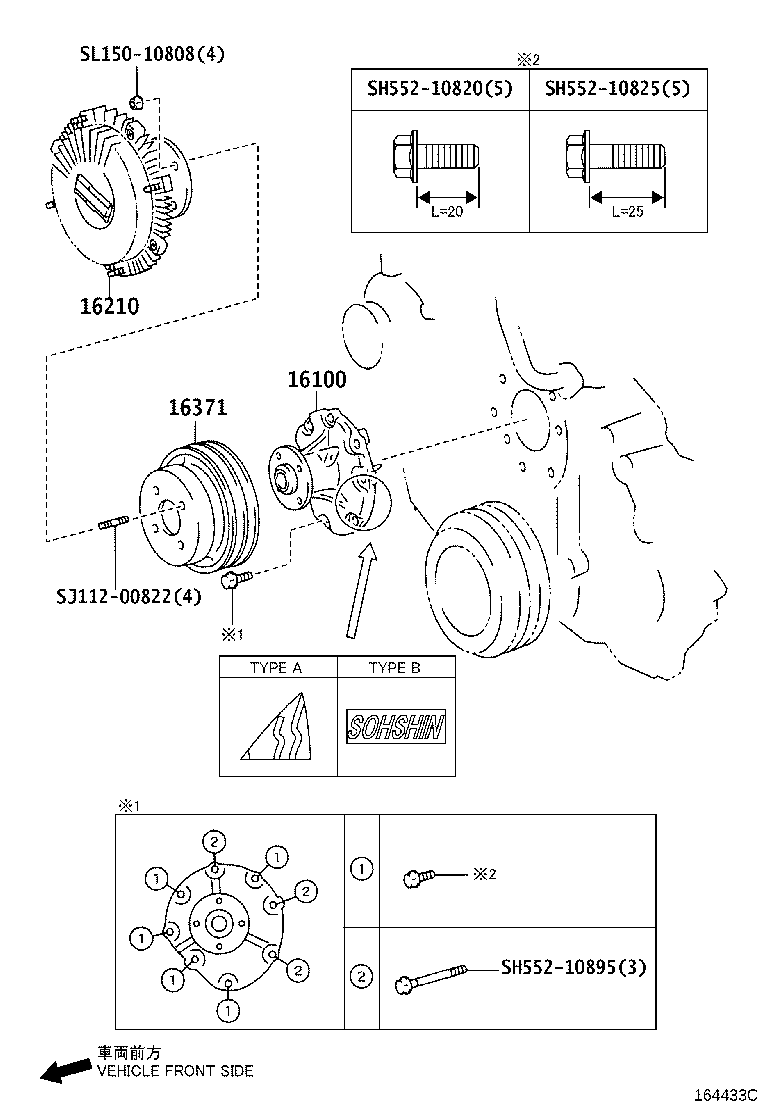

Figure 164433C

164433C 2011-07 → —

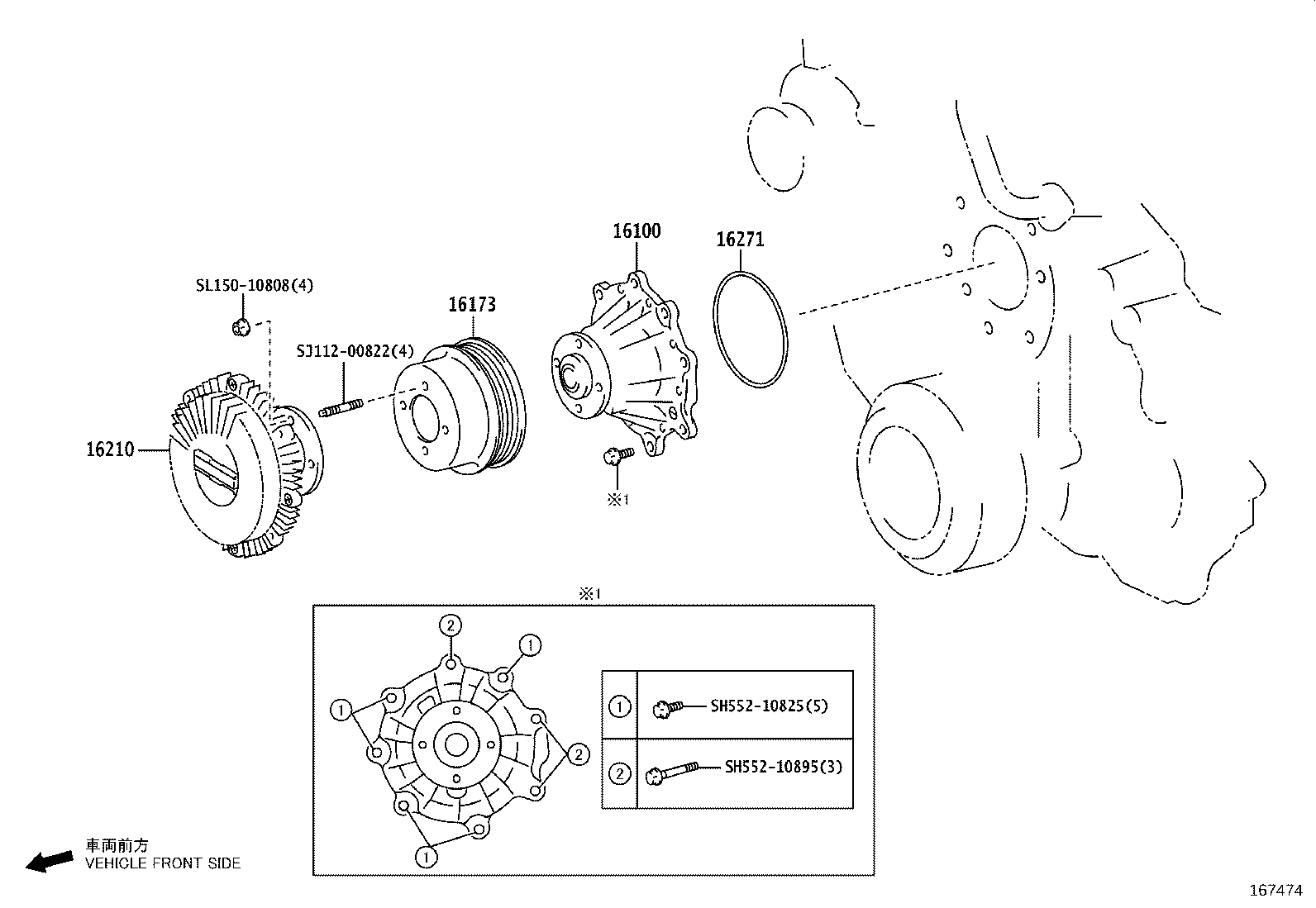

167474 2019-11 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16210	Coupling Assy, Fluid
16271	Gasket, Water Pump
16371	Pulley, Fan

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
