Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General
Supported model
Data version 2019-11

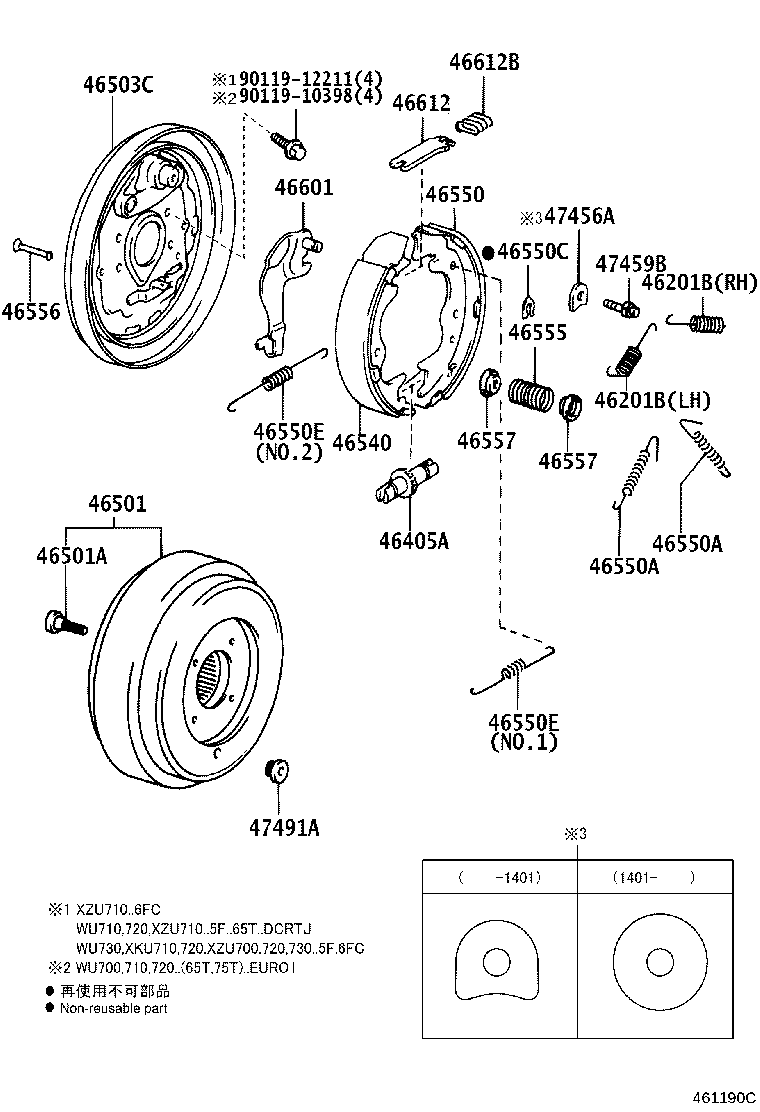

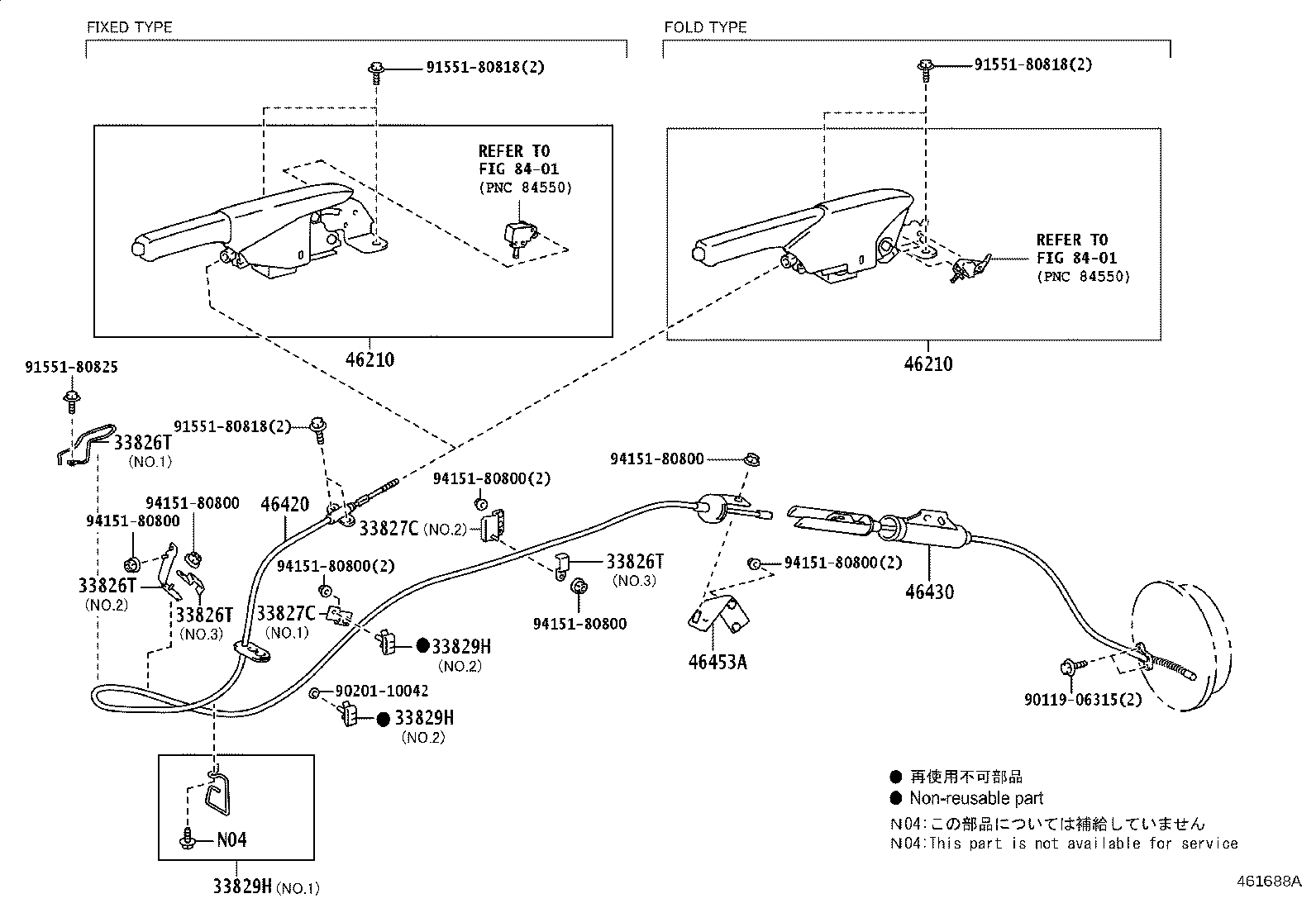

Parking Brake & Cable
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33826T | Bracket, Transmission Control Cable, NO.2 |
| 33826U | Bracket, Transmission Control Cable, NO.3 |
| 33827C | Bracket, Transmission Control Cable, NO.3 |
| 33829H | Clamp, Transmission Control Cable |
| 46201B | Spring, Tension |
| 46210 | Lever Assy, Parking Brake |
| 46405A | Screw Set, Shoe Adjusting, RH |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46453A | Bracket, Cable Support, NO.3 |
| 46501 | Drum Sub-assy, Parking Brake |
| 46501A | Bolt, Serration(FOR PARKING BRAKE DRUM) |
| 46503C | Plate Sub-assy, Parking Brake |
| 46515 | Cover, Inspection Hole |
| 46524 | Cover, Parking Brake Dust |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46556 | Pin, Shoe Hold Down Spring |
| 46557 | Cup, Brake Shoe Hold Down |
| 46601 | Lever Sub-assy, Parking Brake Shoe |
| 46612 | Strut, Parking Brake Shoe Lever |
| 46612B | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47491A | Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
