Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

8 part groups · 5 illustrations

Illustrations

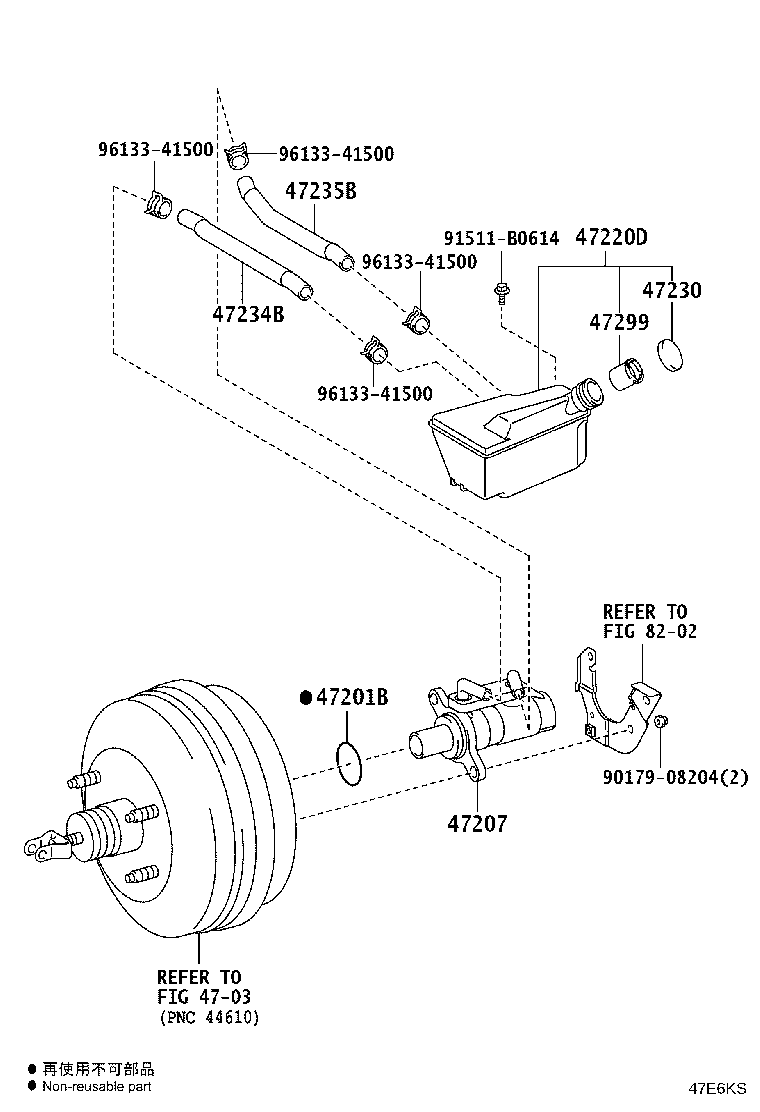

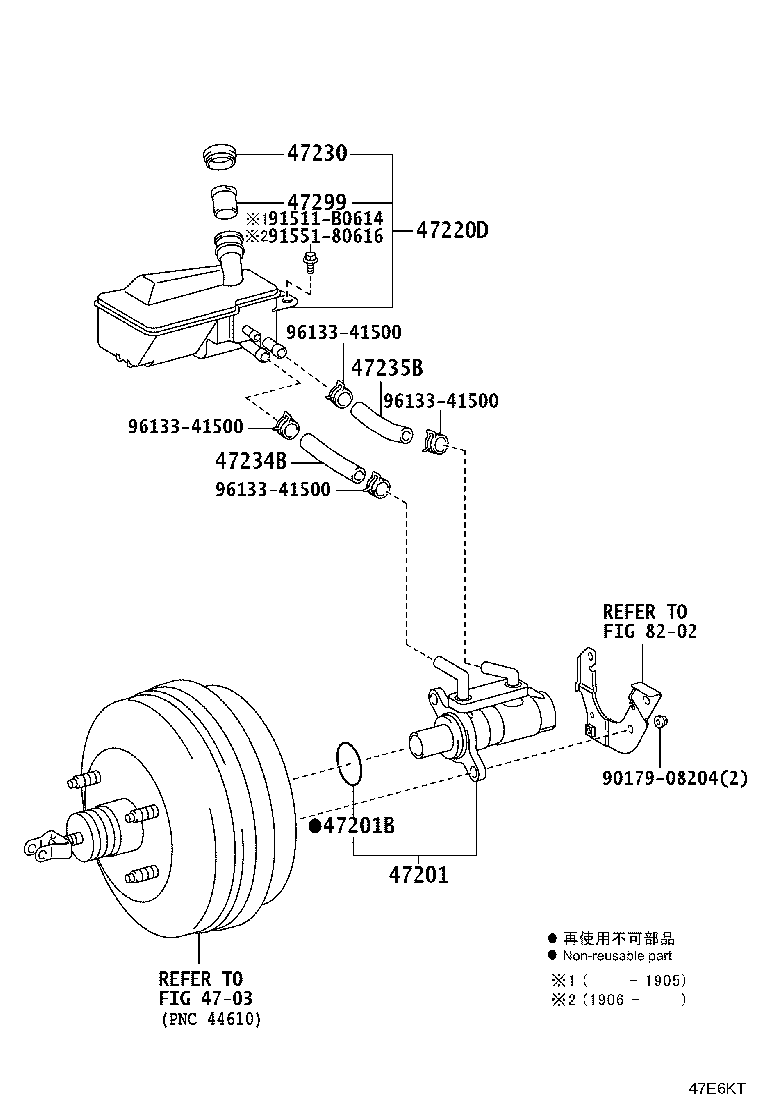

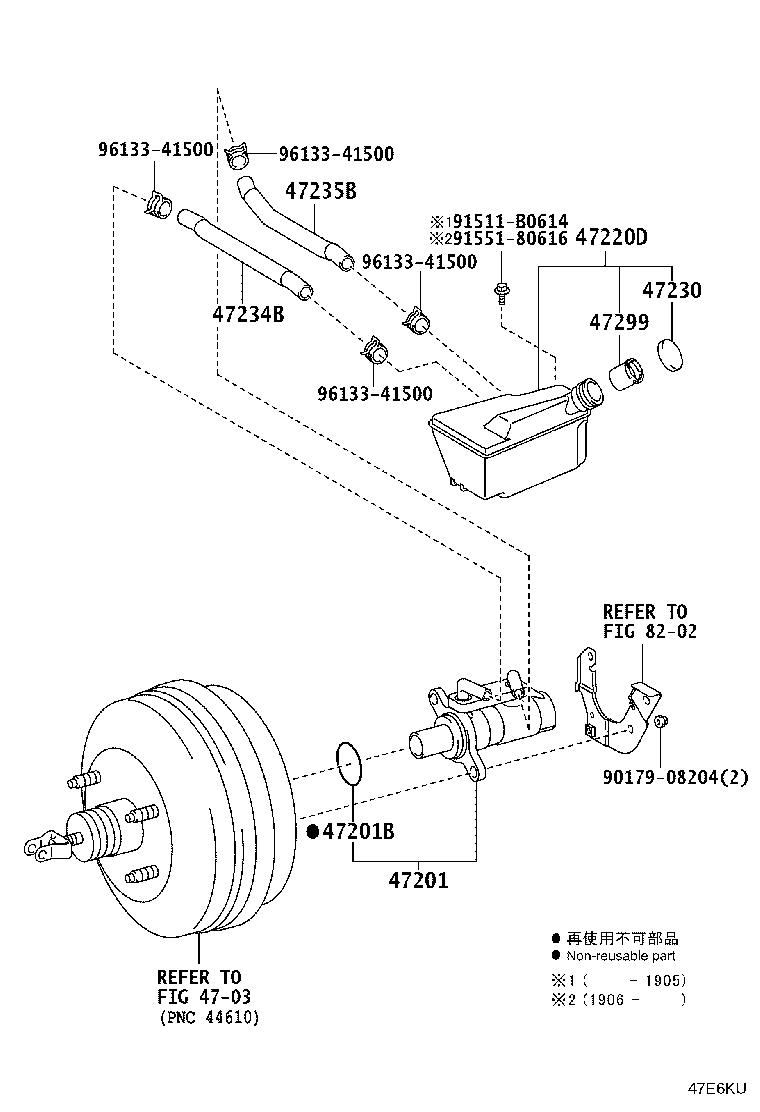

Figure 47E6KR 47E6KR 2011-07 → 2015-06 Figure 47E6KS 47E6KS 2011-07 → 2015-06 Figure 47E6KT 47E6KT 2015-06 → — Figure 47E6KU 47E6KU 2015-06 → — Figure 47E6KU 47E6KU 2019-11 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47207 Cylinder Sub-assy, Brake Master Less Reservoir Tank
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
