Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

26 part groups · 3 illustrations

Illustrations

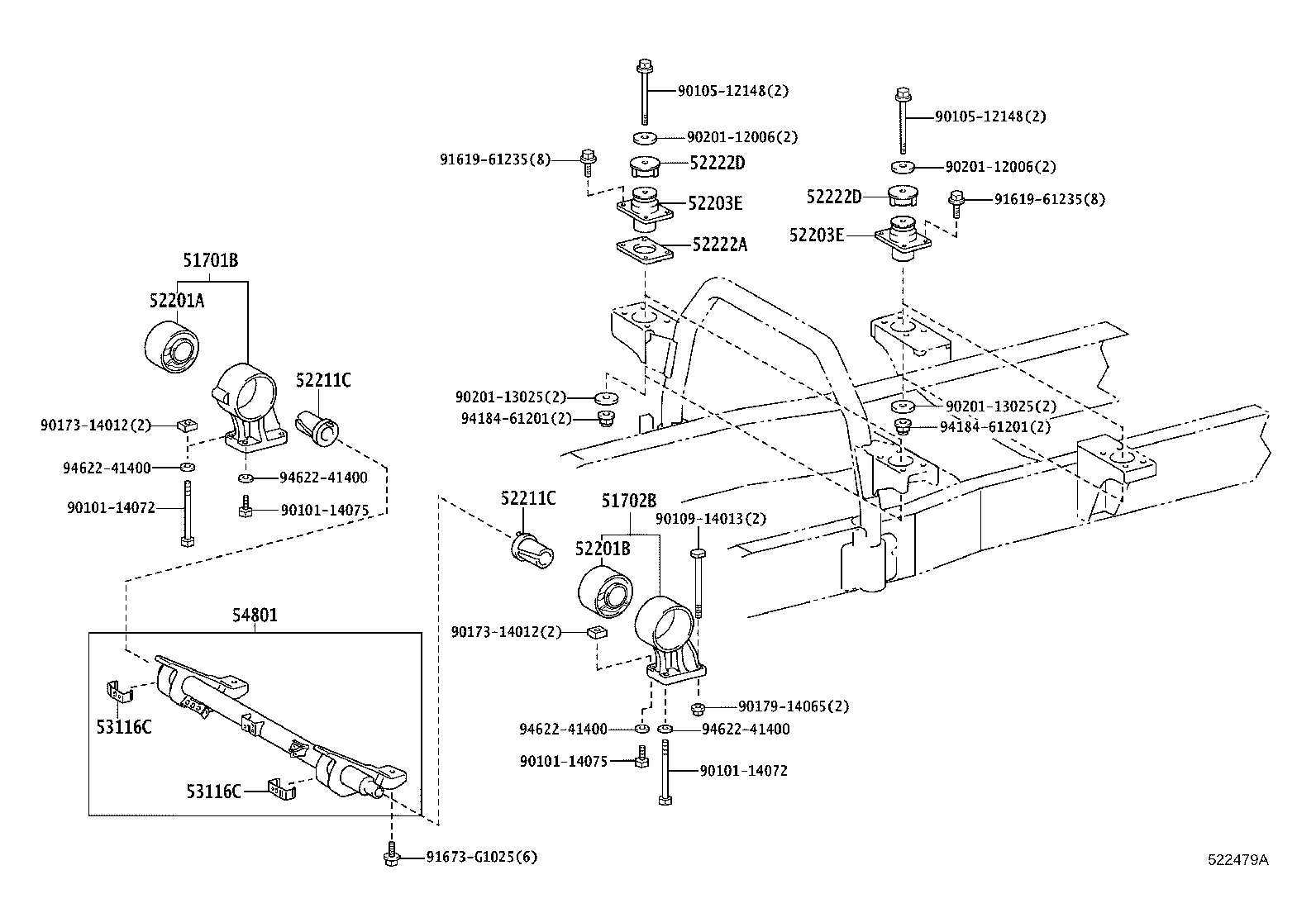

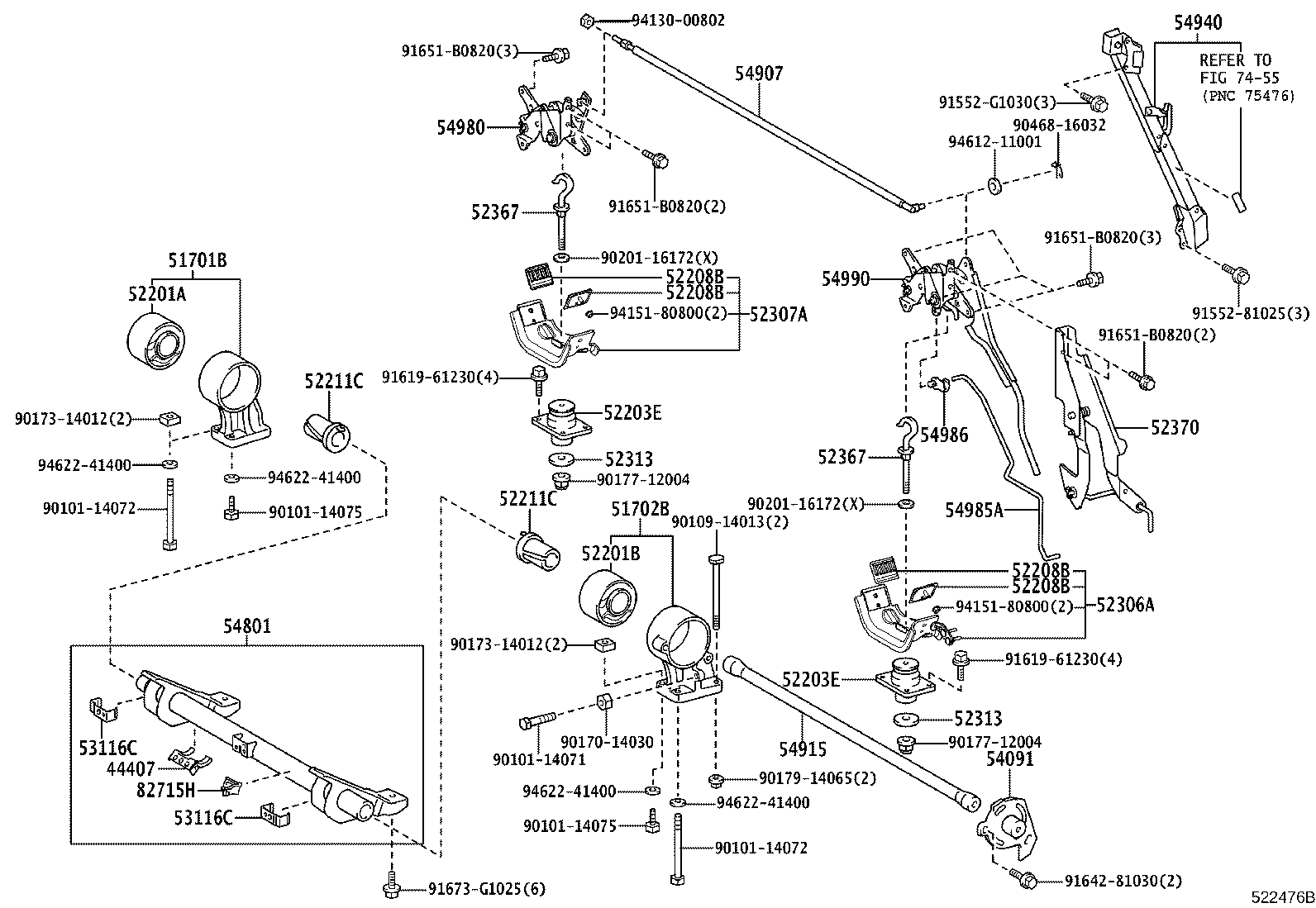

Figure 522477D 522477D 2011-07 → — Figure 522476B 522476B 2011-07 → — Figure 522479A 522479A 2011-08 → —

Part groups

PNCDescription
44407 Bracket Sub-assy, Pressure Tube Support
51701B Bracket Sub-assy, Cab Front Mounting, RH
51702B Bracket Sub-assy, Cab Front Mounting, LH
52201A Cushion Sub-assy, Cab Front Mounting
52201B Cushion Sub-assy, Cab Front Mounting
52203E Cushion Sub-assy, Cab Mounting, NO.2
52208B Cushion Sub-assy, Cab Mounting, Rear
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52222A Spacer, Cab Rear Mounting, Upper
52222D Spacer, Cab Rear Mounting, Upper
52306A Bracket Sub-assy, Cab Mounting Hook, NO.1
52307A Bracket Sub-assy, Cab Mounting Hook, NO.2
52313 Stopper, Cab Rear Mounting Rebound
52367 Hook, Cab Rear Mounting
52370 Latch Assy, Cab Mounting Safety
53116C Bracket, Radiator Grille, NO.2
54091 Arm Sub-assy, Tilt Cab Spring Support, NO.1
54801 Tube Sub-assy, Tilt Cab, NO.1
54907 Pipe Sub-assy, Tilt Cab Lock Connecting
54915 Spring, Tilt Cab, NO.1
54940 Stay Assy, Tilt Cab
54980 Lock Assy, Tilt Cab Mounting, RH
54985A Rod, Tilt Cab Lock Handle
54986 Support, Tilt Cab Lock
54990 Lock Assy, Tilt Cab Mounting, LH
82715H Bracket, Wiring Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
