Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 3 illustrations

Illustrations

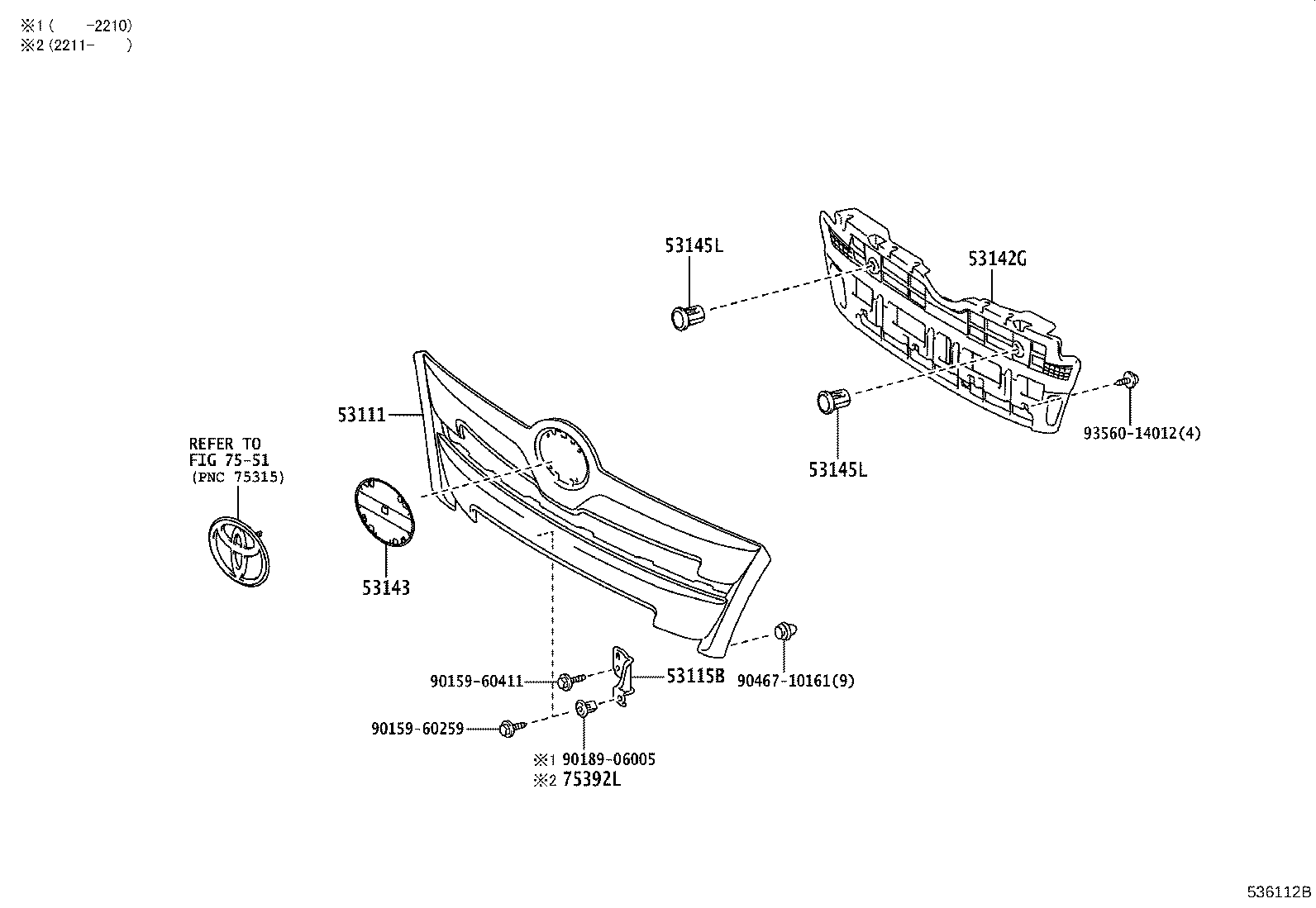

Figure 533488B 533488B 2011-07 → — Figure 533488B 533488B 2016-05 → — Figure 536112B 536112B 2019-11 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53141E Cover, Radiator, NO.1
53142G Garnish, Radiator Grille, NO.2
53143 Garnish, Radiator Grille, NO.3
53145L Clip, Radiator Grille
53155D Seal, Radiator Grille, NO.1
53156E Seal, Radiator Grille, NO.2
75392L Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
