Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 2 illustrations

Illustrations

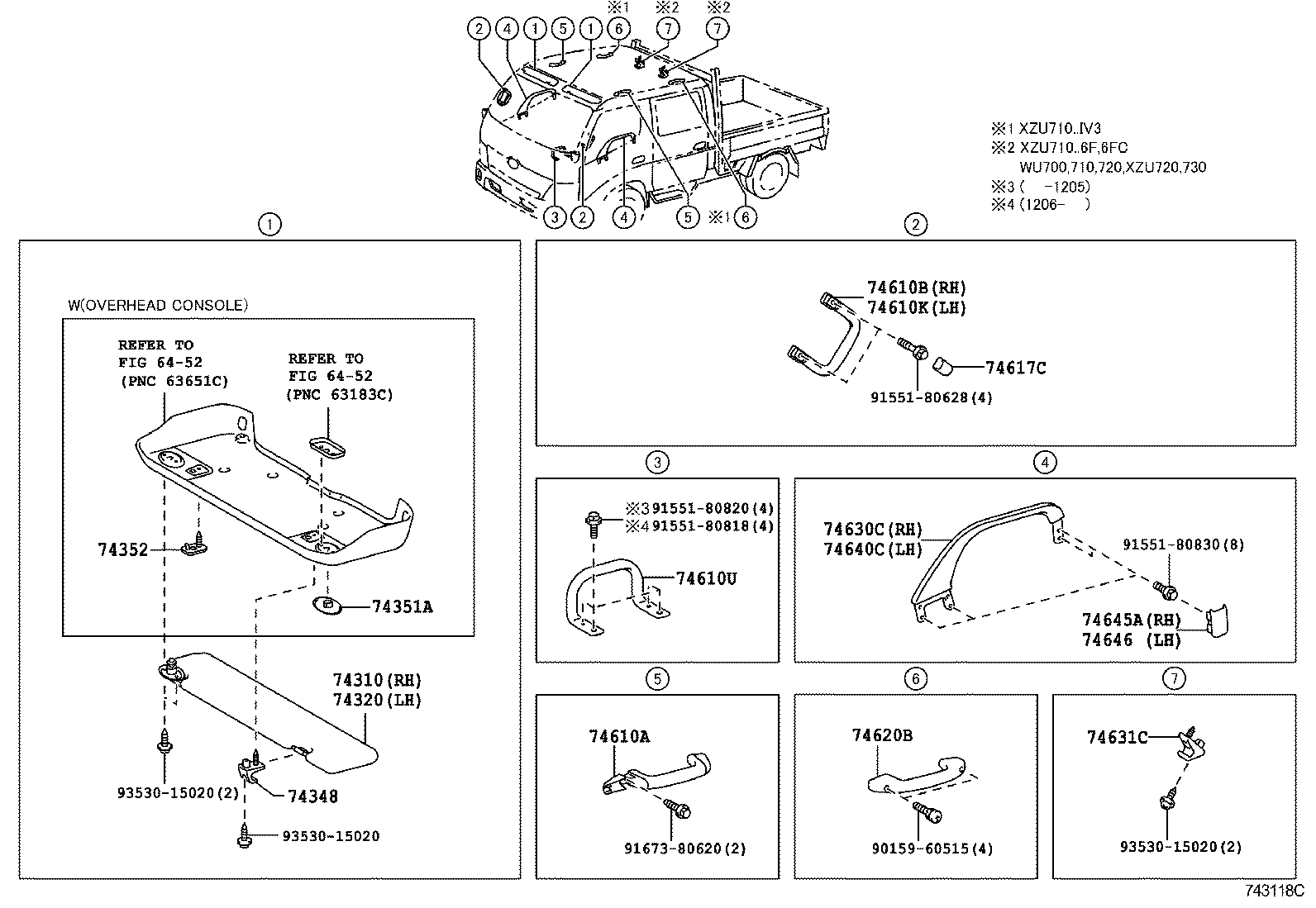

Figure 743119C 743119C 2011-07 → — Figure 743118C 743118C 2011-07 → —

Part groups

PNCDescription
74230 Armrest Assy, Rear, RH
74231C Panel, Front Door Armrest Base, Upper Driver Side
74232C Panel, Front Door Armrest Base, Upper Passenger Side
74240 Armrest Assy, Rear, LH
74257 Spring, Armrest, NO.1
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74351A Cover, Visor, NO.1
74352 Cover, Visor, NO.2
74610A Grip Sub-assy, Assist
74610B Grip Assy, Assist, NO.2 RH
74610K Grip Assy, Assist, NO.2 LH
74610U Grip Assy, Assist
74617C Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74630C Grip Assy, Door Assist, RH
74631C Hook, Coat
74640C Grip Assy, Door Assist, LH
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
