Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

6 part groups · 6 illustrations

Illustrations

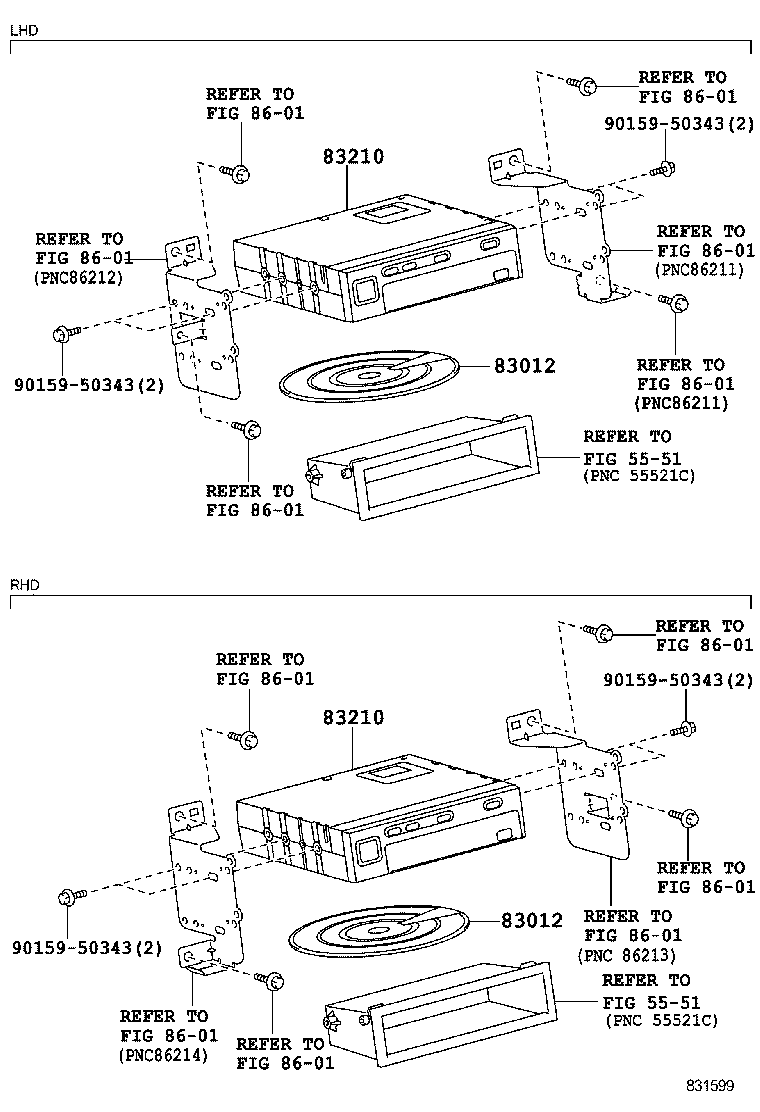

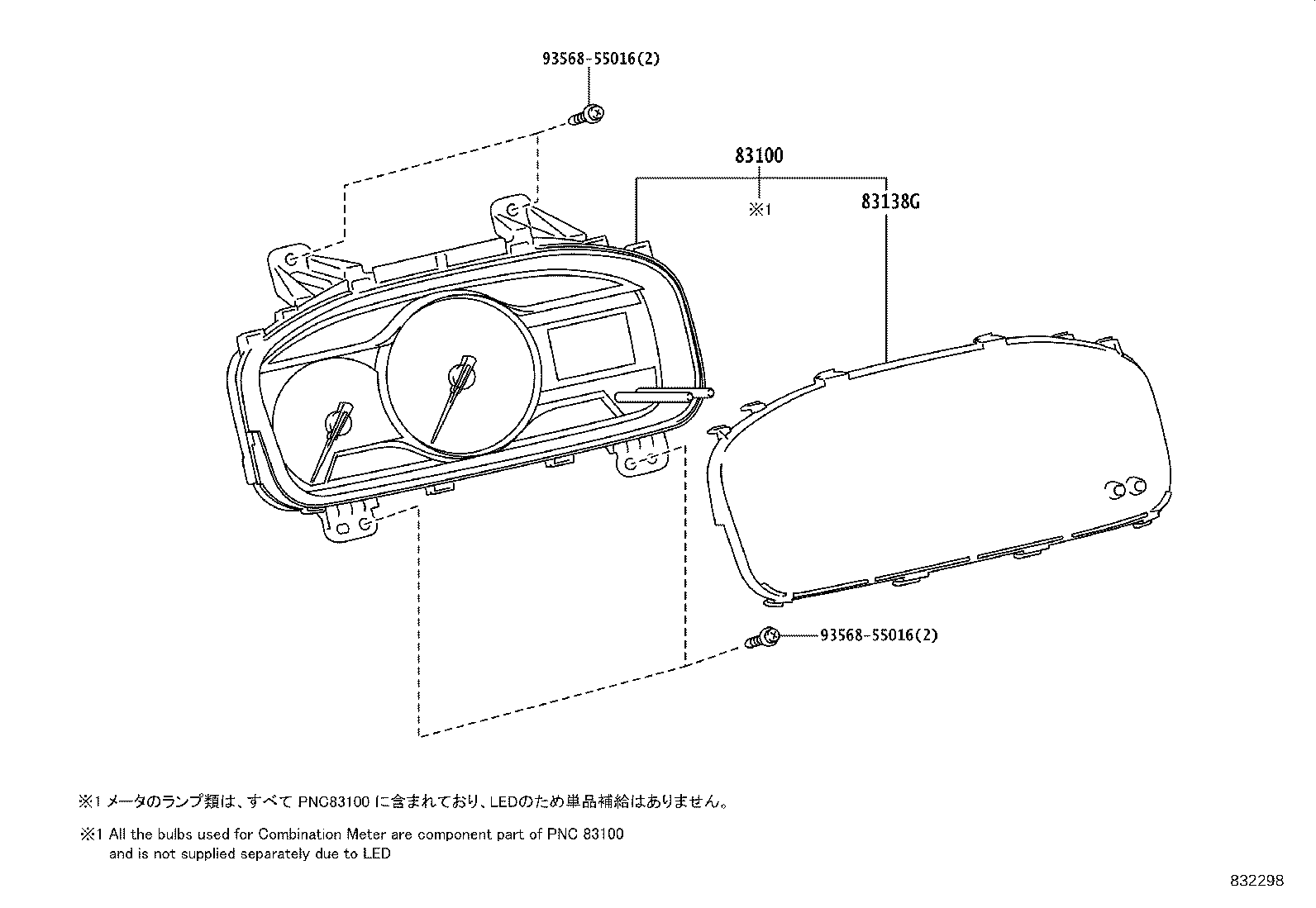

Figure 831598 831598 2011-07 → — Figure 832298 832298 2019-11 → — Figure 831599 831599 2011-07 → — Figure 831600 831600 2011-07 → — Figure 831601 831601 2011-07 → — Figure 831602 831602 2011-07 → —

Part groups

PNCDescription
83012 Sheet Set, Tachograph Chart
83100 Meter Assy, Combination
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83210 Tachograph Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
