Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

45 part groups · 17 illustrations

Illustrations

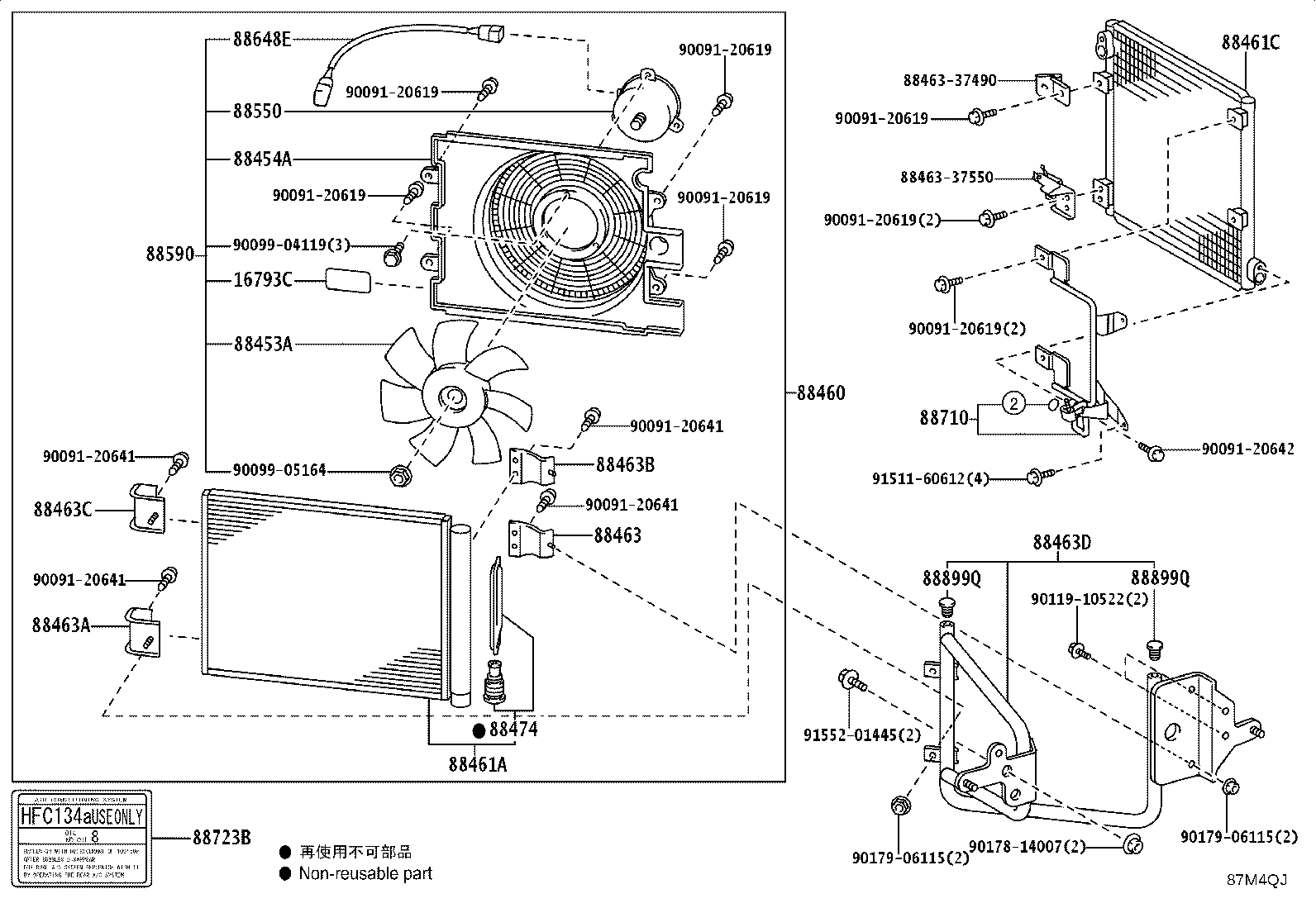

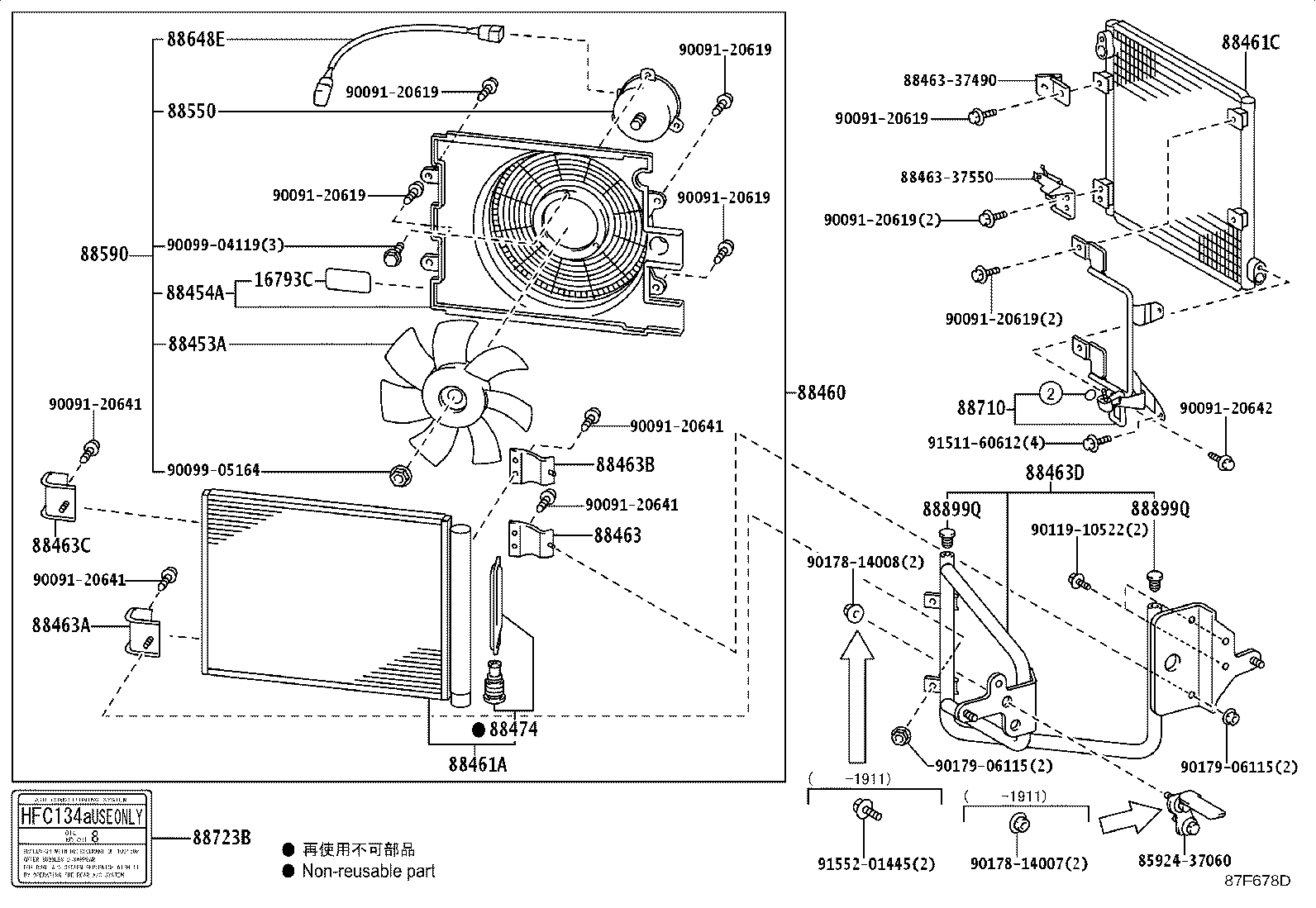

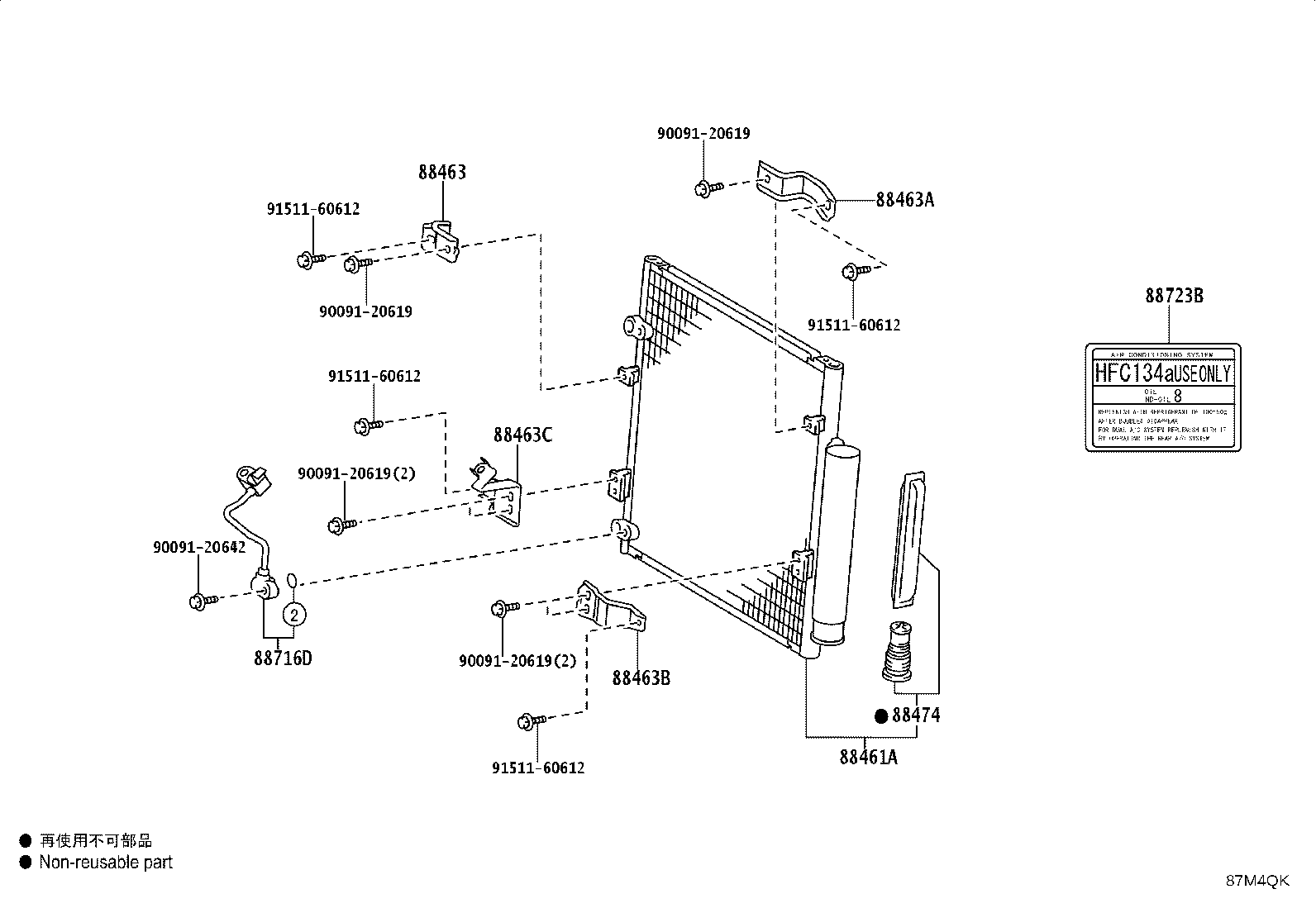

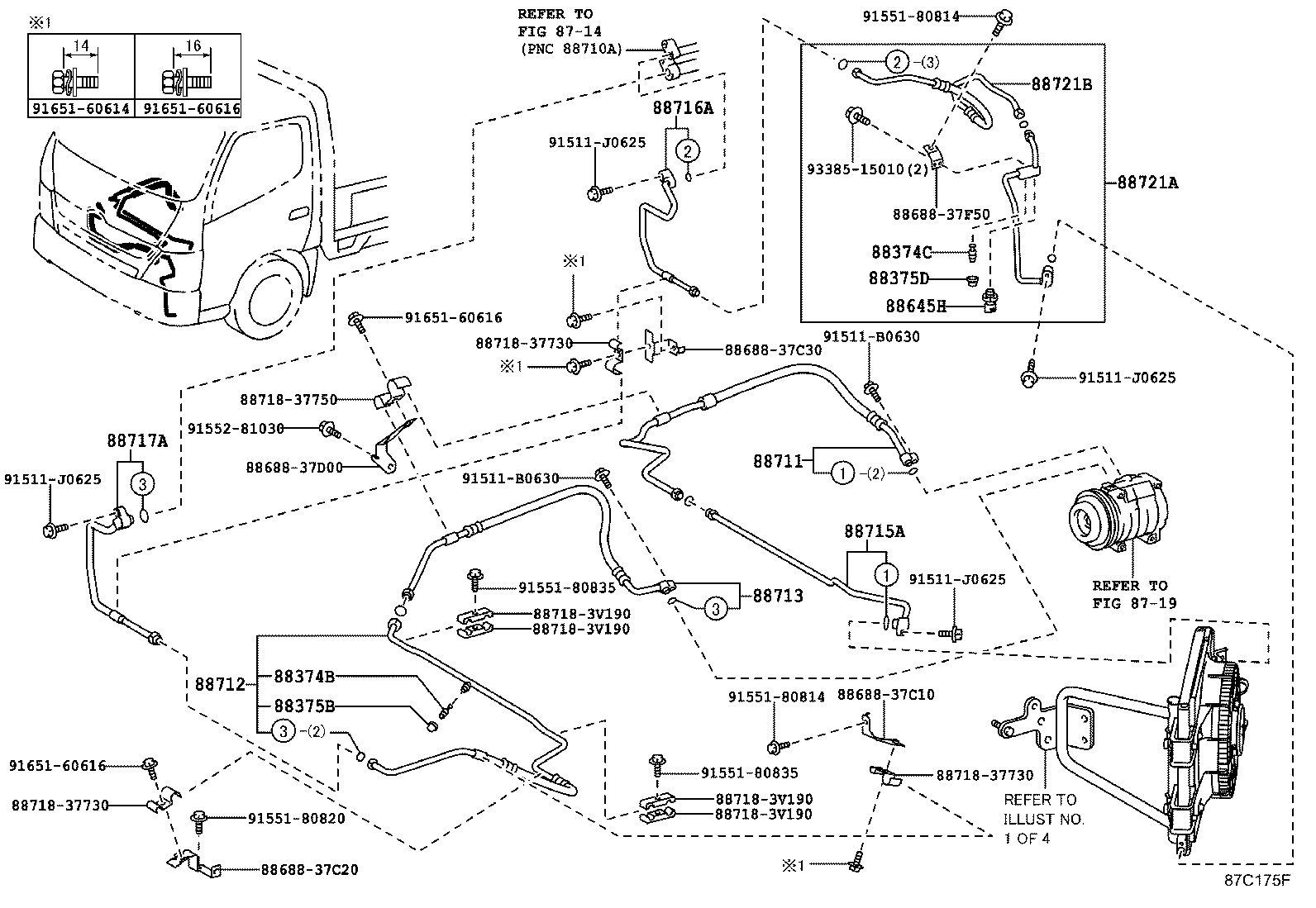

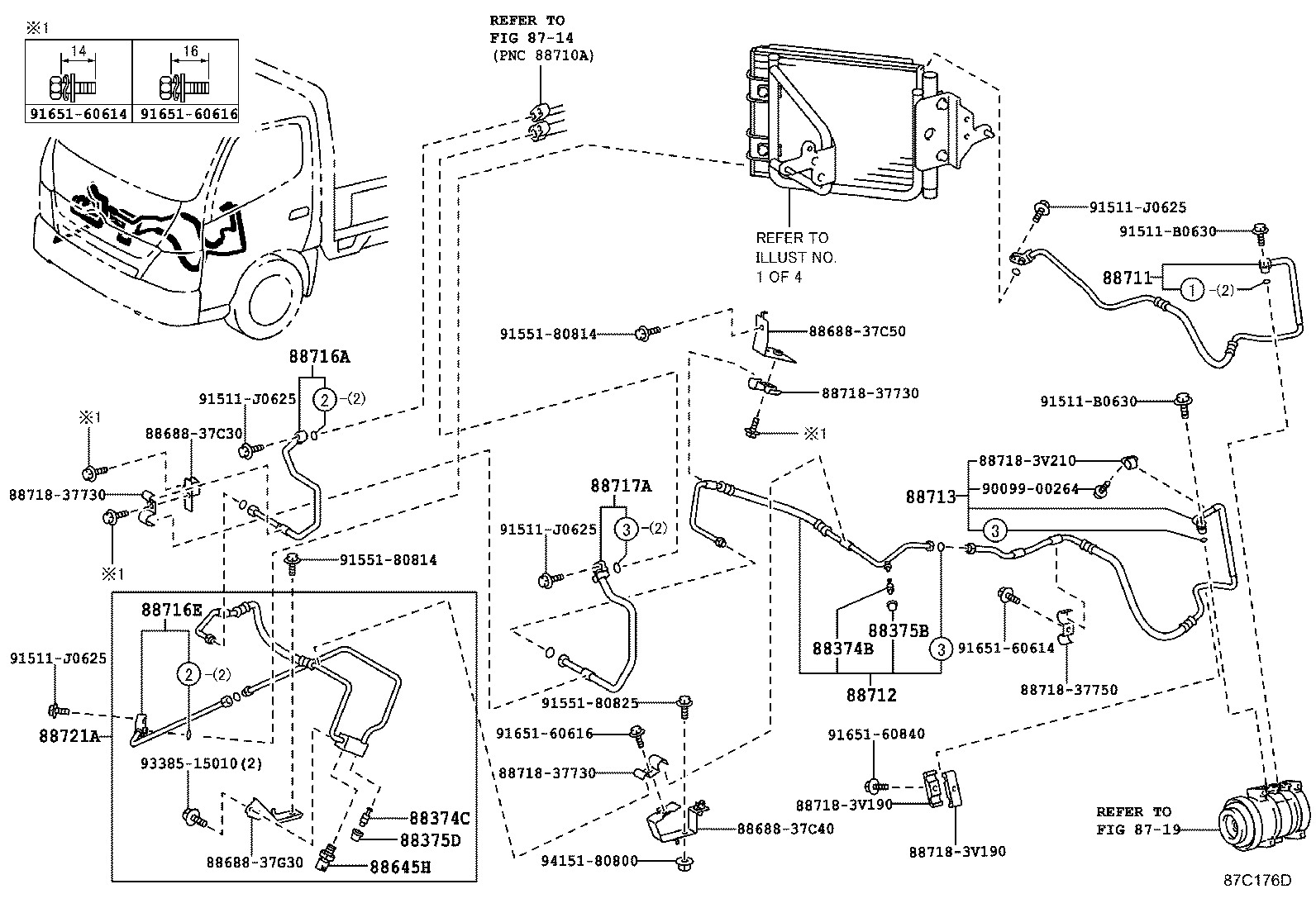

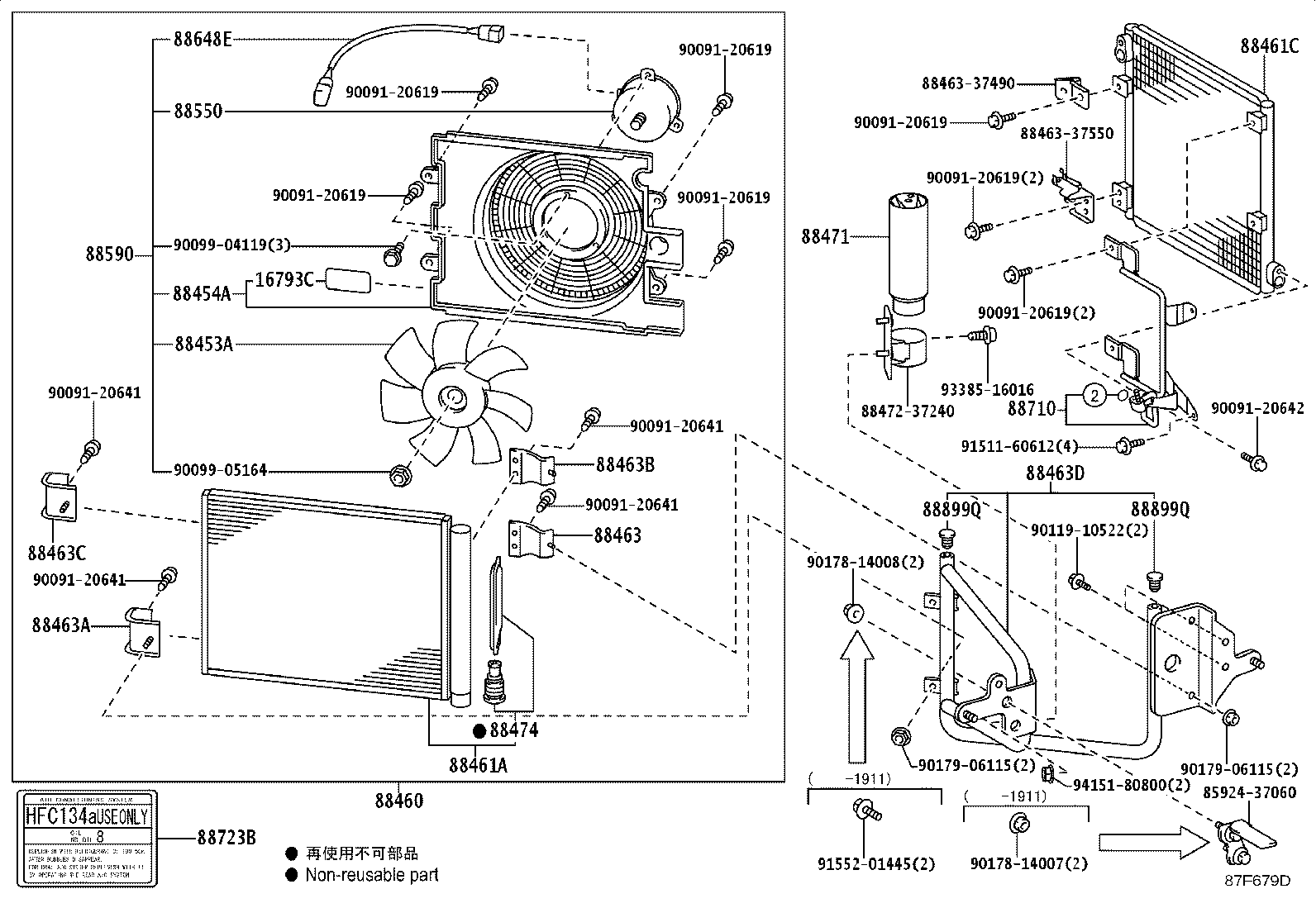

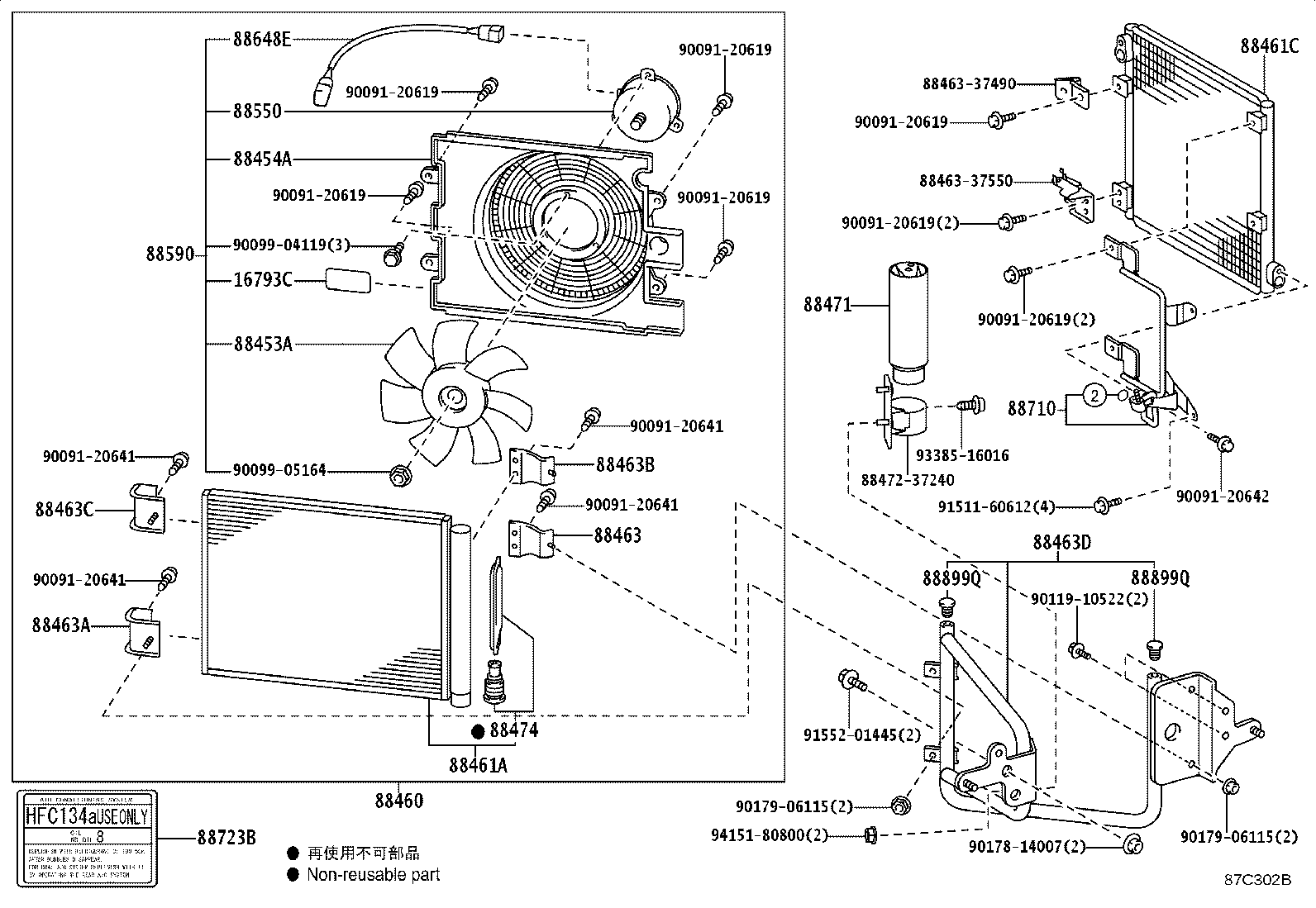

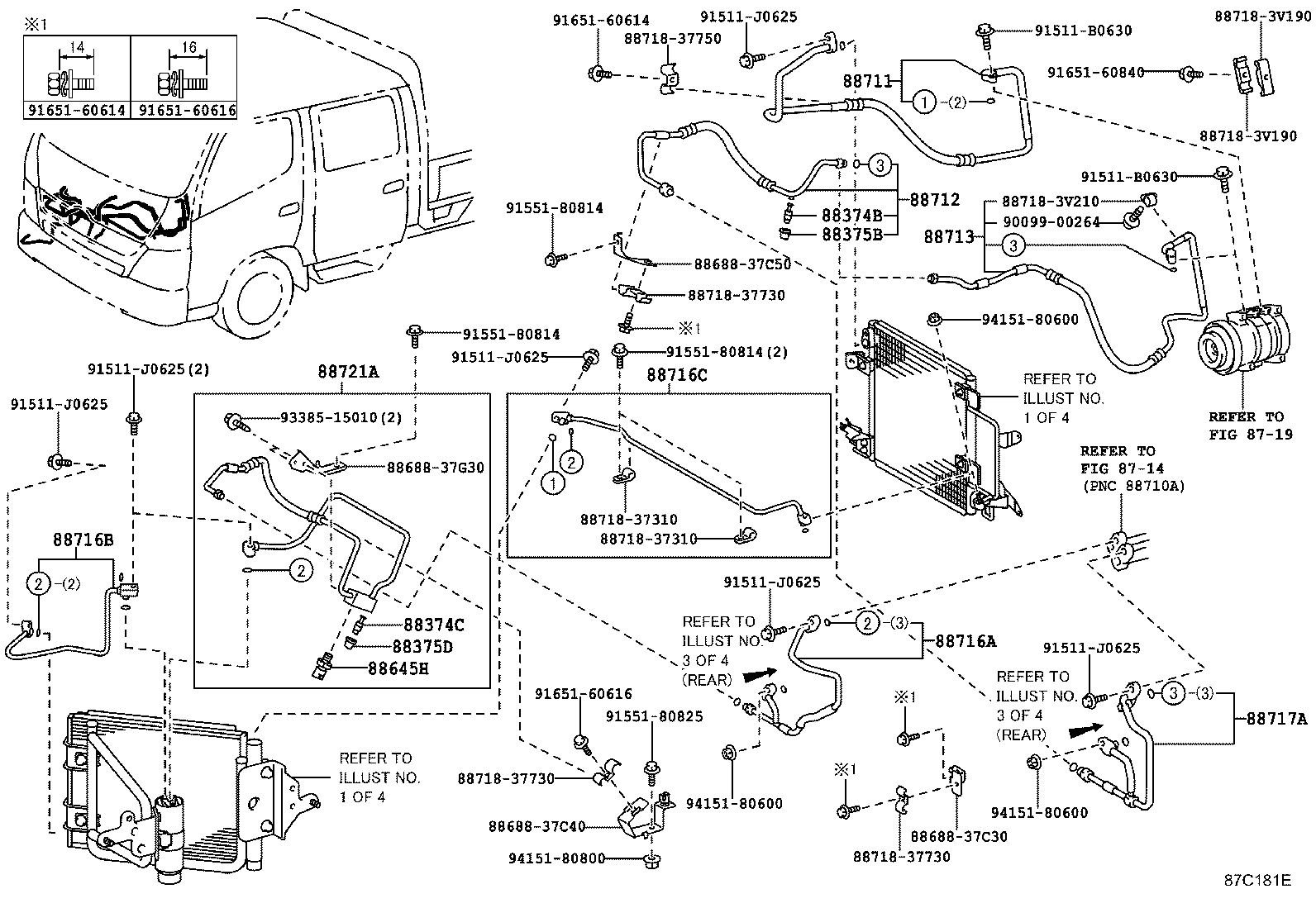

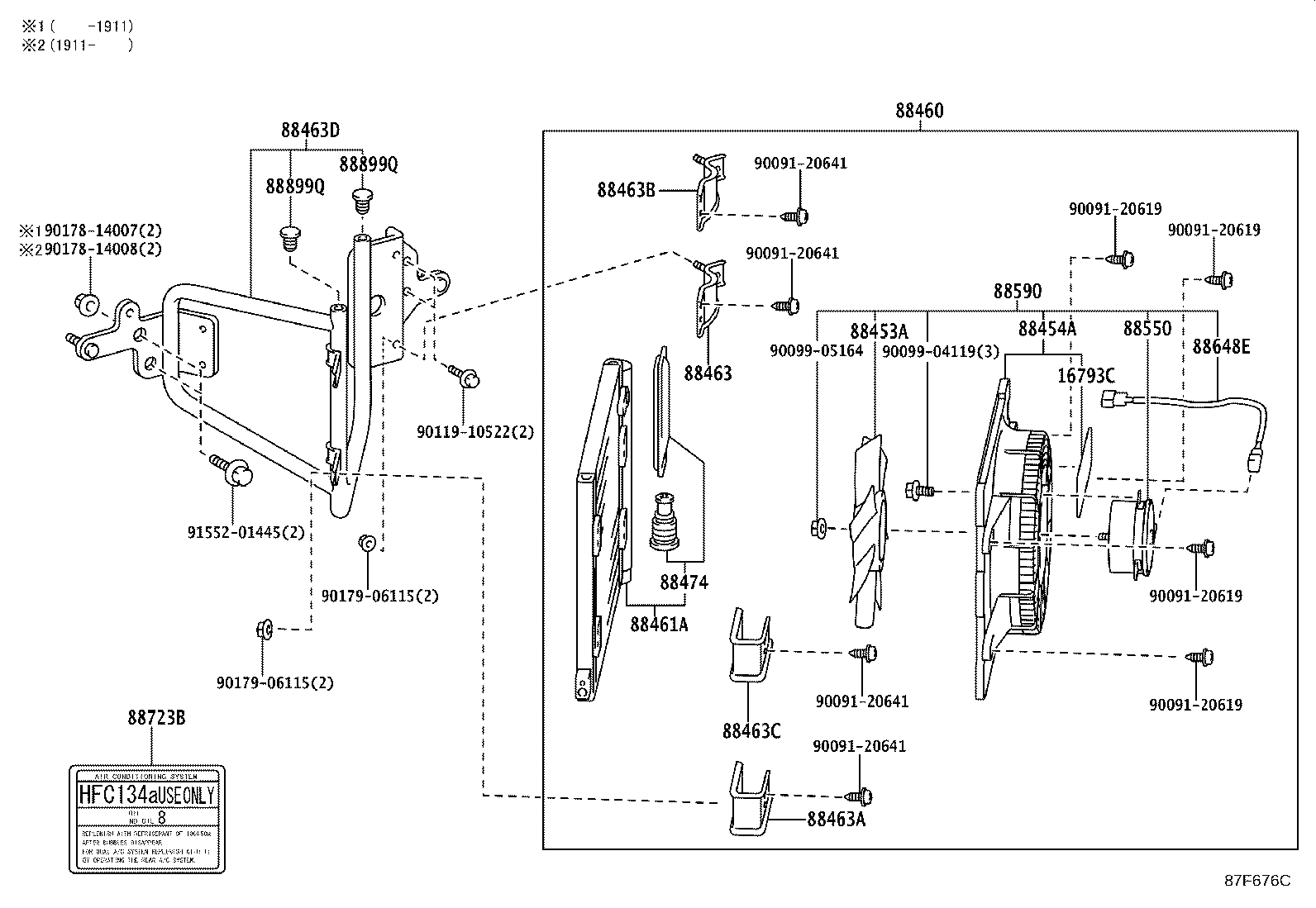

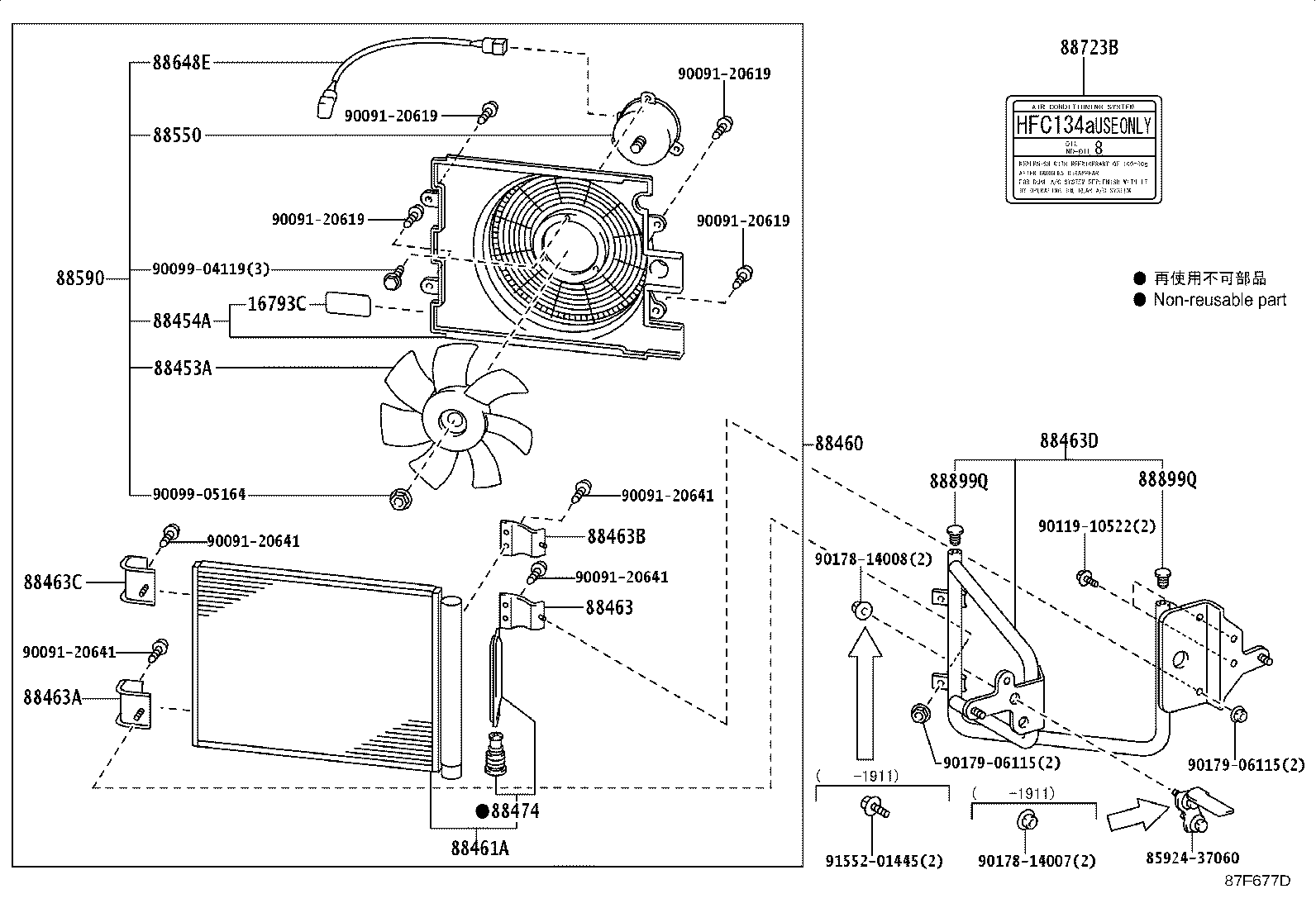

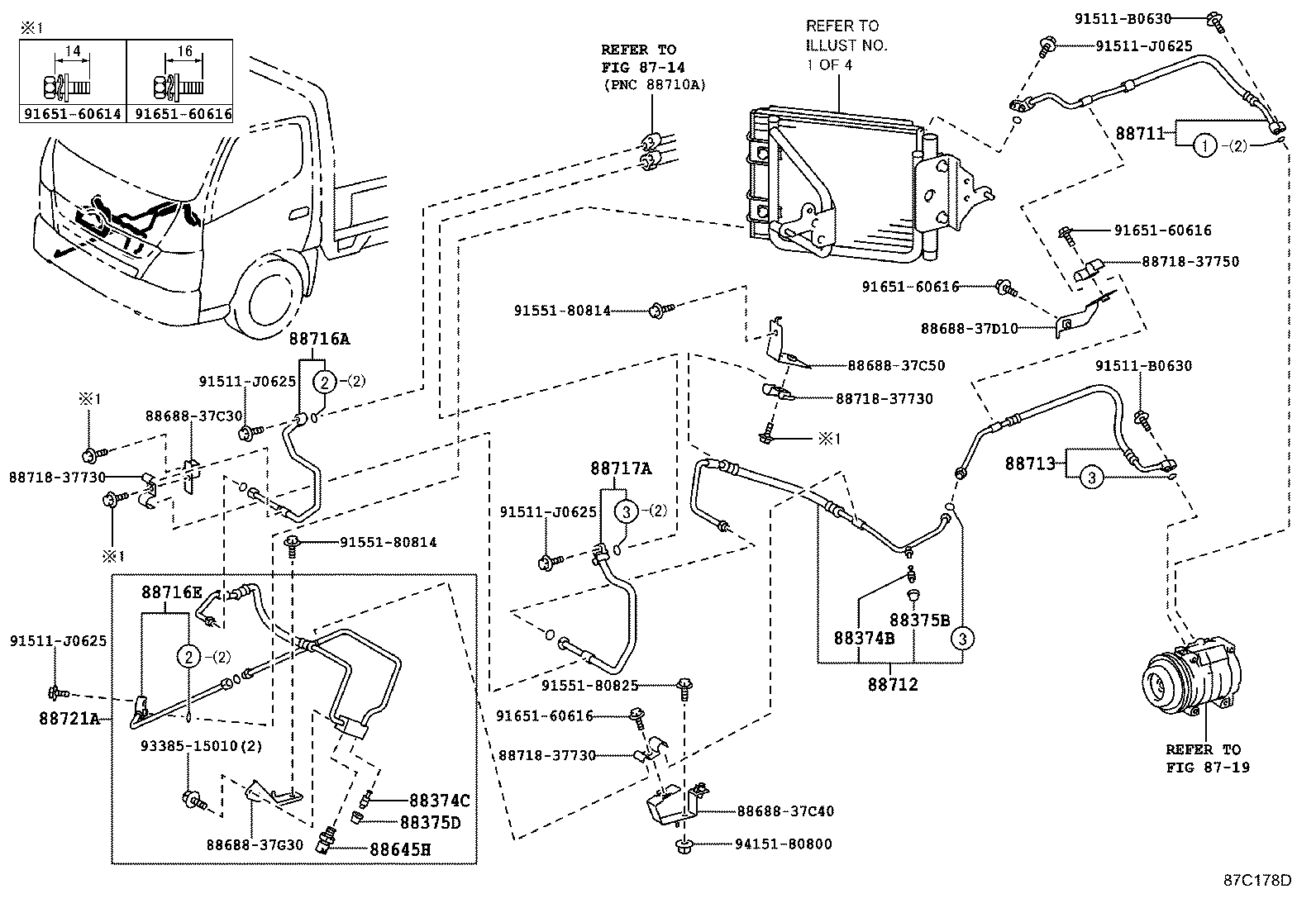

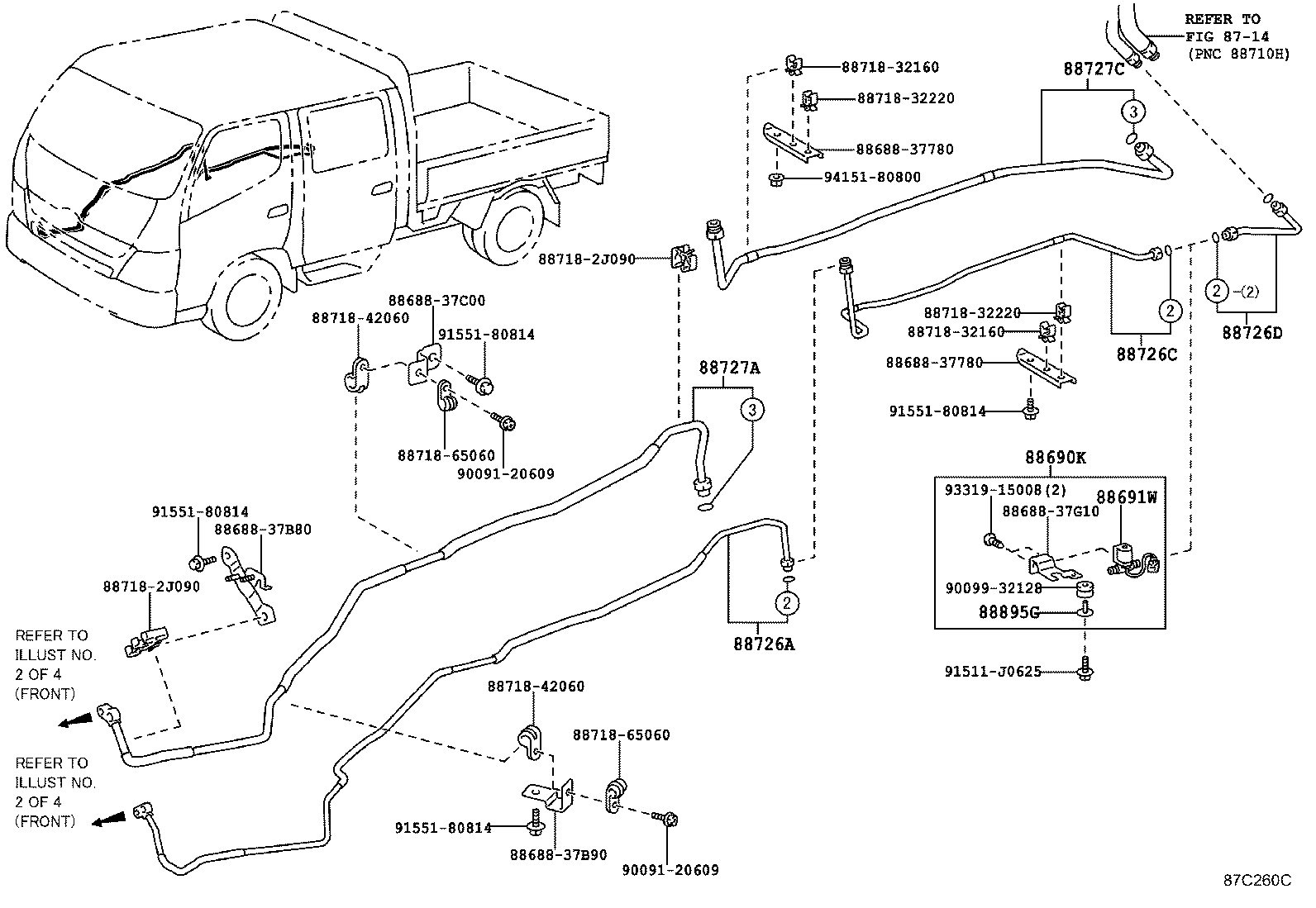

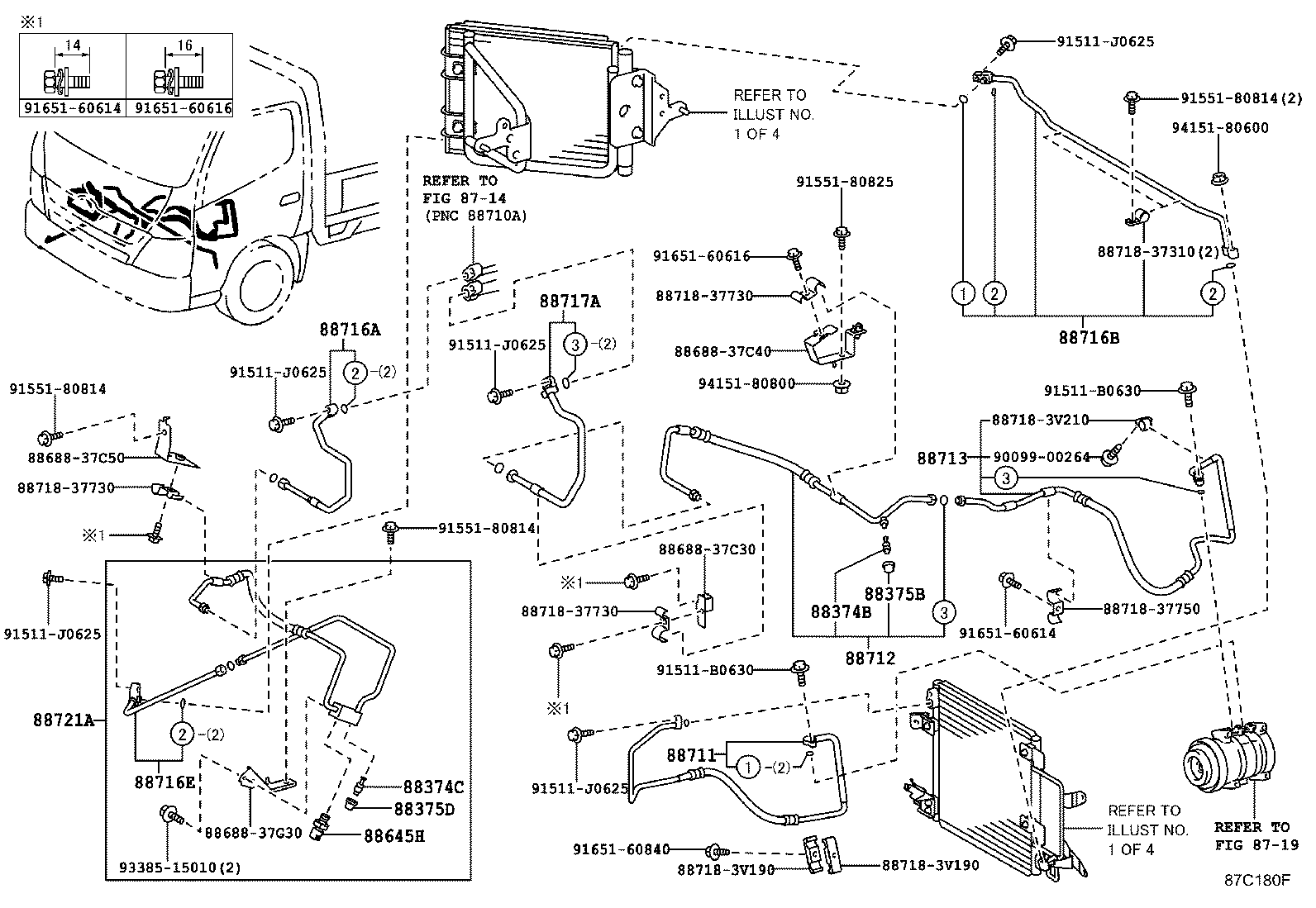

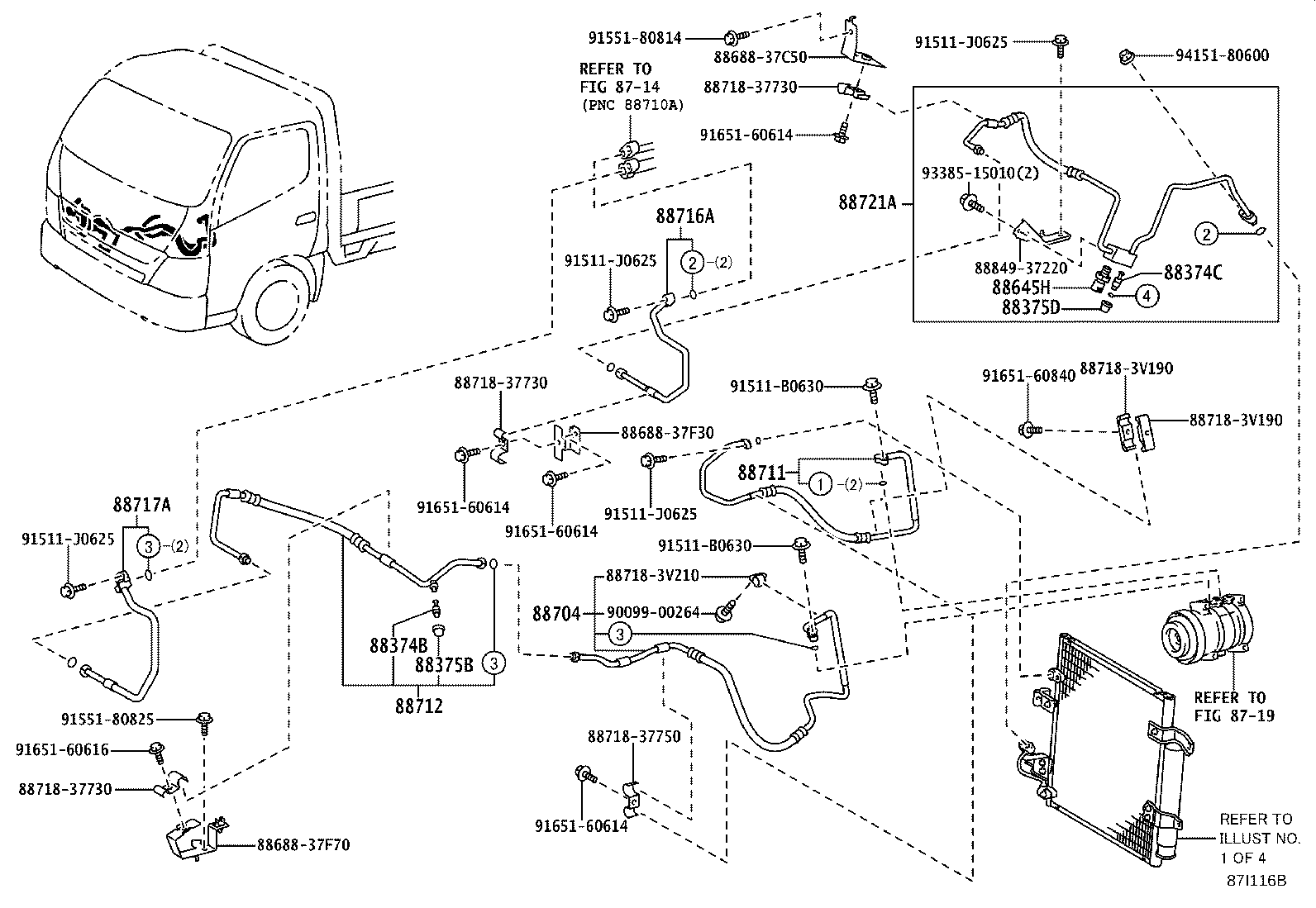

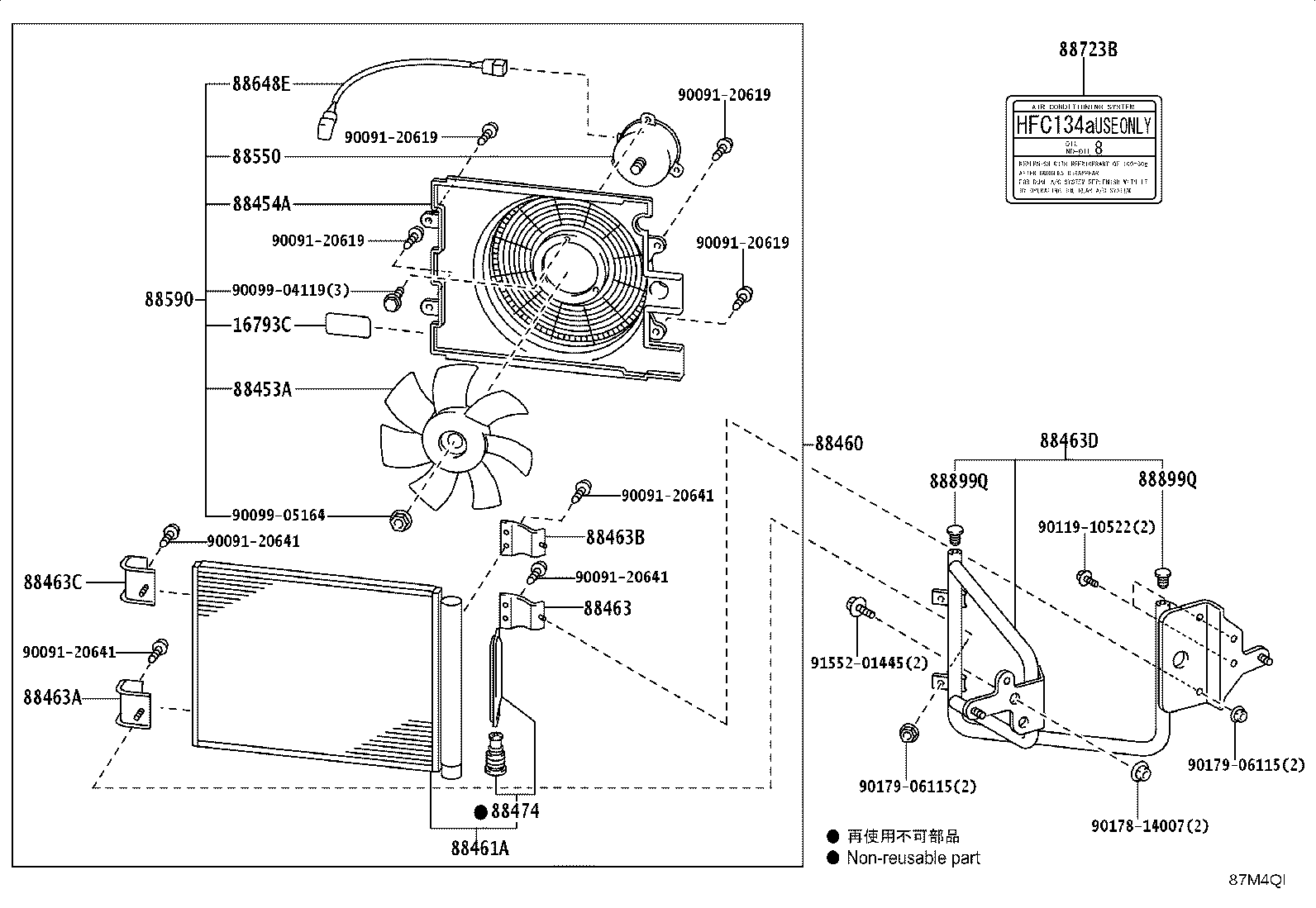

Figure 87C166B 87C166B 2011-07 → 2014-10 Figure 87M4QI 87M4QI 2011-07 → 2014-10 Figure 87M4QJ 87M4QJ 2011-08 → 2014-10 Figure 87C302B 87C302B 2011-08 → 2014-10 Figure 87F676C 87F676C 2014-10 → — Figure 87F677D 87F677D 2014-10 → — Figure 87F678D 87F678D 2014-10 → — Figure 87F679D 87F679D 2014-10 → — Figure 87M4QK 87M4QK 2019-11 → — Figure 87C175F 87C175F 2011-07 → — Figure 87C178D 87C178D 2011-07 → — Figure 87C176D 87C176D 2011-07 → — Figure 87C180F 87C180F 2011-08 → — Figure 87I116B 87I116B 2019-11 → — Figure 87C181E 87C181E 2011-08 → — Figure 87C260C 87C260C 2011-08 → — Figure 87M4RA 87M4RA 2011-07 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88461C Core, Cooler Condenser, NO.2
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463C Bracket, Cooler Condenser, NO.4
88463D Bracket, Cooler Condenser, NO.5
88471 Tank, Receiver Air Conditioner
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88690K Valve Assy, Magnet
88691W Valve, Magnet
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726C Pipe, Cooler Refrigerant Liquid, C
88726D Pipe, Cooler Refrigerant Liquid, D
88727A Pipe, Cooler Refrigerant Suction, A
88727C Pipe, Cooler Refrigerant Suction, C
88895G Bush
88899Q Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
