Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

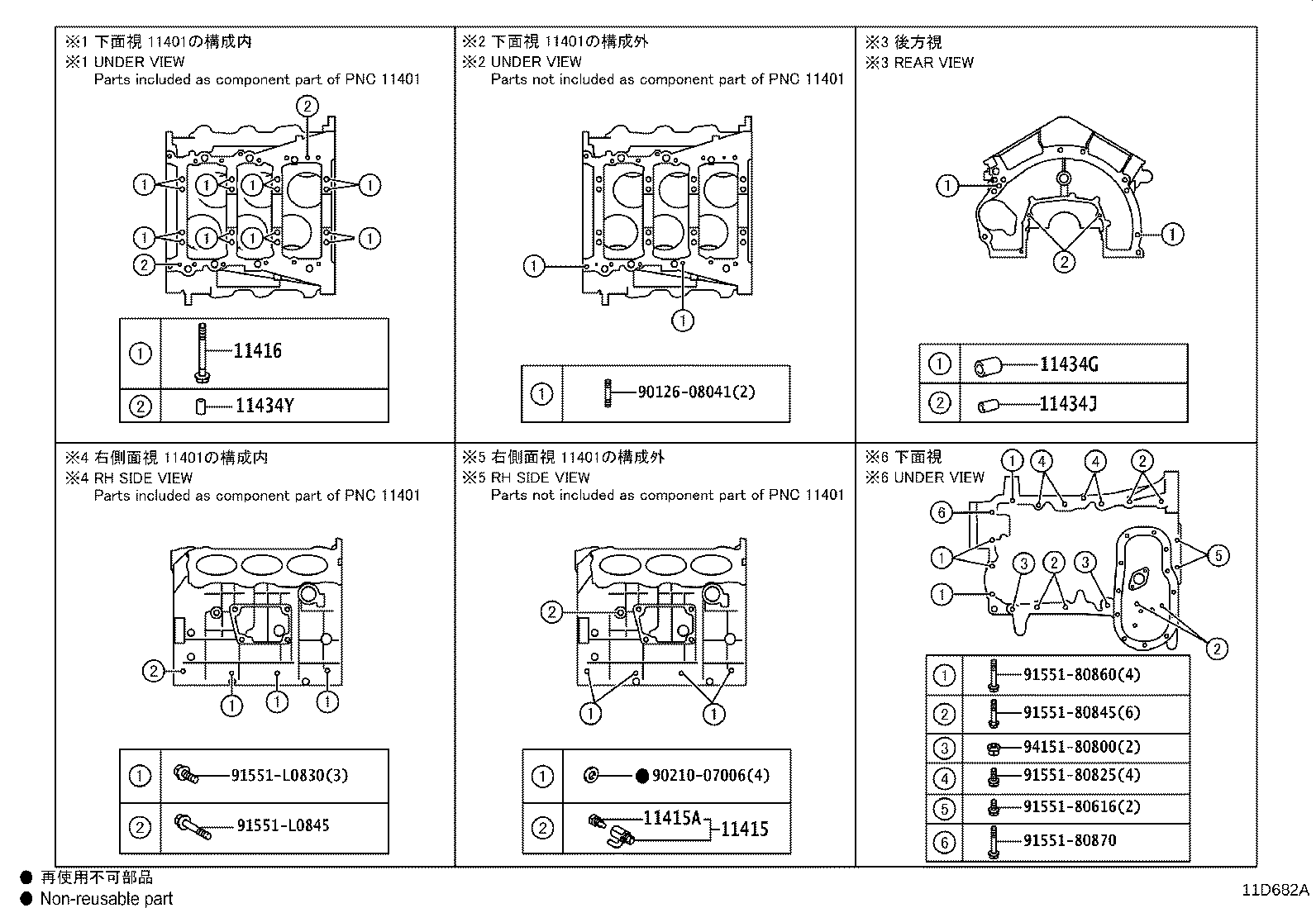

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2012-03 → 2013-11
ended
|
1GRFE GRJ150 | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2010-05 → 2012-03
ended
|
1GRFE GRJ150 | — | |
| 90345-52001 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2015-09 → 2017-11
ended
|
7GRFKS GRJ152 | — | |
| 90910-09118 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2015-03 → 2015-09
ended
|
2TRFE TRJ150 | — | |
| 90910-09118 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2015-09 → —
|
2TRFE TRJ152 | — | |
| 90910-09129 |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2013-11 → 2015-09
ended
|
1GRFE GRJ150 | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2015-09 → 2017-11
ended
|
7GRFKS GRJ152 | — | |
| 90345-52001 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2017-11 → 2019-11
ended
|
7GRFKS GRJ152 | — | |
| 90910-09129 note |
Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2017-11 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
| 11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2010-05 → 2013-11
ended
|
1GRFE GRJ150 | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2013-11 → 2015-09
ended
|
1GRFE GRJ150 | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2015-03 → 2015-09
ended
|
2TRFE TRJ150 | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2015-09 → 2017-11
ended
|
7GRFKS GRJ152 | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2015-09 → —
|
2TRFE TRJ152 | — | |
| 90910-09087 |
Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2017-11 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02176 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2010-05 → 2013-11
ended
|
1GRFE GRJ150 | — | |
| 90910-02153 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-09 → 2017-11
ended
|
7GRFKS GRJ152 | — | |
| 90910-02176 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2013-11 → 2015-09
ended
|
1GRFE GRJ150 | — | |
| 90910-02179 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-03 → 2015-09
ended
|
2TRFE TRJ150 | — | |
| 90910-02179 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-09 → —
|
2TRFE TRJ152 | — | |
| 90910-02153 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2017-11 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
| 11434G — Pin, Straight(FOR END PLATE) | ||||
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2010-05 → 2013-11
ended
|
1GRFE GRJ150 | — | |
| 90250-04097 |
Pin, Straight(FOR END PLATE)
2015-09 → 2017-11
ended
|
7GRFKS GRJ152 | — | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
2013-11 → 2015-09
ended
|
1GRFE GRJ150 | — | |
| 90250-04097 |
Pin, Straight(FOR END PLATE)
2017-11 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
| 11434J — Pin, Ring (FOR CYLINDER HEAD SET) | ||||
| 90250-04097 |
Pin, Ring (FOR CYLINDER HEAD SET)
2010-05 → 2013-11
ended
|
1GRFE GRJ150 | — | |
| 90250-04097 |
Pin, Ring (FOR CYLINDER HEAD SET)
2013-11 → 2015-09
ended
|
1GRFE GRJ150 | — | |
| 90253-15001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2015-03 → 2015-09
ended
|
2TRFE TRJ150 | — | |
| 90253-15001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2015-09 → —
|
2TRFE TRJ152 | — | |
| 11434Y — Pin, Straight(FOR OIL PAN) | ||||
| 90250-04097 |
Pin, Straight(FOR OIL PAN)
2010-05 → 2013-11
ended
|
1GRFE GRJ150 | — | |
| 90250-04097 |
Pin, Straight(FOR OIL PAN)
2013-11 → 2015-09
ended
|
1GRFE GRJ150 | — | |
| 90250-04097 |
Pin, Straight(FOR OIL PAN)
2015-09 → 2017-11
ended
|
7GRFKS GRJ152 | — | |
| 90253-14004 |
Pin, Straight(FOR OIL PAN)
2015-03 → 2015-09
ended
|
2TRFE TRJ150 | — | |
| 90253-14004 |
Pin, Straight(FOR OIL PAN)
2015-09 → —
|
2TRFE TRJ152 | — | |
| 90250-04097 |
Pin, Straight(FOR OIL PAN)
2017-11 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
