Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 359166B 9161961255 — not listed in this catalogue 9155180816 — not listed in this catalogue 9011912298 — not listed in this catalogue 9161261055 — not listed in this catalogue 90119C0269 — not listed in this catalogue 35013 — TUBE SUB-ASSY, TRANSMISSION OIL FILLER (1 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (5 parts) 35104 — CASE SUB-ASSY, AUTOMATIC TRANSMISSION (3 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (5 parts) 35106 — PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL (5 parts) 35159 — GASKET, BRAKE DRUM (5 parts) 35111Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (5 parts) 35111Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (5 parts) 35111 — HOUSING, AUTOMATIC TRANSMISSION (6 parts) 35104V — HOSE (FOR BREATHER PLUG) (5 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (6 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (6 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (4 parts) 35106F — BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) (5 parts) 35336 — RING, O (FOR TRANSMISSION OIL FILLER TUBE) (1 parts) 35106B — GASKET, DRAIN PLUG (ATM) (5 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (5 parts) 9011912036 — not listed in this catalogue 9011910232 — not listed in this catalogue 9613251000 — not listed in this catalogue 8410 — not listed in this catalogue 8401 — not listed in this catalogue 3512 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 3512 — not listed in this catalogue 8401 — not listed in this catalogue 8410 — not listed in this catalogue 35103 — GAGE SUB-ASSY, TRANSMISSION OIL LEVEL (1 parts) 35519D — LABEL, AUTOMATIC TRANSMISSION INFORMATION (1 parts)

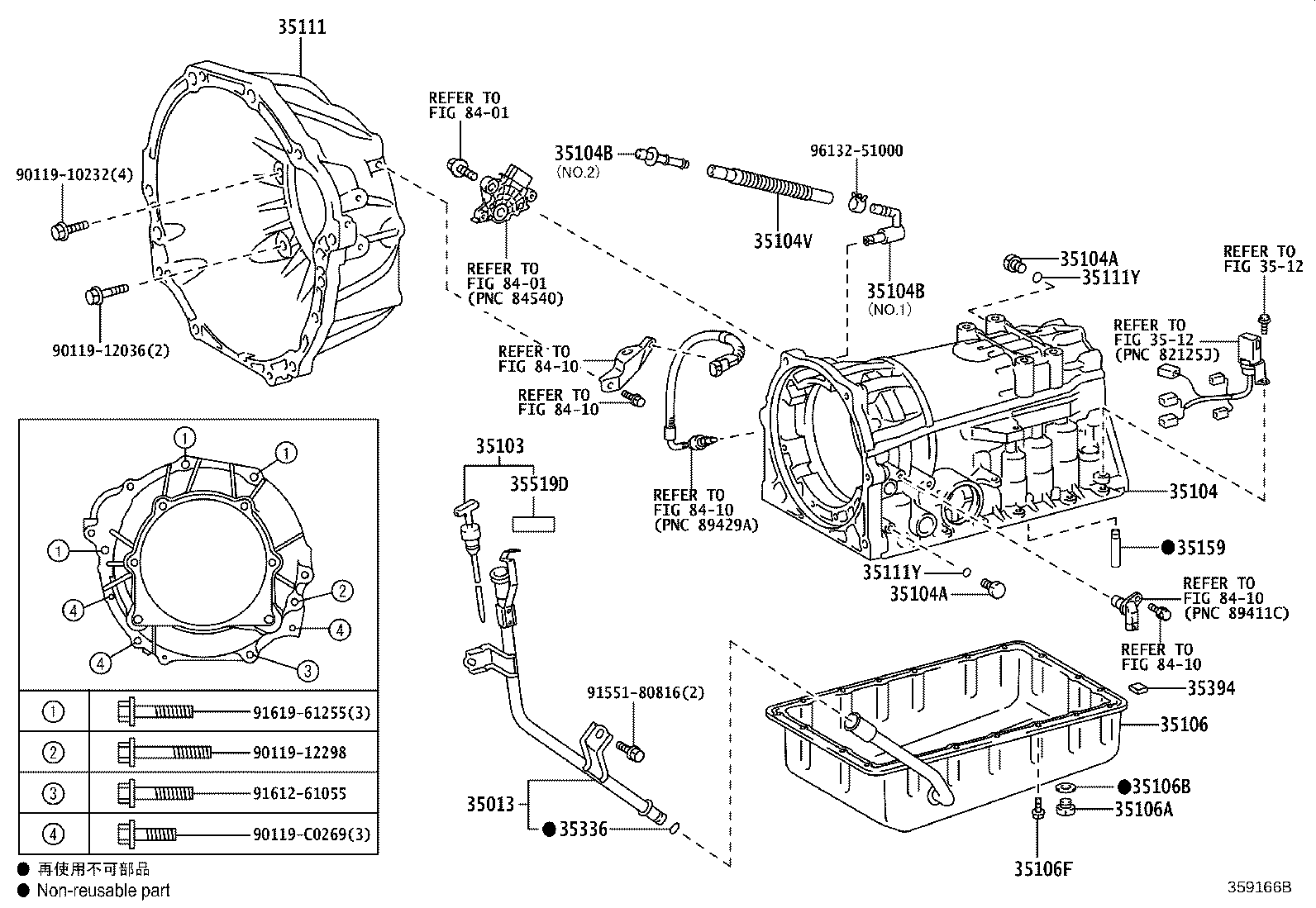

359166B · 19 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
35013 — Tube Sub-assy, Transmission Oil Filler
35013-60310 Tube Sub-assy, Transmission Oil Filler
2015-03 → 2015-09 ended
TRJ150 4FC —
35103 — Gage Sub-assy, Transmission Oil Level
35103-60280 Gage Sub-assy, Transmission Oil Level
2015-03 → 2015-09 ended
TRJ150 4FC —
35104 — Case Sub-assy, Automatic Transmission
35104-35022 Case Sub-assy, Automatic Transmission
2015-03 → 2015-09 ended
TRJ150 4FC —
35104-71020 Case Sub-assy, Automatic Transmission
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35104-71020 Case Sub-assy, Automatic Transmission
2017-11 → 2020-06 ended
GRJ152 —
35104A — Plug, Automatic Transmission Case
90341-08001 Plug, Automatic Transmission Case
2010-05 → 2013-11 ended
GRJ150 —
90341-08001 Plug, Automatic Transmission Case
2013-11 → 2015-09 ended
GRJ150 —
90341-08001 Plug, Automatic Transmission Case
2015-03 → 2015-09 ended
TRJ150 4FC —
90341-08001 Plug, Automatic Transmission Case
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90341-08001 Plug, Automatic Transmission Case
2017-11 → 2020-06 ended
GRJ152 —
35104B — Plug, Breather, NO.1 (ATM)
90930-03211 Plug, Breather, NO.1 (ATM)
2011-05 → 2013-11 ended
GRJ150 —
90930-03098 note Plug, Breather, NO.1 (ATM)
2015-03 → 2015-09 ended
TRJ150 4FC —
90930-03211 Plug, Breather, NO.1 (ATM)
2013-11 → 2015-09 ended
GRJ150 —
90930-03211 note Plug, Breather, NO.1 (ATM)
2015-03 → 2015-09 ended
TRJ150 4FC —
90930-03211 Plug, Breather, NO.1 (ATM)
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
90930-03211 Plug, Breather, NO.1 (ATM)
2017-11 → 2020-06 ended
GRJ152 —
35104V — Hose (FOR BREATHER PLUG)
35121-35020 Hose (FOR BREATHER PLUG)
2010-05 → 2013-11 ended
GRJ150 —
35121-35020 Hose (FOR BREATHER PLUG)
2013-11 → 2015-09 ended
GRJ150 —
90447-11052 Hose (FOR BREATHER PLUG)
2015-03 → 2015-09 ended
TRJ150 4FC —
90447-11084 Hose (FOR BREATHER PLUG)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90447-11084 Hose (FOR BREATHER PLUG)
2017-11 → 2020-06 ended
GRJ152 —
35106 — Pan Sub-assy, Automatic Transmission Oil
35106-60180 Pan Sub-assy, Automatic Transmission Oil
2010-05 → 2013-11 ended
GRJ150 —
35106-60180 Pan Sub-assy, Automatic Transmission Oil
2013-11 → 2015-09 ended
GRJ150 —
35106-60230 Pan Sub-assy, Automatic Transmission Oil
2015-03 → 2015-09 ended
TRJ150 4FC —
35106-71050 Pan Sub-assy, Automatic Transmission Oil
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35106-71050 Pan Sub-assy, Automatic Transmission Oil
2017-11 → 2020-06 ended
GRJ152 —
35106A — Plug Sub-assy, Drain (ATM)
90341-10011 Plug Sub-assy, Drain (ATM)
2010-05 → 2013-11 ended
GRJ150 —
90341-10011 Plug Sub-assy, Drain (ATM)
2013-11 → 2015-09 ended
GRJ150,TRJ150 ATM —
90341-10011 Plug Sub-assy, Drain (ATM)
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
90341-10011 Plug Sub-assy, Drain (ATM)
2017-11 → 2020-06 ended
GRJ152 —
35106B — Gasket, Drain Plug (ATM)
35178-30010 Gasket, Drain Plug (ATM)
2010-05 → 2013-11 ended
GRJ150 —
35178-30010 Gasket, Drain Plug (ATM)
2013-11 → 2015-09 ended
GRJ150 —
35178-30010 Gasket, Drain Plug (ATM)
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
35178-30010 Gasket, Drain Plug (ATM)
2015-03 → 2015-09 ended
TRJ150 4FC —
35178-30010 Gasket, Drain Plug (ATM)
2017-11 → 2020-06 ended
GRJ152 —
35106F — Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06173 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2010-05 → 2013-11 ended
GRJ150 —
90119-06173 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2013-11 → 2015-09 ended
GRJ150 —
90119-06513 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-03 → 2015-09 ended
TRJ150 4FC —
90119-06A02 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90119-06A02 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2017-11 → 2020-06 ended
GRJ152 —
35111 — Housing, Automatic Transmission
35111-60170 Housing, Automatic Transmission
2010-05 → 2013-11 ended
GRJ150 —
35111-60170 Housing, Automatic Transmission
2013-11 → 2015-09 ended
GRJ150 —
35111-60240 Housing, Automatic Transmission
2015-09 → 2017-11 ended
GRJ152 —
35111-71010 Housing, Automatic Transmission
2015-03 → 2015-09 ended
TRJ150 4FC —
35111-71040 Housing, Automatic Transmission
2015-09 → 2017-11 ended
TRJ152 6FC —
35111-60240 Housing, Automatic Transmission
2017-11 → 2020-06 ended
GRJ152 —
35111Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2010-05 → 2013-11 ended
GRJ150 —
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2015-03 → 2015-09 ended
TRJ150 4FC —
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2013-11 → 2015-09 ended
GRJ150 —
90301-06196 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2017-11 → 2020-06 ended
GRJ152 —
35159 — Gasket, Brake Drum
35159-60010 Gasket, Brake Drum
2010-05 → 2013-11 ended
GRJ150 —
35159-30010 Gasket, Brake Drum
2015-03 → 2015-09 ended
TRJ150 4FC —
35159-60010 Gasket, Brake Drum
2013-11 → 2015-09 ended
GRJ150 —
35159-71010 Gasket, Brake Drum
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35159-71010 Gasket, Brake Drum
2017-11 → 2020-06 ended
GRJ152 —
35336 — Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
2015-03 → 2015-09 ended
TRJ150 4FC —
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2010-05 → 2013-11 ended
GRJ150 —
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2013-11 → 2015-09 ended
GRJ150 —
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-03 → 2015-09 ended
TRJ150 4FC —
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2017-11 → 2020-06 ended
GRJ152 —
35519D — Label, Automatic Transmission Information
35519-28041 Label, Automatic Transmission Information
2015-03 → 2015-09 ended
TRJ150 4FC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
