Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

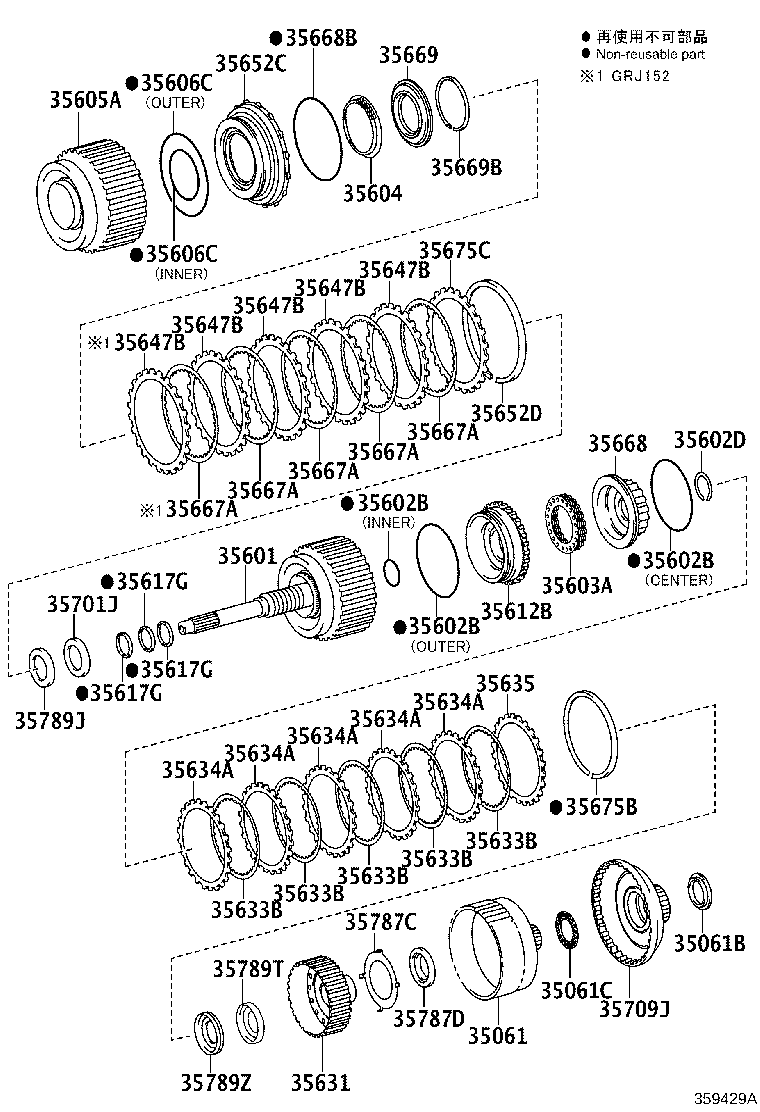

Exploded illustration 359429A 35605A — DRUM SUB-ASSY, DIRECT CLUTCH (3 parts) 35606C — RING, O (FOR DIRECT CLUTCH PISTON) (6 parts) 35606C — RING, O (FOR DIRECT CLUTCH PISTON) (6 parts) 35652C — PISTON, DIRECT CLUTCH (3 parts) 35668B — RING, O(FOR CLUTCH BALANCER) (2 parts) 35604 — SPRING SUB-ASSY, DIRECT CLUTCH RETURN (3 parts) 35669 — BALANCER, CLUTCH, NO.2 (2 parts) 35787C — RACE, THRUST BEARING, NO.2 (2 parts) 35061 — HUB SUB-ASSY, FORWARD CLUTCH (2 parts) 35669B — RING, SNAP (FOR CLUTCH BALANCER) (2 parts) 35647B — PLATE, CLUTCH, NO.2 (3 parts) 35647B — PLATE, CLUTCH, NO.2 (3 parts) 35647B — PLATE, CLUTCH, NO.2 (3 parts) 35647B — PLATE, CLUTCH, NO.2 (3 parts) 35675C — FLANGE, DIRECT CLUTCH (25 parts) 35667A — DISK, DIRECT CLUTCH (3 parts) 35667A — DISK, DIRECT CLUTCH (3 parts) 35667A — DISK, DIRECT CLUTCH (3 parts) 35667A — DISK, DIRECT CLUTCH (3 parts) 35652D — RING, SNAP (FOR DIRECT CLUTCH PISTON) (2 parts) 35789J — RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) (2 parts) 35701J — BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) (3 parts) 35617G — RING, CLUTCH DRUM OIL SEAL (2 parts) 35617G — RING, CLUTCH DRUM OIL SEAL (2 parts) 35617G — RING, CLUTCH DRUM OIL SEAL (2 parts) 35601 — DRUM SUB-ASSY, CLUTCH (4 parts) 35602B — RING, O (FOR FORWARD CLUTCH PISTON) (9 parts) 35612B — PISTON, FORWARD CLUTCH (2 parts) 35603A — SPRING SUB-ASSY, FORWARD CLUTCH RETURN (3 parts) 35668 — BALANCER, CLUTCH, NO.1 (2 parts) 35602B — RING, O (FOR FORWARD CLUTCH PISTON) (9 parts) 35602B — RING, O (FOR FORWARD CLUTCH PISTON) (9 parts) 35602D — RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING) (3 parts) 35634A — PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35634A — PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35634A — PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35634A — PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35635 — FLANGE, FORWARD CLUTCH (34 parts) 35675B — RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) (3 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35634A — PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (3 parts) 35789Z — BEARING, THRUST NEEDLE ROLLER (2 parts) 35631 — HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) (2 parts) 35787D — BEARING, THRUST NEEDLE ROLLER (2 parts) 35709J — DRUM SUB-ASSY, SUN GEAR INPUT (2 parts) 35789T — RACE, THRUST BEARING (INPUT SHAFT REAR) (2 parts) 35647B — PLATE, CLUTCH, NO.2 (3 parts) 35667A — DISK, DIRECT CLUTCH (3 parts) 35061C — BEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB) (2 parts) 35061B — RACE, THRUST BEARING(FOR FORWARD CLUTCH HOB) (2 parts)
359429A · 54 callouts Full size ↗
145 parts on this figure
Part number Description Fitment Price
35061 — Hub Sub-assy, Forward Clutch
35061-71010 Hub Sub-assy, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35061-71010 Hub Sub-assy, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35061B — Race, Thrust Bearing(FOR FORWARD CLUTCH HOB)
35789-71020 Race, Thrust Bearing(FOR FORWARD CLUTCH HOB)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35789-71020 Race, Thrust Bearing(FOR FORWARD CLUTCH HOB)
2017-11 → 2020-06 ended
GRJ152 —
35061C — Bearing, Thrust Needle Roller(FOR FORWARD CLUTCH HUB)
90374-39008 Bearing, Thrust Needle Roller(FOR FORWARD CLUTCH HUB)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90374-39008 Bearing, Thrust Needle Roller(FOR FORWARD CLUTCH HUB)
2017-11 → 2020-06 ended
GRJ152 —
35601 — Drum Sub-assy, Clutch
35601-71010 Drum Sub-assy, Clutch
2015-09 → 2017-11 ended
GRJ152 —
35601-71020 Drum Sub-assy, Clutch
2015-09 → 2017-11 ended
TRJ152 6FC —
35601-71010 Drum Sub-assy, Clutch
2017-11 → 2018-11 ended
GRJ152 —
35601-71030 Drum Sub-assy, Clutch
2018-12 → 2020-06 ended
GRJ152 —
35602B — Ring, O (FOR FORWARD CLUTCH PISTON)
90301-33017 note Ring, O (FOR FORWARD CLUTCH PISTON)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-39005 note Ring, O (FOR FORWARD CLUTCH PISTON)
2015-03 → 2015-09 ended
TRJ150 4FC —
90301-72003 note Ring, O (FOR FORWARD CLUTCH PISTON)
2015-03 → 2015-09 ended
TRJ150 4FC —
90301-99058 note Ring, O (FOR FORWARD CLUTCH PISTON)
2015-03 → 2015-09 ended
TRJ150 4FC —
90301-99096 note Ring, O (FOR FORWARD CLUTCH PISTON)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-99145 note Ring, O (FOR FORWARD CLUTCH PISTON)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-33017 note Ring, O (FOR FORWARD CLUTCH PISTON)
2017-11 → 2020-06 ended
GRJ152 —
90301-99096 note Ring, O (FOR FORWARD CLUTCH PISTON)
2017-11 → 2020-06 ended
GRJ152 —
90301-99145 note Ring, O (FOR FORWARD CLUTCH PISTON)
2017-11 → 2020-06 ended
GRJ152 —
35602D — Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING)
90520-35001 Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING)
2015-03 → 2015-09 ended
TRJ150 4FC —
90520-35003 Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90520-35003 Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING)
2017-11 → 2020-06 ended
GRJ152 —
35603A — Spring Sub-assy, Forward Clutch Return
35603-30011 Spring Sub-assy, Forward Clutch Return
2015-03 → 2015-09 ended
TRJ150 4FC —
35603-60020 Spring Sub-assy, Forward Clutch Return
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35603-60020 Spring Sub-assy, Forward Clutch Return
2017-11 → 2020-06 ended
GRJ152 —
35604 — Spring Sub-assy, Direct Clutch Return
35604-35010 Spring Sub-assy, Direct Clutch Return
2015-03 → 2015-09 ended
TRJ150 4FC —
35604-71010 Spring Sub-assy, Direct Clutch Return
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35604-71010 Spring Sub-assy, Direct Clutch Return
2017-11 → 2020-06 ended
GRJ152 —
35605A — Drum Sub-assy, Direct Clutch
35605-22040 Drum Sub-assy, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35605-71010 Drum Sub-assy, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35605-71010 Drum Sub-assy, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35606C — Ring, O (FOR DIRECT CLUTCH PISTON)
90301-65006 note Ring, O (FOR DIRECT CLUTCH PISTON)
2015-03 → 2015-09 ended
TRJ150 4FC —
90301-74004 note Ring, O (FOR DIRECT CLUTCH PISTON)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-99058 note Ring, O (FOR DIRECT CLUTCH PISTON)
2015-03 → 2015-09 ended
TRJ150 4FC —
90301-99205 note Ring, O (FOR DIRECT CLUTCH PISTON)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-74004 note Ring, O (FOR DIRECT CLUTCH PISTON)
2017-11 → 2020-06 ended
GRJ152 —
90301-99205 note Ring, O (FOR DIRECT CLUTCH PISTON)
2017-11 → 2020-06 ended
GRJ152 —
35612B — Piston, Forward Clutch
35612-71010 Piston, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35612-71010 Piston, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35617G — Ring, Clutch Drum Oil Seal
35617-71010 Ring, Clutch Drum Oil Seal
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35617-71010 Ring, Clutch Drum Oil Seal
2017-11 → 2020-06 ended
GRJ152 —
35631 — Hub, Clutch(FOR MULTIPLE DISC CLUTCH)
35631-71010 Hub, Clutch(FOR MULTIPLE DISC CLUTCH)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35631-71010 Hub, Clutch(FOR MULTIPLE DISC CLUTCH)
2017-11 → 2020-06 ended
GRJ152 —
35633B — Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-71010 Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35677-30170 Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2015-03 → 2015-09 ended
TRJ150 4FC —
35633-71010 Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2017-11 → 2020-06 ended
GRJ152 —
35634A — Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-30110 note Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2015-03 → 2015-09 ended
TRJ150 4FC —
35634-71010 note Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35634-71010 note Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2017-11 → 2020-06 ended
GRJ152 —
35635 — Flange, Forward Clutch
35635-30040 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30050 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30060 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30070 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30080 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30090 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30100 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-30110 note Flange, Forward Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35635-71010 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71020 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71030 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71040 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71050 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71060 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71070 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71080 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71090 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71100 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71110 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71120 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71130 note Flange, Forward Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35635-71010 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71020 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71030 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71040 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71050 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71060 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71070 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71080 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71090 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71100 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71110 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71120 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35635-71130 note Flange, Forward Clutch
2017-11 → 2020-06 ended
GRJ152 —
35647B — Plate, Clutch, NO.2
35647-71010 Plate, Clutch, NO.2
2015-09 → 2017-11 ended
TRJ152 6FC —
35647-71010 Plate, Clutch, NO.2
2015-09 → 2017-11 ended
GRJ152 —
35647-71010 Plate, Clutch, NO.2
2017-11 → 2020-06 ended
GRJ152 —
35652C — Piston, Direct Clutch
35652-71010 Piston, Direct Clutch
2015-09 → 2017-11 ended
GRJ152 —
35652-71020 Piston, Direct Clutch
2015-09 → 2017-11 ended
TRJ152 6FC —
35652-71010 Piston, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35652D — Ring, Snap (FOR DIRECT CLUTCH PISTON)
90520-99159 Ring, Snap (FOR DIRECT CLUTCH PISTON)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90520-99159 Ring, Snap (FOR DIRECT CLUTCH PISTON)
2017-11 → 2020-06 ended
GRJ152 —
35667A — Disk, Direct Clutch
35667-71010 Disk, Direct Clutch
2015-09 → 2017-11 ended
GRJ152 —
35667-71010 Disk, Direct Clutch
2015-09 → 2017-11 ended
TRJ152 6FC —
35667-71010 Disk, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35668 — Balancer, Clutch, NO.1
35668-71010 Balancer, Clutch, NO.1
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35668-71010 Balancer, Clutch, NO.1
2017-11 → 2020-06 ended
GRJ152 —
35668B — Ring, O(FOR CLUTCH BALANCER)
90301-99204 Ring, O(FOR CLUTCH BALANCER)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90301-99204 Ring, O(FOR CLUTCH BALANCER)
2017-11 → 2020-06 ended
GRJ152 —
35669 — Balancer, Clutch, NO.2
35669-71010 Balancer, Clutch, NO.2
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35669-71010 Balancer, Clutch, NO.2
2017-11 → 2020-06 ended
GRJ152 —
35669B — Ring, Snap (FOR CLUTCH BALANCER)
90520-68006 Ring, Snap (FOR CLUTCH BALANCER)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90520-68006 Ring, Snap (FOR CLUTCH BALANCER)
2017-11 → 2020-06 ended
GRJ152 —
35675B — Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
90520-99158 Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90521-99001 Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2015-03 → 2015-09 ended
TRJ150 4FC —
90520-99158 Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2017-11 → 2020-06 ended
GRJ152 —
35675C — Flange, Direct Clutch
35675-30210 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-30220 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-30230 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-30240 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-30250 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-30260 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-30270 note Flange, Direct Clutch
2015-03 → 2015-09 ended
TRJ150 4FC —
35675-71010 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71020 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71030 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71040 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71050 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71060 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71070 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71080 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71090 note Flange, Direct Clutch
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35675-71010 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71020 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71030 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71040 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71050 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71060 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71070 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71080 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35675-71090 note Flange, Direct Clutch
2017-11 → 2020-06 ended
GRJ152 —
35701J — Bearing, Thrust Needle Roller (FOR INPUT SHAFT FRONT)
90374-33001 Bearing, Thrust Needle Roller (FOR INPUT SHAFT FRONT)
2015-03 → 2015-09 ended
TRJ150 4FC —
90374-34015 Bearing, Thrust Needle Roller (FOR INPUT SHAFT FRONT)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90374-34015 Bearing, Thrust Needle Roller (FOR INPUT SHAFT FRONT)
2017-11 → 2020-06 ended
GRJ152 —
35709J — Drum Sub-assy, Sun Gear Input
35709-71010 Drum Sub-assy, Sun Gear Input
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35709-71010 Drum Sub-assy, Sun Gear Input
2017-11 → 2020-06 ended
GRJ152 —
35787C — Race, Thrust Bearing, NO.2
35787-60010 Race, Thrust Bearing, NO.2
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35787-60010 Race, Thrust Bearing, NO.2
2017-11 → 2020-06 ended
GRJ152 —
35787D — Bearing, Thrust Needle Roller
90374-38005 Bearing, Thrust Needle Roller
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90374-38005 Bearing, Thrust Needle Roller
2017-11 → 2020-06 ended
GRJ152 —
35789J — Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
35789-71010 Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35789-71010 Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
2017-11 → 2020-06 ended
GRJ152 —
35789T — Race, Thrust Bearing (INPUT SHAFT REAR)
35789-50050 Race, Thrust Bearing (INPUT SHAFT REAR)
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
35789-50050 Race, Thrust Bearing (INPUT SHAFT REAR)
2017-11 → 2020-06 ended
GRJ152 —
35789Z — Bearing, Thrust Needle Roller
90374-21004 Bearing, Thrust Needle Roller
2015-09 → 2017-11 ended
GRJ152,TRJ152 6FC —
90374-21004 Bearing, Thrust Needle Roller
2017-11 → 2020-06 ended
GRJ152 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
