Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

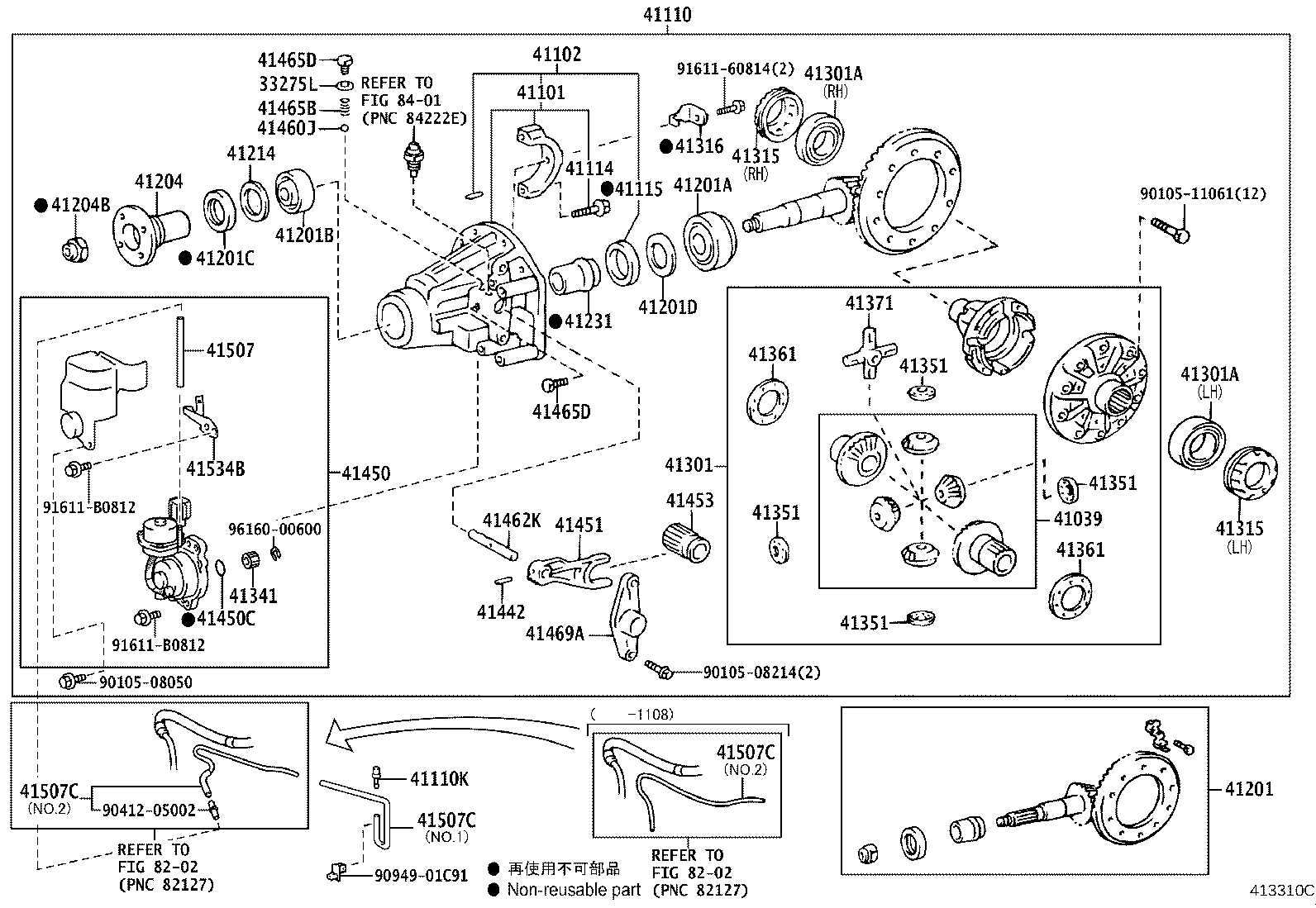

Exploded illustration 413310C 41465D — PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) (3 parts) 33275L — SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING (3 parts) 41465B — SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINER) (3 parts) 41460J — BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) (3 parts) 41214 — SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL (4 parts) 41204 — FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR (4 parts) 41110 — CARRIER ASSY, DIFFERENTIAL, REAR (11 parts) 41316 — LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT (3 parts) 41315 — NUT, REAR DIFFERENTIAL BEARING ADJUSTING (6 parts) 41201D — WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) (119 parts) 41315 — NUT, REAR DIFFERENTIAL BEARING ADJUSTING (6 parts) 41371 — SPIDER, REAR DIFFERENTIAL (4 parts) 41201A — BEARING (FOR REAR DRIVE PINION REAR) (4 parts) 41301 — CASE SUB-ASSY, REAR DIFFERENTIAL (7 parts) 41361 — WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 (60 parts) 41442 — BOLT OR PIN, SHIFT FORK LOCK (3 parts) 41462K — SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK (3 parts) 41451 — FORK, REAR DIFFERENTIAL LOCK SHIFT (3 parts) 41351 — WASHER, REAR DIFFERENTIAL PINION THRUST (4 parts) 41469A — RETAINER, REAR DIFFERENTIAL LOCK SHAFT (3 parts) 41450C — RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) (3 parts) 41450 — ACTUATOR, DIFFERENTIAL LOCK SHIFT (4 parts) 41507 — TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER (4 parts) 41534B — BRACKET, DIFFERENTIAL BREATHER (3 parts) 41341 — PINION, REAR DIFFERENTIAL (3 parts) 41201 — FINAL GEAR KIT, DIFFERENTIAL, REAR (7 parts) 41361 — WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 (60 parts) 41351 — WASHER, REAR DIFFERENTIAL PINION THRUST (4 parts) 41453 — SLEEVE, REAR DIFFERENTIAL LOCK (3 parts) 41201C — SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) (4 parts) 41201B — BEARING (FOR REAR DRIVE PINION FRONT) (4 parts) 41204B — NUT (FOR REAR DRIVE PINION) (4 parts) 41351 — WASHER, REAR DIFFERENTIAL PINION THRUST (4 parts) 41039 — GEAR KIT, DIFFERENTIAL, REAR (7 parts) 41351 — WASHER, REAR DIFFERENTIAL PINION THRUST (4 parts) 41301A — BEARING(FOR REAR DIFFERENTIAL CASE) (10 parts) 41301A — BEARING(FOR REAR DIFFERENTIAL CASE) (10 parts) 91611B0812 — not listed in this catalogue 91611B0812 — not listed in this catalogue 9010508050 — not listed in this catalogue 9616000600 — not listed in this catalogue 9010508214 — not listed in this catalogue 9161160814 — not listed in this catalogue 9010511061 — not listed in this catalogue 41101 — CARRIER SUB-ASSY, DIFFERENTIAL, REAR (7 parts) 41102 — CARRIER SUB-ASSY, DIFFERENTIAL W/PIN, REAR (3 parts) 41115 — RING, DIFFERENTIAL OIL STORAGE (4 parts) 41231 — SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING (4 parts) 41114 — BOLT, REAR DIFFERENTIAL BEARING CAP (4 parts) 41465D — PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) (3 parts) 8401 — not listed in this catalogue 41507C — TUBE SUB-ASSY, DIFFERENTIAL LOCK ACTUATOR BREATHER (5 parts) 41110K — PLUG, BREATHER (FOR REAR DIFFERENTIAL) (3 parts) 9094901C91 — not listed in this catalogue 9041205002 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 41507C — TUBE SUB-ASSY, DIFFERENTIAL LOCK ACTUATOR BREATHER (5 parts) 41507C — TUBE SUB-ASSY, DIFFERENTIAL LOCK ACTUATOR BREATHER (5 parts)
413310C · 47 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
336 parts on this figure
Part number Description Fitment Price
33275L — Seat, Rear Differential Lock Shift Detent Ball Spring
33275-16010 note Seat, Rear Differential Lock Shift Detent Ball Spring
2010-05 → 2013-11 ended
GRJ150 VX —
33275-16010 note Seat, Rear Differential Lock Shift Detent Ball Spring
2013-11 → 2015-09 ended
GRJ150 VX —
33275-16010 note Seat, Rear Differential Lock Shift Detent Ball Spring
2013-11 → 2017-11 ended
GRJ152 VX —
41039 — Gear Kit, Differential, Rear
41039-34060 note Gear Kit, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 VX —
41039-34080 Gear Kit, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 —
41039-34060 note Gear Kit, Differential, Rear
2013-11 → 2015-09 ended
GRJ150 VX —
41039-34060 note Gear Kit, Differential, Rear
2013-11 → 2017-11 ended
GRJ152 VX —
41039-34080 Gear Kit, Differential, Rear
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41039-34080 Gear Kit, Differential, Rear
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41039-34080 Gear Kit, Differential, Rear
2017-11 → 2020-06 ended
GRJ152 —
41101 — Carrier Sub-assy, Differential, Rear
41101-35180 Carrier Sub-assy, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 —
41101-35190 note Carrier Sub-assy, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 VX —
41101-35180 Carrier Sub-assy, Differential, Rear
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41101-35180 Carrier Sub-assy, Differential, Rear
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41101-35190 note Carrier Sub-assy, Differential, Rear
2013-11 → 2015-09 ended
GRJ150 VX —
41101-35190 note Carrier Sub-assy, Differential, Rear
2013-11 → 2017-11 ended
GRJ152 VX —
41101-35180 Carrier Sub-assy, Differential, Rear
2017-11 → 2020-06 ended
GRJ152 —
41102 — Carrier Sub-assy, Differential W/Pin, Rear
41102-35020 note Carrier Sub-assy, Differential W/Pin, Rear
2010-05 → 2013-11 ended
GRJ150 VX —
41102-35020 note Carrier Sub-assy, Differential W/Pin, Rear
2013-11 → 2015-09 ended
GRJ150 VX —
41102-35020 note Carrier Sub-assy, Differential W/Pin, Rear
2013-11 → 2017-11 ended
GRJ152 VX —
41110 — Carrier Assy, Differential, Rear
41110-35C80 note Carrier Assy, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 —
41110-35D30 note Carrier Assy, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 VX —
41110-35C80 note Carrier Assy, Differential, Rear
2013-11 → 2015-09 ended
GRJ150 —
41110-35C90 note Carrier Assy, Differential, Rear
2015-09 → 2017-11 ended
GRJ152 —
41110-35D20 note Carrier Assy, Differential, Rear
2015-03 → 2017-11 ended
TRJ15# 4FC,5F —
41110-35D30 note Carrier Assy, Differential, Rear
2013-11 → 2015-09 ended
GRJ150 VX —
41110-35D30 note Carrier Assy, Differential, Rear
2013-11 → 2015-09 ended
GRJ150 VX —
41110-35D40 note Carrier Assy, Differential, Rear
2015-09 → 2017-11 ended
GRJ152 VX —
41110-35D40 note Carrier Assy, Differential, Rear
2015-09 → 2017-11 ended
GRJ152 VX —
41110-60C60 note Carrier Assy, Differential, Rear
2015-09 → 2017-11 ended
TRJ152 6FC —
41110-35C90 note Carrier Assy, Differential, Rear
2017-11 → 2020-06 ended
GRJ152 —
41110K — Plug, Breather (FOR REAR DIFFERENTIAL)
90930-03159 note Plug, Breather (FOR REAR DIFFERENTIAL)
2010-05 → 2013-11 ended
GRJ150 VX —
90930-03159 note Plug, Breather (FOR REAR DIFFERENTIAL)
2013-11 → 2017-11 ended
GRJ152 VX —
90930-03159 note Plug, Breather (FOR REAR DIFFERENTIAL)
2013-11 → 2015-09 ended
GRJ150 VX —
41114 — Bolt, Rear Differential Bearing Cap
41114-60020 Bolt, Rear Differential Bearing Cap
2010-05 → 2013-11 ended
GRJ150 —
41114-60020 Bolt, Rear Differential Bearing Cap
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41114-60020 Bolt, Rear Differential Bearing Cap
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41114-60020 Bolt, Rear Differential Bearing Cap
2017-11 → 2020-06 ended
GRJ152 —
41115 — Ring, Differential Oil Storage
41115-35020 Ring, Differential Oil Storage
2010-05 → 2013-11 ended
GRJ150 —
41115-35020 Ring, Differential Oil Storage
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41115-35020 Ring, Differential Oil Storage
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41115-35020 Ring, Differential Oil Storage
2017-11 → 2020-06 ended
GRJ152 —
41201 — Final Gear Kit, Differential, Rear
41201-80566 note Final Gear Kit, Differential, Rear
2010-05 → 2013-11 ended
GRJ150 —
41201-80566 note Final Gear Kit, Differential, Rear
2013-11 → 2015-09 ended
GRJ150 —
41201-80567 note Final Gear Kit, Differential, Rear
2015-09 → 2017-11 ended
GRJ152 —
41201-80569 note Final Gear Kit, Differential, Rear
2015-03 → 2015-09 ended
TRJ150 —
41201-80569 note Final Gear Kit, Differential, Rear
2015-03 → 2017-11 ended
TRJ152 5F —
41201-80784 note Final Gear Kit, Differential, Rear
2015-09 → 2017-11 ended
TRJ152 6FC —
41201-80567 note Final Gear Kit, Differential, Rear
2017-11 → 2020-06 ended
GRJ152 —
41201A — Bearing (FOR REAR DRIVE PINION REAR)
90366-40132 Bearing (FOR REAR DRIVE PINION REAR)
2010-05 → 2013-11 ended
GRJ150 —
90366-40132 Bearing (FOR REAR DRIVE PINION REAR)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90366-40132 Bearing (FOR REAR DRIVE PINION REAR)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90366-40132 Bearing (FOR REAR DRIVE PINION REAR)
2017-11 → 2020-06 ended
GRJ152 —
41201B — Bearing (FOR REAR DRIVE PINION FRONT)
90366-35157 Bearing (FOR REAR DRIVE PINION FRONT)
2010-05 → 2013-11 ended
GRJ150 —
90366-35157 Bearing (FOR REAR DRIVE PINION FRONT)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90366-35157 Bearing (FOR REAR DRIVE PINION FRONT)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90366-35157 Bearing (FOR REAR DRIVE PINION FRONT)
2017-11 → 2020-06 ended
GRJ152 —
41201C — Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
90311-44008 Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
2010-05 → 2013-11 ended
GRJ150 —
90311-44008 Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90311-44008 Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90311-44008 Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
2017-11 → 2020-06 ended
GRJ152 —
41201D — Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
90564-64062 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64063 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64064 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64065 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64066 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64067 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64068 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64069 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64070 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64071 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64072 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64073 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64074 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64075 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64076 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64077 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64078 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64079 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64080 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64081 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64082 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64083 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64084 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64085 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64086 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64087 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64088 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64089 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64090 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64091 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64092 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64093 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64094 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64095 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64096 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64097 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64098 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64099 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64100 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64101 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64102 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64103 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64104 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64105 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64106 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64107 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2011-08 ended
GRJ150 —
90564-64108 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90564-64062 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64062 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64064 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64064 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64066 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64066 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64068 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64068 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64070 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64070 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64072 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64072 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64074 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64074 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64076 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64076 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64078 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64078 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64080 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64080 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64082 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64082 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64084 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64084 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64086 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64086 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64088 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64088 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64090 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64090 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64092 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64092 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64094 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64094 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64096 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64096 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64098 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64098 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64100 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64100 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64102 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64102 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64104 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64104 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64106 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64106 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64108 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90564-64108 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90564-64062 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64064 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64066 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64068 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64070 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64072 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64074 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64076 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64078 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64080 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64082 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64084 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64086 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64088 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64090 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64092 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64094 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64096 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64098 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64100 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64102 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64104 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64106 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
90564-64108 note Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
41204 — Flange Sub-assy, Rear Drive Pinion Companion, Rear
41204-35120 Flange Sub-assy, Rear Drive Pinion Companion, Rear
2010-05 → 2013-11 ended
GRJ150 —
41204-35120 Flange Sub-assy, Rear Drive Pinion Companion, Rear
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41204-35120 Flange Sub-assy, Rear Drive Pinion Companion, Rear
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41204-35120 Flange Sub-assy, Rear Drive Pinion Companion, Rear
2017-11 → 2020-06 ended
GRJ152 —
41204B — Nut (FOR REAR DRIVE PINION)
90179-22029 note Nut (FOR REAR DRIVE PINION)
2010-05 → 2013-11 ended
GRJ150 —
90179-22029 note Nut (FOR REAR DRIVE PINION)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90179-22029 note Nut (FOR REAR DRIVE PINION)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90179-22029 note Nut (FOR REAR DRIVE PINION)
2017-11 → 2020-06 ended
GRJ152 —
41214 — Slinger, Rear Differential Drive Pinion Oil
41214-35030 Slinger, Rear Differential Drive Pinion Oil
2010-05 → 2013-11 ended
GRJ150 —
41214-35030 Slinger, Rear Differential Drive Pinion Oil
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41214-35030 Slinger, Rear Differential Drive Pinion Oil
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41214-35030 Slinger, Rear Differential Drive Pinion Oil
2017-11 → 2020-06 ended
GRJ152 —
41231 — Spacer, Rear Differential Drive Pinion Bearing
41231-35050 Spacer, Rear Differential Drive Pinion Bearing
2010-05 → 2013-11 ended
GRJ150 —
41231-35050 Spacer, Rear Differential Drive Pinion Bearing
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41231-35050 Spacer, Rear Differential Drive Pinion Bearing
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41231-35050 Spacer, Rear Differential Drive Pinion Bearing
2017-11 → 2020-06 ended
GRJ152 —
41301 — Case Sub-assy, Rear Differential
41301-35180 Case Sub-assy, Rear Differential
2010-05 → 2013-11 ended
GRJ150 —
41301-35200 note Case Sub-assy, Rear Differential
2010-05 → 2013-11 ended
GRJ150 VX —
41301-35180 Case Sub-assy, Rear Differential
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41301-35180 Case Sub-assy, Rear Differential
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41301-35200 note Case Sub-assy, Rear Differential
2013-11 → 2015-09 ended
GRJ150 VX —
41301-35200 note Case Sub-assy, Rear Differential
2013-11 → 2017-11 ended
GRJ152 VX —
41301-35180 Case Sub-assy, Rear Differential
2017-11 → 2020-06 ended
GRJ152 —
41301A — Bearing(FOR REAR DIFFERENTIAL CASE)
90366-50007 note Bearing(FOR REAR DIFFERENTIAL CASE)
2010-05 → 2013-11 ended
GRJ150 VX —
90366-50130 Bearing(FOR REAR DIFFERENTIAL CASE)
2010-05 → 2013-11 ended
GRJ150 —
90366-75001 note Bearing(FOR REAR DIFFERENTIAL CASE)
2010-05 → 2013-11 ended
GRJ150 VX —
90366-50007 note Bearing(FOR REAR DIFFERENTIAL CASE)
2013-11 → 2017-11 ended
GRJ152 VX —
90366-50007 note Bearing(FOR REAR DIFFERENTIAL CASE)
2013-11 → 2015-09 ended
GRJ150 VX —
90366-50130 Bearing(FOR REAR DIFFERENTIAL CASE)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90366-50130 Bearing(FOR REAR DIFFERENTIAL CASE)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90366-75001 note Bearing(FOR REAR DIFFERENTIAL CASE)
2013-11 → 2015-09 ended
GRJ150 VX —
90366-75001 note Bearing(FOR REAR DIFFERENTIAL CASE)
2013-11 → 2017-11 ended
GRJ152 VX —
90366-50130 Bearing(FOR REAR DIFFERENTIAL CASE)
2017-11 → 2020-06 ended
GRJ152 —
41315 — Nut, Rear Differential Bearing Adjusting
41315-35020 note Nut, Rear Differential Bearing Adjusting
2010-05 → 2013-11 ended
GRJ150 VX —
41315-60010 note Nut, Rear Differential Bearing Adjusting
2010-05 → 2013-11 ended
GRJ150 VX —
41315-35020 note Nut, Rear Differential Bearing Adjusting
2013-11 → 2015-09 ended
GRJ150 VX —
41315-35020 note Nut, Rear Differential Bearing Adjusting
2013-11 → 2017-11 ended
GRJ152 VX —
41315-60010 note Nut, Rear Differential Bearing Adjusting
2013-11 → 2015-09 ended
GRJ150 VX —
41315-60010 note Nut, Rear Differential Bearing Adjusting
2013-11 → 2017-11 ended
GRJ152 VX —
41316 — Lock, Rear Differential Bearing Adjusting Nut
41316-35010 note Lock, Rear Differential Bearing Adjusting Nut
2010-05 → 2013-11 ended
GRJ150 VX —
41316-35010 note Lock, Rear Differential Bearing Adjusting Nut
2013-11 → 2015-09 ended
GRJ150 VX —
41316-35010 note Lock, Rear Differential Bearing Adjusting Nut
2013-11 → 2017-11 ended
GRJ152 VX —
41341 — Pinion, Rear Differential
41341-35070 note Pinion, Rear Differential
2010-05 → 2013-11 ended
GRJ150 VX —
41341-35070 note Pinion, Rear Differential
2013-11 → 2015-09 ended
GRJ150 VX —
41341-35070 note Pinion, Rear Differential
2013-11 → 2017-11 ended
GRJ152 VX —
41351 — Washer, Rear Differential Pinion Thrust
41351-30060 Washer, Rear Differential Pinion Thrust
2010-05 → 2013-11 ended
GRJ150 —
41351-30060 Washer, Rear Differential Pinion Thrust
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41351-30060 Washer, Rear Differential Pinion Thrust
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41351-30060 Washer, Rear Differential Pinion Thrust
2017-11 → 2020-06 ended
GRJ152 —
41361 — Washer, Rear Differential Side Gear Thrust, NO.1
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 —
41361-60290 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-60300 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-60310 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-60320 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-60330 note Washer, Rear Differential Side Gear Thrust, NO.1
2010-05 → 2013-11 ended
GRJ150 VX —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2017-11 ended
TRJ152 5F —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2015-09 ended
TRJ150 —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-09 → 2017-11 ended
GRJ152 VX —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2017-11 ended
TRJ152 5F —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2015-09 ended
TRJ150 —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-09 → 2017-11 ended
GRJ152 VX —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-09 → 2017-11 ended
GRJ152 VX —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2015-09 ended
TRJ150 —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2017-11 ended
TRJ152 5F —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-09 → 2017-11 ended
GRJ152 VX —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2015-09 ended
TRJ150 —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2017-11 ended
TRJ152 5F —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2017-11 ended
TRJ152 5F —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-09 → 2017-11 ended
GRJ152 VX —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 6FC —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2015-03 → 2015-09 ended
TRJ150 —
41361-60290 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152 VX —
41361-60290 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-60300 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152 VX —
41361-60300 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-60310 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152 VX —
41361-60310 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-60320 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152 VX —
41361-60320 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-60330 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
41361-60330 note Washer, Rear Differential Side Gear Thrust, NO.1
2013-11 → 2017-11 ended
GRJ152 VX —
41361-35310 note Washer, Rear Differential Side Gear Thrust, NO.1
2017-11 → 2020-06 ended
GRJ152 —
41361-35320 note Washer, Rear Differential Side Gear Thrust, NO.1
2017-11 → 2020-06 ended
GRJ152 —
41361-35330 note Washer, Rear Differential Side Gear Thrust, NO.1
2017-11 → 2020-06 ended
GRJ152 —
41361-35340 note Washer, Rear Differential Side Gear Thrust, NO.1
2017-11 → 2020-06 ended
GRJ152 —
41361-35350 note Washer, Rear Differential Side Gear Thrust, NO.1
2017-11 → 2020-06 ended
GRJ152 —
41371 — Spider, Rear Differential
41371-35040 Spider, Rear Differential
2010-05 → 2013-11 ended
GRJ150 —
41371-35040 Spider, Rear Differential
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
41371-35040 Spider, Rear Differential
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
41371-35040 Spider, Rear Differential
2017-11 → 2020-06 ended
GRJ152 —
41442 — Bolt OR Pin, Shift Fork Lock
90254-05016 note Bolt OR Pin, Shift Fork Lock
2010-05 → 2013-11 ended
GRJ150 VX —
90254-05016 note Bolt OR Pin, Shift Fork Lock
2013-11 → 2015-09 ended
GRJ150 VX —
90254-05016 note Bolt OR Pin, Shift Fork Lock
2013-11 → 2017-11 ended
GRJ152 VX —
41450 — Actuator, Differential Lock Shift
41450-35040 note Actuator, Differential Lock Shift
2010-05 → 2013-11 ended
GRJ150 VX —
41450-35040 note Actuator, Differential Lock Shift
2013-11 → 2014-04 ended
GRJ150 VX —
41450-35041 note Actuator, Differential Lock Shift
2014-05 → 2015-09 ended
GRJ150 VX —
41450-35041 note Actuator, Differential Lock Shift
2014-05 → 2017-11 ended
GRJ152 VX —
41450C — Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
90301-20005 note Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
2010-05 → 2013-11 ended
GRJ150 VX —
90301-20005 note Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
2013-11 → 2015-09 ended
GRJ150 VX —
90301-20005 note Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
2013-11 → 2017-11 ended
GRJ152 VX —
41451 — Fork, Rear Differential Lock Shift
41451-60020 note Fork, Rear Differential Lock Shift
2010-05 → 2013-11 ended
GRJ150 VX —
41451-60020 note Fork, Rear Differential Lock Shift
2013-11 → 2017-11 ended
GRJ152 VX —
41451-60020 note Fork, Rear Differential Lock Shift
2013-11 → 2015-09 ended
GRJ150 VX —
41453 — Sleeve, Rear Differential Lock
41453-60020 note Sleeve, Rear Differential Lock
2010-05 → 2013-11 ended
GRJ150 VX —
41453-60020 note Sleeve, Rear Differential Lock
2013-11 → 2015-09 ended
GRJ150 VX —
41453-60020 note Sleeve, Rear Differential Lock
2013-11 → 2017-11 ended
GRJ152 VX —
41460J — Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER)
90360-08009 note Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER)
2010-05 → 2013-11 ended
GRJ150 VX —
90360-08009 note Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER)
2013-11 → 2015-09 ended
GRJ150 VX —
90360-08009 note Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER)
2013-11 → 2017-11 ended
GRJ152 VX —
41462K — Shaft, Rear Differential Lock Shift Fork
41462-60020 note Shaft, Rear Differential Lock Shift Fork
2010-05 → 2013-11 ended
GRJ150 VX —
41462-60020 note Shaft, Rear Differential Lock Shift Fork
2013-11 → 2015-09 ended
GRJ150 VX —
41462-60020 note Shaft, Rear Differential Lock Shift Fork
2013-11 → 2017-11 ended
GRJ152 VX —
41465B — Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER)
90501-12110 note Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER)
2010-05 → 2013-11 ended
GRJ150 VX —
90501-12110 note Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER)
2013-11 → 2015-09 ended
GRJ150 VX —
90501-12110 note Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER)
2013-11 → 2017-11 ended
GRJ152 VX —
41465D — Plug (FOR REAR DIFFERENTIAL LOCK CYLINDER)
90341-10065 note Plug (FOR REAR DIFFERENTIAL LOCK CYLINDER)
2010-05 → 2013-11 ended
GRJ150 VX —
90341-10065 note Plug (FOR REAR DIFFERENTIAL LOCK CYLINDER)
2013-11 → 2017-11 ended
GRJ152 VX —
90341-10065 note Plug (FOR REAR DIFFERENTIAL LOCK CYLINDER)
2013-11 → 2015-09 ended
GRJ150 VX —
41469A — Retainer, Rear Differential Lock Shaft
41469-60010 note Retainer, Rear Differential Lock Shaft
2010-05 → 2013-11 ended
GRJ150 VX —
41469-60010 note Retainer, Rear Differential Lock Shaft
2013-11 → 2015-09 ended
GRJ150 VX —
41469-60010 note Retainer, Rear Differential Lock Shaft
2013-11 → 2017-11 ended
GRJ152 VX —
41507 — Tube, Rear Differential Lock Actuator Breather
41507-35130 note Tube, Rear Differential Lock Actuator Breather
2010-05 → 2011-06 ended
GRJ150 VX —
41507-35150 note Tube, Rear Differential Lock Actuator Breather
2011-06 → 2013-11 ended
GRJ150 VX —
41507-35150 note Tube, Rear Differential Lock Actuator Breather
2013-11 → 2015-09 ended
GRJ150 VX —
41507-35150 note Tube, Rear Differential Lock Actuator Breather
2013-11 → 2017-11 ended
GRJ152 VX —
41507C — Tube Sub-assy, Differential Lock Actuator Breather
41533-35090 note Tube Sub-assy, Differential Lock Actuator Breather
2010-05 → 2011-10 ended
GRJ150 VX —
41533-60090 note Tube Sub-assy, Differential Lock Actuator Breather
2010-05 → 2013-11 ended
GRJ150 VX —
41533-60100 note Tube Sub-assy, Differential Lock Actuator Breather
2011-10 → 2013-11 ended
GRJ150 VX —
41533-60090 note Tube Sub-assy, Differential Lock Actuator Breather
2013-11 → 2017-11 ended
GRJ15# VX —
41533-60100 note Tube Sub-assy, Differential Lock Actuator Breather
2013-11 → 2017-11 ended
GRJ15# VX —
41534B — Bracket, Differential Breather
41534-35040 note Bracket, Differential Breather
2010-05 → 2013-11 ended
GRJ150 VX —
41534-35040 note Bracket, Differential Breather
2013-11 → 2015-09 ended
GRJ150 VX —
41534-35040 note Bracket, Differential Breather
2013-11 → 2017-11 ended
GRJ152 VX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
