Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

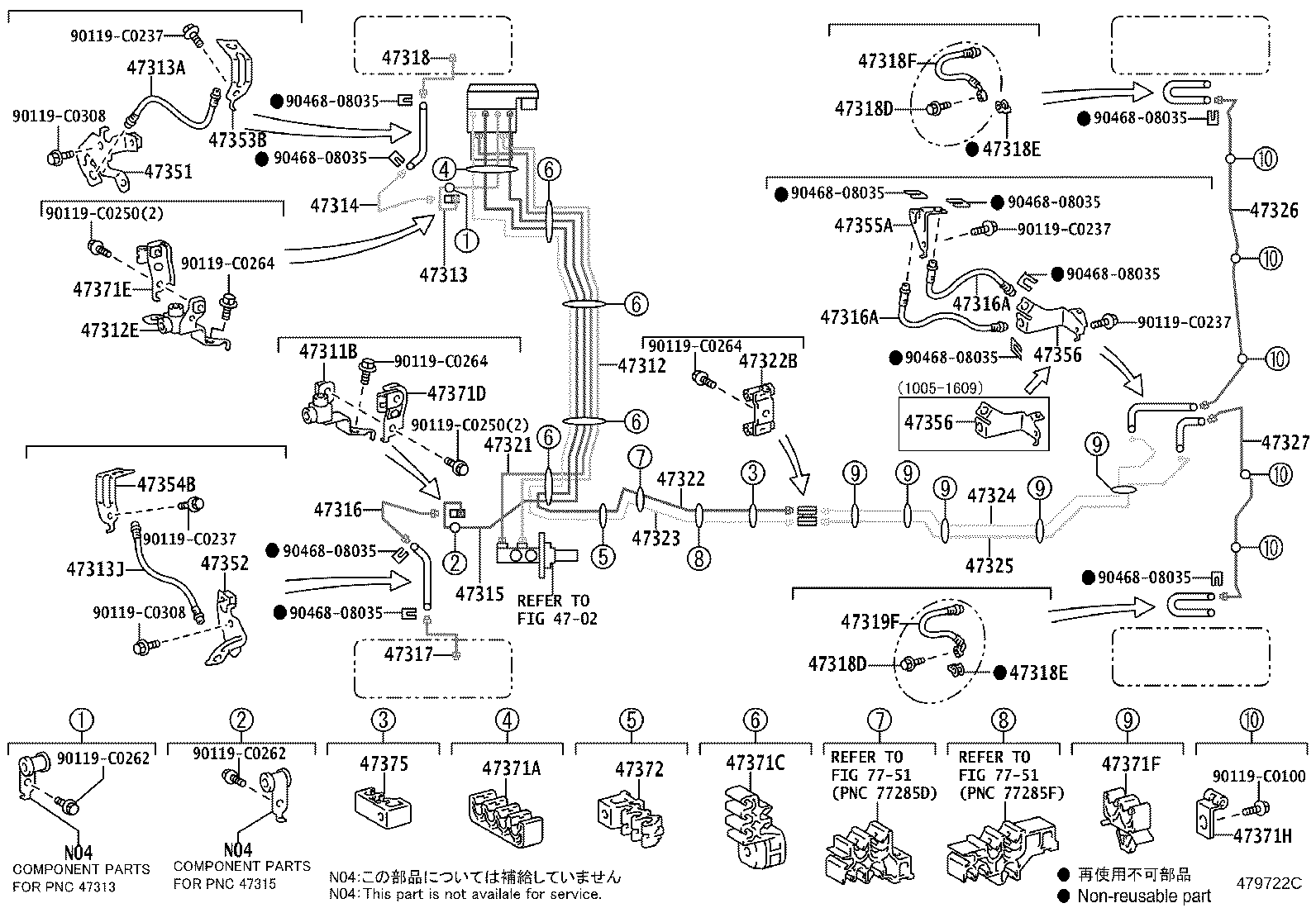

Exploded illustration 479722C 47323 — TUBE, REAR BRAKE, NO.3 (7 parts) 47324 — TUBE, REAR BRAKE, NO.4 (4 parts) 47325 — TUBE, REAR BRAKE, NO.5 (4 parts) 47326 — TUBE, REAR BRAKE, NO.6 (4 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (3 parts) 47322 — TUBE, REAR BRAKE, NO.2 (7 parts) 47327 — TUBE, REAR BRAKE, NO.7 (4 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (7 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (4 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (8 parts) 47316 — TUBE, FRONT BRAKE, NO.6 (4 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (4 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (4 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (5 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (5 parts) 47371A — CLAMP, BRAKE TUBE, NO.1 (3 parts) 47371F — CLAMP, BRAKE TUBE, NO.10 (4 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (4 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (7 parts) 47371C — CLAMP, BRAKE TUBE, NO.7 (6 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (4 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 90119C0262 — not listed in this catalogue 90119C0262 — not listed in this catalogue 90119C0100 — not listed in this catalogue 7751 — not listed in this catalogue 7751 — not listed in this catalogue 4702 — not listed in this catalogue 47321 — TUBE, REAR BRAKE, NO.1 (3 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (4 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (4 parts) 47322B — WAY, NO.2(FOR REAR BRAKE TUBE) (6 parts) 47355A — BRACKET, FLEXIBLE HOSE, NO.5 (4 parts) 47356 — BRACKET, FLEXIBLE HOSE, NO.6 (5 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 90119C0237 — not listed in this catalogue 90119C0237 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 90119C0264 — not listed in this catalogue 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (4 parts) 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (4 parts) 47371D — CLAMP, BRAKE TUBE, NO.8 (4 parts) 47371E — CLAMP, BRAKE TUBE, NO.9 (4 parts) 90119C0250 — not listed in this catalogue 90119C0250 — not listed in this catalogue 90119C0264 — not listed in this catalogue 90119C0264 — not listed in this catalogue 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (4 parts) 47351 — BRACKET, FLEXIBLE HOSE(FOR FRONT RH) (4 parts) 47353B — BRACKET, FLEXIBLE HOSE, NO.3 (4 parts) 90119C0308 — not listed in this catalogue 90119C0237 — not listed in this catalogue 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (4 parts) 47352 — BRACKET, FLEXIBLE HOSE(FOR FRONT LH) (4 parts) 47354B — BRACKET, FLEXIBLE HOSE, NO.4 (4 parts) 90119C0308 — not listed in this catalogue 90119C0237 — not listed in this catalogue 47356 — BRACKET, FLEXIBLE HOSE, NO.6 (5 parts)
479722C · 42 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
170 parts on this figure
Part number Description Fitment Price
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10281 Way, NO.1(FOR FRONT BRAKE TUBE)
2010-05 → 2013-11 ended
GRJ150 —
90412-10281 Way, NO.1(FOR FRONT BRAKE TUBE)
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
90412-C0006 Way, NO.1(FOR FRONT BRAKE TUBE)
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
90412-C0006 Way, NO.1(FOR FRONT BRAKE TUBE)
2017-11 → 2020-06 ended
GRJ152 —
47312 — Tube, Front Brake, NO.2
47312-0G040 note Tube, Front Brake, NO.2
2015-03 → 2015-09 ended
TRJ150 —
47312-0G040 note Tube, Front Brake, NO.2
2015-03 → 2017-11 ended
TRJ152 —
47312-60A70 note Tube, Front Brake, NO.2
2015-03 → 2015-09 ended
TRJ150 —
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90412-10282 Way, NO.2(FOR FRONT BRAKE TUBE)
2010-05 → 2013-11 ended
GRJ150 —
90412-10282 Way, NO.2(FOR FRONT BRAKE TUBE)
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
90412-C0007 Way, NO.2(FOR FRONT BRAKE TUBE)
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
90412-C0007 Way, NO.2(FOR FRONT BRAKE TUBE)
2017-11 → 2020-06 ended
GRJ152 —
47313 — Tube, Front Brake, NO.3
47313-0G020 Tube, Front Brake, NO.3
2010-05 → 2013-11 ended
GRJ150 —
47313-0G020 Tube, Front Brake, NO.3
2013-11 → 2015-08 ended
GRJ150 —
47313-0G021 Tube, Front Brake, NO.3
2015-09 → 2017-11 ended
GRJ152 —
47313-0G040 note Tube, Front Brake, NO.3
2015-03 → 2017-11 ended
TRJ152 —
47313-0G040 note Tube, Front Brake, NO.3
2015-03 → 2015-09 ended
TRJ150 —
47313-60470 note Tube, Front Brake, NO.3
2015-03 → 2015-09 ended
TRJ150 —
47313-0G021 Tube, Front Brake, NO.3
2017-11 → 2020-06 ended
GRJ152 —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-02G20 Hose, Flexible, NO.1(FOR FRONT)
2010-05 → 2013-11 ended
GRJ150 —
90947-C2067 Hose, Flexible, NO.1(FOR FRONT)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90947-C2067 Hose, Flexible, NO.1(FOR FRONT)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90947-C2081 Hose, Flexible, NO.1(FOR FRONT)
2017-11 → 2020-06 ended
GRJ152 —
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-02G20 Hose, Flexible, NO.2(FOR FRONT)
2010-05 → 2013-11 ended
GRJ150 —
90947-C2067 Hose, Flexible, NO.2(FOR FRONT)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90947-C2067 Hose, Flexible, NO.2(FOR FRONT)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90947-C2081 Hose, Flexible, NO.2(FOR FRONT)
2017-11 → 2020-06 ended
GRJ152 —
47314 — Tube, Front Brake, NO.4
47314-0G050 Tube, Front Brake, NO.4
2010-05 → 2013-11 ended
GRJ150 —
47314-0G050 Tube, Front Brake, NO.4
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47314-0G051 Tube, Front Brake, NO.4
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47314-0G051 Tube, Front Brake, NO.4
2017-11 → 2020-06 ended
GRJ152 —
47315 — Tube, Front Brake, NO.5
47315-0G010 Tube, Front Brake, NO.5
2010-05 → 2013-11 ended
GRJ150 —
47315-0G010 Tube, Front Brake, NO.5
2013-11 → 2015-08 ended
GRJ150 —
47315-0G011 Tube, Front Brake, NO.5
2015-09 → 2017-11 ended
GRJ152 —
47315-0G030 note Tube, Front Brake, NO.5
2015-03 → 2015-09 ended
TRJ150 —
47315-0G030 note Tube, Front Brake, NO.5
2015-03 → 2017-11 ended
TRJ152 —
47315-60560 note Tube, Front Brake, NO.5
2015-03 → 2017-05 ended
TRJ152 —
47315-60560 note Tube, Front Brake, NO.5
2015-03 → 2015-09 ended
TRJ150 —
47315-0G011 Tube, Front Brake, NO.5
2017-11 → 2020-06 ended
GRJ152 —
47316 — Tube, Front Brake, NO.6
47316-0G030 Tube, Front Brake, NO.6
2010-05 → 2013-11 ended
GRJ150 —
47316-0G030 Tube, Front Brake, NO.6
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47316-0G031 Tube, Front Brake, NO.6
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47316-0G031 Tube, Front Brake, NO.6
2017-11 → 2020-06 ended
GRJ152 —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
90947-02G18 Hose, Flexible(FOR REAR BRAKE TUBE)
2010-05 → 2013-11 ended
GRJ150 —
90947-C2068 Hose, Flexible(FOR REAR BRAKE TUBE)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90947-C2068 Hose, Flexible(FOR REAR BRAKE TUBE)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90947-C2068 Hose, Flexible(FOR REAR BRAKE TUBE)
2017-11 → 2020-06 ended
GRJ152 —
47317 — Tube, Front Brake, NO.7
47317-0G010 Tube, Front Brake, NO.7
2010-05 → 2013-11 ended
GRJ150 —
47317-0G010 Tube, Front Brake, NO.7
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47317-0G011 Tube, Front Brake, NO.7
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47317-0G030 Tube, Front Brake, NO.7
2017-11 → 2020-06 ended
GRJ152 —
47318 — Tube, Front Brake, NO.8
47314-0G040 Tube, Front Brake, NO.8
2010-05 → 2013-11 ended
GRJ150 —
47314-0G040 Tube, Front Brake, NO.8
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47314-0G041 Tube, Front Brake, NO.8
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47314-0G080 Tube, Front Brake, NO.8
2017-11 → 2020-06 ended
GRJ152 —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2010-05 → 2013-11 ended
GRJ150 —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2017-11 → 2020-06 ended
GRJ152 —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2010-05 → 2013-11 ended
GRJ150 —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2017-11 → 2020-06 ended
GRJ152 —
47318F — Hose, Flexible(FOR REAR RH)
90947-02G15 Hose, Flexible(FOR REAR RH)
2010-05 → 2012-09 ended
GRJ150 —
90947-02H00 Hose, Flexible(FOR REAR RH)
2012-10 → 2013-08 ended
GRJ150 —
90947-02H17 Hose, Flexible(FOR REAR RH)
2013-09 → 2013-11 ended
GRJ150 —
90947-02H17 Hose, Flexible(FOR REAR RH)
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
90947-02H17 Hose, Flexible(FOR REAR RH)
2017-11 → 2020-06 ended
GRJ152 —
47319F — Hose, Flexible(FOR REAR LH)
90947-02G16 Hose, Flexible(FOR REAR LH)
2010-05 → 2012-09 ended
GRJ150 —
90947-02H01 Hose, Flexible(FOR REAR LH)
2012-10 → 2013-08 ended
GRJ150 —
90947-02H18 Hose, Flexible(FOR REAR LH)
2013-09 → 2013-11 ended
GRJ150 —
90947-02H18 Hose, Flexible(FOR REAR LH)
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
90947-02H18 Hose, Flexible(FOR REAR LH)
2017-11 → 2020-06 ended
GRJ152 —
47321 — Tube, Rear Brake, NO.1
47321-0G040 note Tube, Rear Brake, NO.1
2015-03 → 2015-09 ended
TRJ150 —
47321-0G040 note Tube, Rear Brake, NO.1
2015-03 → 2017-11 ended
TRJ152 —
47321-60380 note Tube, Rear Brake, NO.1
2015-03 → 2015-09 ended
TRJ150 —
47322 — Tube, Rear Brake, NO.2
47322-0G030 Tube, Rear Brake, NO.2
2010-05 → 2013-11 ended
GRJ150 —
47322-0G030 Tube, Rear Brake, NO.2
2013-11 → 2015-08 ended
GRJ150 —
47322-0G031 Tube, Rear Brake, NO.2
2015-09 → 2017-11 ended
GRJ152 —
47322-0G050 note Tube, Rear Brake, NO.2
2015-03 → 2015-09 ended
TRJ150 —
47322-0G050 note Tube, Rear Brake, NO.2
2015-03 → 2017-11 ended
TRJ152 —
47322-60A90 note Tube, Rear Brake, NO.2
2015-03 → 2015-09 ended
TRJ150 —
47322-0G031 Tube, Rear Brake, NO.2
2017-11 → 2020-06 ended
GRJ152 —
47322B — Way, NO.2(FOR REAR BRAKE TUBE)
90412-10283 Way, NO.2(FOR REAR BRAKE TUBE)
2010-05 → 2013-11 ended
GRJ150 —
90412-10283 Way, NO.2(FOR REAR BRAKE TUBE)
2013-11 → 2015-03 ended
GRJ150 —
90412-10283 Way, NO.2(FOR REAR BRAKE TUBE)
2013-11 → 2015-04 ended
TRJ150 —
90412-C0005 Way, NO.2(FOR REAR BRAKE TUBE)
2015-04 → 2015-09 ended
GRJ150,TRJ150 —
90412-C0005 Way, NO.2(FOR REAR BRAKE TUBE)
2015-04 → 2017-11 ended
GRJ152,TRJ152 —
90412-C0005 Way, NO.2(FOR REAR BRAKE TUBE)
2017-11 → 2020-06 ended
GRJ152 —
47323 — Tube, Rear Brake, NO.3
47323-0G010 Tube, Rear Brake, NO.3
2010-05 → 2013-11 ended
GRJ150 —
47323-0G010 Tube, Rear Brake, NO.3
2013-11 → 2015-08 ended
GRJ150 —
47323-0G011 Tube, Rear Brake, NO.3
2015-09 → 2017-11 ended
GRJ152 —
47323-0G030 note Tube, Rear Brake, NO.3
2015-03 → 2015-09 ended
TRJ150 —
47323-0G030 note Tube, Rear Brake, NO.3
2015-03 → 2017-11 ended
TRJ152 —
47323-60850 note Tube, Rear Brake, NO.3
2015-03 → 2015-09 ended
TRJ150 —
47323-0G011 Tube, Rear Brake, NO.3
2017-11 → 2020-06 ended
GRJ152 —
47324 — Tube, Rear Brake, NO.4
47324-0G040 Tube, Rear Brake, NO.4
2010-05 → 2013-11 ended
GRJ150 —
47324-0G060 Tube, Rear Brake, NO.4
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47324-0G061 Tube, Rear Brake, NO.4
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47324-0G061 Tube, Rear Brake, NO.4
2017-11 → 2020-06 ended
GRJ152 —
47325 — Tube, Rear Brake, NO.5
47325-0G040 Tube, Rear Brake, NO.5
2010-05 → 2013-11 ended
GRJ150 —
47325-0G060 Tube, Rear Brake, NO.5
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47325-0G061 Tube, Rear Brake, NO.5
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47325-0G061 Tube, Rear Brake, NO.5
2017-11 → 2020-06 ended
GRJ152 —
47326 — Tube, Rear Brake, NO.6
47326-0G030 Tube, Rear Brake, NO.6
2010-05 → 2013-11 ended
GRJ150 —
47326-0G040 Tube, Rear Brake, NO.6
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47326-0G041 Tube, Rear Brake, NO.6
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47326-0G041 Tube, Rear Brake, NO.6
2017-11 → 2020-06 ended
GRJ152 —
47327 — Tube, Rear Brake, NO.7
47327-0G030 Tube, Rear Brake, NO.7
2010-05 → 2013-11 ended
GRJ150 —
47327-0G050 Tube, Rear Brake, NO.7
2013-11 → 2015-08 ended
GRJ150,TRJ150 —
47327-0G051 Tube, Rear Brake, NO.7
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
47327-0G051 Tube, Rear Brake, NO.7
2017-11 → 2020-06 ended
GRJ152 —
47351 — Bracket, Flexible Hose(FOR FRONT RH)
47351-0G010 Bracket, Flexible Hose(FOR FRONT RH)
2010-05 → 2013-11 ended
GRJ150 —
47351-0G010 Bracket, Flexible Hose(FOR FRONT RH)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47351-0G010 Bracket, Flexible Hose(FOR FRONT RH)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47351-0G030 Bracket, Flexible Hose(FOR FRONT RH)
2017-11 → 2020-06 ended
GRJ152 —
47352 — Bracket, Flexible Hose(FOR FRONT LH)
47352-0G010 Bracket, Flexible Hose(FOR FRONT LH)
2010-05 → 2013-11 ended
GRJ150 —
47352-0G010 Bracket, Flexible Hose(FOR FRONT LH)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47352-0G010 Bracket, Flexible Hose(FOR FRONT LH)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47352-0G030 Bracket, Flexible Hose(FOR FRONT LH)
2017-11 → 2020-06 ended
GRJ152 —
47353B — Bracket, Flexible Hose, NO.3
47353-0G010 Bracket, Flexible Hose, NO.3
2010-05 → 2013-11 ended
GRJ150 —
47353-0G010 Bracket, Flexible Hose, NO.3
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47353-0G010 Bracket, Flexible Hose, NO.3
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47353-0G010 Bracket, Flexible Hose, NO.3
2017-11 → 2020-06 ended
GRJ152 —
47354B — Bracket, Flexible Hose, NO.4
47354-0G010 Bracket, Flexible Hose, NO.4
2010-05 → 2013-11 ended
GRJ150 —
47354-0G010 Bracket, Flexible Hose, NO.4
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47354-0G010 Bracket, Flexible Hose, NO.4
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47354-0G010 Bracket, Flexible Hose, NO.4
2017-11 → 2020-06 ended
GRJ152 —
47355A — Bracket, Flexible Hose, NO.5
47355-0G010 Bracket, Flexible Hose, NO.5
2010-05 → 2013-11 ended
GRJ150 —
47355-0G020 Bracket, Flexible Hose, NO.5
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47355-0G020 Bracket, Flexible Hose, NO.5
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47355-0G020 Bracket, Flexible Hose, NO.5
2017-11 → 2020-06 ended
GRJ152 —
47356 — Bracket, Flexible Hose, NO.6
47356-0G010 Bracket, Flexible Hose, NO.6
2010-05 → 2013-11 ended
GRJ150 —
47356-0G020 Bracket, Flexible Hose, NO.6
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47356-0G020 Bracket, Flexible Hose, NO.6
2013-11 → 2016-12 ended
GRJ152,TRJ152 —
47356-0G021 Bracket, Flexible Hose, NO.6
2016-12 → 2017-11 ended
GRJ152,TRJ152 —
47356-0G021 Bracket, Flexible Hose, NO.6
2017-11 → 2020-06 ended
GRJ152 —
47371A — Clamp, Brake Tube, NO.1
90464-00923 Clamp, Brake Tube, NO.1
2015-03 → 2015-08 ended
TRJ150 —
90949-01D95 Clamp, Brake Tube, NO.1
2015-08 → 2015-09 ended
TRJ150 —
90949-01D95 Clamp, Brake Tube, NO.1
2015-08 → 2017-11 ended
TRJ152 —
47371C — Clamp, Brake Tube, NO.7
90949-01D61 Clamp, Brake Tube, NO.7
2010-05 → 2013-11 ended
GRJ150 —
90949-01D61 Clamp, Brake Tube, NO.7
2013-11 → 2015-08 ended
GRJ150 —
90949-01D75 note Clamp, Brake Tube, NO.7
2015-03 → 2015-09 ended
TRJ150 —
90949-01D75 Clamp, Brake Tube, NO.7
2015-03 → 2015-08 ended
TRJ150 —
90949-01E28 note Clamp, Brake Tube, NO.7
2015-08 → 2015-09 ended
TRJ150 —
90949-01E28 note Clamp, Brake Tube, NO.7
2015-08 → 2017-11 ended
TRJ152 —
47371D — Clamp, Brake Tube, NO.8
47371-60160 Clamp, Brake Tube, NO.8
2010-05 → 2013-11 ended
GRJ150 —
47371-60160 Clamp, Brake Tube, NO.8
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47371-60160 Clamp, Brake Tube, NO.8
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47371-60160 Clamp, Brake Tube, NO.8
2017-11 → 2020-06 ended
GRJ152 —
47371E — Clamp, Brake Tube, NO.9
47371-60170 Clamp, Brake Tube, NO.9
2010-05 → 2013-11 ended
GRJ150 —
47371-60170 Clamp, Brake Tube, NO.9
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
47371-60170 Clamp, Brake Tube, NO.9
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
47371-60170 Clamp, Brake Tube, NO.9
2017-11 → 2020-06 ended
GRJ152 —
47371F — Clamp, Brake Tube, NO.10
90469-07019 Clamp, Brake Tube, NO.10
2010-05 → 2013-11 ended
GRJ150 —
90469-07019 Clamp, Brake Tube, NO.10
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90469-07019 Clamp, Brake Tube, NO.10
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90469-07019 Clamp, Brake Tube, NO.10
2017-11 → 2020-06 ended
GRJ152 —
47371H — Clamp, Brake Tube, NO.12
90461-08639 Clamp, Brake Tube, NO.12
2010-05 → 2013-11 ended
GRJ150 —
90461-08639 Clamp, Brake Tube, NO.12
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90461-08639 Clamp, Brake Tube, NO.12
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90461-08639 Clamp, Brake Tube, NO.12
2017-11 → 2020-06 ended
GRJ152 —
47372 — Clamp, Brake Tube, NO.2
90949-01C95 Clamp, Brake Tube, NO.2
2010-05 → 2013-11 ended
GRJ150 —
90949-01C95 Clamp, Brake Tube, NO.2
2013-11 → 2015-08 ended
GRJ150 —
90949-01C95 Clamp, Brake Tube, NO.2
2013-11 → 2015-09 ended
TRJ150 —
90949-01C95 Clamp, Brake Tube, NO.2
2015-08 → 2015-09 ended
GRJ150 —
90949-01C95 Clamp, Brake Tube, NO.2
2013-11 → 2017-11 ended
TRJ152 —
90949-01C95 Clamp, Brake Tube, NO.2
2015-08 → 2017-11 ended
GRJ152 —
90949-01C95 Clamp, Brake Tube, NO.2
2017-11 → 2020-06 ended
GRJ152 —
47375 — Clamp, Brake Tube, NO.5
77299-32030 Clamp, Brake Tube, NO.5
2010-05 → 2013-11 ended
GRJ150 —
77299-32030 Clamp, Brake Tube, NO.5
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77299-32030 Clamp, Brake Tube, NO.5
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77299-32030 Clamp, Brake Tube, NO.5
2017-11 → 2020-06 ended
GRJ152 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
