Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

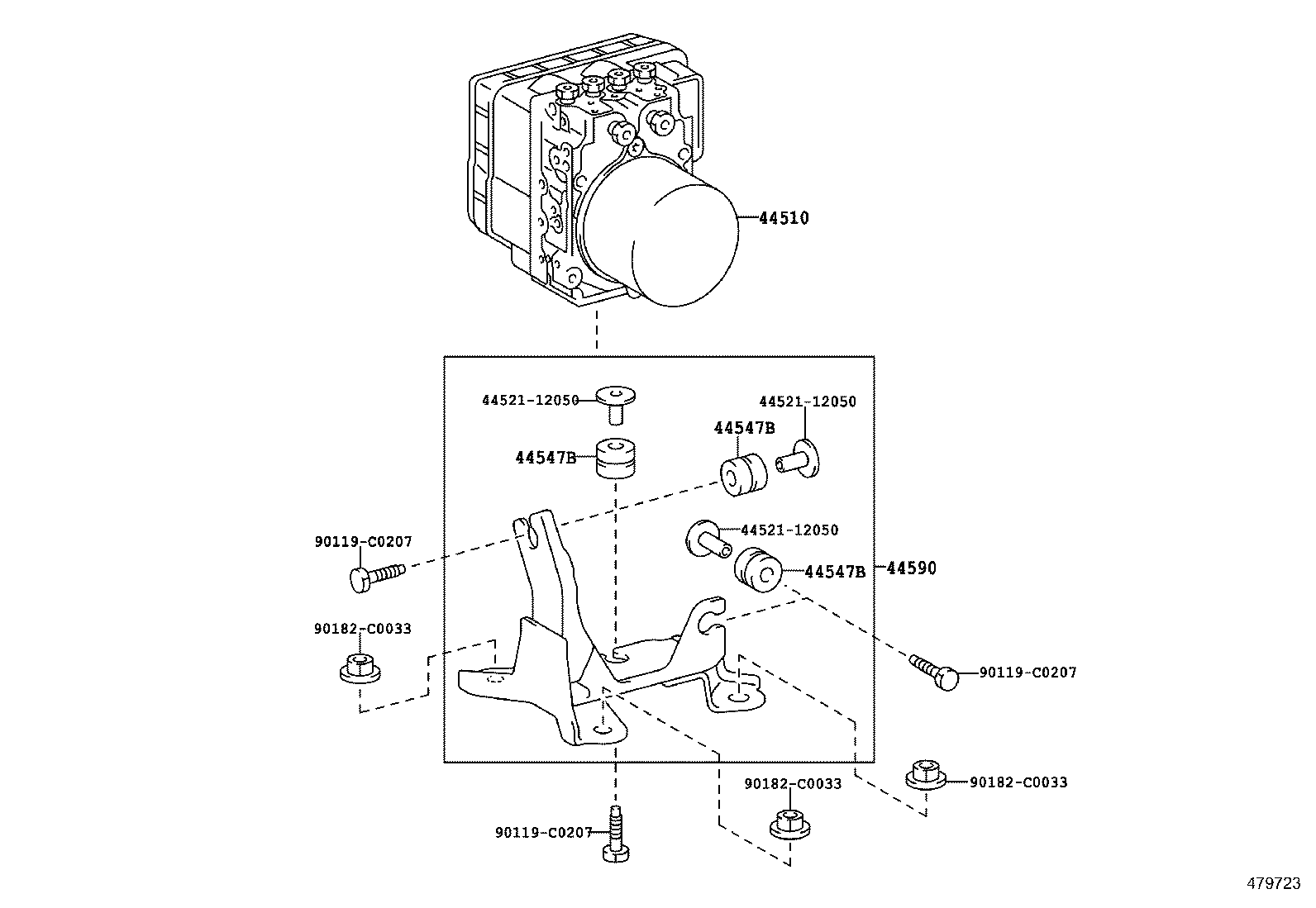

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-60250 |
Actuator Assy, Brake
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 44050-60251 |
Actuator Assy, Brake
2015-09 → 2017-11
ended
|
TRJ152 | — | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-60100 |
Cushion, Brake Actuator Bracket
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 44547-60100 |
Cushion, Brake Actuator Bracket
2015-03 → 2017-11
ended
|
TRJ152 | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-60030 |
Bracket Assy, Brake Actuator
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 44590-60030 |
Bracket Assy, Brake Actuator
2015-03 → 2017-11
ended
|
TRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
