Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

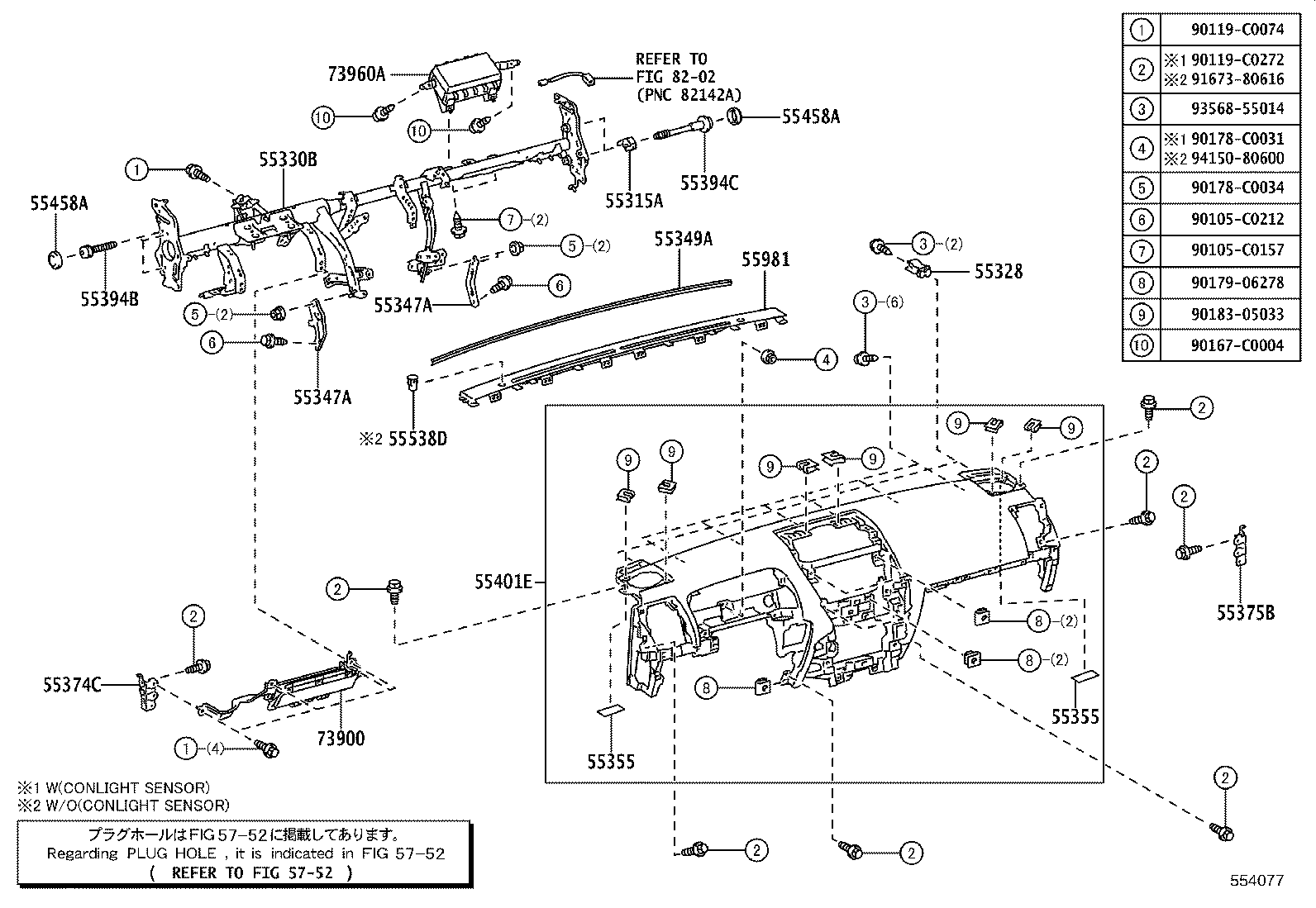

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55315A — Spacer, Instrument Panel, NO.1 | ||||
| 55315-53040 |
Spacer, Instrument Panel, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55315-53040 |
Spacer, Instrument Panel, NO.1
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55315-53040 |
Spacer, Instrument Panel, NO.1
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55315-53040 |
Spacer, Instrument Panel, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55328 — Pin, Instrument Panel, NO.1 | ||||
| 55328-60090 |
Pin, Instrument Panel, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55328-60090 |
Pin, Instrument Panel, NO.1
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55328-60090 |
Pin, Instrument Panel, NO.1
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55328-60090 |
Pin, Instrument Panel, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55330B — Reinforcement Assy, Instrument Panel | ||||
| 55330-60230 |
Reinforcement Assy, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 TX | — | |
| 55330-60240 |
Reinforcement Assy, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 VX | — | |
| 55330-60230 |
Reinforcement Assy, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 TX | — | |
| 55330-60230 |
Reinforcement Assy, Instrument Panel
2013-11 → 2016-04
ended
|
GRJ152,TRJ152 TX | — | |
| 55330-60231 |
Reinforcement Assy, Instrument Panel
2016-05 → 2016-12
ended
|
GRJ152,TRJ152 TX | — | |
| 55330-60232 |
Reinforcement Assy, Instrument Panel
2017-01 → 2017-11
ended
|
GRJ152,TRJ152 TX | — | |
| 55330-60240 |
Reinforcement Assy, Instrument Panel
2013-11 → 2016-04
ended
|
GRJ152 VX | — | |
| 55330-60240 |
Reinforcement Assy, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150 VX | — | |
| 55330-60241 |
Reinforcement Assy, Instrument Panel
2016-05 → 2016-12
ended
|
GRJ152 VX | — | |
| 55330-60242 |
Reinforcement Assy, Instrument Panel
2017-01 → 2017-11
ended
|
GRJ152 VX | — | |
| 55330-60232 |
Reinforcement Assy, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 55330-60242 |
Reinforcement Assy, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 55347A — Bracket, Instrument Panel Brace Mounting, NO.1 | ||||
| 55347-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55348-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55347-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55347-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55348-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55348-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55347-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55348-0G020 note |
Bracket, Instrument Panel Brace Mounting, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55349A — Cushion, Instrument Panel | ||||
| 55349-60100 |
Cushion, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55349-60100 |
Cushion, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55349-60100 |
Cushion, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55349-60100 |
Cushion, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55355 — Cushion, Instrument Panel, NO.1 | ||||
| 55355-53050 |
Cushion, Instrument Panel, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55355-53050 |
Cushion, Instrument Panel, NO.1
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55355-53050 |
Cushion, Instrument Panel, NO.1
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55355-53050 |
Cushion, Instrument Panel, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55374C — Bracket, Instrument Panel Lower Mounting, NO.1 | ||||
| 55374-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55374-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.1
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55374-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.1
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55374-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55374-60110 note |
Bracket, Instrument Panel Lower Mounting, NO.1
2017-11 → 2019-01
ended
|
GRJ152 TX | — | |
| 55375B — Bracket, Instrument Panel Lower Mounting, NO.2 | ||||
| 55375-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.2
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55375-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.2
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55375-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.2
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55375-0G010 |
Bracket, Instrument Panel Lower Mounting, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55375-60110 note |
Bracket, Instrument Panel Lower Mounting, NO.2
2017-11 → 2019-01
ended
|
GRJ152 TX | — | |
| 55394B — Bolt, Instrument Panel | ||||
| 55394-48050 |
Bolt, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55394-48050 |
Bolt, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55394-48050 |
Bolt, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55394-48050 |
Bolt, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55394C — Bolt, Instrument Panel | ||||
| 55394-48060 |
Bolt, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55394-48060 |
Bolt, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55394-48060 |
Bolt, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55394-48060 |
Bolt, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55401E — Pad Sub-assy, Instrument Panel Safety | ||||
| 55401-60933-E1 note |
Pad Sub-assy, Instrument Panel Safety
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55401-60933-C1 note |
Pad Sub-assy, Instrument Panel Safety
2013-11 → 2014-04
ended
|
GRJ150 | — | |
| 55401-60933-E3 note |
Pad Sub-assy, Instrument Panel Safety
2013-11 → 2014-04
ended
|
GRJ150 | — | |
| 55401-60935-C1 note |
Pad Sub-assy, Instrument Panel Safety
2014-04 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55401-60935-C1 note |
Pad Sub-assy, Instrument Panel Safety
2014-04 → 2015-12
ended
|
GRJ152,TRJ152 | — | |
| 55401-60935-E3 note |
Pad Sub-assy, Instrument Panel Safety
2014-04 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55401-60935-E3 note |
Pad Sub-assy, Instrument Panel Safety
2014-04 → 2015-12
ended
|
GRJ152,TRJ152 | — | |
| 55401-60936-C1 note |
Pad Sub-assy, Instrument Panel Safety
2015-12 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55401-60936-E3 note |
Pad Sub-assy, Instrument Panel Safety
2015-12 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55401-60936-C1 note |
Pad Sub-assy, Instrument Panel Safety
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55401-60936-E3 note |
Pad Sub-assy, Instrument Panel Safety
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55458A — Cap, Instrument Panel Safety Pad | ||||
| 55458-0G030 |
Cap, Instrument Panel Safety Pad
2012-12 → 2013-11
ended
|
GRJ150 | — | |
| 55458-50100 |
Cap, Instrument Panel Safety Pad
2010-05 → 2012-12
ended
|
GRJ150 | — | |
| 55458-0G030 |
Cap, Instrument Panel Safety Pad
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55458-0G030 |
Cap, Instrument Panel Safety Pad
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55538D — Cover, Sunshine Sensor Hole | ||||
| 55538-60050 note |
Cover, Sunshine Sensor Hole
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 55981 — Garnish, Defroster Nozzle, NO.1 | ||||
| 55981-60030-E0 note |
Garnish, Defroster Nozzle, NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55981-60030-C0 note |
Garnish, Defroster Nozzle, NO.1
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55981-60030-E2 note |
Garnish, Defroster Nozzle, NO.1
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55981-60030-C0 note |
Garnish, Defroster Nozzle, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55981-60030-E2 note |
Garnish, Defroster Nozzle, NO.1
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-0G010-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73900-0G010-A0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73900-0G010-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73900-0G010-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2017-11 → 2018-06
ended
|
GRJ152 | — | |
| 73900-0G010-E2 note |
Airbag Assy, Instrument Panel, Lower NO.1
2017-11 → 2018-06
ended
|
GRJ152 | — | |
| 73900-0G030-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2018-06 → 2020-06
ended
|
GRJ152 | — | |
| 73900-0G030-E0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2018-06 → 2020-06
ended
|
GRJ152 | — | |
| 73960A — Airbag Assy, Instrument Panel Passenger W/O Door | ||||
| 73960-0G020 |
Airbag Assy, Instrument Panel Passenger W/O Door
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73960-0G020 |
Airbag Assy, Instrument Panel Passenger W/O Door
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 73960-0G020 |
Airbag Assy, Instrument Panel Passenger W/O Door
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 73960-0G020 |
Airbag Assy, Instrument Panel Passenger W/O Door
2017-11 → 2018-06
ended
|
GRJ152 | — | |
| 73960-0G040 |
Airbag Assy, Instrument Panel Passenger W/O Door
2018-06 → 2020-06
ended
|
GRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
