Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

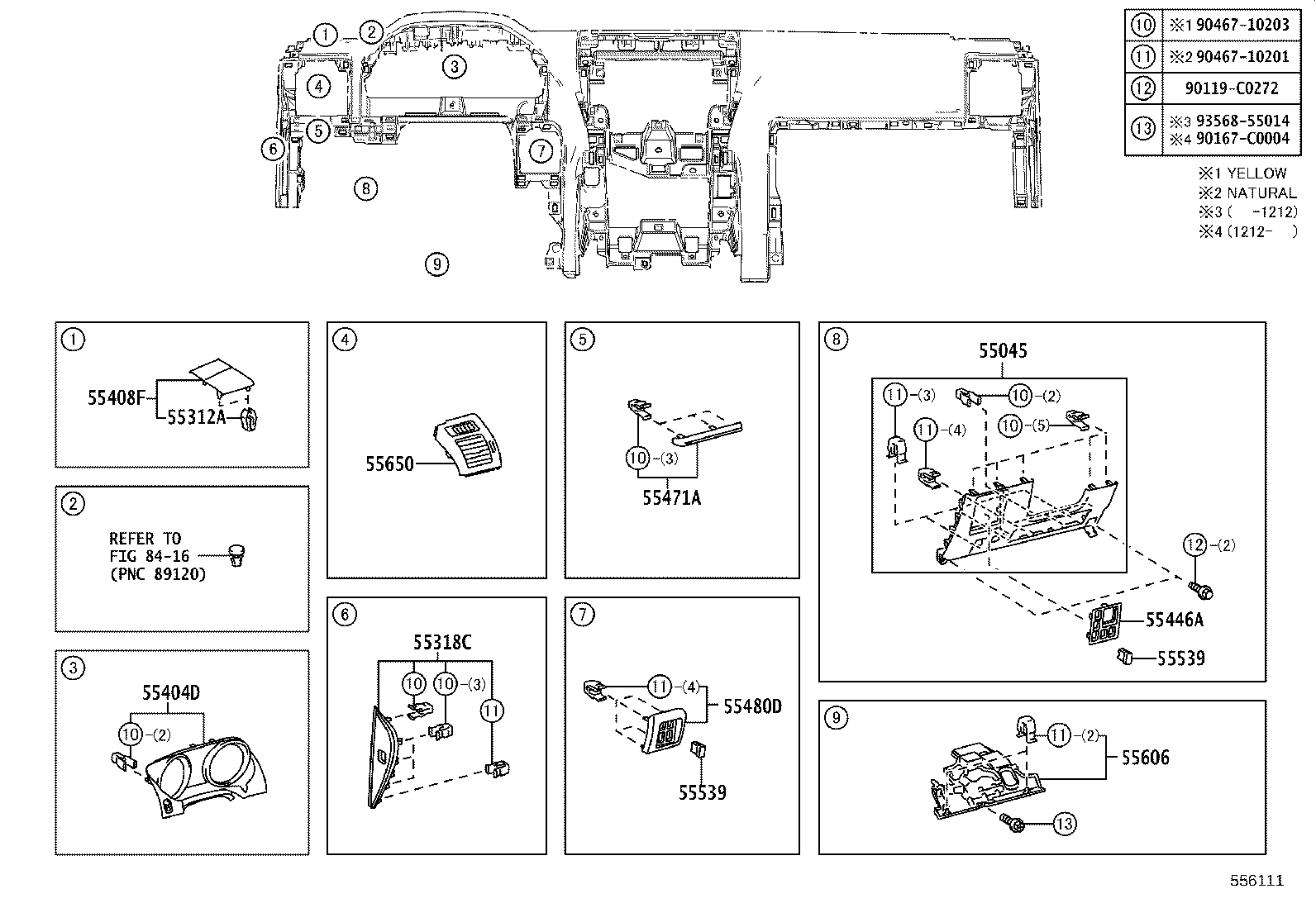

Exploded illustration 556111 90119C0272 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167C0004 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046710201 — not listed in this catalogue 55446A — BASE, SWITCH HOLE, NO.1 (6 parts) 55539 — COVER, SPARE SWITCH HOLE (8 parts) 55045 — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER (7 parts) 55408F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 (5 parts) 55312A — CLIP, INSTRUMENT PANEL (3 parts) 8416 — not listed in this catalogue 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (4 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (10 parts) 55471A — ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL (15 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (5 parts) 55480D — PANEL ASSY, INSTRUMENT PANEL FINISH, LWR (5 parts) 55539 — COVER, SPARE SWITCH HOLE (8 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (4 parts)
556111 · 12 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
55045 — Panel Sub-assy, Instrument Panel Finish, Lower
55045-0G010-E0 note Panel Sub-assy, Instrument Panel Finish, Lower
2010-05 → 2013-11 ended
GRJ150 —
55045-0G010-A0 note Panel Sub-assy, Instrument Panel Finish, Lower
2013-11 → 2015-11 ended
GRJ15#,TRJ15# —
55045-0G010-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2013-11 → 2015-11 ended
GRJ15#,TRJ15# —
55045-0G020-A0 note Panel Sub-assy, Instrument Panel Finish, Lower
2015-12 → 2017-11 ended
GRJ152,TRJ152 —
55045-0G020-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2015-12 → 2017-11 ended
GRJ152,TRJ152 —
55045-0G020-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2017-11 → 2020-06 ended
GRJ152 —
55045-0G020-E1 note Panel Sub-assy, Instrument Panel Finish, Lower
2017-11 → 2020-06 ended
GRJ152 —
55312A — Clip, Instrument Panel
90467-13082-A0 note Clip, Instrument Panel
2010-05 → 2013-11 ended
GRJ150 —
90467-13082-A0 note Clip, Instrument Panel
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
90467-13082-A0 note Clip, Instrument Panel
2017-11 → 2020-06 ended
GRJ152 —
55318C — Panel, Instrument Side, LH
55318-0G010-E0 note Panel, Instrument Side, LH
2010-05 → 2013-11 ended
GRJ150 —
55318-0G010-C0 note Panel, Instrument Side, LH
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55318-0G010-E1 note Panel, Instrument Side, LH
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55318-0G010-C0 note Panel, Instrument Side, LH
2017-11 → 2020-06 ended
GRJ152 —
55318-0G010-E1 note Panel, Instrument Side, LH
2017-11 → 2020-06 ended
GRJ152 —
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-0G010-E0 note Panel Sub-assy, Instrument Cluster Finish
2010-05 → 2013-11 ended
GRJ150 —
55404-0G020-C0 note Panel Sub-assy, Instrument Cluster Finish
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55404-0G020-E0 note Panel Sub-assy, Instrument Cluster Finish
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55404-0G030-C0 note Panel Sub-assy, Instrument Cluster Finish
2017-11 → 2020-06 ended
GRJ152 —
55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1
55408-0G010-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2010-05 → 2013-11 ended
GRJ150 —
55408-0G010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55408-0G010-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55408-0G010-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-11 → 2020-06 ended
GRJ152 —
55408-0G010-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2017-11 → 2020-06 ended
GRJ152 —
55446A — Base, Switch Hole, NO.1
55446-0G010-E0 note Base, Switch Hole, NO.1
2010-05 → 2013-11 ended
GRJ150 —
55446-0G010-A0 note Base, Switch Hole, NO.1
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55446-0G010-C0 note Base, Switch Hole, NO.1
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55446-0G020 Base, Switch Hole, NO.1
2017-11 → 2020-06 ended
GRJ152 VX —
55446-0G030 Base, Switch Hole, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
55446-0G040 note Base, Switch Hole, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
55471A — Ornament, Instrument Cluster Finish Panel
55471-0G020 Ornament, Instrument Cluster Finish Panel
2010-05 → 2013-11 ended
GRJ150 TX —
55471-0G030 Ornament, Instrument Cluster Finish Panel
2010-05 → 2013-11 ended
GRJ150 VX —
55471-0G040 note Ornament, Instrument Cluster Finish Panel
2013-11 → 2015-09 ended
GRJ150 TX —
55471-0G040 note Ornament, Instrument Cluster Finish Panel
2013-11 → 2015-09 ended
GRJ150 VX —
55471-0G050 Ornament, Instrument Cluster Finish Panel
2013-11 → 2017-11 ended
GRJ152 —
55471-0G050 Ornament, Instrument Cluster Finish Panel
2013-11 → 2015-09 ended
GRJ150 —
55471-0G060 note Ornament, Instrument Cluster Finish Panel
2015-09 → 2017-11 ended
GRJ152 TX —
55471-0G060 note Ornament, Instrument Cluster Finish Panel
2015-09 → 2017-11 ended
GRJ152 VX —
55471-60270 Ornament, Instrument Cluster Finish Panel
2015-03 → 2017-11 ended
TRJ152 —
55471-60270 Ornament, Instrument Cluster Finish Panel
2015-03 → 2015-09 ended
TRJ150 —
55012-0G010-E0 note Ornament, Instrument Cluster Finish Panel
2017-11 → 2020-06 ended
GRJ152 —
55012-0G010-E1 note Ornament, Instrument Cluster Finish Panel
2017-11 → 2020-06 ended
GRJ152 —
55471-0G080 note Ornament, Instrument Cluster Finish Panel
2017-11 → 2020-06 ended
GRJ152 VX —
55471-0G080 note Ornament, Instrument Cluster Finish Panel
2017-11 → 2020-06 ended
GRJ152 TX —
55471-0G100 note Ornament, Instrument Cluster Finish Panel
2017-11 → 2020-06 ended
GRJ152 TX —
55480D — Panel Assy, Instrument Panel Finish, Lwr
55480-0G010-E0 note Panel Assy, Instrument Panel Finish, Lwr
2010-05 → 2013-11 ended
GRJ150 —
55480-0G010-A0 note Panel Assy, Instrument Panel Finish, Lwr
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55480-0G010-C0 note Panel Assy, Instrument Panel Finish, Lwr
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55480-0G020-C0 note Panel Assy, Instrument Panel Finish, Lwr
2017-11 → 2020-06 ended
GRJ152 —
55480-0G020-E0 note Panel Assy, Instrument Panel Finish, Lwr
2017-11 → 2020-06 ended
GRJ152 —
55539 — Cover, Spare Switch Hole
55539-58060-C0 note Cover, Spare Switch Hole
2010-05 → 2013-11 ended
GRJ150 —
55539-58060-C0 note Cover, Spare Switch Hole
2010-05 → 2013-11 ended
GRJ150 VX —
55539-58060-C0 note Cover, Spare Switch Hole
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
55539-58060-C0 note Cover, Spare Switch Hole
2017-11 → 2020-06 ended
GRJ152 —
55539-58060-C0 note Cover, Spare Switch Hole
2017-11 → 2020-06 ended
GRJ152 TX —
55539-58060-C0 note Cover, Spare Switch Hole
2017-11 → 2020-06 ended
GRJ152 TX —
55539-58060-C0 note Cover, Spare Switch Hole
2017-11 → 2020-06 ended
GRJ152 TX —
55539-58060-C0 note Cover, Spare Switch Hole
2017-11 → 2020-06 ended
GRJ152 TX —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-0G010 Cover Sub-assy, Instrument Panel Under, NO.1
2010-05 → 2013-11 ended
GRJ150 —
55606-0G020 Cover Sub-assy, Instrument Panel Under, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
55606-0G030 Cover Sub-assy, Instrument Panel Under, NO.1
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
55606-0G030 Cover Sub-assy, Instrument Panel Under, NO.1
2017-11 → 2020-06 ended
GRJ152 —
55650 — Register Assy, Instrument Panel, NO.1
55650-60180-E0 note Register Assy, Instrument Panel, NO.1
2010-05 → 2011-07 ended
GRJ150 —
55650-60181-E0 note Register Assy, Instrument Panel, NO.1
2011-08 → 2013-11 ended
GRJ150 —
55650-0G020-C0 note Register Assy, Instrument Panel, NO.1
2013-11 → 2017-11 ended
GRJ15#,TRJ152 —
55650-0G020-E0 note Register Assy, Instrument Panel, NO.1
2013-11 → 2017-11 ended
GRJ15#,TRJ152 —
55650-60182-C0 note Register Assy, Instrument Panel, NO.1
2015-03 → 2015-09 ended
TRJ150 —
55650-60182-E1 note Register Assy, Instrument Panel, NO.1
2015-03 → 2015-09 ended
TRJ150 —
55650-0G030-C0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2020-06 ended
GRJ152 —
55650-0G030-E0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2020-06 ended
GRJ152 —
55650-0G040-C0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
55650-0G040-E0 note Register Assy, Instrument Panel, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
