Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

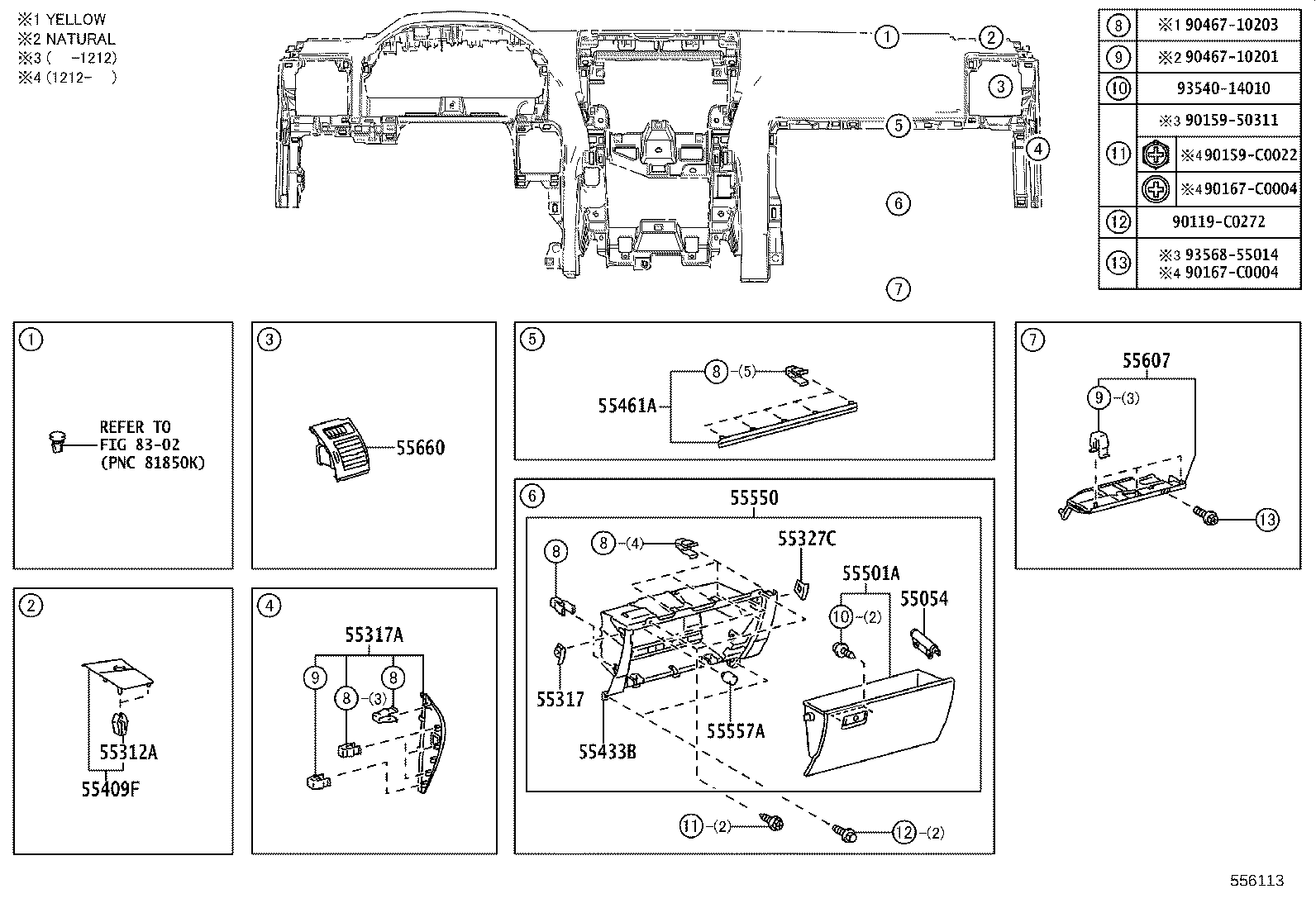

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-22030 |
Stopper Sub-assy, Glove Compartment Door
2011-03 → 2013-11
ended
|
GRJ150 | — | |
| 55054-33060 |
Stopper Sub-assy, Glove Compartment Door
2010-05 → 2011-03
ended
|
GRJ150 | — | |
| 55054-22030 |
Stopper Sub-assy, Glove Compartment Door
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55054-22030 |
Stopper Sub-assy, Glove Compartment Door
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55054-22030 |
Stopper Sub-assy, Glove Compartment Door
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55312A — Clip, Instrument Panel | ||||
| 90467-13082-A0 note |
Clip, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 90467-13082-A0 note |
Clip, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 90467-13082-A0 note |
Clip, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55317 — Patch, Instrument Panel | ||||
| 55316-0G010 |
Patch, Instrument Panel
2010-05 → 2013-08
ended
|
GRJ150 | — | |
| 55316-0G010-E0 note |
Patch, Instrument Panel
2013-08 → 2013-11
ended
|
GRJ150 | — | |
| 55316-0G010-A0 note |
Patch, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55316-0G010-C0 note |
Patch, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55316-0G010-C0 note |
Patch, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55316-0G010-E1 note |
Patch, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55317A — Panel, Instrument Side, RH | ||||
| 55317-0G010-E0 note |
Panel, Instrument Side, RH
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55317-0G010-C0 note |
Panel, Instrument Side, RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55317-0G010-E1 note |
Panel, Instrument Side, RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55317-0G010-C0 note |
Panel, Instrument Side, RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55317-0G010-E1 note |
Panel, Instrument Side, RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55327C — Patch, Instrument Panel, Upper RH | ||||
| 55315-0G010 |
Patch, Instrument Panel, Upper RH
2010-05 → 2013-08
ended
|
GRJ150 | — | |
| 55315-0G010-E0 note |
Patch, Instrument Panel, Upper RH
2013-08 → 2013-11
ended
|
GRJ150 | — | |
| 55315-0G010-A0 note |
Patch, Instrument Panel, Upper RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55315-0G010-C0 note |
Patch, Instrument Panel, Upper RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55315-0G010-C0 note |
Patch, Instrument Panel, Upper RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55315-0G010-E1 note |
Patch, Instrument Panel, Upper RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2 | ||||
| 55409-0G010-E0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.2
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55409-0G010-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.2
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55409-0G010-E1 note |
Panel Sub-assy, Instrument Panel Speaker, NO.2
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 55409-0G010-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55409-0G010-E1 note |
Panel Sub-assy, Instrument Panel Speaker, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55433B — Panel, Instrument Panel Finish, Lower NO.2 | ||||
| 55433-0G010-E0 note |
Panel, Instrument Panel Finish, Lower NO.2
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55433-0G010-A0 note |
Panel, Instrument Panel Finish, Lower NO.2
2013-11 → 2016-01
ended
|
GRJ15#,TRJ15# | — | |
| 55433-0G010-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2013-11 → 2016-01
ended
|
GRJ15#,TRJ15# | — | |
| 55433-0G011-A0 note |
Panel, Instrument Panel Finish, Lower NO.2
2016-01 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55433-0G011-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2016-01 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55433-0G011-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55433-0G011-E2 note |
Panel, Instrument Panel Finish, Lower NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55461A — Ornament, Instrument Panel | ||||
| 55461-0G020 |
Ornament, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 TX | — | |
| 55461-0G030 |
Ornament, Instrument Panel
2010-05 → 2013-11
ended
|
GRJ150 VX | — | |
| 55461-0G040 note |
Ornament, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150 TX | — | |
| 55461-0G040 note |
Ornament, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150 VX | — | |
| 55461-0G050 |
Ornament, Instrument Panel
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 55461-0G050 |
Ornament, Instrument Panel
2013-11 → 2017-11
ended
|
GRJ152 | — | |
| 55461-0G060 note |
Ornament, Instrument Panel
2015-09 → 2017-11
ended
|
GRJ152 VX | — | |
| 55461-0G060 note |
Ornament, Instrument Panel
2015-09 → 2017-11
ended
|
GRJ152 TX | — | |
| 55461-60290 |
Ornament, Instrument Panel
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 55461-60290 |
Ornament, Instrument Panel
2015-03 → 2017-11
ended
|
TRJ152 | — | |
| 55011-0G010-E0 note |
Ornament, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55011-0G010-E1 note |
Ornament, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55461-0G080 note |
Ornament, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 55461-0G080 note |
Ornament, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 55461-60290 note |
Ornament, Instrument Panel
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 55501A — Door Sub-assy, Glove Compartment | ||||
| 55501-0G010-E0 note |
Door Sub-assy, Glove Compartment
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55501-0G010-A0 note |
Door Sub-assy, Glove Compartment
2013-11 → 2016-01
ended
|
GRJ15#,TRJ15# | — | |
| 55501-0G010-C0 note |
Door Sub-assy, Glove Compartment
2013-11 → 2016-01
ended
|
GRJ15#,TRJ15# | — | |
| 55501-0G011-A0 note |
Door Sub-assy, Glove Compartment
2016-01 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55501-0G011-C0 note |
Door Sub-assy, Glove Compartment
2016-01 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55501-0G011-C0 note |
Door Sub-assy, Glove Compartment
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55501-0G011-E2 note |
Door Sub-assy, Glove Compartment
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-0G020-E0 note |
Door Assy, Glove Compartment
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55550-0G010-A0 note |
Door Assy, Glove Compartment
2015-12 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55550-0G010-C0 note |
Door Assy, Glove Compartment
2015-12 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55550-0G020-A0 note |
Door Assy, Glove Compartment
2013-11 → 2015-11
ended
|
GRJ15#,TRJ15# | — | |
| 55550-0G020-C0 note |
Door Assy, Glove Compartment
2013-11 → 2015-11
ended
|
GRJ15#,TRJ15# | — | |
| 55550-0G010-C0 note |
Door Assy, Glove Compartment
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55550-0G010-E1 note |
Door Assy, Glove Compartment
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55557A — Cushion, Glove Compartment Door Check | ||||
| 55557-60050 |
Cushion, Glove Compartment Door Check
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55557-60050 |
Cushion, Glove Compartment Door Check
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55557-60050 |
Cushion, Glove Compartment Door Check
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55557-60050 |
Cushion, Glove Compartment Door Check
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-0G010 |
Cover Sub-assy, Instrument Panel Under, NO.2
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 55607-0G010 |
Cover Sub-assy, Instrument Panel Under, NO.2
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 55607-0G010 |
Cover Sub-assy, Instrument Panel Under, NO.2
2013-11 → 2015-11
ended
|
GRJ152,TRJ152 | — | |
| 55607-0G020 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-12 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 55607-0G020 |
Cover Sub-assy, Instrument Panel Under, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-60290-E0 note |
Register Assy, Instrument Panel, NO.2
2010-05 → 2011-07
ended
|
GRJ150 | — | |
| 55660-60291-E0 note |
Register Assy, Instrument Panel, NO.2
2011-08 → 2013-11
ended
|
GRJ150 | — | |
| 55660-0G020-C0 note |
Register Assy, Instrument Panel, NO.2
2013-11 → 2017-11
ended
|
GRJ15#,TRJ152 | — | |
| 55660-0G020-E0 note |
Register Assy, Instrument Panel, NO.2
2013-11 → 2017-11
ended
|
GRJ15#,TRJ152 | — | |
| 55660-60292-C0 note |
Register Assy, Instrument Panel, NO.2
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 55660-60292-E1 note |
Register Assy, Instrument Panel, NO.2
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 55660-0G030-C0 note |
Register Assy, Instrument Panel, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55660-0G030-E0 note |
Register Assy, Instrument Panel, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 55660-0G040-C0 note |
Register Assy, Instrument Panel, NO.2
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 55660-0G040-E0 note |
Register Assy, Instrument Panel, NO.2
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
