Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

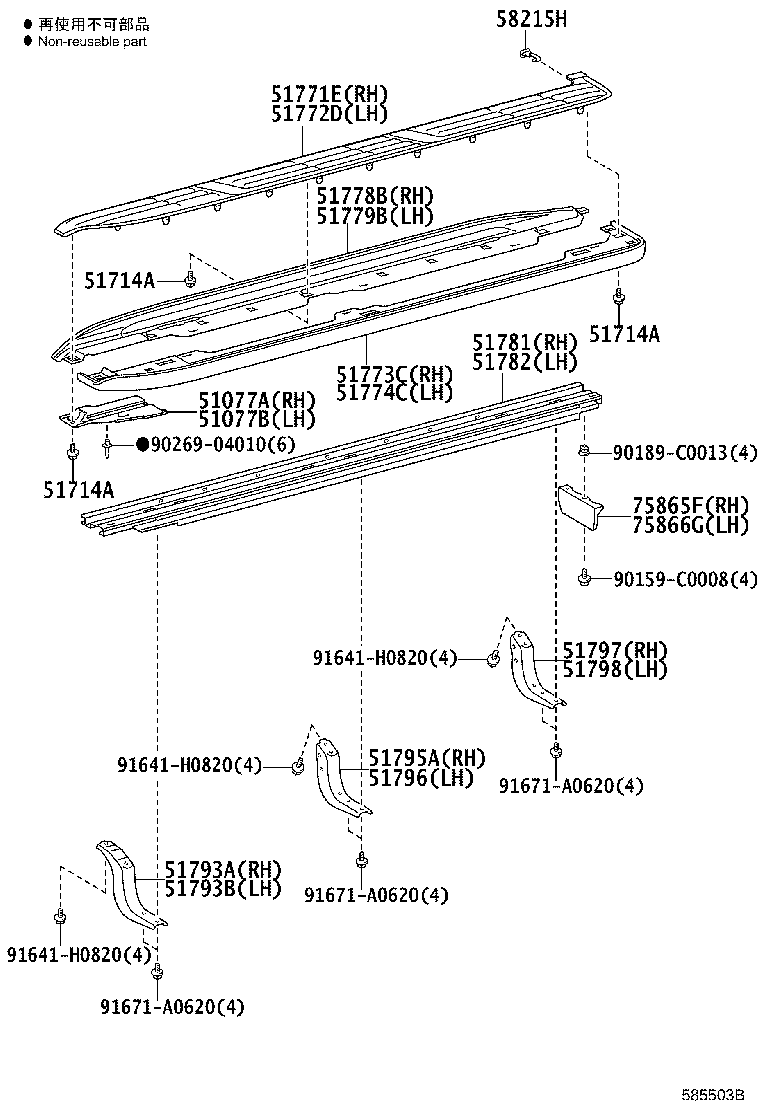

Exploded illustration 585503B 51077A — BRACKET SUB-ASSY, SIDE STEP, NO.2, RH (5 parts) 51077B — BRACKET SUB-ASSY, SIDE STEP, NO.2, LH (5 parts) 51714A — BOSS, STEP ARM, LOWER (5 parts) 51714A — BOSS, STEP ARM, LOWER (5 parts) 51714A — BOSS, STEP ARM, LOWER (5 parts) 51771E — PLATE, STEP, RH (5 parts) 51772D — PLATE, STEP, LH (5 parts) 51773C — COVER, STEP PLATE, RH (7 parts) 51774C — COVER, STEP PLATE, LH (7 parts) 51778B — COVER, SIDE DOOR STEP PLATE, NO.1 (5 parts) 51779B — COVER, SIDE DOOR STEP PLATE, NO.2 (5 parts) 51781 — PANEL, STEP, RH (5 parts) 51782 — PANEL, STEP, LH (5 parts) 51793A — BRACKET, SIDE STEP, NO.1 RH (5 parts) 51793B — BRACKET, SIDE STEP, NO.1, LH (5 parts) 51795A — BRACKET, SIDE STEP, NO.2 RH (5 parts) 51796 — BRACKET, SIDE STEP, NO.2 LH (5 parts) 51797 — BRACKET, SIDE STEP, NO.3 RH (5 parts) 51798 — BRACKET, SIDE STEP, NO.3 LH (5 parts) 58215H — RETAINER, FRONT FLOOR (5 parts) 75865F — PROTECTOR, ROCKER PANEL MOULDING, NO.5 (5 parts) 75866G — PROTECTOR, ROCKER PANEL MOULDING, NO.6 (5 parts) 90159C0008 — not listed in this catalogue 90189C0013 — not listed in this catalogue 9026904010 — not listed in this catalogue 91641H0820 — not listed in this catalogue 91671A0620 — not listed in this catalogue 91671A0620 — not listed in this catalogue 91671A0620 — not listed in this catalogue 91641H0820 — not listed in this catalogue 91641H0820 — not listed in this catalogue
585503B · 22 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
51077A — Bracket Sub-assy, Side Step, NO.2, RH
51785-0G010 Bracket Sub-assy, Side Step, NO.2, RH
2010-05 → 2013-11 ended
GRJ150 —
51785-0G010 Bracket Sub-assy, Side Step, NO.2, RH
2013-11 → 2015-09 ended
GRJ150 —
51785-0G010 Bracket Sub-assy, Side Step, NO.2, RH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51785-60070 Bracket Sub-assy, Side Step, NO.2, RH
2015-03 → 2015-09 ended
TRJ150 —
51785-0G010 Bracket Sub-assy, Side Step, NO.2, RH
2017-11 → 2020-06 ended
GRJ152 —
51077B — Bracket Sub-assy, Side Step, NO.2, LH
51786-0G010 Bracket Sub-assy, Side Step, NO.2, LH
2010-05 → 2013-11 ended
GRJ150 —
51786-0G010 Bracket Sub-assy, Side Step, NO.2, LH
2013-11 → 2015-09 ended
GRJ150 —
51786-0G010 Bracket Sub-assy, Side Step, NO.2, LH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51786-60060 Bracket Sub-assy, Side Step, NO.2, LH
2015-03 → 2015-09 ended
TRJ150 —
51786-0G010 Bracket Sub-assy, Side Step, NO.2, LH
2017-11 → 2020-06 ended
GRJ152 —
51714A — Boss, Step Arm, Lower
51714-60010 Boss, Step Arm, Lower
2010-05 → 2013-11 ended
GRJ150 —
51714-60010 Boss, Step Arm, Lower
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
51714-60010 Boss, Step Arm, Lower
2013-11 → 2017-11 ended
GRJ152 —
51714-60010 Boss, Step Arm, Lower
2015-09 → 2017-11 ended
TRJ152 —
51714-60010 Boss, Step Arm, Lower
2017-11 → 2020-06 ended
GRJ152 —
51771E — Plate, Step, RH
51771-0G020 Plate, Step, RH
2010-05 → 2013-11 ended
GRJ150 —
51771-0G020 Plate, Step, RH
2013-11 → 2015-09 ended
GRJ150 —
51771-0G020 Plate, Step, RH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51771-6A160 Plate, Step, RH
2015-03 → 2015-09 ended
TRJ150 —
51771-0G020 Plate, Step, RH
2017-11 → 2020-06 ended
GRJ152 —
51772D — Plate, Step, LH
51772-0G020 Plate, Step, LH
2010-05 → 2013-11 ended
GRJ150 —
51772-0G020 Plate, Step, LH
2013-11 → 2015-09 ended
GRJ150 —
51772-0G020 Plate, Step, LH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51772-60180 Plate, Step, LH
2015-03 → 2015-09 ended
TRJ150 —
51772-0G020 Plate, Step, LH
2017-11 → 2020-06 ended
GRJ152 —
51773C — Cover, Step Plate, RH
51773-0G020 note Cover, Step Plate, RH
2010-05 → 2013-11 ended
GRJ150 —
51773-0G020 note Cover, Step Plate, RH
2013-11 → 2017-11 ended
GRJ15# —
51773-0G030 note Cover, Step Plate, RH
2015-09 → 2017-11 ended
TRJ152 —
51773-60170 note Cover, Step Plate, RH
2015-03 → 2015-09 ended
TRJ150 —
51773-0G020 Cover, Step Plate, RH
2017-11 → 2020-06 ended
GRJ152 —
51773-0G030 note Cover, Step Plate, RH
2017-11 → 2020-06 ended
GRJ152 TX —
51773-0G030 note Cover, Step Plate, RH
2017-11 → 2020-06 ended
GRJ152 TX —
51774C — Cover, Step Plate, LH
51774-0G020 note Cover, Step Plate, LH
2010-05 → 2013-11 ended
GRJ150 —
51774-0G020 note Cover, Step Plate, LH
2013-11 → 2017-11 ended
GRJ15# —
51774-0G030 note Cover, Step Plate, LH
2015-09 → 2017-11 ended
TRJ152 —
51774-60170 note Cover, Step Plate, LH
2015-03 → 2015-09 ended
TRJ150 —
51774-0G020 Cover, Step Plate, LH
2017-11 → 2020-06 ended
GRJ152 —
51774-0G030 note Cover, Step Plate, LH
2017-11 → 2020-06 ended
GRJ152 TX —
51774-0G030 note Cover, Step Plate, LH
2017-11 → 2020-06 ended
GRJ152 TX —
51778B — Cover, Side Door Step Plate, NO.1
51778-0G010 Cover, Side Door Step Plate, NO.1
2010-05 → 2013-11 ended
GRJ150 —
51778-0G010 Cover, Side Door Step Plate, NO.1
2013-11 → 2015-09 ended
GRJ150 —
51778-0G010 Cover, Side Door Step Plate, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51778-60050 Cover, Side Door Step Plate, NO.1
2015-03 → 2015-09 ended
TRJ150 —
51778-0G010 Cover, Side Door Step Plate, NO.1
2017-11 → 2020-06 ended
GRJ152 —
51779B — Cover, Side Door Step Plate, NO.2
51779-0G010 Cover, Side Door Step Plate, NO.2
2010-05 → 2013-11 ended
GRJ150 —
51779-0G010 Cover, Side Door Step Plate, NO.2
2013-11 → 2015-09 ended
GRJ150 —
51779-0G010 Cover, Side Door Step Plate, NO.2
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51779-60130 Cover, Side Door Step Plate, NO.2
2015-03 → 2015-09 ended
TRJ150 —
51779-0G010 Cover, Side Door Step Plate, NO.2
2017-11 → 2020-06 ended
GRJ152 —
51781 — Panel, Step, RH
51781-0G020 Panel, Step, RH
2010-05 → 2013-11 ended
GRJ150 —
51781-0G020 Panel, Step, RH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51781-0G020 Panel, Step, RH
2013-11 → 2015-09 ended
GRJ150 —
51781-60290 Panel, Step, RH
2015-03 → 2015-09 ended
TRJ150 —
51781-0G020 Panel, Step, RH
2017-11 → 2020-06 ended
GRJ152 —
51782 — Panel, Step, LH
51782-0G020 Panel, Step, LH
2010-05 → 2013-11 ended
GRJ150 —
51782-0G020 Panel, Step, LH
2013-11 → 2015-09 ended
GRJ150 —
51782-0G020 Panel, Step, LH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51782-60270 Panel, Step, LH
2015-03 → 2015-09 ended
TRJ150 —
51782-0G020 Panel, Step, LH
2017-11 → 2020-06 ended
GRJ152 —
51793A — Bracket, Side Step, NO.1 RH
51793-0G010 Bracket, Side Step, NO.1 RH
2010-05 → 2013-11 ended
GRJ150 —
51793-0G010 Bracket, Side Step, NO.1 RH
2013-11 → 2015-09 ended
GRJ150 —
51793-0G010 Bracket, Side Step, NO.1 RH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51793-60190 Bracket, Side Step, NO.1 RH
2015-03 → 2015-09 ended
TRJ150 —
51793-0G010 Bracket, Side Step, NO.1 RH
2017-11 → 2020-06 ended
GRJ152 —
51793B — Bracket, Side Step, NO.1, LH
51793-0G010 Bracket, Side Step, NO.1, LH
2010-05 → 2013-11 ended
GRJ150 —
51793-0G010 Bracket, Side Step, NO.1, LH
2013-11 → 2015-09 ended
GRJ150 —
51793-0G010 Bracket, Side Step, NO.1, LH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51793-60190 Bracket, Side Step, NO.1, LH
2015-03 → 2015-09 ended
TRJ150 —
51793-0G010 Bracket, Side Step, NO.1, LH
2017-11 → 2020-06 ended
GRJ152 —
51795A — Bracket, Side Step, NO.2 RH
51795-0G010 Bracket, Side Step, NO.2 RH
2010-05 → 2013-11 ended
GRJ150 —
51795-0G010 Bracket, Side Step, NO.2 RH
2013-11 → 2015-09 ended
GRJ150 —
51795-0G010 Bracket, Side Step, NO.2 RH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51795-60110 Bracket, Side Step, NO.2 RH
2015-03 → 2015-09 ended
TRJ150 —
51795-0G010 Bracket, Side Step, NO.2 RH
2017-11 → 2020-06 ended
GRJ152 —
51796 — Bracket, Side Step, NO.2 LH
51795-0G010 Bracket, Side Step, NO.2 LH
2010-05 → 2013-11 ended
GRJ150 —
51795-0G010 Bracket, Side Step, NO.2 LH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51795-0G010 Bracket, Side Step, NO.2 LH
2013-11 → 2015-09 ended
GRJ150 —
51795-60110 Bracket, Side Step, NO.2 LH
2015-03 → 2015-09 ended
TRJ150 —
51795-0G010 Bracket, Side Step, NO.2 LH
2017-11 → 2020-06 ended
GRJ152 —
51797 — Bracket, Side Step, NO.3 RH
51797-0G010 Bracket, Side Step, NO.3 RH
2010-05 → 2013-11 ended
GRJ150 —
51797-0G010 Bracket, Side Step, NO.3 RH
2013-11 → 2015-09 ended
GRJ150 —
51797-0G010 Bracket, Side Step, NO.3 RH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51797-60130 Bracket, Side Step, NO.3 RH
2015-03 → 2015-09 ended
TRJ150 —
51797-0G010 Bracket, Side Step, NO.3 RH
2017-11 → 2020-06 ended
GRJ152 —
51798 — Bracket, Side Step, NO.3 LH
51797-0G010 Bracket, Side Step, NO.3 LH
2010-05 → 2013-11 ended
GRJ150 —
51797-0G010 Bracket, Side Step, NO.3 LH
2013-11 → 2015-09 ended
GRJ150 —
51797-0G010 Bracket, Side Step, NO.3 LH
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
51797-60130 Bracket, Side Step, NO.3 LH
2015-03 → 2015-09 ended
TRJ150 —
51797-0G010 Bracket, Side Step, NO.3 LH
2017-11 → 2020-06 ended
GRJ152 —
58215H — Retainer, Front Floor
52535-28020 Retainer, Front Floor
2010-05 → 2013-11 ended
GRJ150 —
52535-28020 Retainer, Front Floor
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
52535-28020 Retainer, Front Floor
2015-09 → 2017-11 ended
TRJ152 —
52535-28020 Retainer, Front Floor
2013-11 → 2017-11 ended
GRJ152 —
52535-28020 Retainer, Front Floor
2017-11 → 2020-06 ended
GRJ152 —
75865F — Protector, Rocker Panel Moulding, NO.5
75861-0G010 Protector, Rocker Panel Moulding, NO.5
2010-05 → 2013-11 ended
GRJ150 —
75861-0G010 Protector, Rocker Panel Moulding, NO.5
2013-11 → 2015-09 ended
GRJ150 —
75861-0G010 Protector, Rocker Panel Moulding, NO.5
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
75861-60030 Protector, Rocker Panel Moulding, NO.5
2015-03 → 2015-09 ended
TRJ150 —
75861-0G010 Protector, Rocker Panel Moulding, NO.5
2017-11 → 2020-06 ended
GRJ152 —
75866G — Protector, Rocker Panel Moulding, NO.6
75862-0G010 Protector, Rocker Panel Moulding, NO.6
2010-05 → 2013-11 ended
GRJ150 —
75862-0G010 Protector, Rocker Panel Moulding, NO.6
2013-11 → 2015-09 ended
GRJ150 —
75862-0G010 Protector, Rocker Panel Moulding, NO.6
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
75862-60030 Protector, Rocker Panel Moulding, NO.6
2015-03 → 2015-09 ended
TRJ150 —
75862-0G010 Protector, Rocker Panel Moulding, NO.6
2017-11 → 2020-06 ended
GRJ152 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
