Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

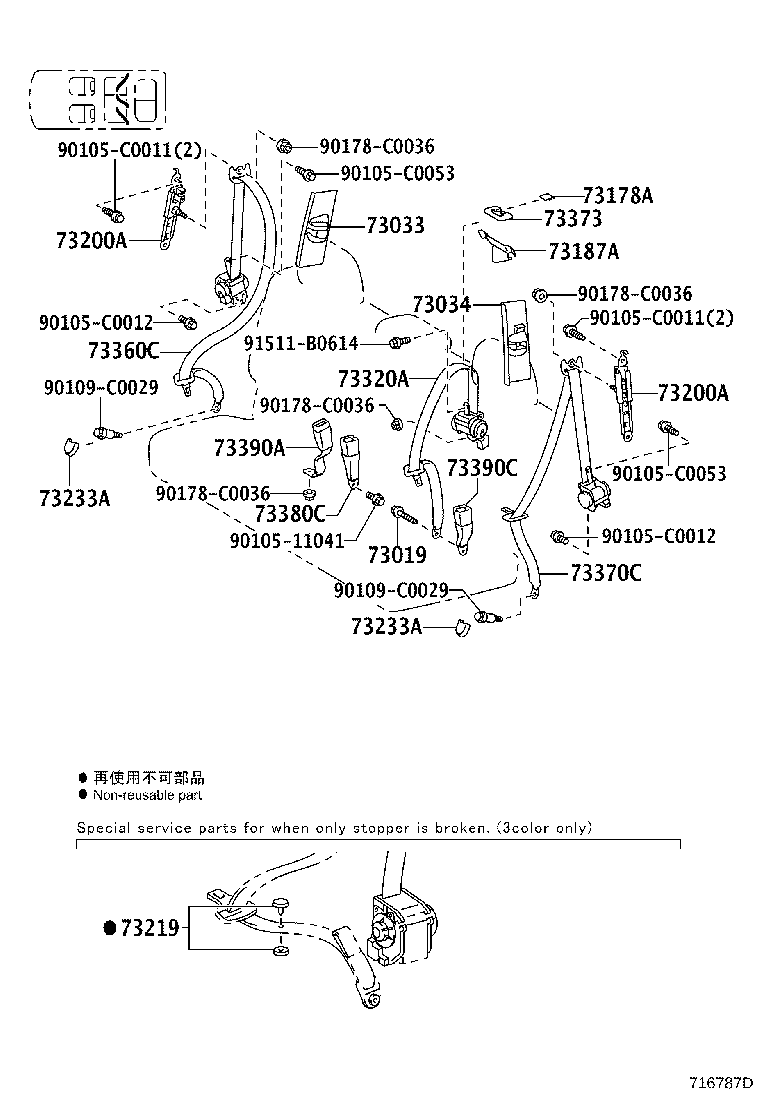

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73019 — Shaft Sub-assy, Seat Belt | ||||
| 73134-60010 |
Shaft Sub-assy, Seat Belt
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73134-60010 |
Shaft Sub-assy, Seat Belt
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73134-60010 note |
Shaft Sub-assy, Seat Belt
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73134-60010 note |
Shaft Sub-assy, Seat Belt
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73134-60010 |
Shaft Sub-assy, Seat Belt
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73033 — Plate Sub-assy, Rear Shoulder Belt Anchor, RH | ||||
| 73033-60020-A0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73033-0G010-A0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73033-0G010-B0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73033-60020-A2 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2013-11 → 2014-01
ended
|
GRJ150 | — | |
| 73033-60020-A2 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73033-60020-B1 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2013-11 → 2014-01
ended
|
GRJ150 | — | |
| 73033-60020-B1 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73033-0G010-B0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73033-0G010-E0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73033-60020-B1 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73033-60020-E0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73034 — Plate Sub-assy, Rear Shoulder Belt Anchor, LH | ||||
| 73034-60020-A0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73034-0G010-A0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73034-0G010-B0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73034-60020-A2 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2013-11 → 2014-01
ended
|
GRJ150 | — | |
| 73034-60020-A2 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73034-60020-B1 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2013-11 → 2014-01
ended
|
GRJ150 | — | |
| 73034-60020-B1 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2014-01 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73034-0G010-B0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73034-0G010-E0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73034-60020-B1 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73034-60020-E0 note |
Plate Sub-assy, Rear Shoulder Belt Anchor, LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73178A — Cap, Seat Belt Anchor Cover | ||||
| 73178-0G020-A0 note |
Cap, Seat Belt Anchor Cover
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73178-60050-A0 note |
Cap, Seat Belt Anchor Cover
2010-05 → 2012-08
ended
|
GRJ150 | — | |
| 73178-0G020-A1 note |
Cap, Seat Belt Anchor Cover
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73178-0G020-A1 note |
Cap, Seat Belt Anchor Cover
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73178-0G020-A1 note |
Cap, Seat Belt Anchor Cover
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73178-0G020-C0 note |
Cap, Seat Belt Anchor Cover
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73178-0G020-C0 note |
Cap, Seat Belt Anchor Cover
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73178-0G020-C0 note |
Cap, Seat Belt Anchor Cover
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73178-0G030-A0 note |
Cap, Seat Belt Anchor Cover
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73178-0G030-C0 note |
Cap, Seat Belt Anchor Cover
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73178-0G020-C0 note |
Cap, Seat Belt Anchor Cover
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73178-0G020-E0 note |
Cap, Seat Belt Anchor Cover
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73187A — Guide, Rear Seat Shoulder Belt | ||||
| 73187-0G020 |
Guide, Rear Seat Shoulder Belt
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73187-60020 |
Guide, Rear Seat Shoulder Belt
2010-05 → 2012-08
ended
|
GRJ150 | — | |
| 73187-0G020 |
Guide, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73187-0G020 note |
Guide, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73187-0G020 note |
Guide, Rear Seat Shoulder Belt
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73187-0G030 |
Guide, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73187-0G020 |
Guide, Rear Seat Shoulder Belt
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73200A — Adjuster Assy, Front Shoulder Belt Anchor | ||||
| 73200-06080 |
Adjuster Assy, Front Shoulder Belt Anchor
2010-05 → 2012-07
ended
|
GRJ150 | — | |
| 73200-0G020 |
Adjuster Assy, Front Shoulder Belt Anchor
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73200-0G020 |
Adjuster Assy, Front Shoulder Belt Anchor
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 73200-0G020 |
Adjuster Assy, Front Shoulder Belt Anchor
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 73200-0G020 |
Adjuster Assy, Front Shoulder Belt Anchor
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73233A — Cover, Lap Belt Outer Anchor, Rear NO.1 Seat | ||||
| 73233-0G020-A0 note |
Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73233-60020-A2 note |
Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
2010-05 → 2012-03
ended
|
GRJ150 | — | |
| 73233-0G020-A1 note |
Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73233-0G020-C0 note |
Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73233-0G020-C1 note |
Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73233-0G020-E0 note |
Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73320A — Belt Assy, NO.1 Seat 3 Point Type, LH | ||||
| 73320-0G020-A1 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73320-0G020-A2 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73320-0G020-A2 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73320-0G020-A2 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73320-0G020-C0 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73320-0G020-C0 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73320-0G020-C0 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73320-0G020-C0 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73320-0G020-E0 note |
Belt Assy, NO.1 Seat 3 Point Type, LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73360C — Belt Assy, Rear NO.1 Seat, Outer RH | ||||
| 73360-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2010-05 → 2012-08
ended
|
GRJ150 | — | |
| 73360-0G030-A0 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73360-0G030-A1 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73360-0G030-C1 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73360-0G030-A2 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73360-0G030-C1 note |
Belt Assy, Rear NO.1 Seat, Outer RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73370C — Belt Assy, Rear NO.1 Seat, Outer LH | ||||
| 73370-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2010-05 → 2012-08
ended
|
GRJ150 | — | |
| 73370-0G030-A0 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73370-0G030-A1 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73370-0G030-C1 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 73370-0G030-A2 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73370-0G030-C1 note |
Belt Assy, Rear NO.1 Seat, Outer LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73373 — Cover, Rear Seat Shoulder Belt | ||||
| 73373-0G020-A0 note |
Cover, Rear Seat Shoulder Belt
2012-08 → 2013-11
ended
|
GRJ150 | — | |
| 73373-60110-A0 note |
Cover, Rear Seat Shoulder Belt
2010-05 → 2012-08
ended
|
GRJ150 | — | |
| 73373-0G020-A1 note |
Cover, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73373-0G020-A1 note |
Cover, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73373-0G020-A1 note |
Cover, Rear Seat Shoulder Belt
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73373-0G020-C0 note |
Cover, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73373-0G020-C0 note |
Cover, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73373-0G020-C0 note |
Cover, Rear Seat Shoulder Belt
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73373-0G030-A0 note |
Cover, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73373-0G030-C0 note |
Cover, Rear Seat Shoulder Belt
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73373-0G020-C0 note |
Cover, Rear Seat Shoulder Belt
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73373-0G020-E0 note |
Cover, Rear Seat Shoulder Belt
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73380C — Belt Assy, Rear NO.1 Seat, Inner RH | ||||
| 73380-0G020-A1 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73380-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73380-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73380-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73380-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73380-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73380-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73380-0G030-A0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73380-0G030-C0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73380-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73380-0G020-E0 note |
Belt Assy, Rear NO.1 Seat, Inner RH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73390A — Belt Assy, Rear Seat, Inner | ||||
| 73306-0G020-A1 note |
Belt Assy, Rear Seat, Inner
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73306-0G020-A2 note |
Belt Assy, Rear Seat, Inner
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73306-0G020-A2 note |
Belt Assy, Rear Seat, Inner
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73306-0G020-A2 note |
Belt Assy, Rear Seat, Inner
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73306-0G020-C0 note |
Belt Assy, Rear Seat, Inner
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73306-0G020-C0 note |
Belt Assy, Rear Seat, Inner
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73306-0G020-C0 note |
Belt Assy, Rear Seat, Inner
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73306-0G020-C0 note |
Belt Assy, Rear Seat, Inner
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73306-0G020-E0 note |
Belt Assy, Rear Seat, Inner
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73390C — Belt Assy, Rear NO.1 Seat, Inner LH | ||||
| 73390-0G020-A1 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 73390-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73390-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73390-0G020-A2 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73390-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 73390-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 73390-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 73390-0G030-A0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73390-0G030-C0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# TX | — | |
| 73390-0G020-C0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 73390-0G020-E0 note |
Belt Assy, Rear NO.1 Seat, Inner LH
2017-11 → 2020-06
ended
|
GRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
