Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

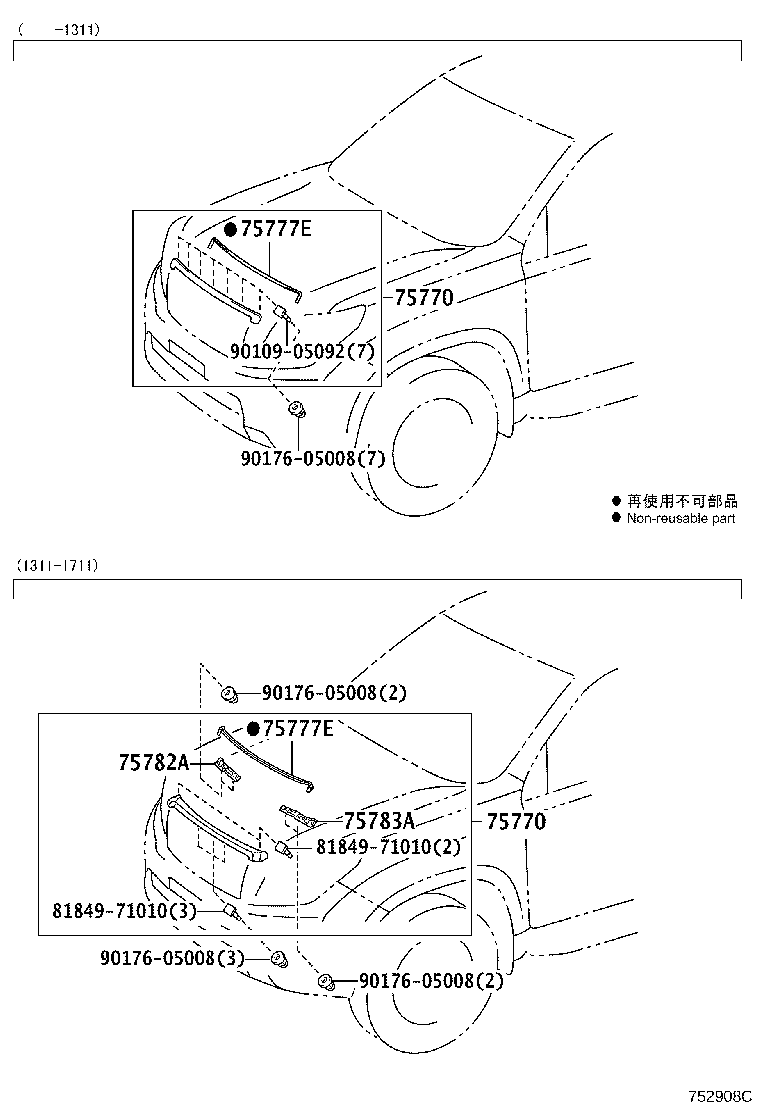

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75770 — Moulding Assy, Hood, Front | ||||
| 75770-0G010 note |
Moulding Assy, Hood, Front
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 75770-0G020 note |
Moulding Assy, Hood, Front
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 75777E — Pad, Hood Front Moulding | ||||
| 75777-0G010 |
Pad, Hood Front Moulding
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 75777-0G020 |
Pad, Hood Front Moulding
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 75777-0G020 |
Pad, Hood Front Moulding
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 75782A — Moulding, Hood, Front RH | ||||
| 75782-0G010 |
Moulding, Hood, Front RH
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 75782-0G010 |
Moulding, Hood, Front RH
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 75783A — Moulding, Hood, Front LH | ||||
| 75783-0G010 |
Moulding, Hood, Front LH
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 75783-0G010 |
Moulding, Hood, Front LH
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
