Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

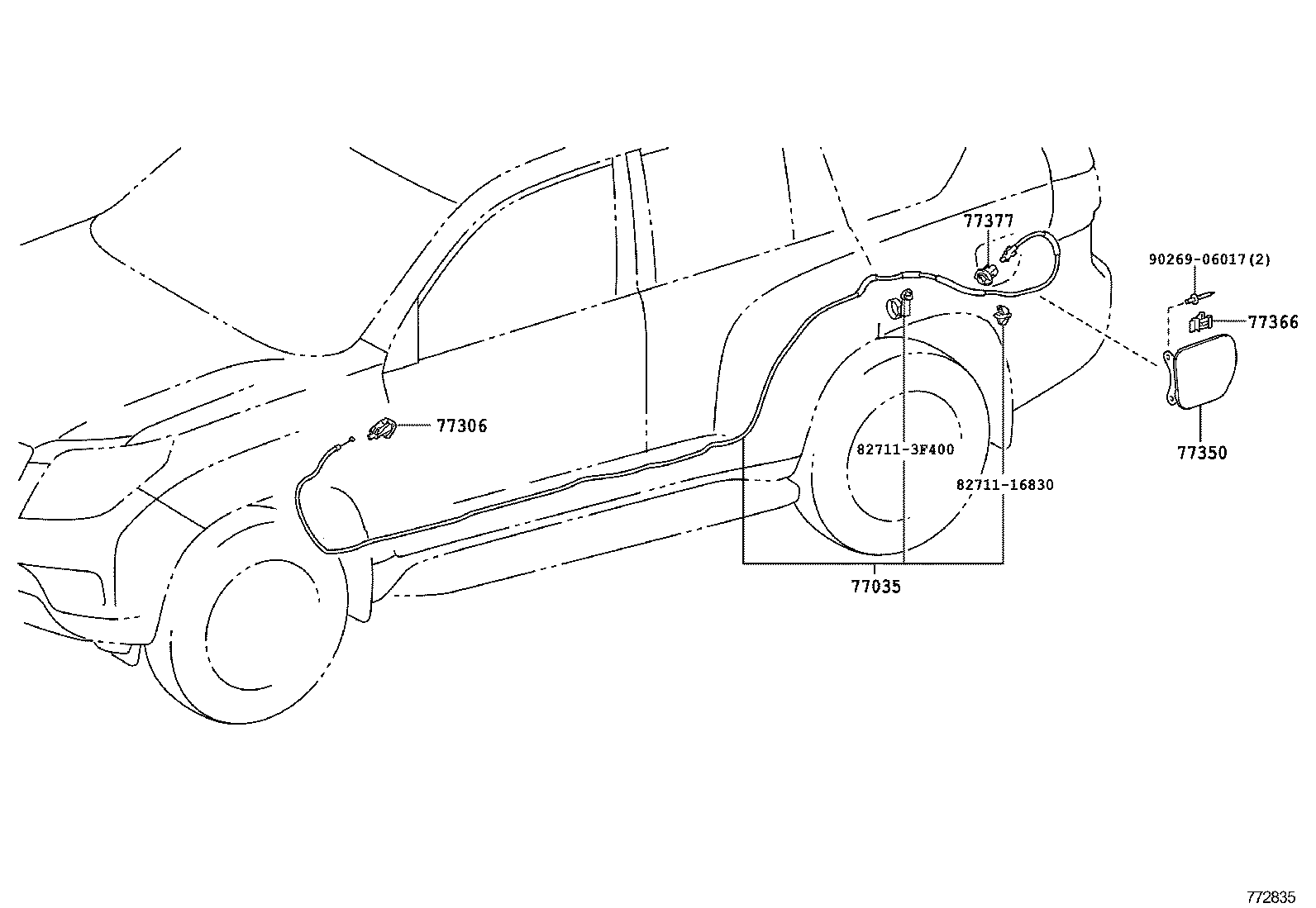

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-0G021 |
Cable Sub-assy, Fuel Lid Lock Control
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 77035-0G021 |
Cable Sub-assy, Fuel Lid Lock Control
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 77035-0G021 |
Cable Sub-assy, Fuel Lid Lock Control
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 77035-0G021 |
Cable Sub-assy, Fuel Lid Lock Control
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-28060-C0 note |
Lever Sub-assy, Fuel Lid Lock Open
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 77306-58020-C0 note |
Lever Sub-assy, Fuel Lid Lock Open
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 77306-58020-C0 note |
Lever Sub-assy, Fuel Lid Lock Open
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-60100 |
Lid Assy, Fuel Filler Opening
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 77350-60100 |
Lid Assy, Fuel Filler Opening
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 77350-60100 |
Lid Assy, Fuel Filler Opening
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 77350-60100 |
Lid Assy, Fuel Filler Opening
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77360-30070 |
Spring, Fuel Filler Opening Lid Hinge
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 77360-30070 |
Spring, Fuel Filler Opening Lid Hinge
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 77360-30070 |
Spring, Fuel Filler Opening Lid Hinge
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 77360-30070 |
Spring, Fuel Filler Opening Lid Hinge
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-12050 |
Retainer, Fuel Filler Opening Lid Lock
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 77377-12050 |
Retainer, Fuel Filler Opening Lid Lock
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 77377-12050 |
Retainer, Fuel Filler Opening Lid Lock
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 77377-12050 |
Retainer, Fuel Filler Opening Lid Lock
2017-11 → 2020-06
ended
|
GRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
